PG

HARNESS

PG-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

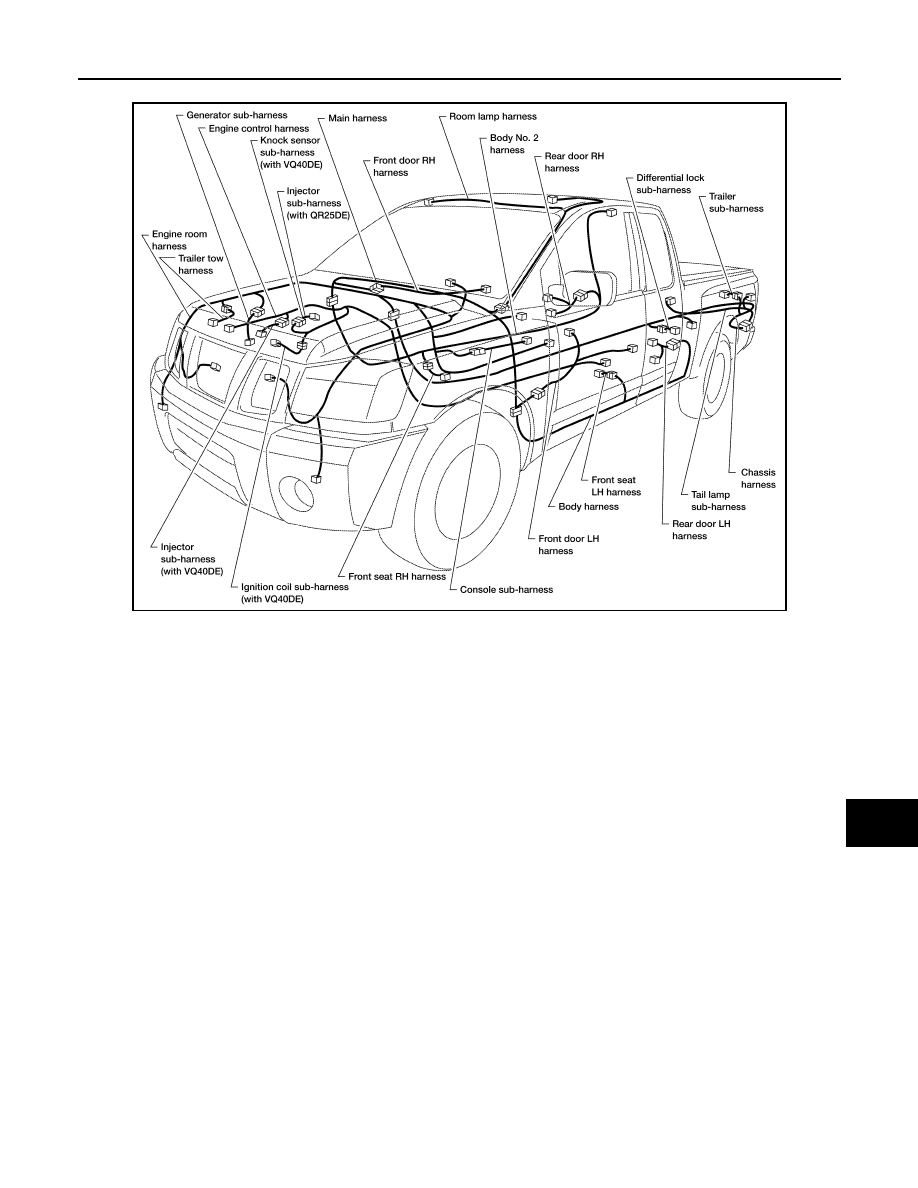

OUTLINE (KING CAB MODELS)

ABMIA1477GB

PG-40

< COMPONENT DIAGNOSIS >

HARNESS

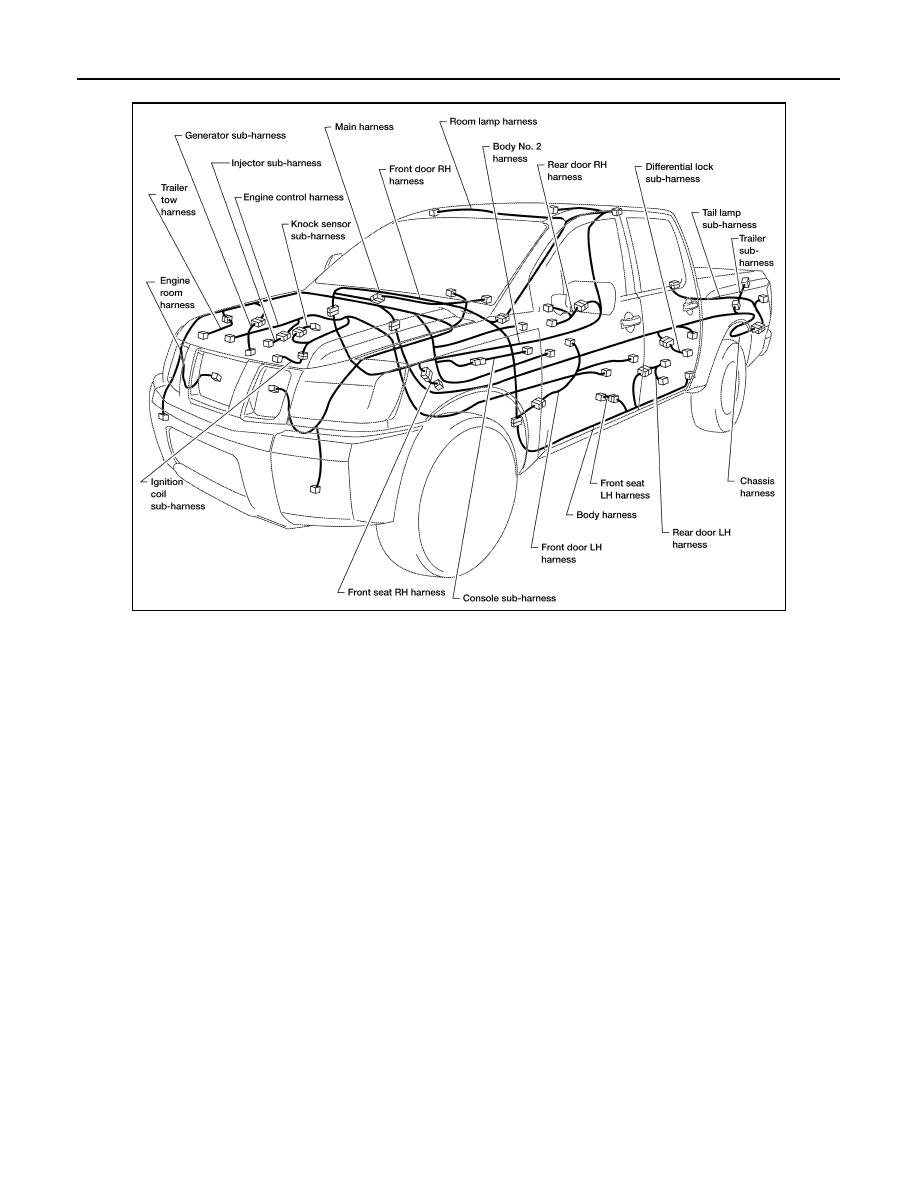

OUTLINE (CREW CAB MODELS)

ABMIA1478GB

PG

HARNESS

PG-41

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

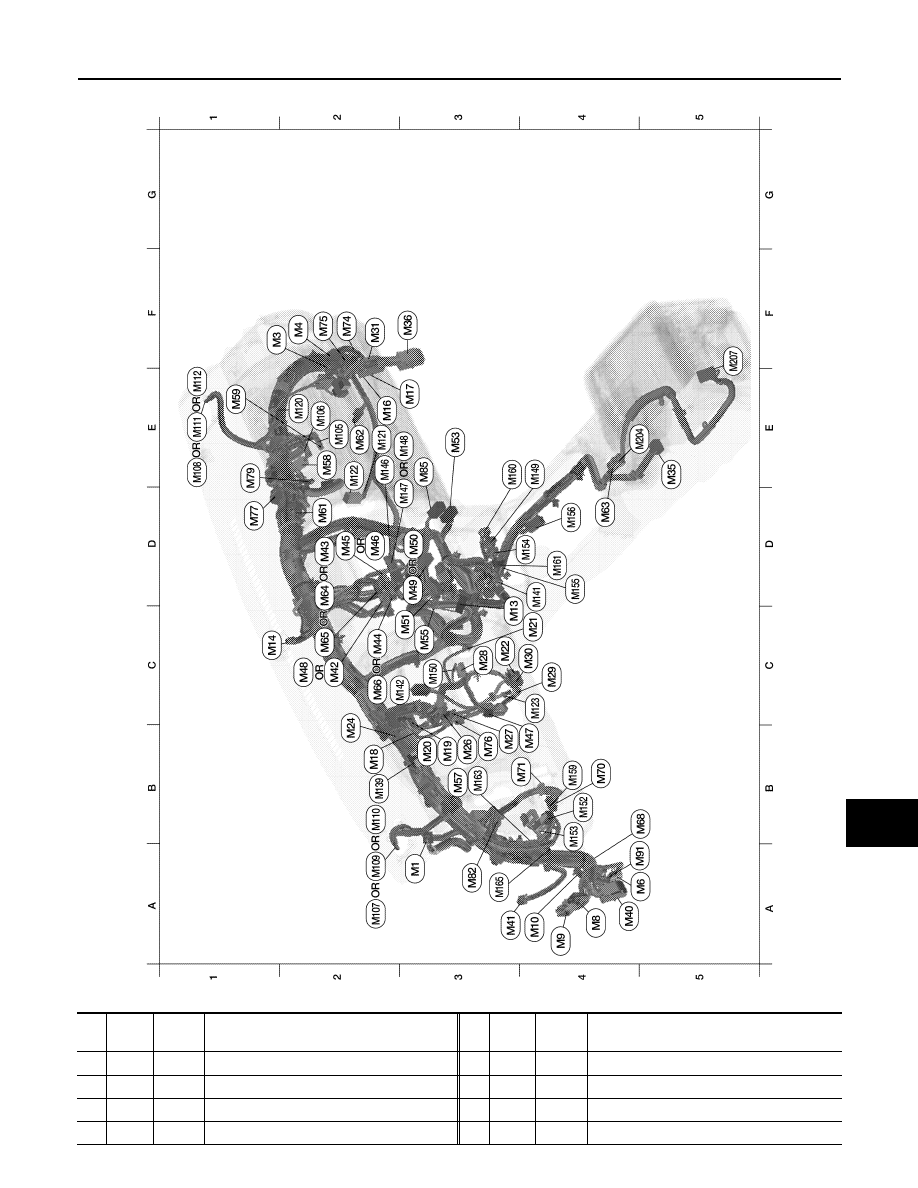

MAIN HARNESS

ABMIA1485GB

A3

M1

W/24

: To R1

C2

M66

W/6

: Audio unit (crew cab with premium audio)
  system

F1

M3

W/8

: Fuse block (J/B)

B5

M68

V/1

: To M250

F2

M4

W/16

: Fuse block (J/B)

B4

M70

W/26

: Differential lock control unit

A5

M6

W/6

: To E10

B4

M71

W/6

: Cargo lamp switch

A4

M8

BR/12

: To D2

F2

M74

W/16

: To D102

PG-42

< COMPONENT DIAGNOSIS >

HARNESS

A4

M9

W/16

: To D1

F2

M75

W/12

: To D101

A4

M10

Y/4

: To E29

B3

M76

W/6

: Electric brake (pre-wiring)

C3

M13

BR/3

: Front passenger air bag OFF indicator

D1

M77

Y/4

: Front passenger air bag module (service
  replacement)

C1

M14

B/4

: Optical sensor

E1

M79

—

: Body ground

E2

M16

W/12

: To B162

A3

M82

W/2

: Circuit breaker-2

E3

M17

W/16

: To B163

E3

M85

W/4

: Aux in jack

B2

M18

W/40

: BCM (body control module)

A4

M91

W/16

: To E26

B3

M19

W/15

: BCM (body control module)

E2

M105

Y/2

: Front passenger air bag module

B3

M20

B/15

: BCM (body control module)

E2

M106

O/2

: Front passenger air bag module

C4

M21

W/4

: NATS antenna amp.

E2

M107

BR/2

: Front tweeter LH (crew cab with premium
  audio system)

C3

M22

W/16

: Data link connector

E1

M108

BR/2

: Front tweeter RH (crew cab with premium
  audio system)

B2

M24

W/40

: Combination meter

A2

M109

BR/2

: Front tweeter LH (crew cab with base
  audio system)

B3

M26

W/6

: Ignition switch

B2

M110

BR/2

: Front tweeter LH (king cab with premium
  audio system)

B3

M27

W/2

: Key switch

E1

M111

BR/2

: Front tweeter RH (crew cab with base
  audio system)

C3

M28

W/16

: Combination switch

E1

M112

BR/2

: Front tweeter RH (king cab with premium
  audio system)

C4

M29

Y/6

: Combination switch

E2

M120

W/4

: Remote keyless entry receiver

C4

M30

GR/8

: Combination switch

E2

M121

W/4

: Variable blower control (front)

F2

M31

SMJ

: To E152

E2

M122

W/4

: Front blower motor resistor

E5

M35

Y/28

: Air bag diagnosis sensor unit

C4

M123

W/2

: Tire pressure warning check connector

F3

M36

SMJ

: To B149

A3

M129

V/1

: Satellite radio tuner or pre-wire for satellite
  radio tuner

A4

M40

SMJ

: To B69

B2

M139

B/2

: Doide-6

A3

M41

W/16

: Satellite radio tuner or Pre-wiring
  for satellite radio tuner

D4

M141

GR/8

: 4WD shift switch

C2

M42

W/12

: Audio unit (king cab with premium audio
  system)

C3

M142

B/6

: Mode door motor

C2

M43

W/20

: Audio unit (with base audio system)

E2

M146

GR/2

: Intake sensor

C2

M44

W/6

: Audio unit (king cab with premium audio
  system)

D2

M147

B/6

: Air mix door motor (without VBC)

D2

M45

W/16

: Audio unit (king cab with premium audio
  system)

D2

M148

B/6

: Air mix door motor (with VBC)

D2

M46

W/16

: Audio unit (king cab with premium audio
  system)

E4

M149

W/6

: Differential lock mode switch

B4

M47

W/8

: Steering angle sensor

C3

M150

W/2

: Ignition keyhole illumination

C3

M48

W/12

: Audio unit (crew cab with premium audio
  system)

B4

M152

W/26

: Transfer control unit

D3

M49

B/26

: Front air control (without VBC)

B4

M153

W/24

: Transfer control unit

D3

M50

B/26

: Front air control (with VBC)

D4

M154

GR/6

: VDC off switch

C3

M51

W/8

: Front air control (without VBC)

D4

M155

W/8

: Hill descent control switch

E3

M53

B/3

: Front power socket

D4

M156

W/10

: A/T shift selector

C3

M55

W/4

: Hazard switch

B4

M159

W/16

: Door mirror remote control switch

B3

M57

—

: Body ground

E3

M160

BR/6

: Front heated seat switch RH

E2

M58

B/6

: Intake door motor

D4

M161

W/6

: Front heated seat switch LH
