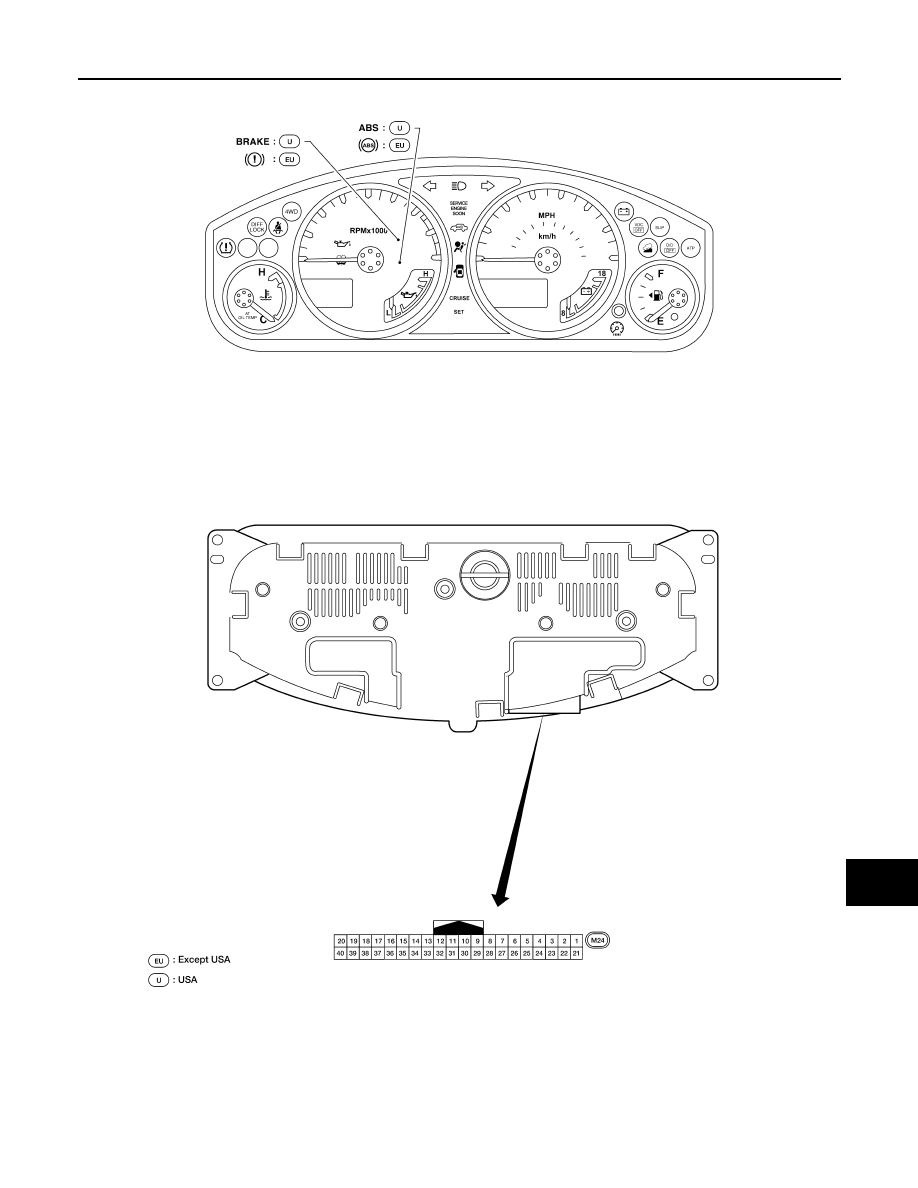

METER SYSTEM : Arrangement of Combination Meter

INFOID:0000000005275768

AWNIA2014GB

MWI-6

< FUNCTION DIAGNOSIS >

METER SYSTEM

METER SYSTEM : Component Parts Location

INFOID:0000000005275769

METER SYSTEM : Component Description

INFOID:0000000005275770

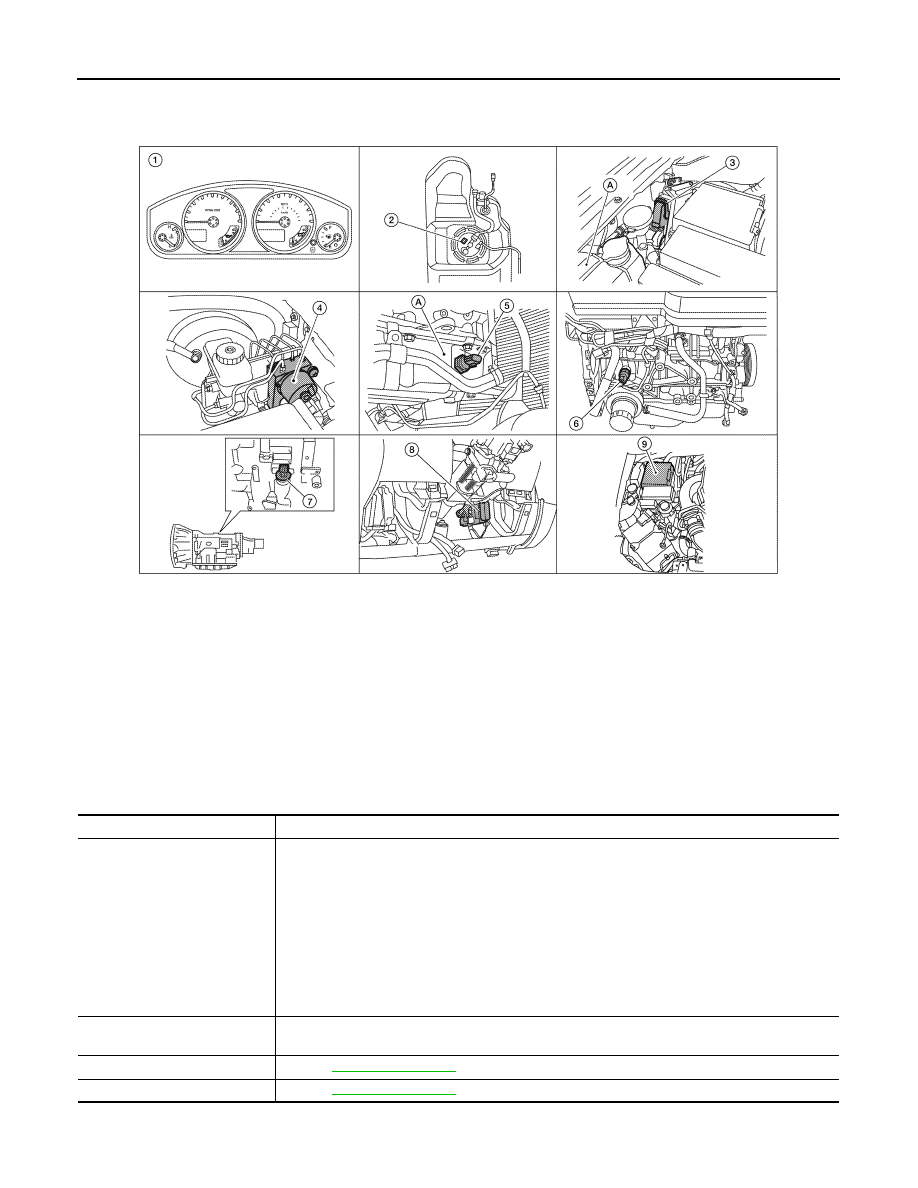

AWNIA0781ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E8 (with VQ40DE)
E16 (with QR25DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E127

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with
QR25DE) (view with engine re-
moved)

7.

A/T assembly F9

8.

BCM M18, M19 (view with lower instru-
ment panel LH removed)

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Engine oil pressure gauge

• Odo/trip meter

• Voltage gauge

• Indicator lamps

• Warning lamps

• Warning chime

• Trip computer

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the combination meter via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-32, "Description"

.

Oil pressure switch

Refer to

MWI-35, "Description"

.

MWI

METER SYSTEM

MWI-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPEEDOMETER

SPEEDOMETER : System Diagram

INFOID:0000000005275771

SPEEDOMETER : System Description

INFOID:0000000005275772

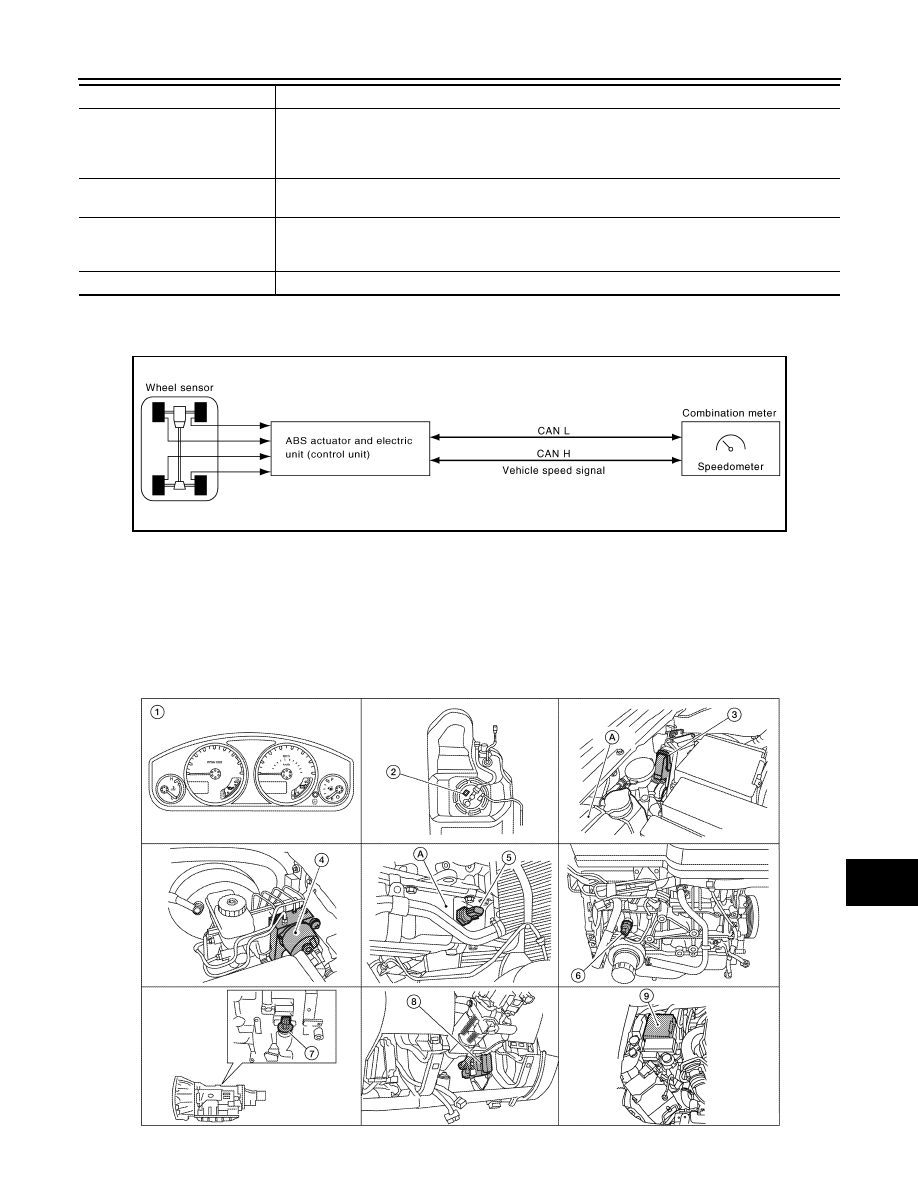

The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via
CAN communication lines.

SPEEDOMETER : Component Parts Location

INFOID:0000000005548831

ECM

Transmits the following signals to the combination meter with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

BCM

• Transmits signals provided by various units to the combination meter with CAN communication

line.

• Transmits the security signal to the combination meter.

TCM

Transmits shift position signal to the combination meter with CAN communication line.

Unit

Description

WKIA5370E

AWNIA0781ZZ

MWI-8

< FUNCTION DIAGNOSIS >

METER SYSTEM

SPEEDOMETER : Component Description

INFOID:0000000005275774

TACHOMETER

TACHOMETER : System Diagram

INFOID:0000000005275775

TACHOMETER : System Description

INFOID:0000000005275776

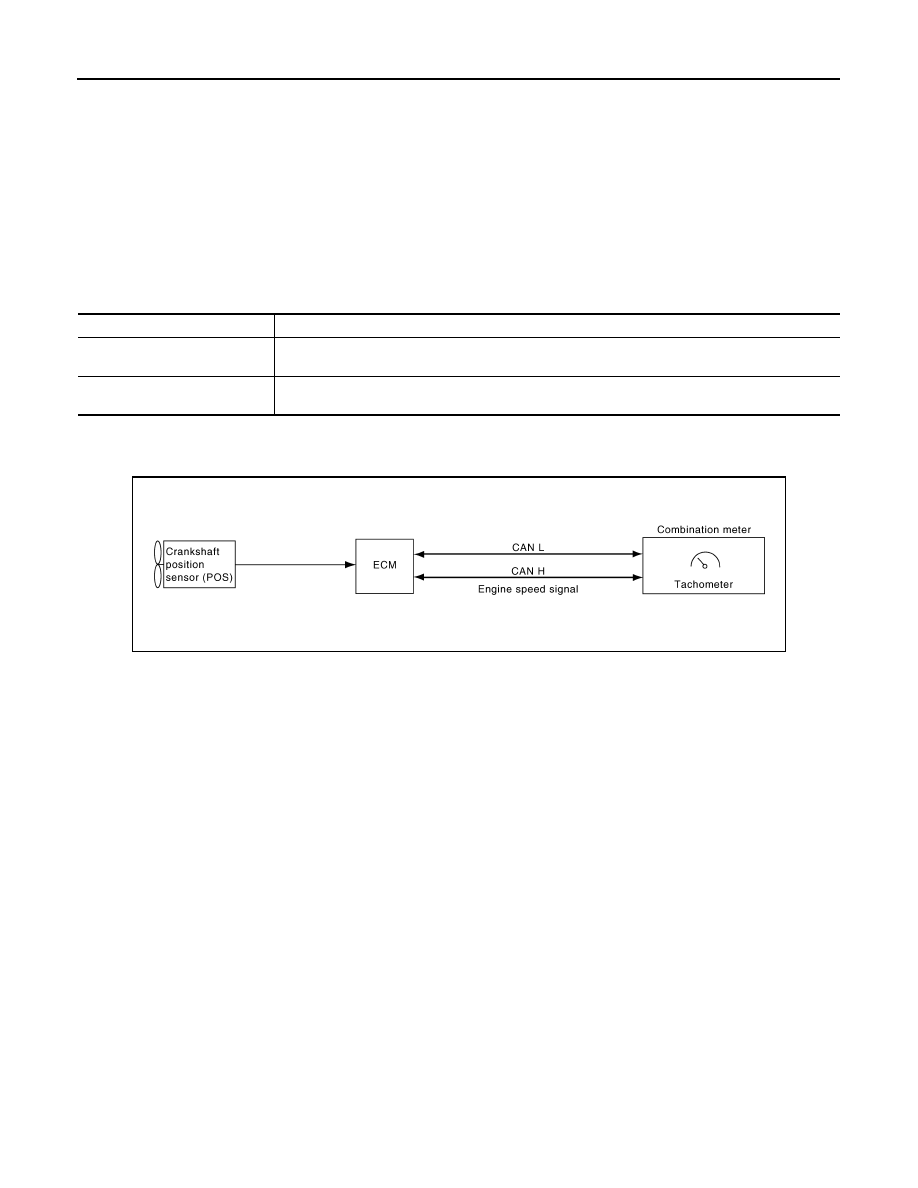

The tachometer indicates engine speed in revolutions per minute (rpm).
The ECM provides an engine speed signal to the combination meter via CAN communication lines.

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E8 (with VQ40DE)
E16 (with QR25DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E127

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with
QR25DE) (view with engine re-
moved)

7.

A/T assembly F9

8.

BCM M18, M19 (view with lower instru-
ment panel LH removed)

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

SKIB6904E
