Nissan Frontier D40. Manual - part 848

MIR-12

< REMOVAL AND INSTALLATION >

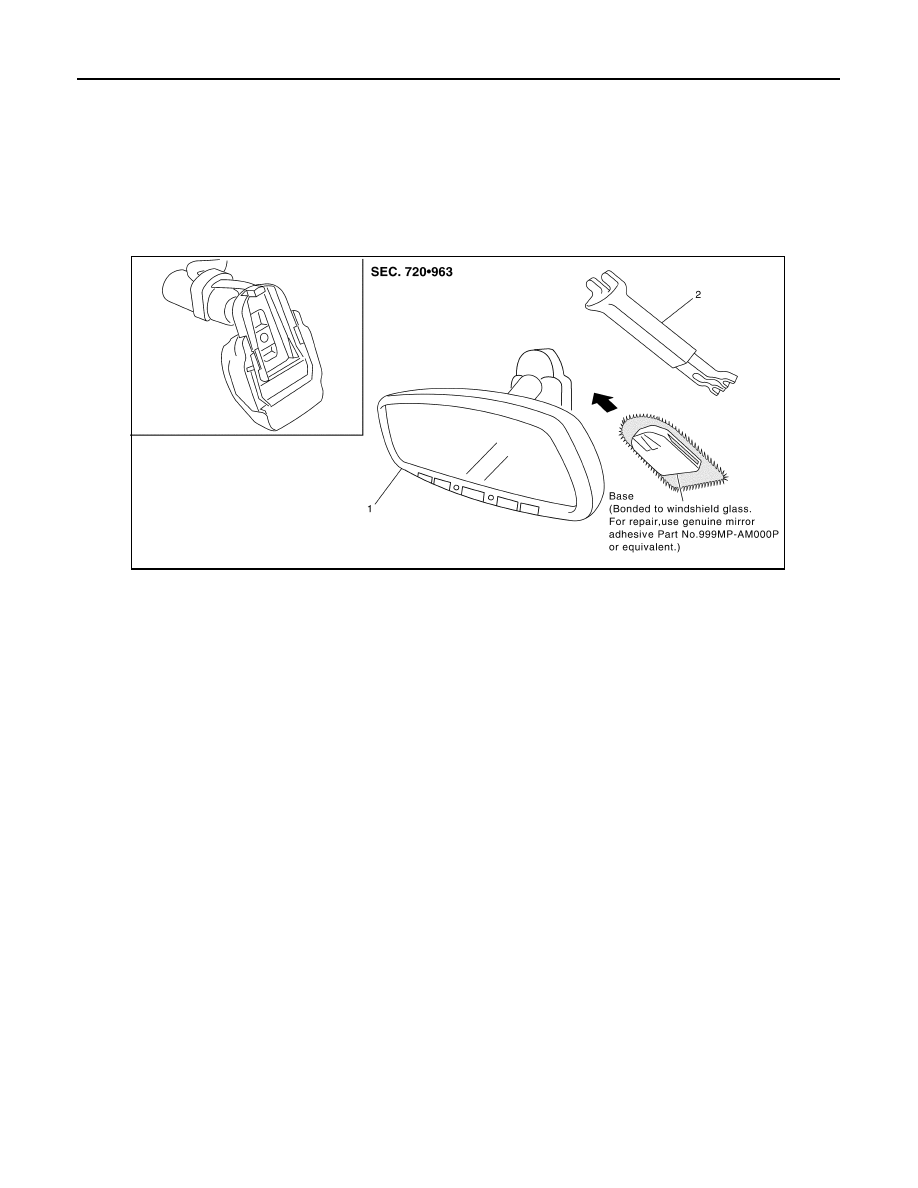

INSIDE MIRROR

REMOVAL AND INSTALLATION

INSIDE MIRROR

Removal

INFOID:0000000005272913

1.

Remove the mirror finisher (if equipped).

2.

Remove the screw and slide the mirror upward to remove.

3.

Disconnect the connector (if equipped).

Installation

INFOID:0000000005272914

Installation is in the reverse order of removal.

1.

Inside mirror

2.

Inside mirror finisher (If equipped)

LIIA0277E

DOOR MIRROR

MIR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

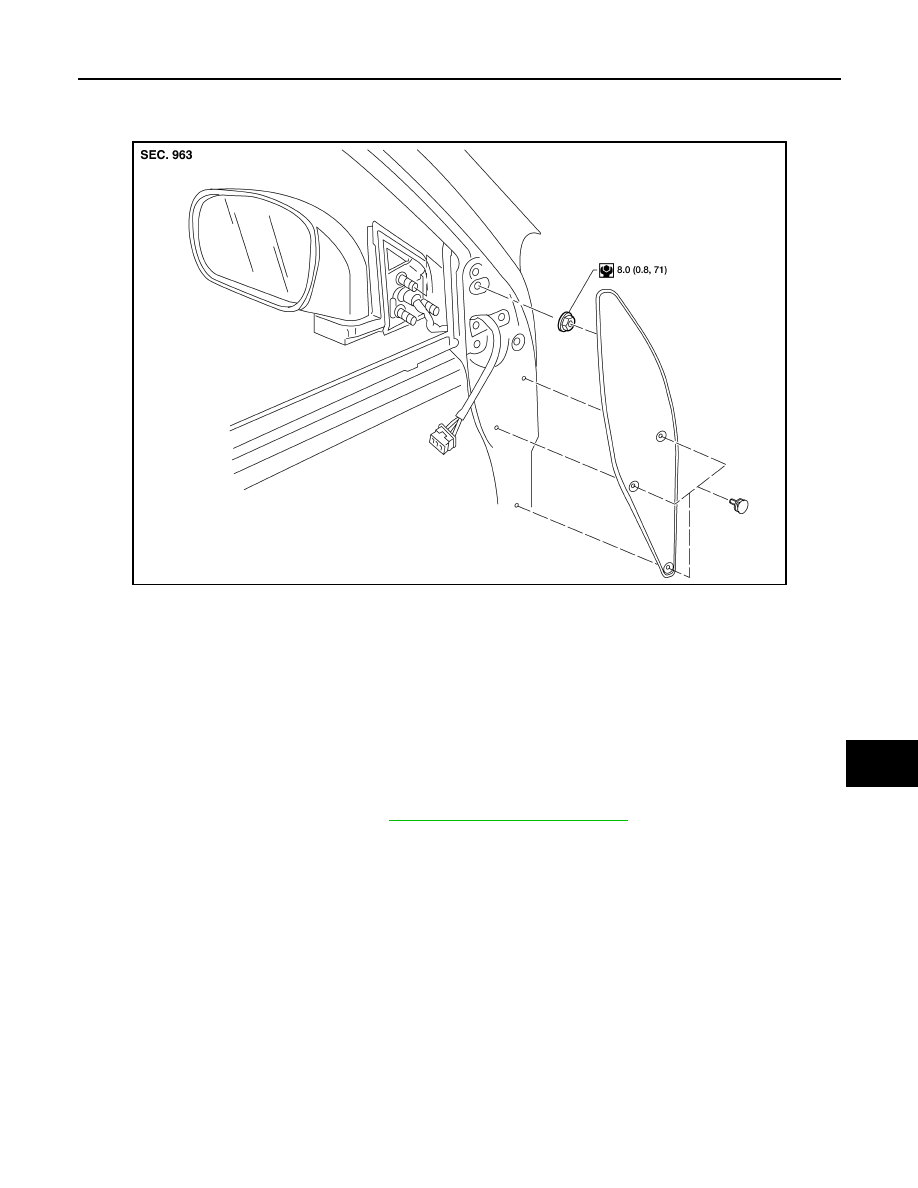

Door Mirror Assembly

INFOID:0000000005272915

NOTE:
Power mirror shown, manual mirror similar.

REMOVAL

Manual Mirror

1.

Remove the front door sash cover.

2.

Remove the nuts and the door mirror assembly.

Power Mirror

NOTE:
Be careful not to damage the mirror bodies.

1.

Remove the front door sash cover.

2.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Disconnect the door mirror harness connector.

4.

Remove the nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1222GB

MIR-14

< REMOVAL AND INSTALLATION >

DOOR MIRROR

Door Mirror Glass

INFOID:0000000005272916

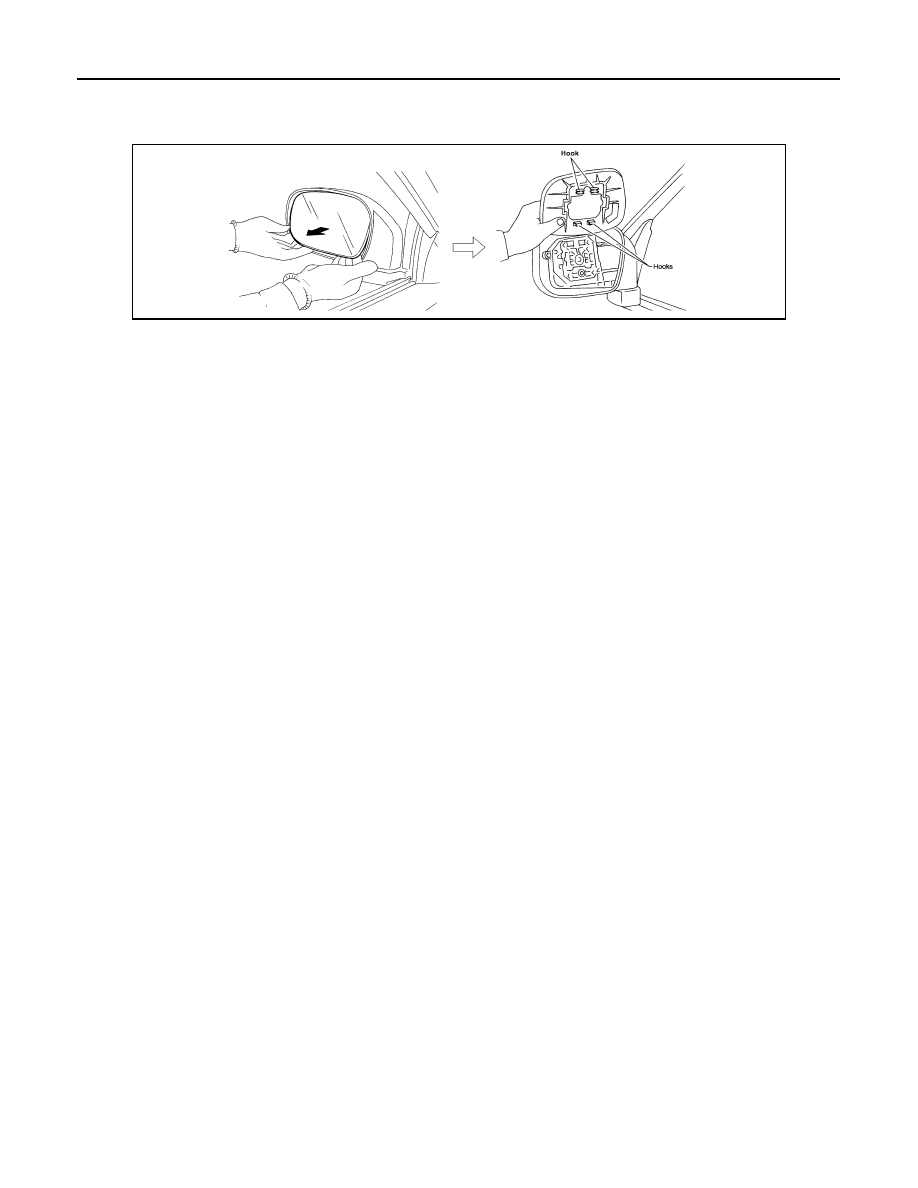

REMOVAL

1.

Angle the mirror fully up.

2.

Remove the mirror.
• Pull from the bottom to disengage the clips.
• Continue to pivot the mirror upward from the bottom to separate the hooks.
• If equipped, disconnect the electrical connectors.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1694E

DOOR MIRROR

MIR-15

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

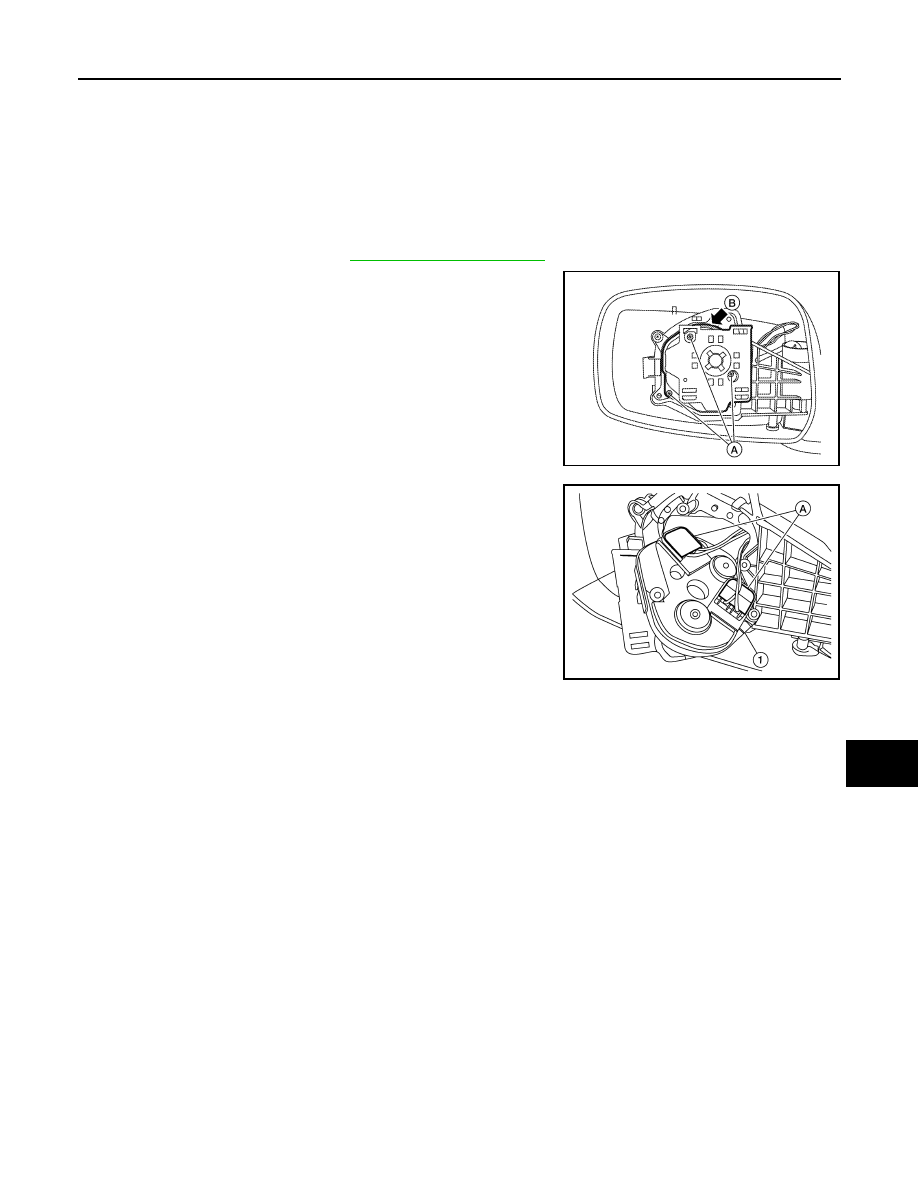

Mirror Actuator

INFOID:0000000005272917

DISASSEMBLY AND ASSEMBLY

Disassembly

1.

Remove the mirror glass. Refer to

MIR-14, "Door Mirror Glass"

2.

Remove the screws (A) and release the actuator from housing
(B).

3.

Disconnect the connectors (A) and remove the actuator (1).

Assembly

Assembly is the reverse order of disassembly.

ALIIA0357GB

ALIIA0358GB
