CAN COMMUNICATION SYSTEM

ABMIA1391GB

LAN

MALFUNCTION AREA CHART

LAN-61

< COMPONENT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

MALFUNCTION AREA CHART

Main Line

INFOID:0000000005272392

Branch Line

INFOID:0000000005272393

Short Circuit

INFOID:0000000005272394

Malfunction area

Reference

Main line between TCM and data link connector

LAN-62, "Diagnosis Procedure"

Main line between data link connector and ABS actuator and
electric unit (control unit)

LAN-64, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-65, "Diagnosis Procedure"

TCM branch line circuit

LAN-66, "Diagnosis Procedure"

Transfer control unit branch line circuit

LAN-67, "Diagnosis Procedure"

BCM branch line circuit

LAN-68, "Diagnosis Procedure"

Differential lock control unit branch line circuit

LAN-69, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-70, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-71, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-72, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-73, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-74, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit

LAN-75, "Diagnosis Procedure"

LAN-62

< COMPONENT DIAGNOSIS >

[CAN]

MAIN LINE BETWEEN TCM AND DLC CIRCUIT

MAIN LINE BETWEEN TCM AND DLC CIRCUIT

Diagnosis Procedure

INFOID:0000000005272395

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).

-

Harness connector F14

-

Harness connector E5

-

Harness connector E152

-

Harness connector M31

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.

Disconnect the following harness connectors.

-

A/T assembly

-

Harness connectors F14 and E5

2.

Check the continuity between the A/T assembly harness connector and the harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the A/T assembly and the harness connector F14.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.

Disconnect the harness connectors E152 and M31.

2.

Check the continuity between the harness connectors.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair the main line between the harness connectors E5 and E152.

4.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

Check the continuity between the harness connector and the data link connector.

Is the inspection result normal?

YES (Present error)>>Check the following items again.

• Decision of CAN system type.

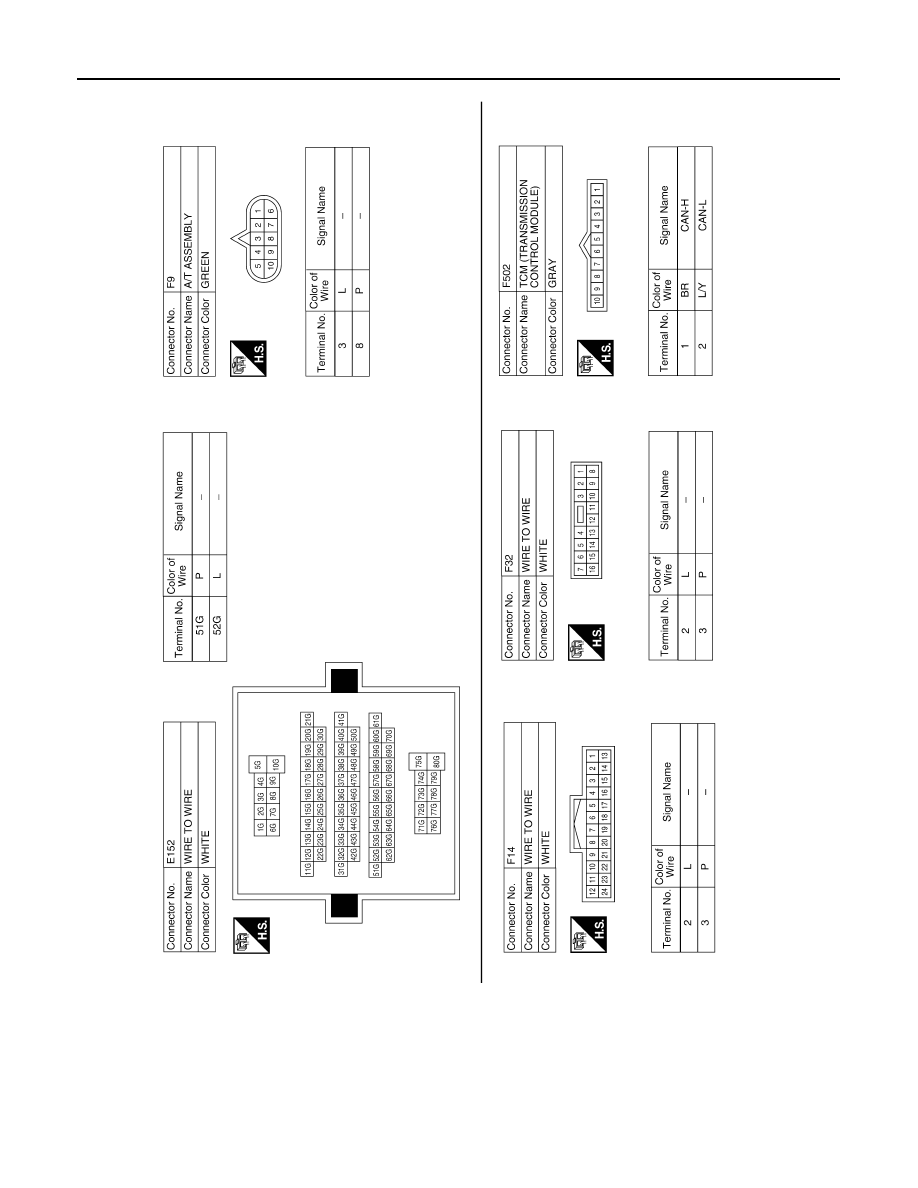

A/T assembly harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

F9

3

F14

2

Existed

8

3

Existed

Harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

E5

2

E152

52G

Existed

3

51G

Existed

Harness connector

Data link connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M31

52G

M22

6

Existed

51G

14

Existed
