PRECAUTIONS

INL-63

< PRECAUTION >

[WITH POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005567994

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

General precautions for service operations

INFOID:0000000005272833

• When removing or disassembling any part, be careful not to damage or deform it. Protect parts which may

get in the way with cloth.

• When removing parts with a screw driver or other tool, protect parts by wrapping them with vinyl or tape.
• Keep removed parts protected with cloth.
• If an non-reuseable part is removed, replace it with a new one.
• After re-assembly has been completed, make sure each part functions correctly.
• Never work with wet hands.
• Turn the lighting switch OFF before disconnecting and connecting the connector.
• Do not use organic solvent (paint thinner or gasoline) to clean lamps or remove sealant residue.

INL-64

< ON-VEHICLE REPAIR >

[WITH POWER DOOR LOCKS]

INTERIOR ROOM LAMP

ON-VEHICLE REPAIR

INTERIOR ROOM LAMP

Removal and Installation

INFOID:0000000005272834

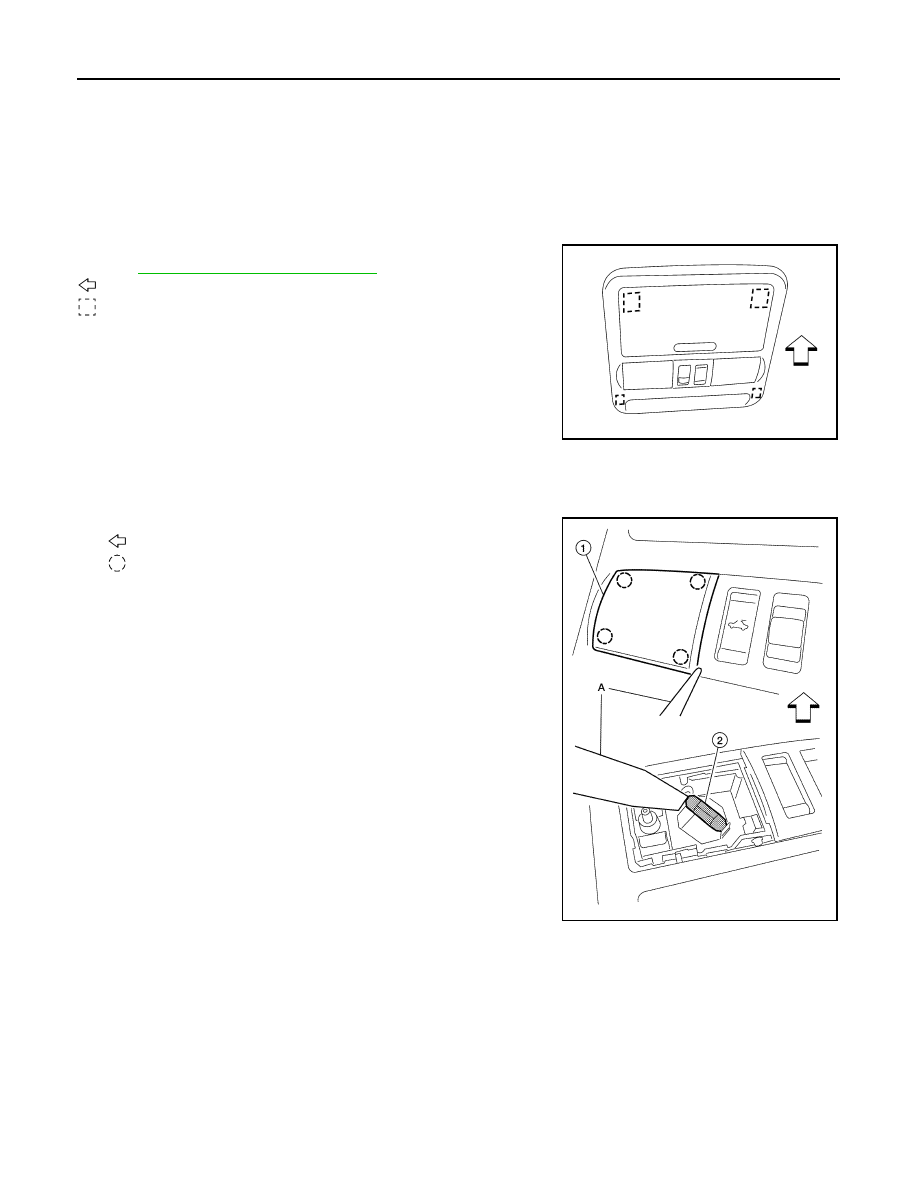

FRONT ROOM/MAP LAMP ASSEMBLY

Removal

The map lamp is replaced as part of the overhead console assembly.
Refer to

INT-24, "Removal and Installation"

.

: Vehicle front

: Metal clip

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Using a suitable tool (A), remove map lamp lens (1).

: Vehicle front

: Pawl

CAUTION:

Wrap a cloth around tool to protect the housing and lens.

2.

Release one side of the bulb (2) from the tab, then pull straight
downward to remove.

VANITY MIRROR LAMP

Removal

AWLIA0867ZZ

Map lamp bulb

: 12V - 8W

AWLIA1667ZZ

INTERIOR ROOM LAMP

INL-65

< ON-VEHICLE REPAIR >

[WITH POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

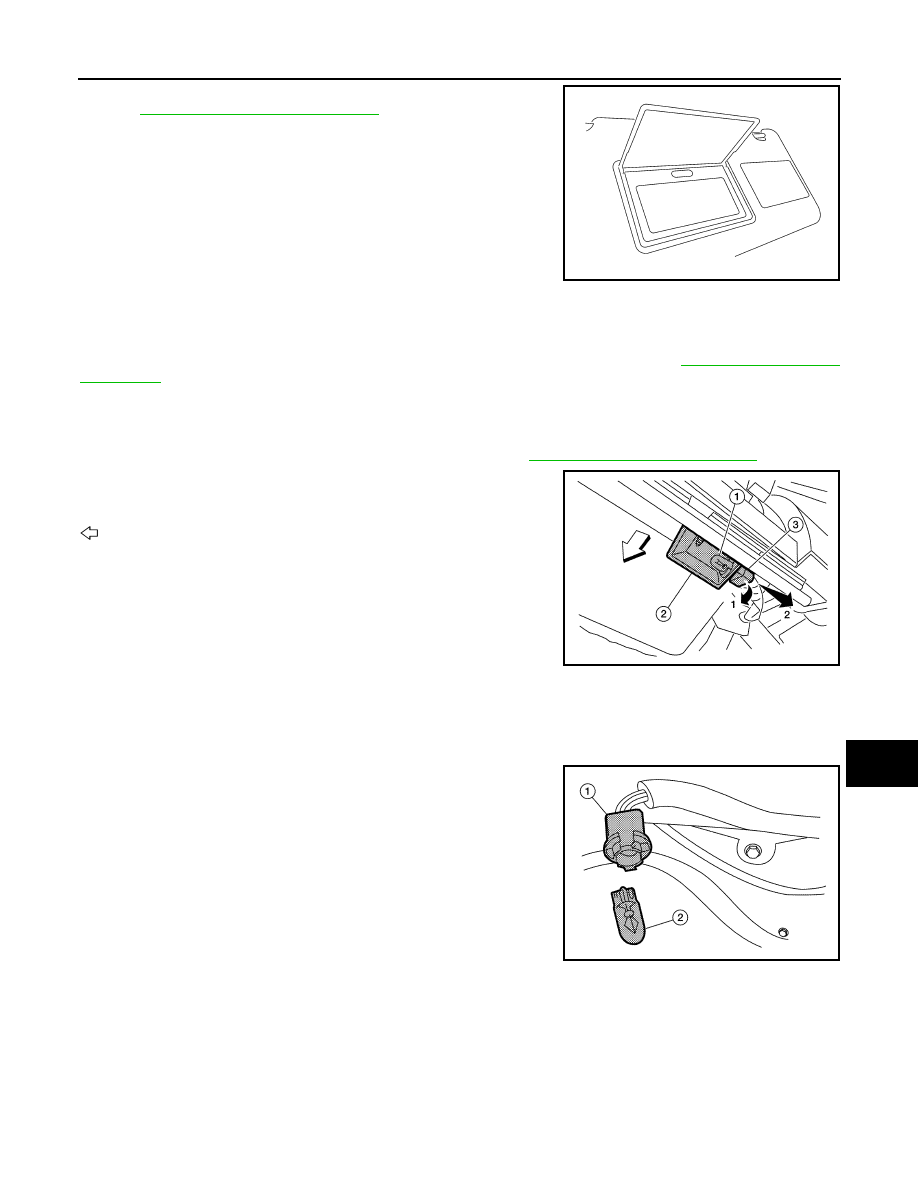

The vanity mirror lamp is replaced as part of the sunvisor assembly.
Refer to

INT-24, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

The vanity mirror lamp bulb is replaced as part of the sunvisor assembly. Refer to

INT-24, "Removal and

Installation"

.

GLOVE BOX LAMP

Removal

1.

Remove lower instrument panel RH and glove box. Refer to

IP-11, "Removal and Installation"

.

2.

Rotate glove box lamp socket (3) with bulb (1) counterclockwise,
then pull away from lamp shield (2) on steering member to
remove.

: Vehicle front

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Remove glove box lamp.

2.

Pull bulb (2) straight out from glove box lamp socket (1) to
remove.

ROOM LAMP

Removal

ALLIA0583ZZ

AWLIA1668ZZ

Glove box lamp bulb

: 12V - 3.4W

ALLIA0321ZZ

INL-66

< ON-VEHICLE REPAIR >

[WITH POWER DOOR LOCKS]

INTERIOR ROOM LAMP

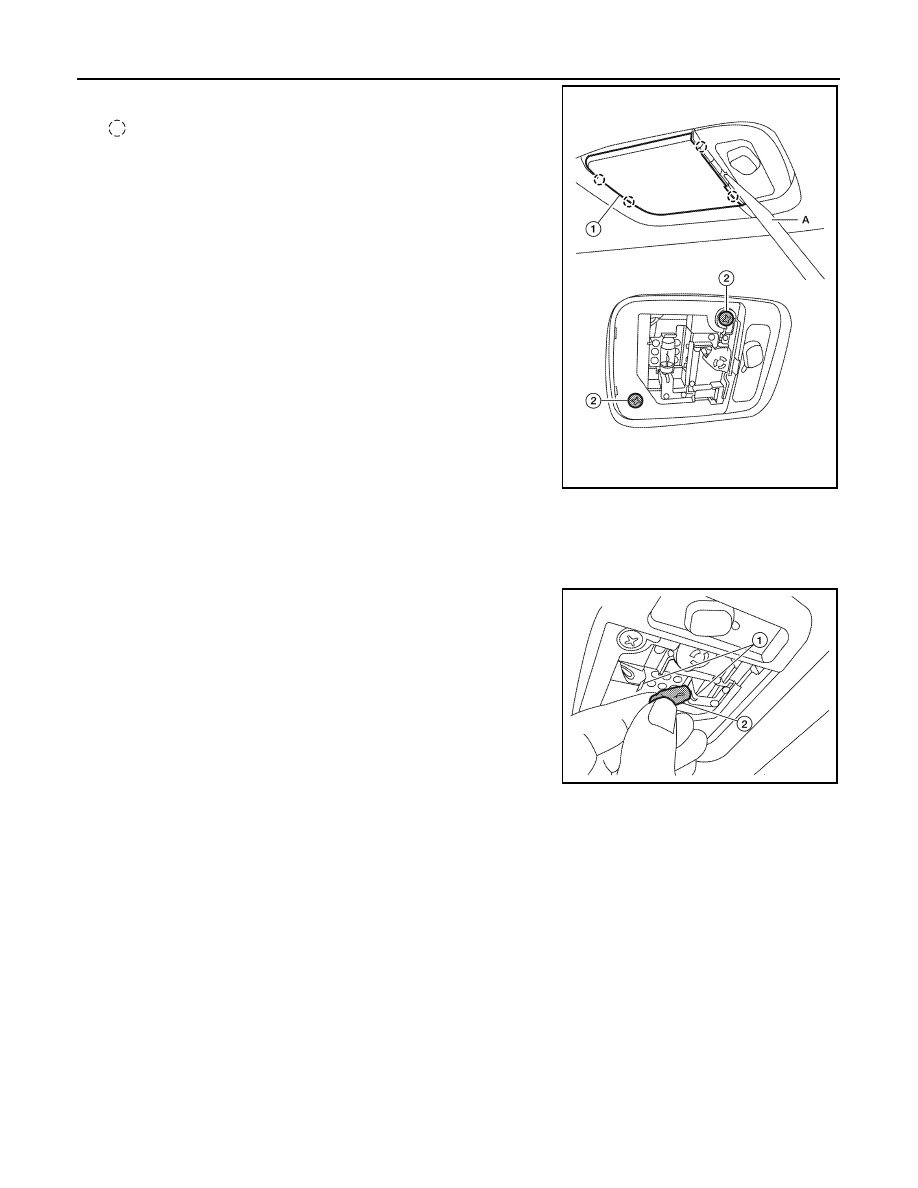

1.

Using a suitable tool (A), release the pawls and remove the
room lamp lens (1).

: Pawl

CAUTION:

Wrap a cloth around tool to protect the housing and lens.

2.

Remove room lamp screws (2).

3.

Disconnect the connector, then remove room lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Using a suitable tool, release the pawls and remove the room lamp lens.

2.

Release the room lamp bulb retainers (1), then pull bulb (2)
straight out to remove.

AWLIA1680ZZ

Room lamp bulb

: 12V - 8W

ALLIA0326ZZ
