Nissan Frontier D40. Manual - part 775

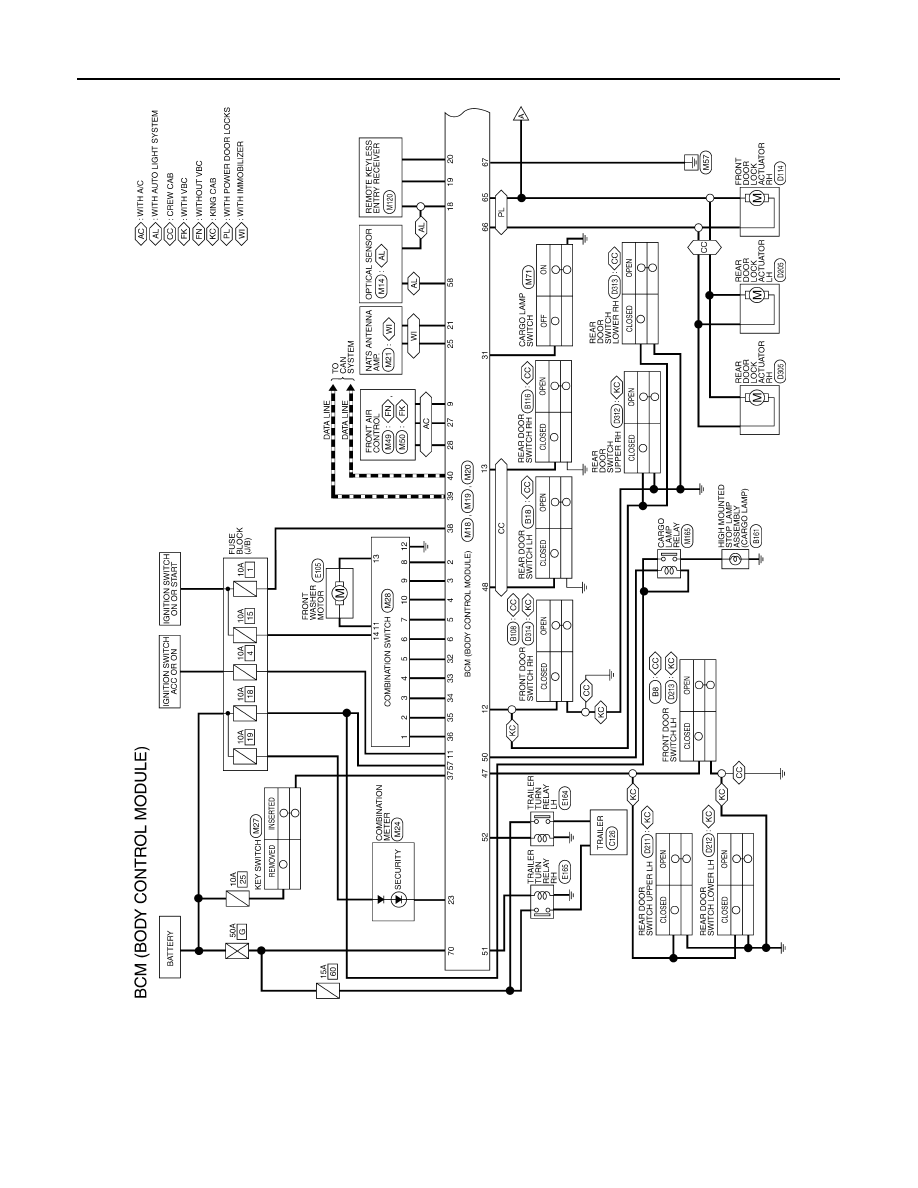

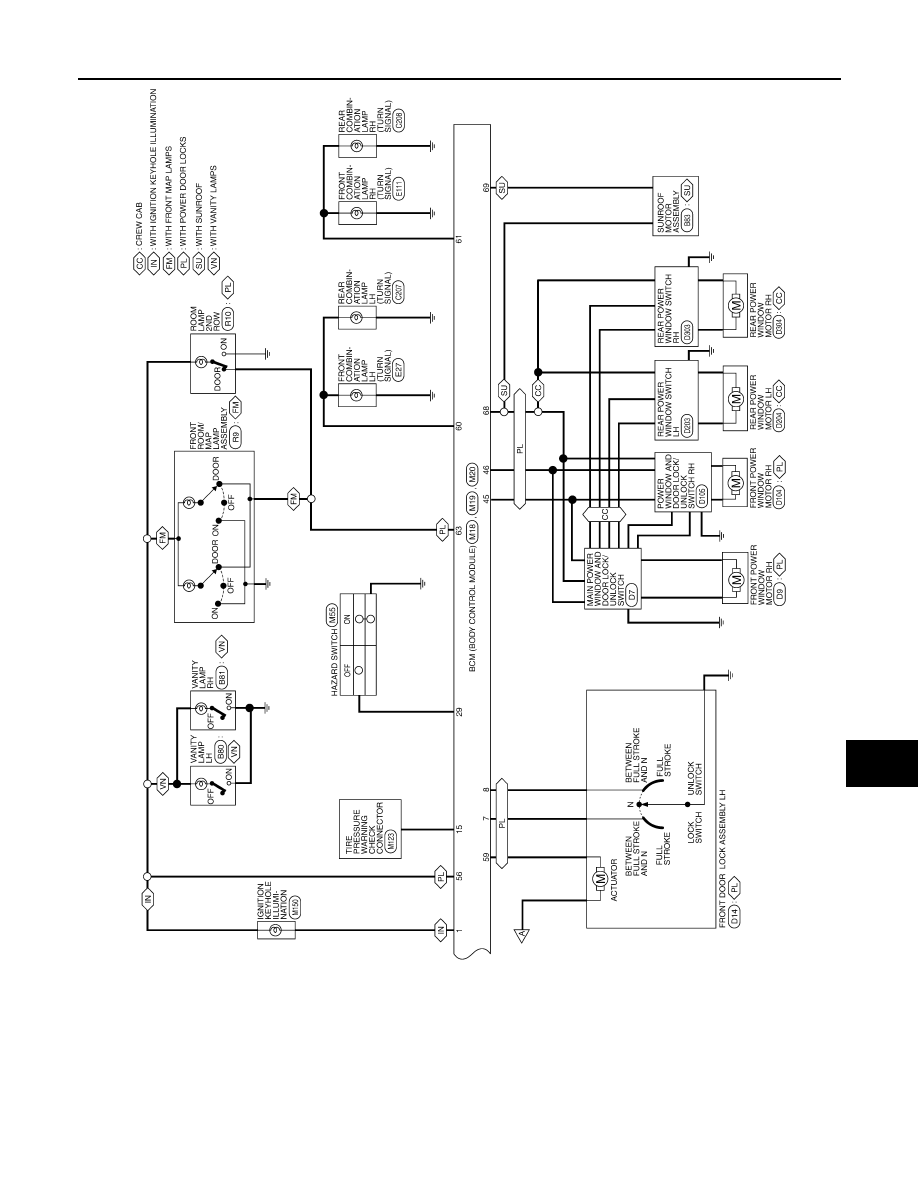

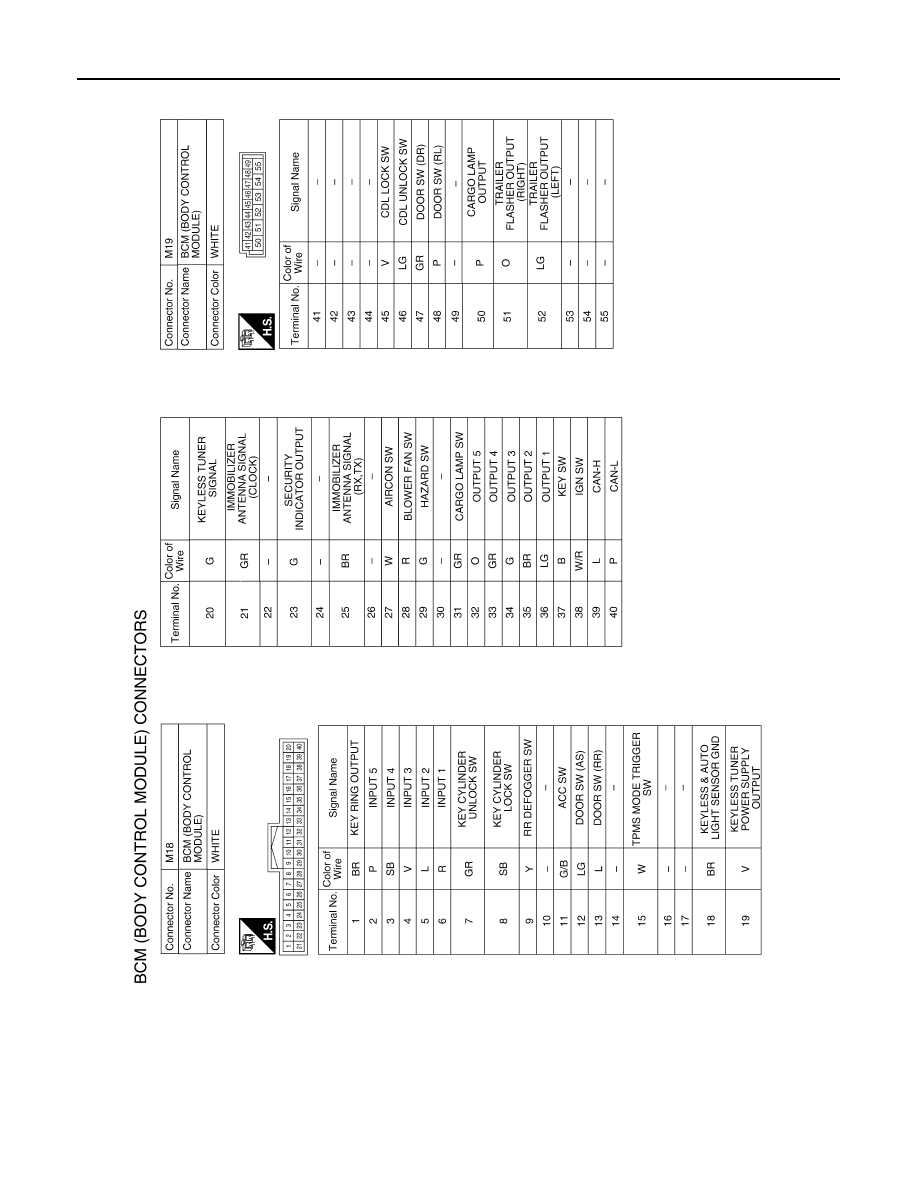

BCM (BODY CONTROL MODULE)
INL-55
< ECU DIAGNOSIS >
[WITH POWER DOOR LOCKS]
C
D
E
F
G
H
I
J
K
M
A
B
INL
N
O
P
1: King cab (with power door lock system)
2: Crew cab (with power door lock system)
68
1
O
Power window power
supply (RAP)
Output
—
Ignition switch ON
Battery voltage
Within 45 seconds after igni-
tion switch OFF
Battery voltage
More than 45 seconds after ig-
nition switch OFF
0V
When front door LH or RH is
open or power window timer
operates
0V
68
2
SB
Power window power
supply (RAP)
Output
—
Ignition switch ON
Battery voltage
Within 45 seconds after igni-
tion switch OFF
Battery voltage
More than 45 seconds after ig-
nition switch OFF
0V
When front door LH or RH is
open or power window timer
operates
0V
69
P
Power window power
supply (BAT)
Output
OFF
—
Battery voltage
70
W
Battery power supply
Input
OFF
—
Battery voltage
Terminal
Wire
color
Item
Signal
input/
output
Measuring condition
Reference value or waveform
(Approx.)
Ignition
switch
Operation or condition
