Switches And Their Control Function

INFOID:0000000005275921

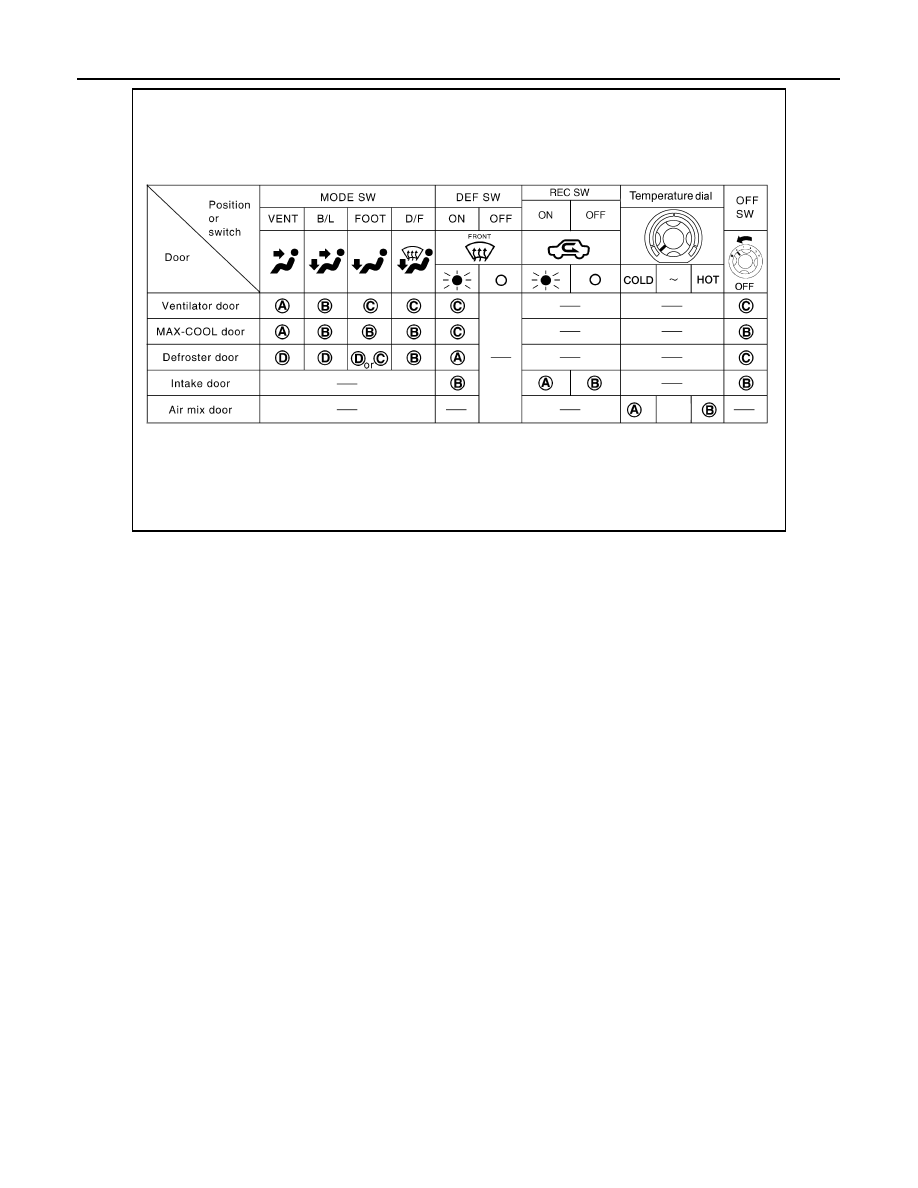

SWITCHES AND THEIR CONTROL FUNCTION

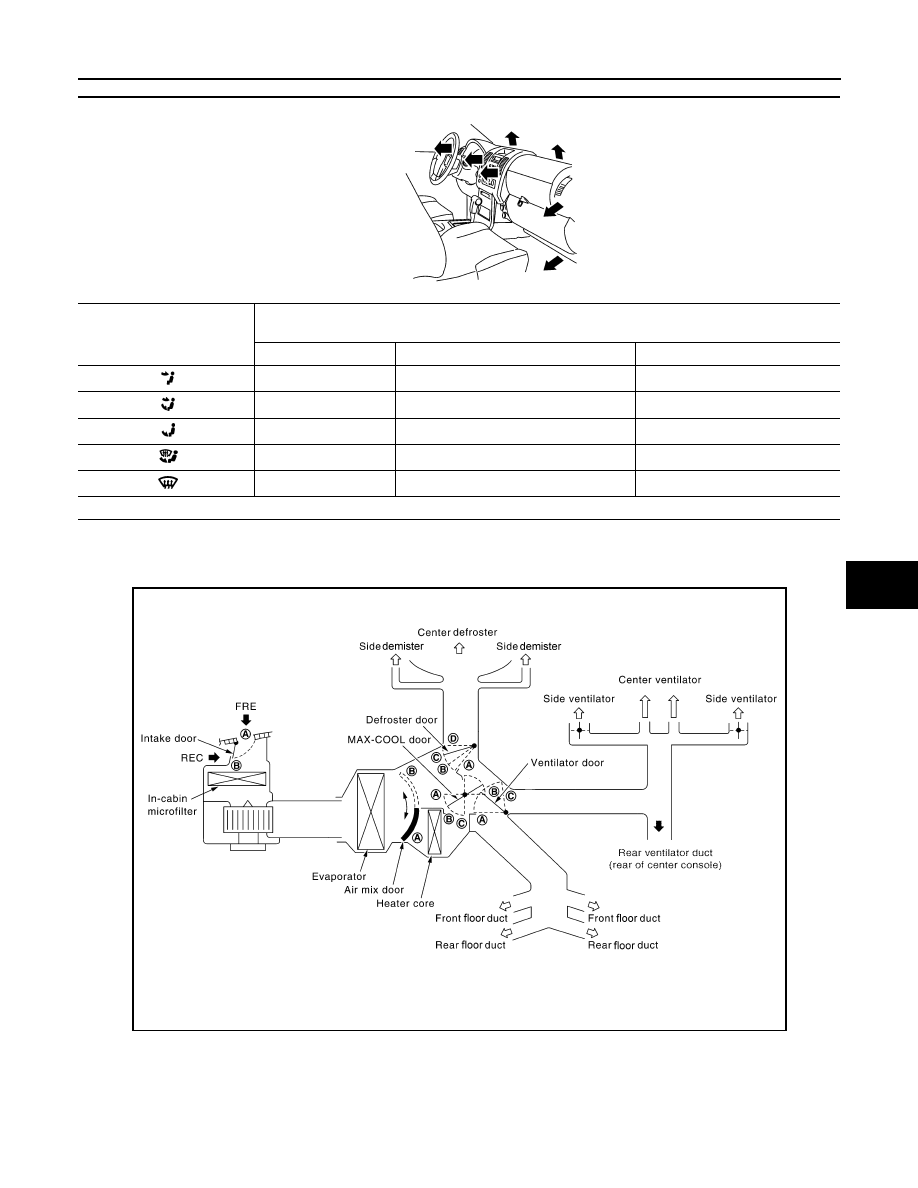

Mode door position

Air outlet/distribution

Vent

Foot

Defroster

95%

5%

—

60%

40%

—

20%

55%

25%

15%

50%

35%

7%

15%

78%

Airflow always present at driver and passenger side demisters

WJIA1296E

AWIIA0271GB

HAC-84

< FUNCTION DIAGNOSIS >

[MANUAL A/C (TYPE 2)]

MANUAL AIR CONDITIONER SYSTEM

WJIA1497E

DIAGNOSIS SYSTEM (BCM)

HAC-85

< FUNCTION DIAGNOSIS >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DIAGNOSIS SYSTEM (BCM)

CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005548995

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

CONSULT-III Function (BCM - AIR CONDITIONER)

INFOID:0000000005548996

DATA MONITOR

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-50, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP (retained accessory power)

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

×

×

×

Panic alarm system

PANIC ALARM

×

HAC-86

< FUNCTION DIAGNOSIS >

[MANUAL A/C (TYPE 2)]

DIAGNOSIS SYSTEM (BCM)

Monitor Item

[Unit]

Contents

IGN ON SW [ON/OFF]

Display [ignition switch position (On)/(Off), ACC position (Off)] status as judged from ignition
switch signal

FAN ON SIG [ON/OFF]

Display [FAN (On)/FAN (Off)] status as judged form blower fan motor switch signal

AIR COND SW [ON/OFF]

Display [COMP (On)/COMP (Off)] status as judged from air conditioner switch signal
