GI-36

< PRECAUTION >

PRECAUTIONS

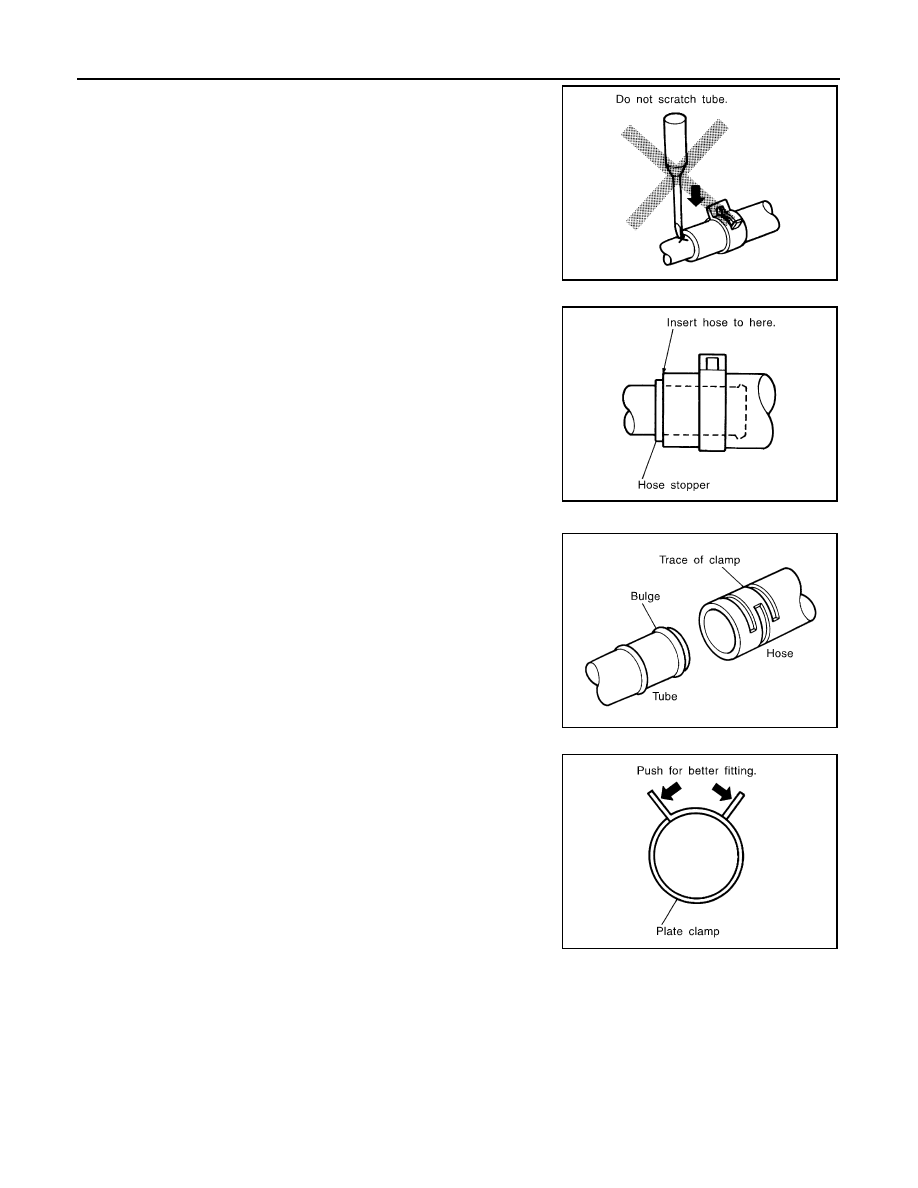

• To prevent damage to rubber hose, do not pry off rubber hose with

tapered tool or screwdriver.

• To reinstall the rubber hose securely, make sure that hose insertion

length and orientation is correct. (If tube is equipped with hose
stopper, insert rubber hose into tube until it butts up against hose
stopper.)

HOSE CLAMPING

• If old rubber hose is re-used, install hose clamp in its original posi-

tion (at the indentation where the old clamp was). If there is a trace
of tube bulging left on the old rubber hose, align rubber hose at
that position.

• Discard old clamps; replace with new ones.

• After installing plate clamps, apply force to them in the direction of

the arrow, tightening rubber hose equally all around.

Precaution for Engine Oils

INFOID:0000000005272999

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin contact
with used oil.
If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

HEALTH PROTECTION PRECAUTIONS

• Avoid prolonged and repeated contact with oils, particularly used engine oils.
• Wear protective clothing, including impervious gloves where practicable.
• Do not put oily rags in pockets.
• Avoid contaminating clothes, particularly underpants, with oil.

SMA019D

SMA020D

SMA021D

SMA022D

PRECAUTIONS

GI-37

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

• Heavily soiled clothing and oil-impregnated footwear should not be worn. Overalls must be cleaned regu-

larly.

• First aid treatment should be obtained immediately for open cuts and wounds.
• Use barrier creams, applying them before each work period, to help the removal of oil from the skin.
• Wash with soap and water to ensure all oil is removed (skin cleansers and nail brushes will help). Prepara-

tions containing lanolin replace the natural skin oils which have been removed.

• Do not use gasoline, kerosene, diesel fuel, gas oil, thinners or solvents for cleaning skin.
• If skin disorders develop, obtain medical advice without delay.
• Where practical, degrease components prior to handling.
• Where there is a risk of eye contact, eye protection should be worn, for example, chemical goggles or face

shields; in addition an eye wash facility should be provided.

GI-38

< PRECAUTION >

LIFTING POINT

LIFTING POINT

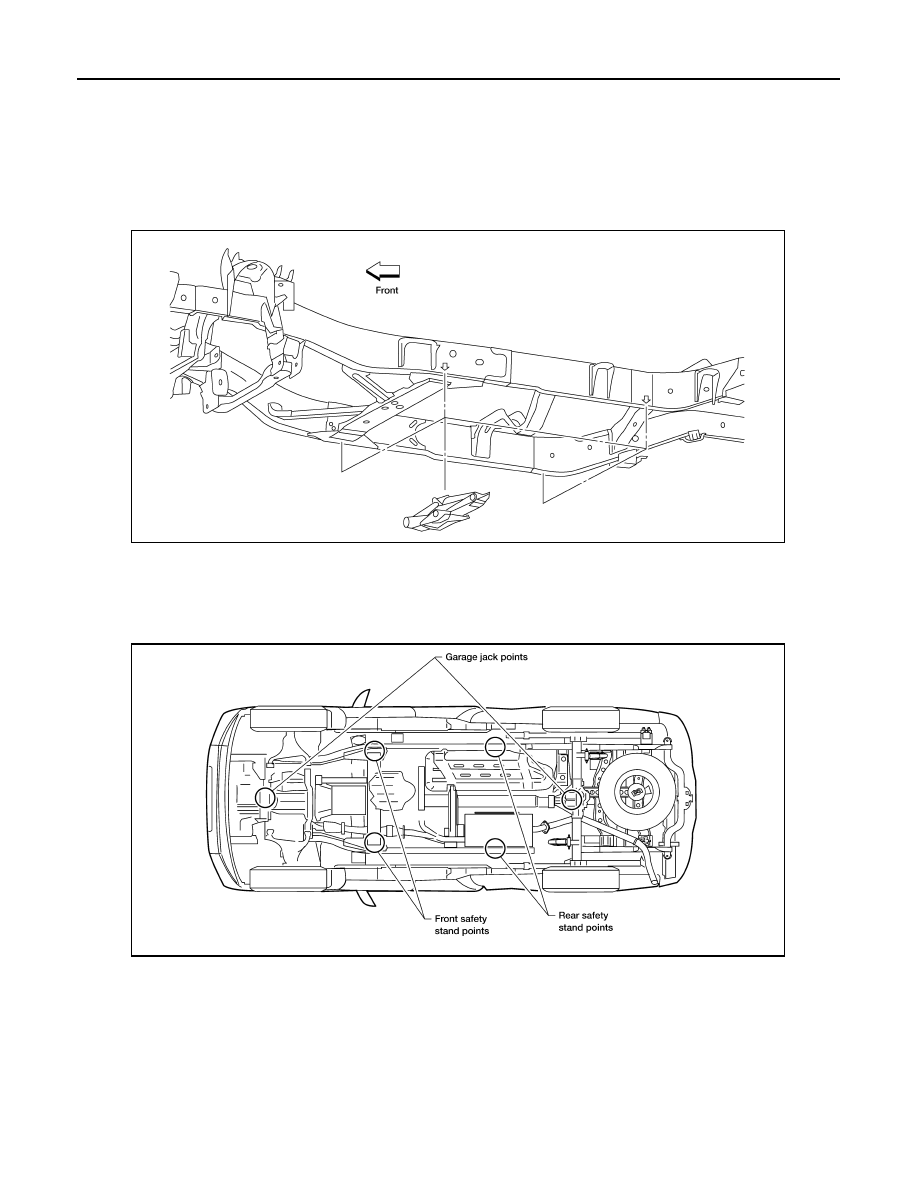

Pantograph Jack

INFOID:0000000005273000

WARNING:

• Never get under the vehicle while it is supported only by the jack. Always use safety stands to sup-

port the frame when you have to get under the vehicle.

• Place wheel chocks at both front and back of the wheels on the ground.

Garage Jack and Safety Stand

INFOID:0000000005273001

CAUTION:

Place a wooden or rubber block between safety stand and vehicle body when the supporting body is
flat.

2-Pole Lift

INFOID:0000000005273002

WARNING:

• When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of

the vehicle are well balanced.

LAIA0052E

WAIA0042E

LIFTING POINT

GI-39

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

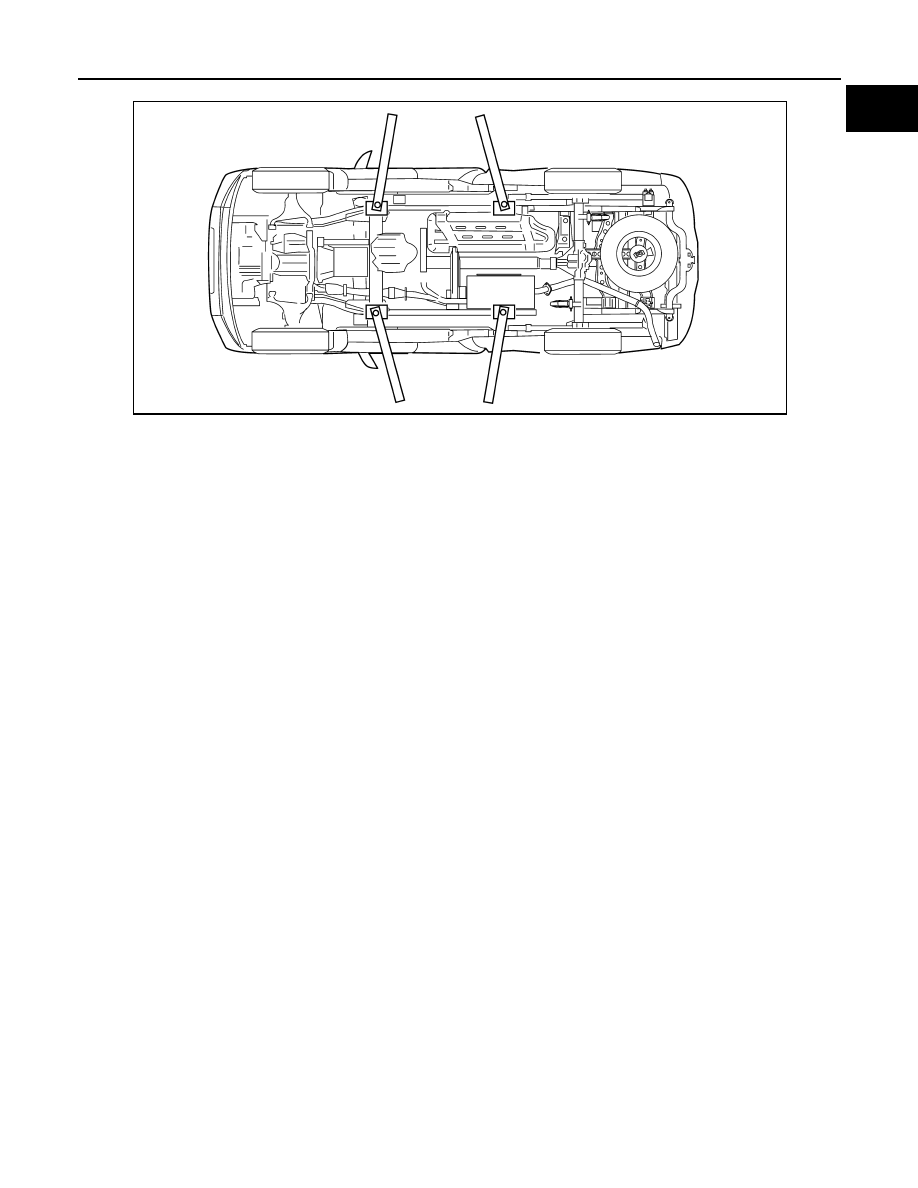

• When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, or fuel lines.

WAIA0043E
