Nissan Frontier D40. Manual - part 679





FAX-6

< REMOVAL AND INSTALLATION >

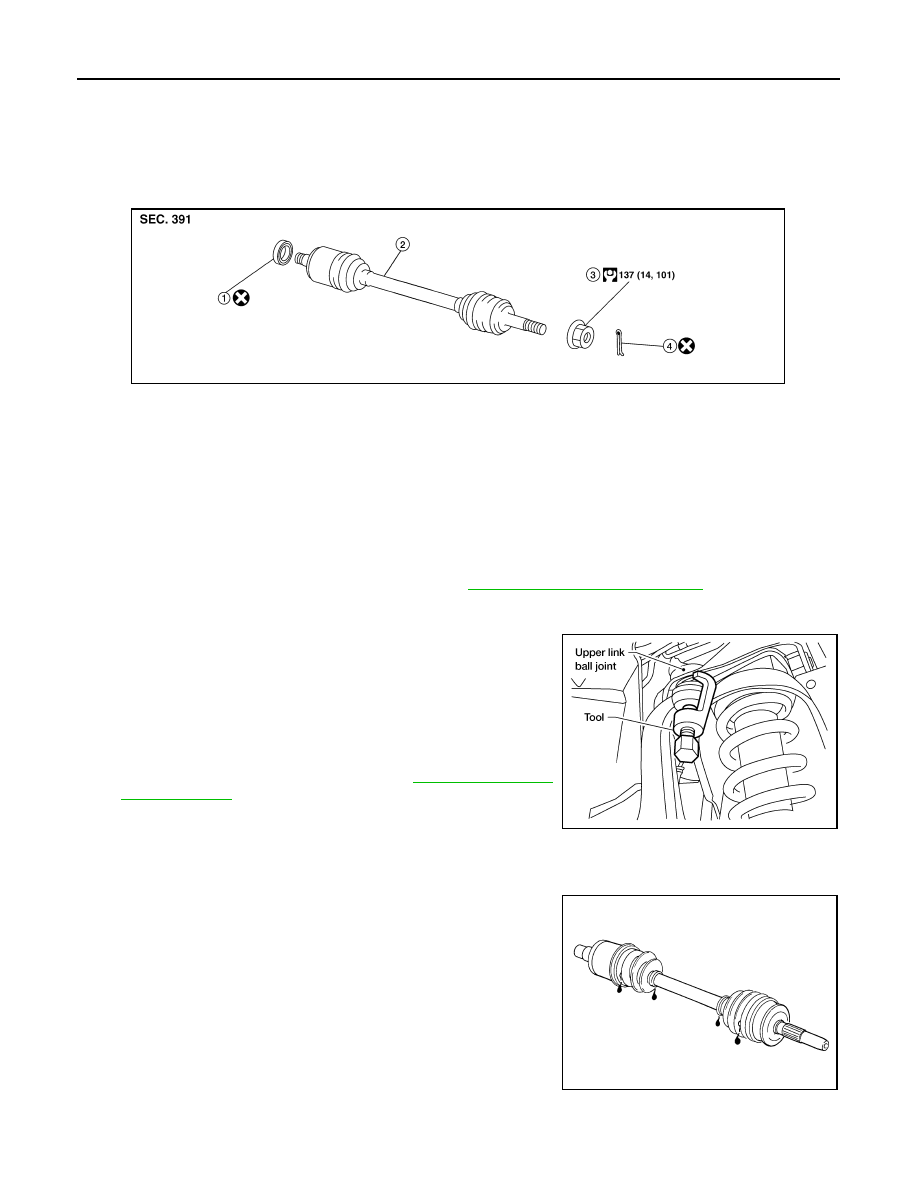

DRIVE SHAFT

REMOVAL AND INSTALLATION

DRIVE SHAFT

Removal and Installation

INFOID:0000000005272963

REMOVAL

1.

Remove wheel and tire using power tool.

2.

Remove rear engine under cover using power tool.

3.

Remove wheel sensor harness from mount on knuckle, then disconnect wheel sensor harness connector.

CAUTION:

Do not pull on wheel sensor harness.

4.

Remove wheel hub and bearing assembly. Refer to

FAX-8, "Removal and Installation"

.

• It is not necessary to remove wheel sensor from wheel hub when wheel hub is not being replaced.
• Carefully feed wheel sensor harness through hole in splash shield.

5.

Separate upper link ball joint stud from steering knuckle using
Tool.
• Support lower link with jack.

6.

Remove drive shaft assembly.
• Pry drive shaft front final drive using suitable tool.
• Remove differential side oil seal. Refer to

DLN-188, "Removal

and Installation"

.

INSPECTION AFTER REMOVAL

• Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-

ness.

• Check boot for cracks or other damage, and for grease leakage.
• If damaged, disassemble drive shaft to verify damage, and repair

or replace as necessary.

INSTALLATION

Installation is in the reverse order of removal.

1.

Differential side oil seal

2.

Drive shaft

3.

Drive shaft lock nut

4.

Cotter pin

WDIA0341E

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

SFA108A

DRIVE SHAFT

FAX-7

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

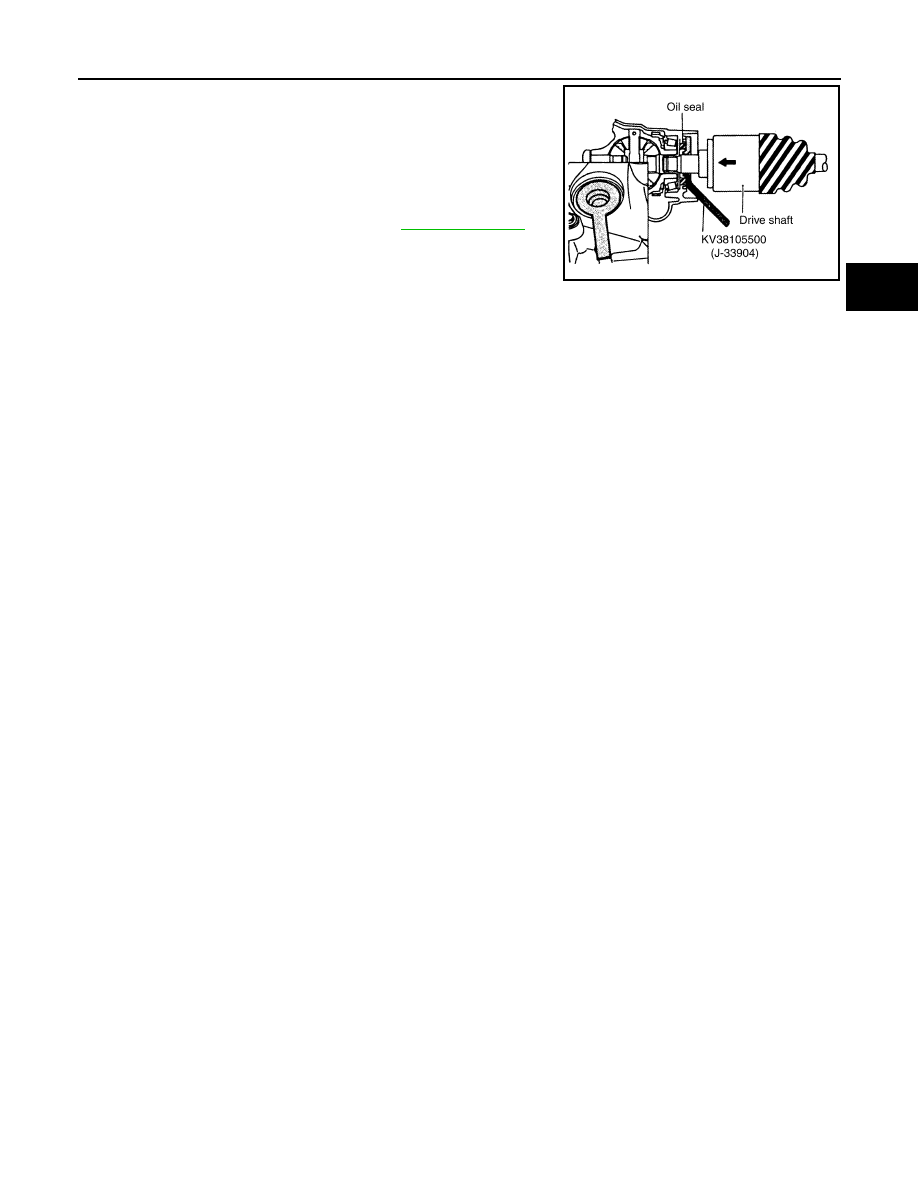

• When installing drive shaft onto front final drive, use Tool to pre-

vent damage to the oil seal while inserting drive shaft. Slide drive
shaft sliding joint and tap with a hammer to install securely.

CAUTION:

Never reuse the differential side oil seal.

• Tighten wheel nuts to specification. Refer to

WT-46, "Rotation"

.

Tool number

: KV38105500 (J-33904)

SDIA2615E

FAX-8

< REMOVAL AND INSTALLATION >

WHEEL HUB

WHEEL HUB

Removal and Installation

INFOID:0000000005272964

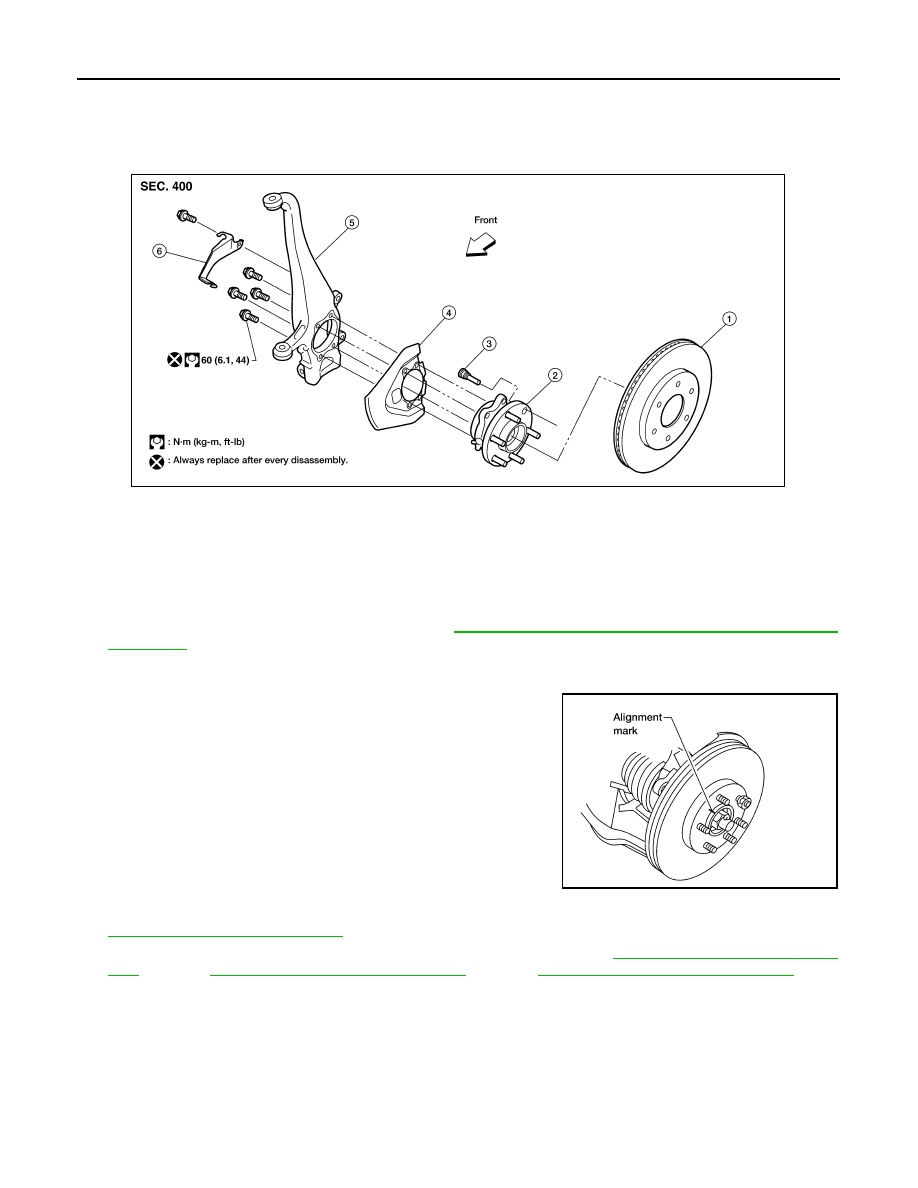

REMOVAL

1.

Remove wheel and tire using power tool.

2.

Without disassembling the hydraulic lines, remove caliper torque member bolts using power tool. Then
reposition brake caliper aside with wire. Refer to

BR-41, "Removal and Installation of Brake Caliper and

Disc Rotor"

.

CAUTION:

Do not press brake pedal while brake caliper is removed.

3.

Put alignment mark on disc rotor and wheel hub and bearing
assembly, then remove disc rotor.

4.

On models with 4WD, remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to

FAX-6, "Removal and Installation"

.

5.

Remove wheel sensor from wheel hub and bearing assembly. Refer to

BRC-69, "Removal and Installa-

tion"

 (Type 1),

BRC-178, "Removal and Installation"

 (Type 2),

BRC-298, "Removal and Installation"

 (Type

3).
• Inspect the wheel sensor O-ring, replace the wheel sensor assembly if damaged.
• Clean the wheel sensor hole and mounting surface with a suitable brake cleaner and clean lint-free

shop rag. Be careful that dirt and debris does not enter the axle bearing area.

• Apply a coat of suitable grease to the wheel sensor O-ring and mounting hole.

CAUTION:

Do not pull on the wheel sensor harness.

6.

On models with 4WD, separate drive shaft from wheel hub and bearing assembly.

7.

Remove wheel hub and bearing assembly bolts using power tool.

1.

Disc rotor

2.

Wheel hub and bearing assembly

3.

Wheel stud

4.

Splash guard

5.

Steering knuckle

6.

Wheel sensor bracket

WDIA0228E

WDIA0044E

WHEEL HUB

FAX-9

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

8.

Remove splash guard and wheel hub and bearing assembly from steering knuckle.
• Carefully remove wheel sensor and harness through hole in splash guard.

INSPECTION AFTER REMOVAL

Check for deformity, cracks and damage on each part and replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.
• Use new bolts when installing the wheel hub and bearing assembly.

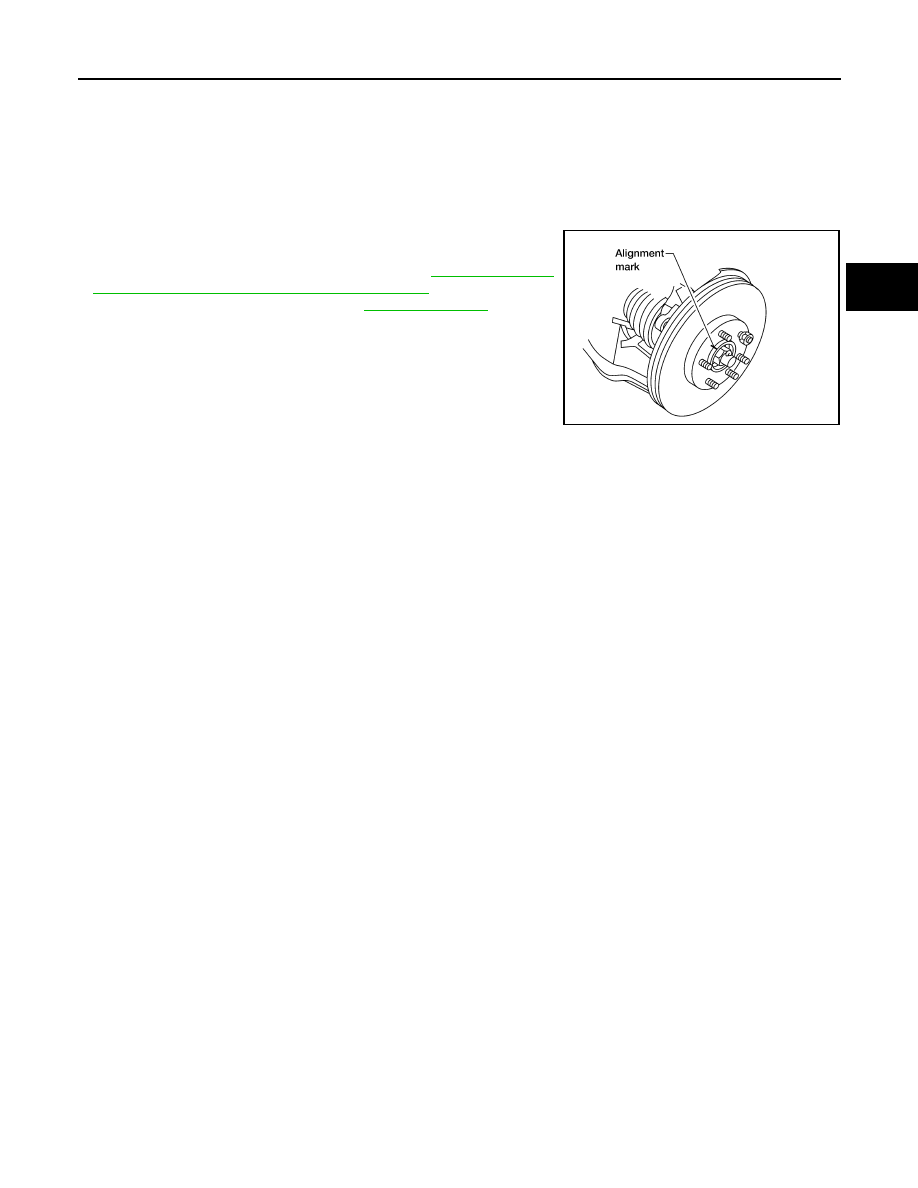

• When installing disc rotor on wheel hub and bearing assembly,

position the disc rotor according to alignment mark.
(When not using the alignment mark, refer to

BR-41, "Removal

and Installation of Brake Caliper and Disc Rotor"

.)

• When installing wheel and tire, refer to

WT-46, "Rotation"

.

WDIA0044E
