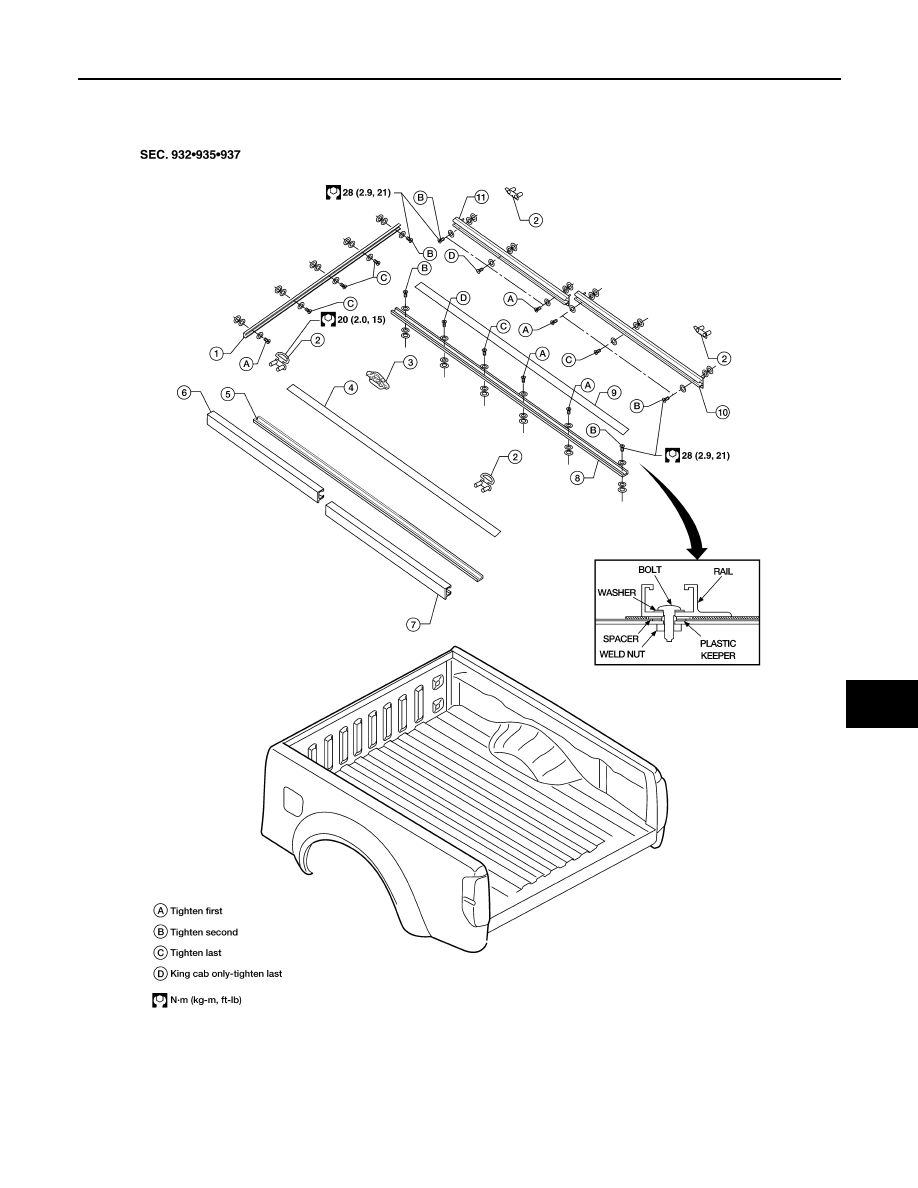

BED RAILS AND TRIM

Removal and Installation

INFOID:0000000005561504

WIIA0650E

1.

Header tiedown rail

2.

Rope hook

3.

Tiedown cleat

4.

Floor rail cover LH

5.

Floor rail LH

6.

Bed side front tiedown rail LH

7.

Bed side rear tiedown rail LH

8.

Floor rail RH

9.

Floor rail cover RH

10. Bed side rear tiedown rail RH

11.

Bed side front tiedown rail RH

EXT-32

< ON-VEHICLE REPAIR >

BED RAILS AND TRIM

REMOVAL

1.

Remove floor rail covers.

2.

Remove tiedown cleats.

3.

Remove floor rails LH/RH.

4.

Remove bed side front and rear tiedown rails LH/RH.

5.

Remove rope hooks.

6.

Remove header tiedown rail.

INSTALLATION

Installation is in the reverse order of removal.

TAIL GATE FINISHER

EXT-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

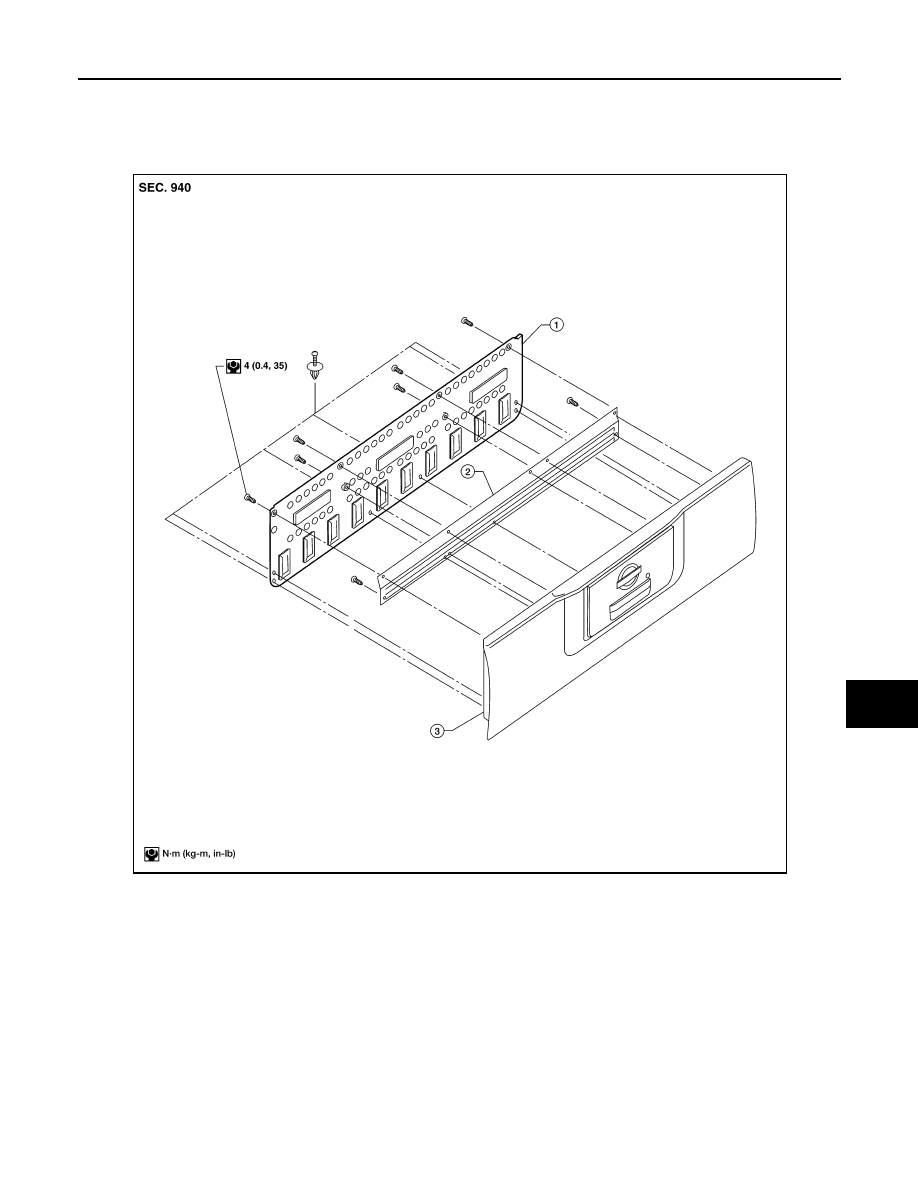

TAIL GATE FINISHER

Removal and Installation

INFOID:0000000005561505

REMOVAL

Remove screws and remove tailgate protector (if equipped) and tailgate cover plate.

INSTALLATION

Installation is in the reverse order of removal.

1.

Tailgate protector (if equipped)

2.

Tailgate cover plate

3.

Tailgate

WIIA0649E
