Nissan Frontier D40. Manual - part 674

COWL TOP

EXT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

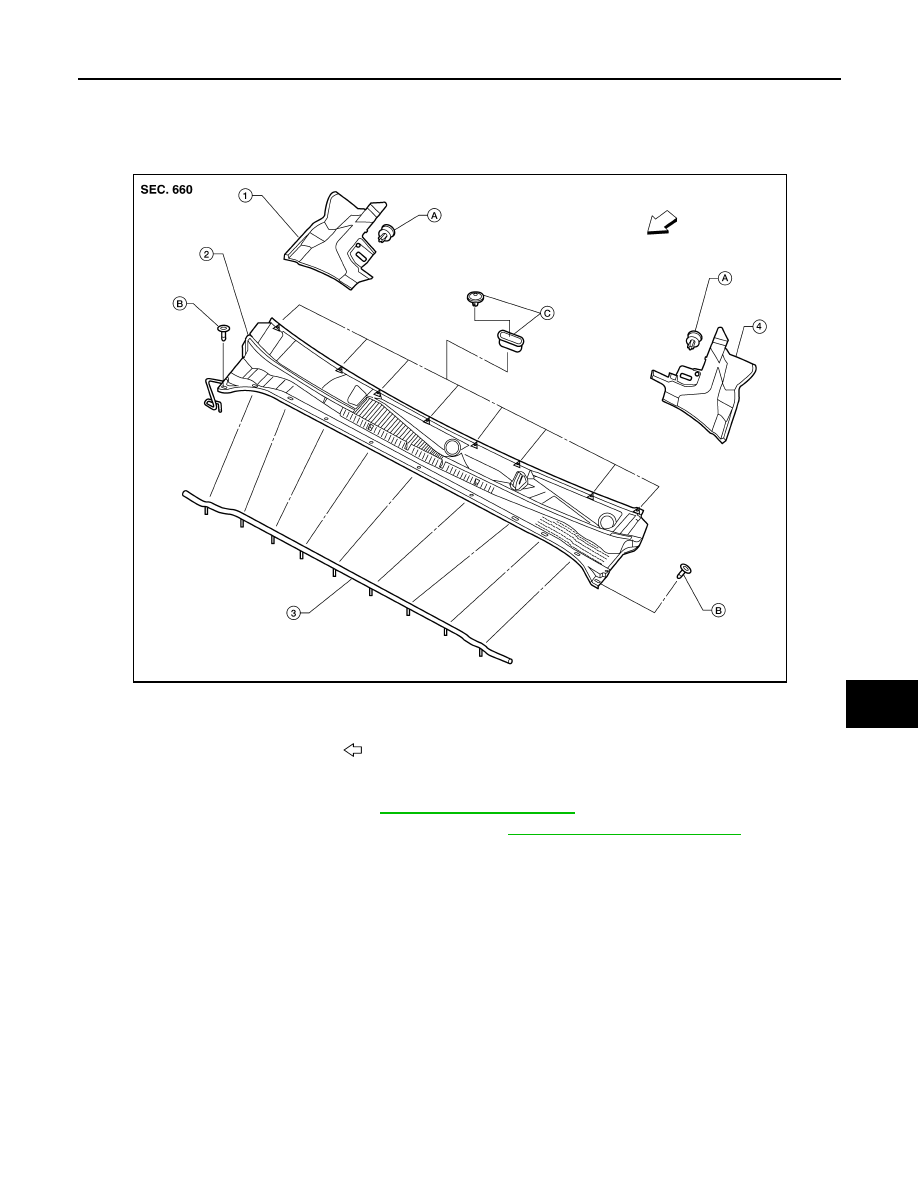

COWL TOP

Removal and Installation

INFOID:0000000005274678

REMOVAL

1.

Remove the front wiper arms. Refer to

WW-62, "Front Wiper Arms"

.

2.

Remove the rubber seal and audio antenna rod. Refer to

AV-32, "Removal and Installation"

.

3.

Remove the cowl top seal.

4.

Remove the cowl top clips and lift the cowl top, disconnect the washer tubes from the washer nozzles and
remove the cowl top.

5.

Release the clips and remove the LH and RH cowl top extensions.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cowl top extension RH

2.

Cowl top

3.

Cowl top seal

4.

Cowl top extension LH

A.

Clip C205

B.

Clip C103

C.

Grommet CF110

Vehicle front

AWKIA0063ZZ

EXT-20

< ON-VEHICLE REPAIR >

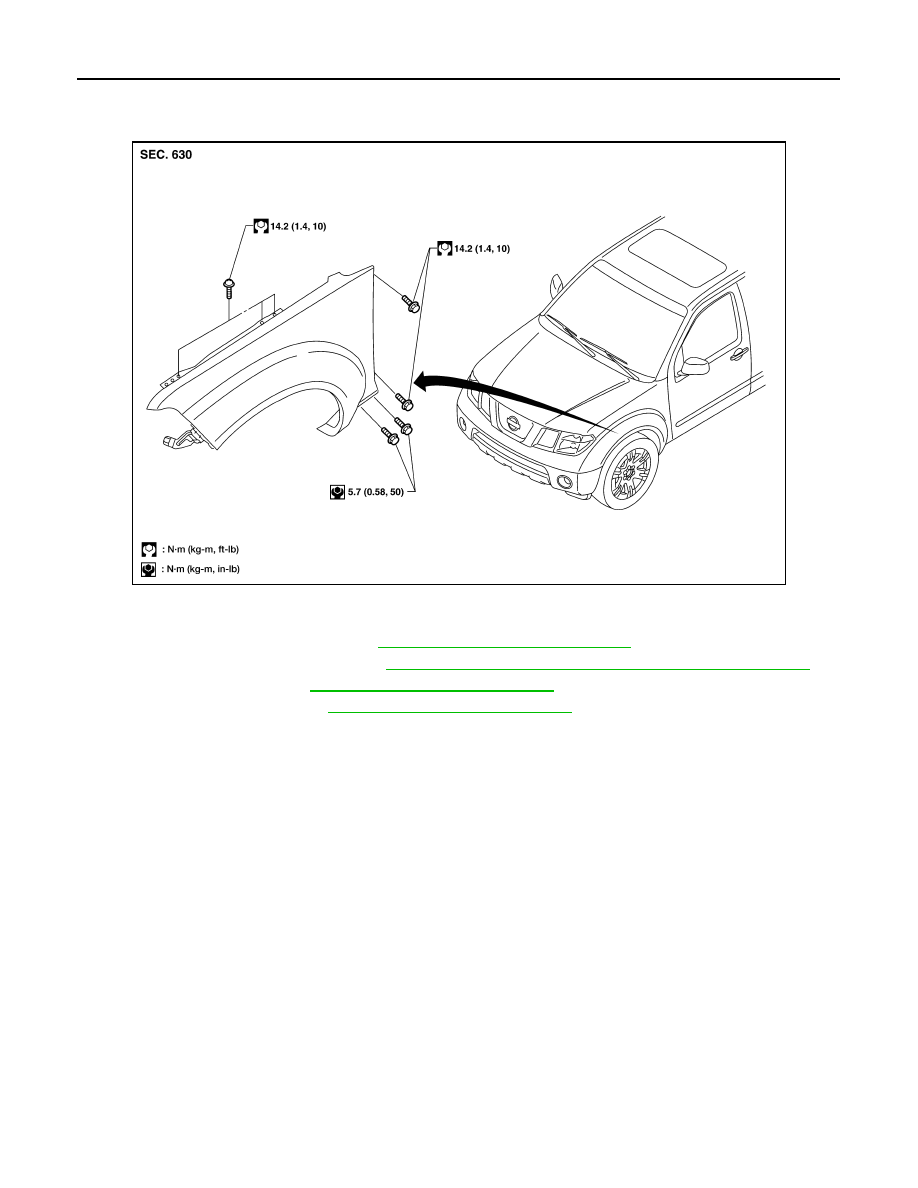

FRONT FENDER

FRONT FENDER

Removal and Installation

INFOID:0000000005274679

REMOVAL

1.

Remove headlamp assembly. Refer to

EXL-142, "Removal and Installation"

.

2.

Remove front fender protector. Refer to

EXT-22, "Removal and Installation of Front Fender Protector"

.

3.

Remove mudguard. Refer to

EXT-24, "Removal and Installation"

.

4.

Remove front bumper. Refer to

EXT-13, "Removal and Installation"

.

5.

Remove hood prop rod and hood prop rod hold down clip.

6.

Remove front fender bolts from hoodledge and dash panel.

7.

Remove front fender bolts from rocker panel and radiator core support member.

8.

Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1752E

FENDER PROTECTOR

EXT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

Component

INFOID:0000000005274680

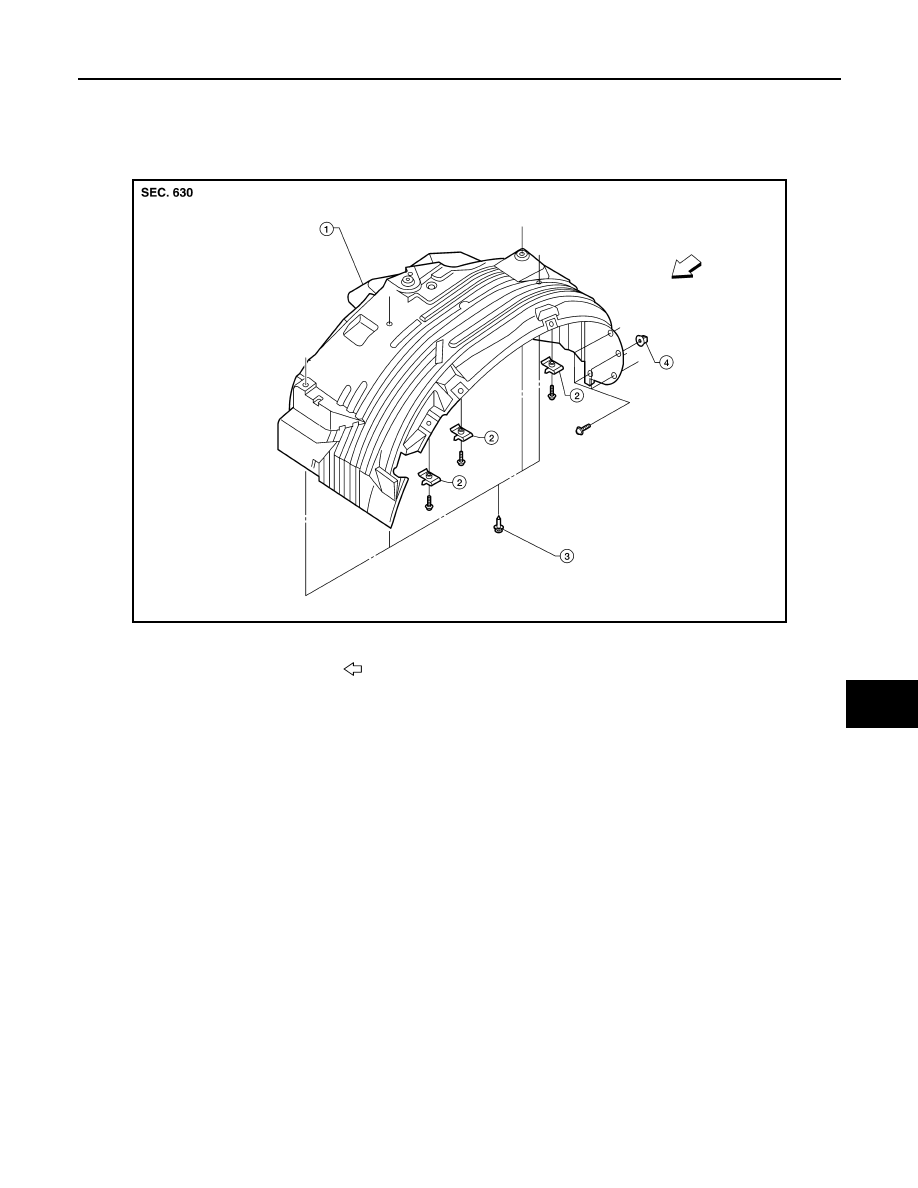

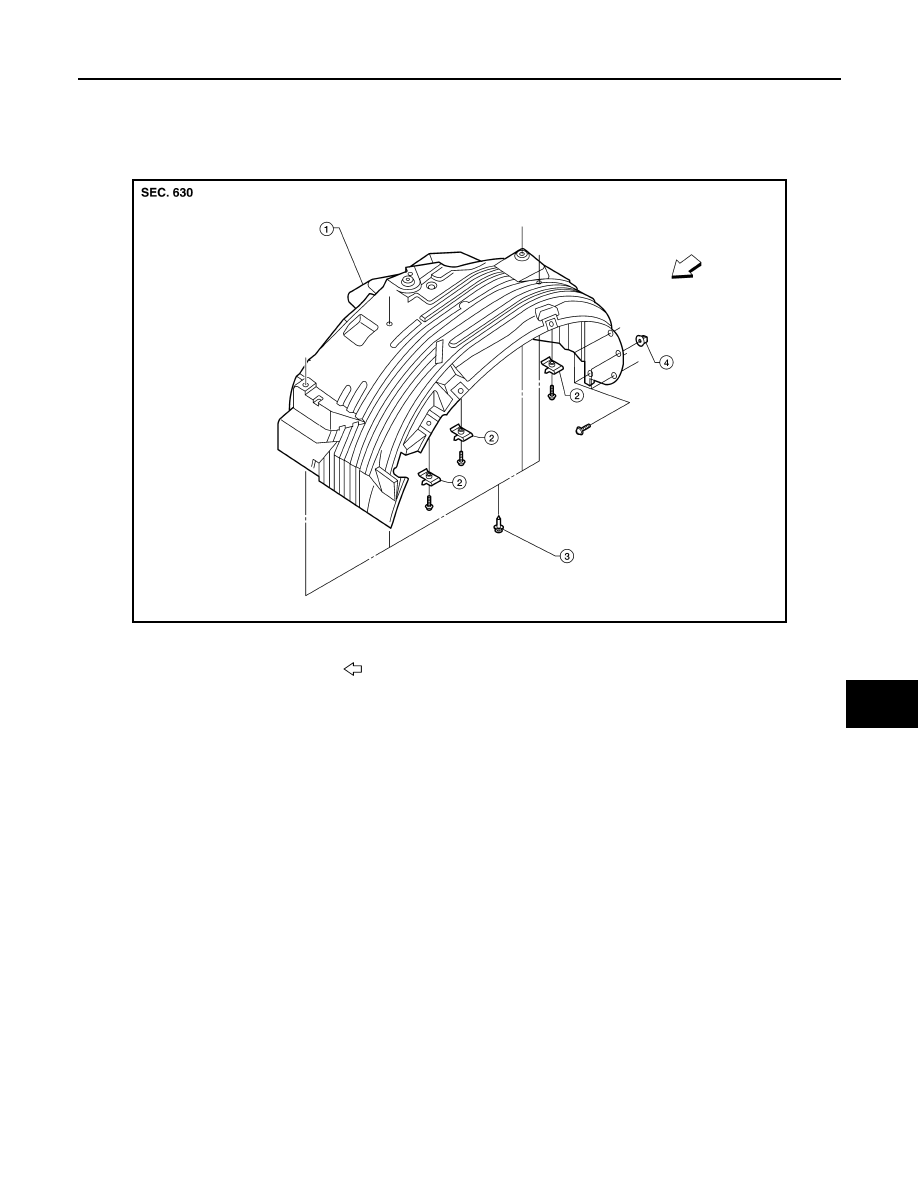

Front - Steel Bumper

WIIA1077E

1.

Fender protector LH

2.

Nuts

3.

Clips

4.

Grommet

Vehicle front

EXT-22

< ON-VEHICLE REPAIR >

FENDER PROTECTOR

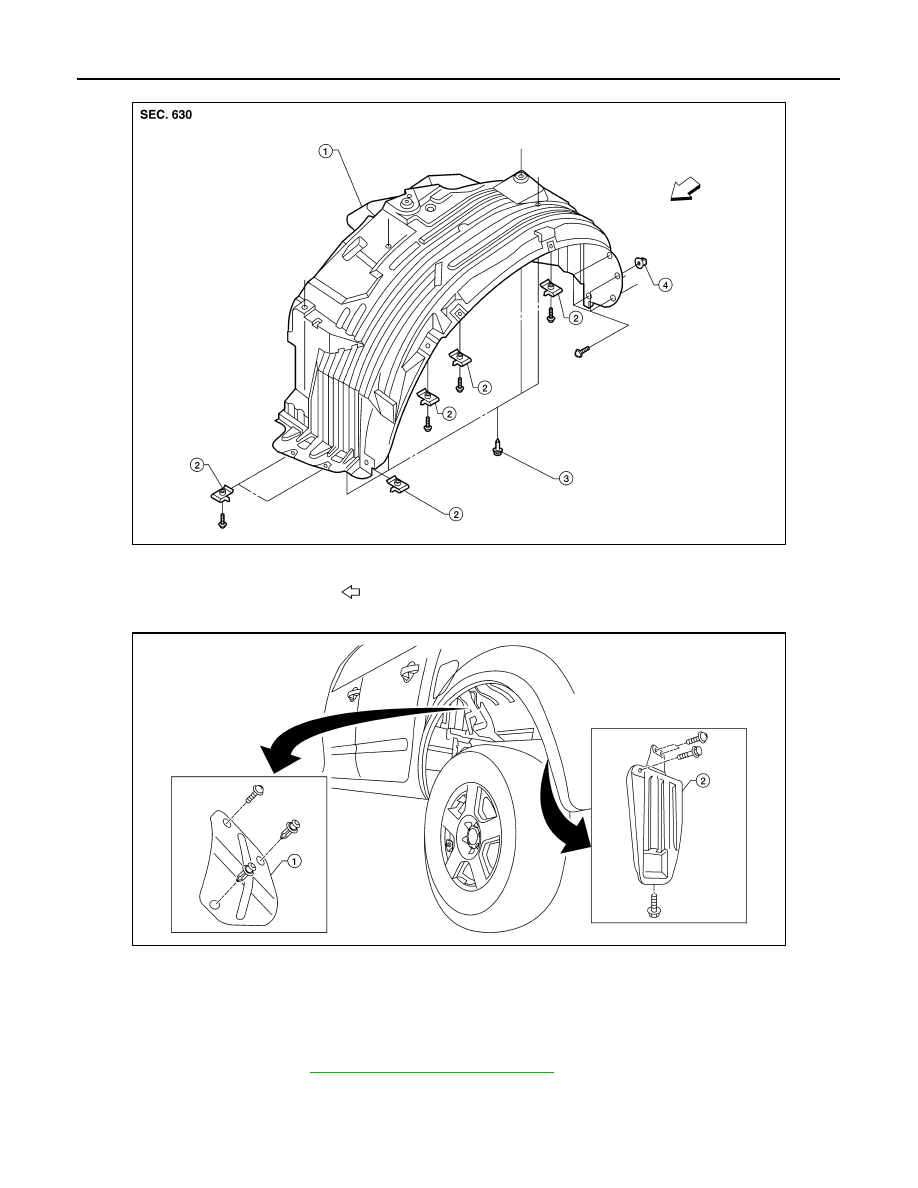

Front - Plastic Bumper

Rear

Removal and Installation of Front Fender Protector

INFOID:0000000005274681

REMOVAL

1.

Remove mudguard. Refer to

EXT-24, "Removal and Installation"

.

2.

Remove screws.

3.

Remove plastic clips.

4.

Remove grommets.

WIIA1078E

1.

Fender protector LH

2.

Nut

3.

Clip C205

4.

Grommet

Vehicle front

LIIA1948E

1.

Fuel filler pipe shield

2.

Rear fender shield
