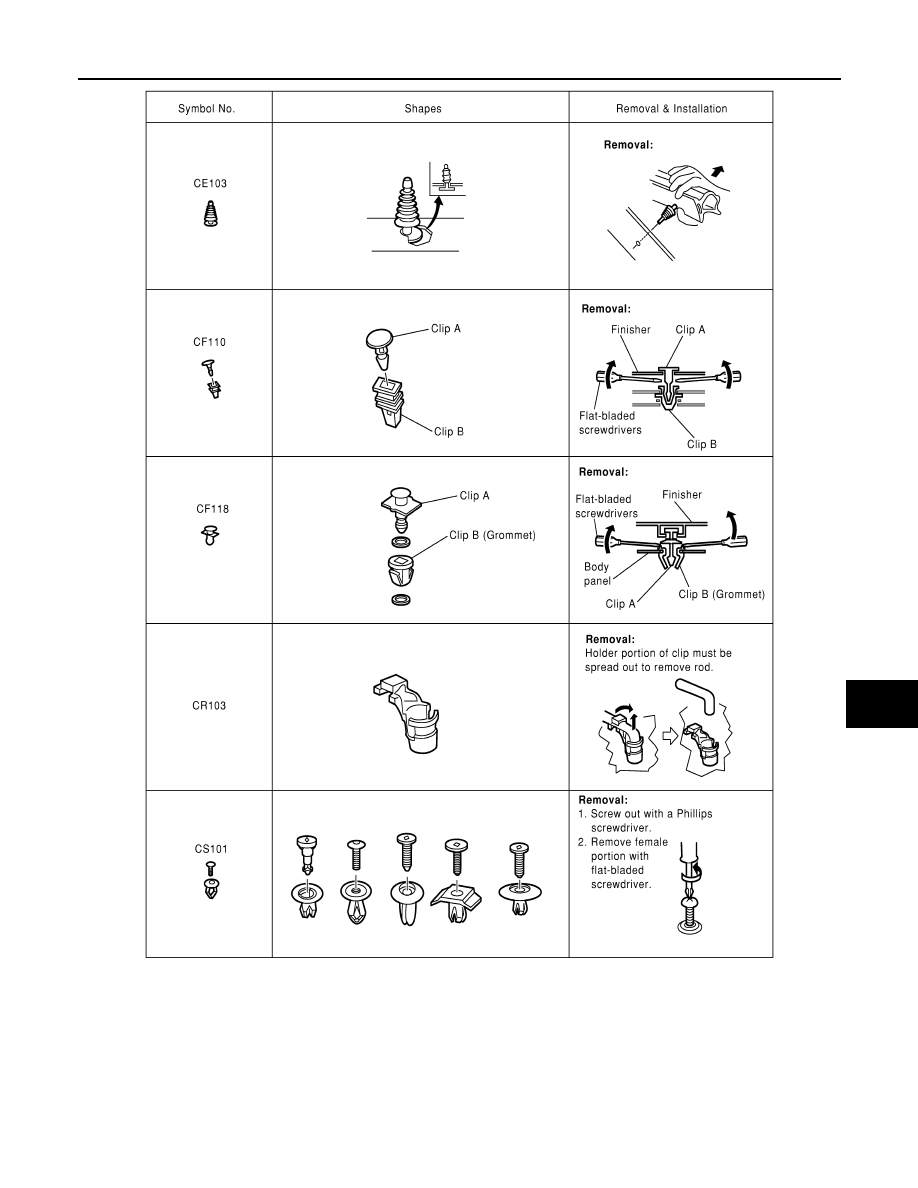

CLIP AND FASTENER

EXT-11

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SIIA0316E

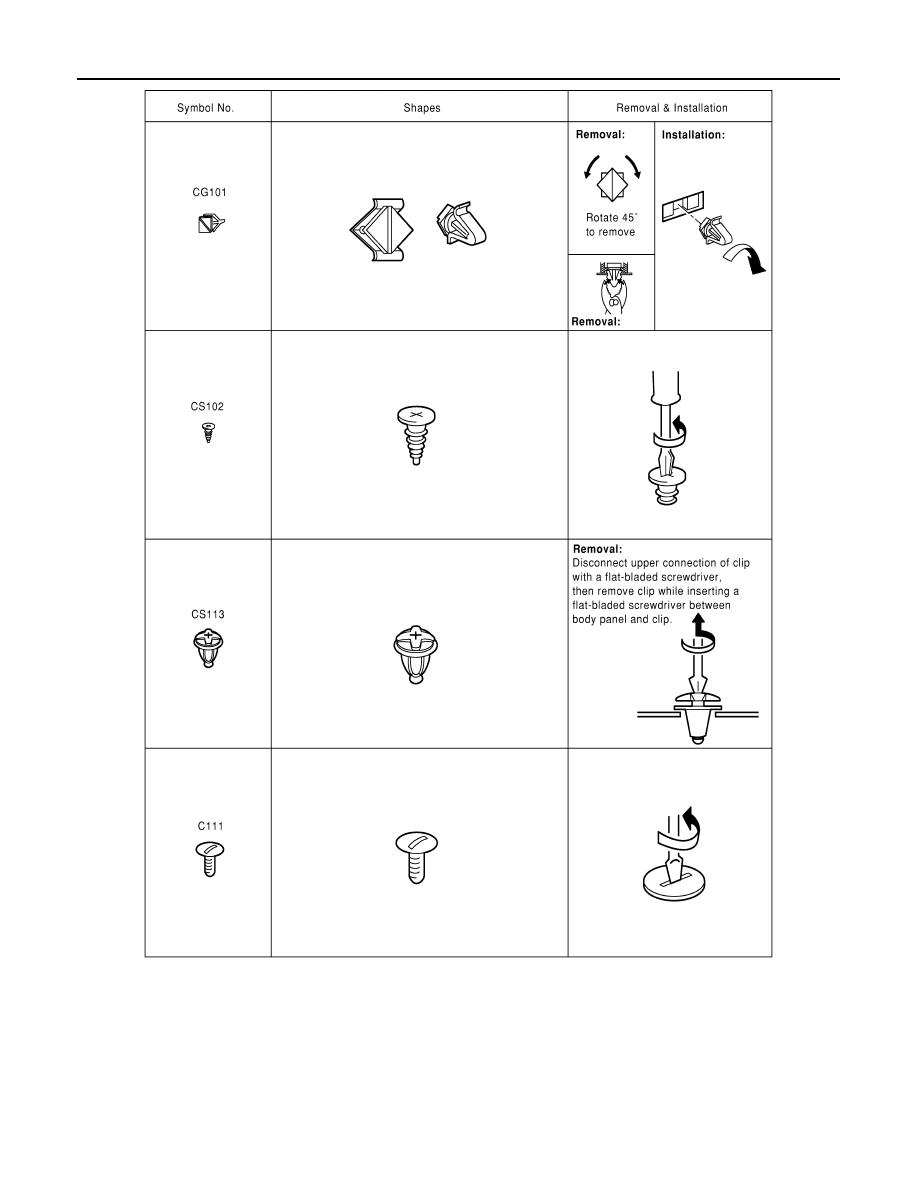

EXT-12

< ON-VEHICLE MAINTENANCE >

CLIP AND FASTENER

SIIA0317E

FRONT BUMPER

EXT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ON-VEHICLE REPAIR

FRONT BUMPER

Removal and Installation

INFOID:0000000005274675

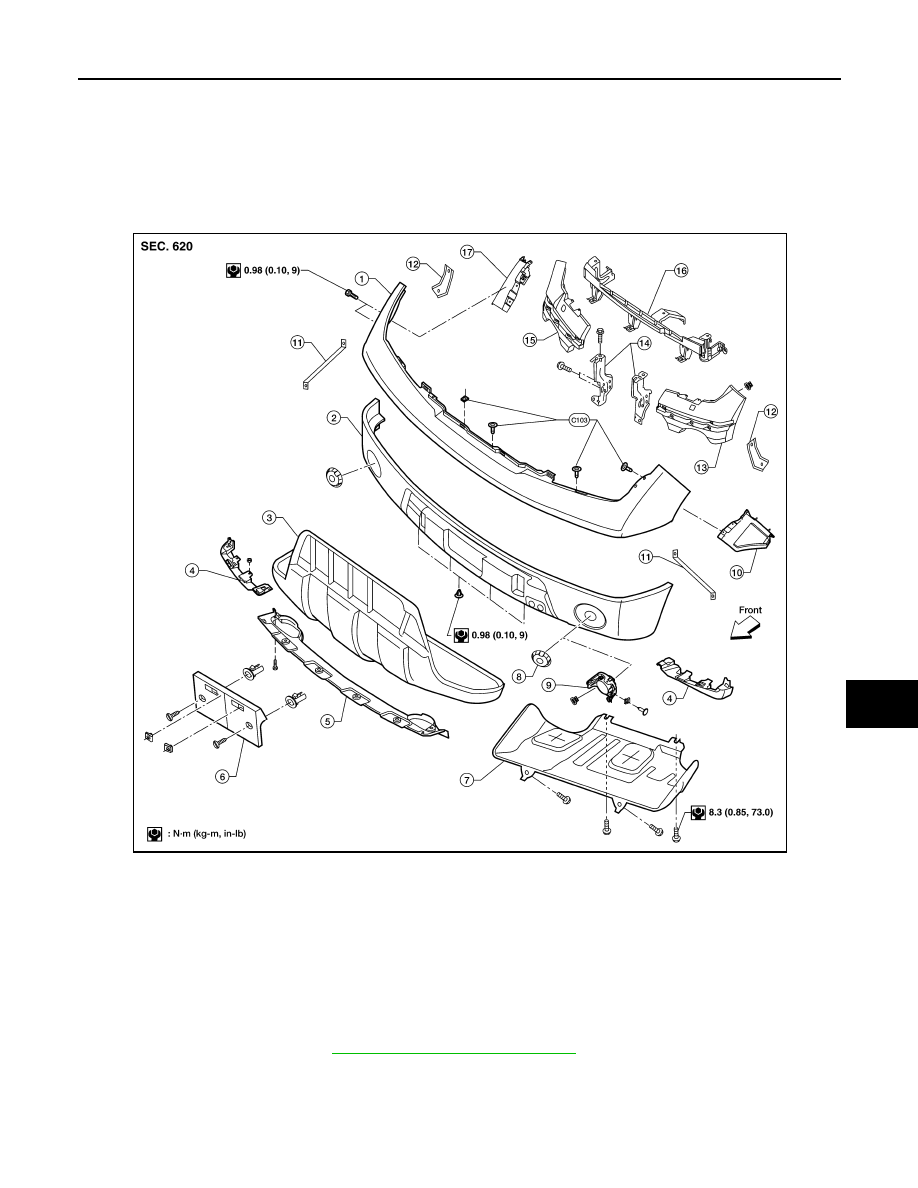

STEEL BUMPER

Removal

1.

Remove radiator grille. Refer to

EXT-18, "Removal and Installation"

.

2.

Remove front valance LH, center, then RH.

3.

Disconnect front valance lower from engine undercover.

4.

Remove front bumper stays LH and RH.

5.

Disconnect fog lamp harnesses, if equipped.

1.

Front bumper upper valance

2.

Front bumper assembly

3.

Front bumper lower valance

4.

Front valance RH/LH

5.

Front valance center

6.

Front license plate bracket

7.

Engine undercover

8.

Fog lamp opening finisher (if equipped)

9.

Fog lamp (if equipped)

10. Front bumper stay LH

11.

Front bumper side brace

12. Front bumper reinforcement stay

RH/LH

13. Front bumper reinforcement LH

14. Front bumper bracket RH/LH

15. Front bumper reinforcement RH

16. Front bumper bracket center

17. Front bumper stay RH

WIIA0566E

EXT-14

< ON-VEHICLE REPAIR >

FRONT BUMPER

6.

Remove front bumper reinforcement stays RH and LH.

7.

Disconnect front fender protector and front bumper upper valance from fender.

8.

Disconnect front bumper upper valance from front bumper bracket center.

9.

Remove front bumper assembly.

Installation

Installation is in the reverse order of removal.

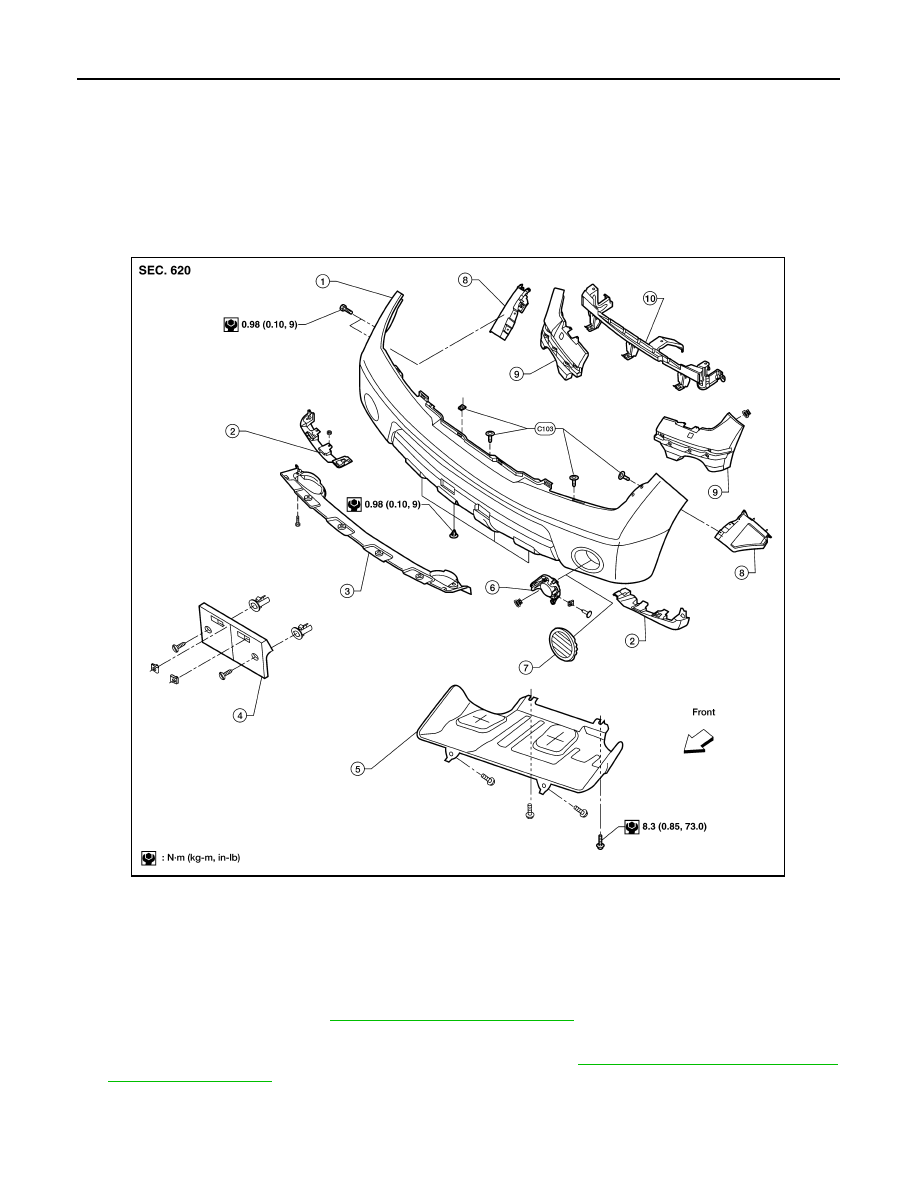

PLASTIC BUMPER

Removal

1.

Remove radiator grille. Refer to

EXT-18, "Removal and Installation"

.

2.

Remove front valance LH, center, then RH.

3.

Disconnect front portion of fender protectors LH and RH. Refer to

EXT-22, "Removal and Installation of

Front Fender Protector"

.

4.

Disconnect front bumper bracket center and front fenders.

5.

Disconnect fog lamp harnesses, if equipped.

1.

Front bumper assembly

2.

Front valance RH/LH

3.

Front valance center

4.

Front license plate bracket

5.

Engine undercover

6.

Fog lamp (if equipped)

7.

Fog lamp opening finisher (if equipped) 8.

Front bumper bracket RH/LH

9.

Front bumper reinforcement RH/LH

10. Front bumper bracket center

WIIA0651E
