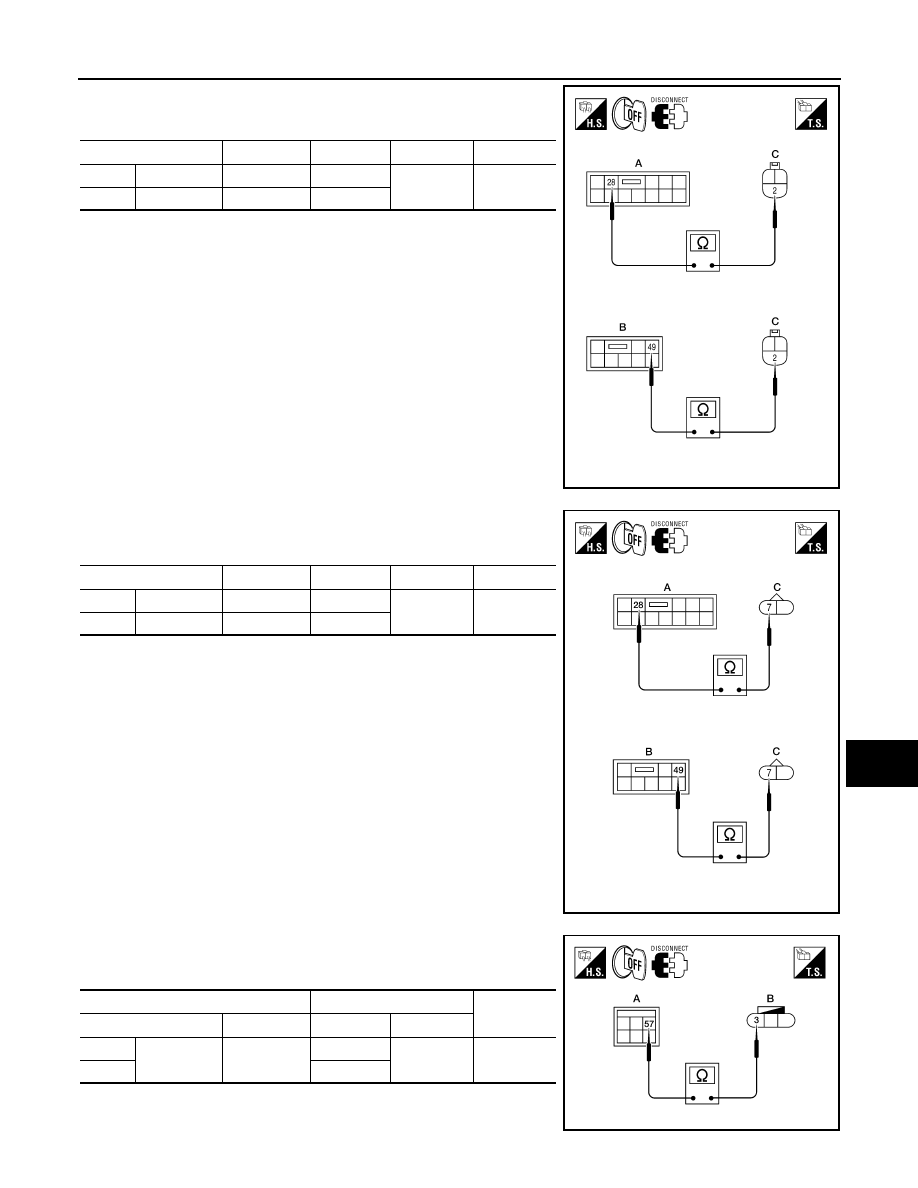

PARKING LAMP CIRCUIT

EXL-45

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3.

Check continuity between the IPDM E/R harness connector
(A)(B) and the front combination lamp harness connector (C).

4.

Check continuity between the IPDM E/R harness connector
(A)(B) and the front side marker lamp harness connector (C).

5.

Check continuity between the IPDM E/R harness connector (A)
and the rear combination lamp harness connector (B).

Connector

Terminal

Connector

Terminal

Continuity

LH

A: E121

28

C: E27

2

Yes

RH

B: E123

49

C: E111

AWLIA1686ZZ

Connector

Terminal

Connector

Terminal

Continuity

LH

A: E121

28

C: E17

7

Yes

RH

B: E123

49

C: E108

AWLIA0744ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E124

57

C201

3

Yes

RH

C202

AWLIA0783ZZ

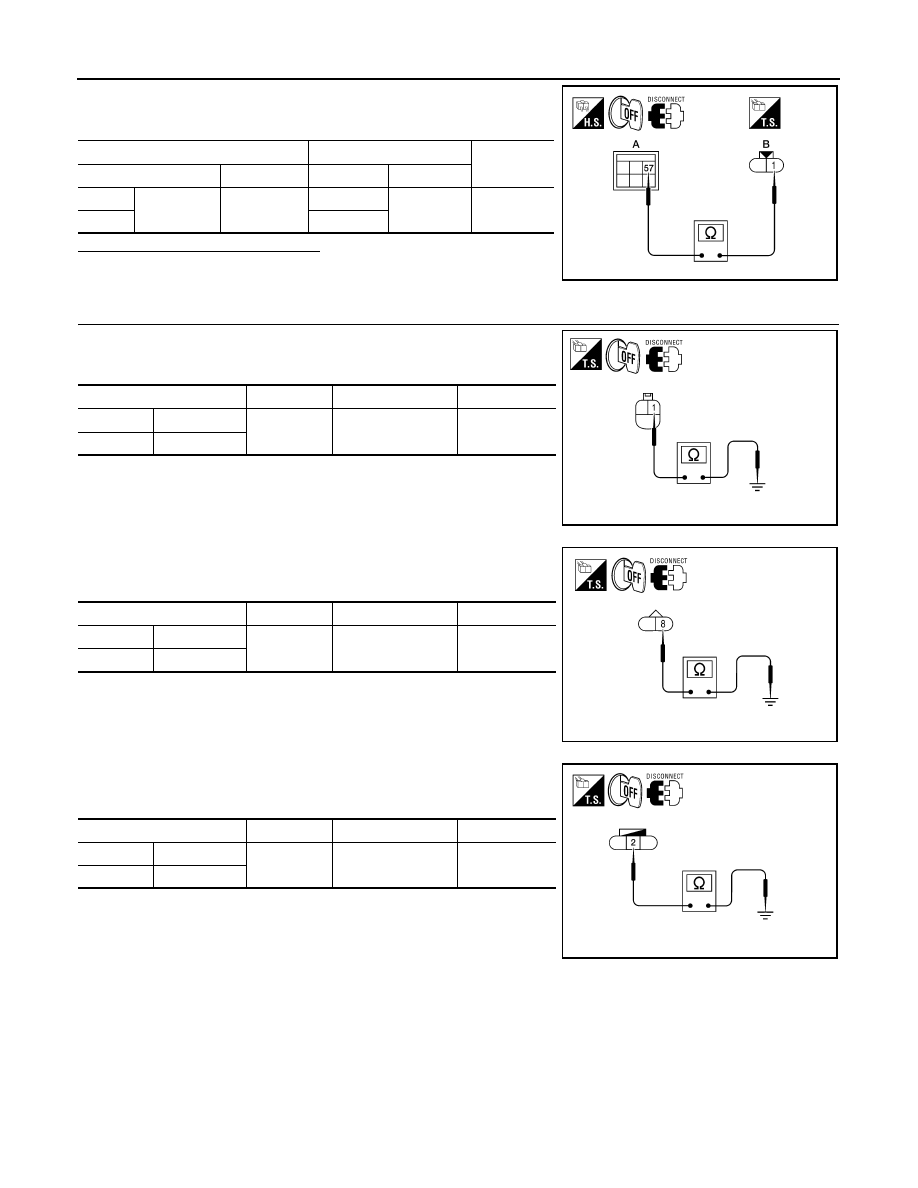

EXL-46

< COMPONENT DIAGNOSIS >

PARKING LAMP CIRCUIT

6.

Check continuity between the IPDM E/R harness connector (A)
and license plate lamp connector (B).

Are continuity results as specified?

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

4.

CHECK PARKING, LICENSE AND TAIL LAMP GROUND CIRCUITS

1.

Check continuity between the front combination lamp harness
connectors and ground.

2.

Check continuity between the front side marker lamp harness
connectors and ground.

3.

Check continuity between the rear combination lamp harness
connectors and ground.

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E124

57

C203

1

Yes

RH

C204

AWLIA0784ZZ

Connector

Terminal

—

Continuity

LH

E27

1

Ground

Yes

RH

E111

ALLIA0925ZZ

Connector

Terminal

—

Continuity

LH

E17

8

Ground

Yes

RH

E108

AWLIA0747ZZ

Connector

Terminal

—

Continuity

LH

C201

2

Ground

Yes

RH

C202

AWLIA0785ZZ

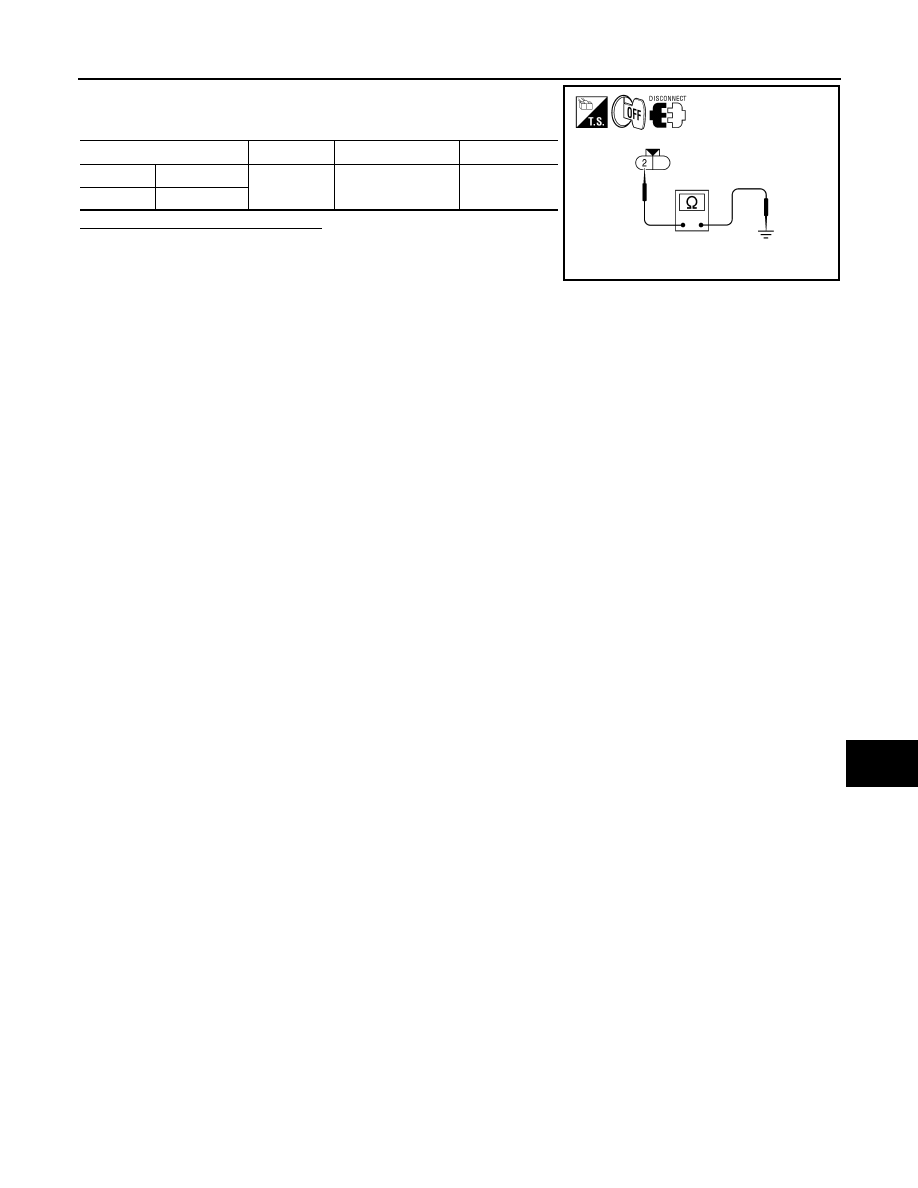

PARKING LAMP CIRCUIT

EXL-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

4.

Check continuity between the license plate lamp harness con-
nector and ground.

Are continuity results as specified?

YES

>> Inspect the parking lamp bulb.

NO

>> Repair the harness.

Connector

Terminal

—

Continuity

LH

C203

2

Ground

Yes

RH

C204

AWLIA0786ZZ

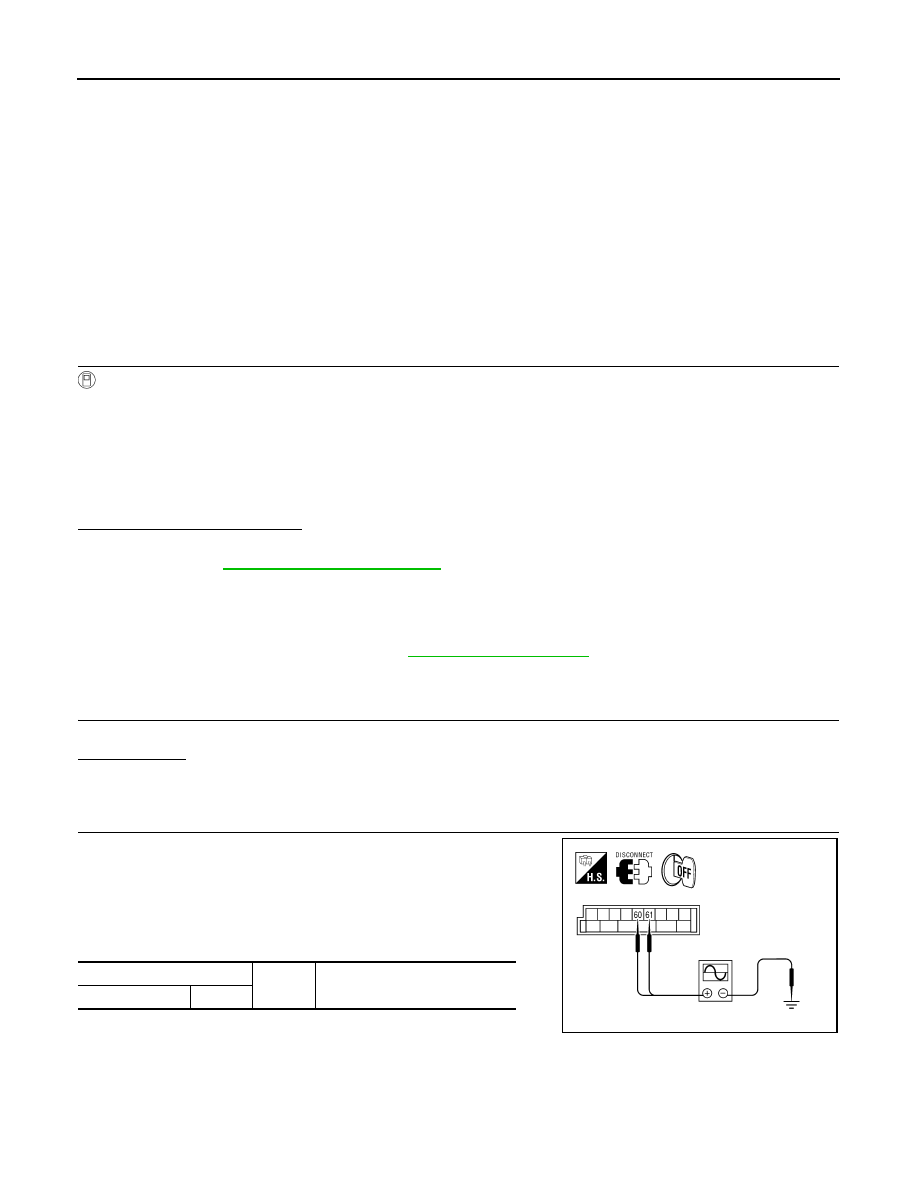

EXL-48

< COMPONENT DIAGNOSIS >

TURN SIGNAL LAMP CIRCUIT

TURN SIGNAL LAMP CIRCUIT

Description

INFOID:0000000005274747

The BCM monitors inputs from the combination switch (lighting and turn signal switch) to determine when to
activate the turn signals. The BCM outputs voltage direction to the left and right turn signals during turn signal
operation or both during hazard warning operation. The BCM sends a turn signal indicator request to the com-
bination meter via the CAN communication lines.
The BCM performs the fast flasher operation (fail-safe) if any bulb or harness of the turn signal lamp circuit is
open.
NOTE:
Turn signal lamp blinks at normal speed when using the hazard warning lamp.

Component Function Check

INFOID:0000000005274748

1.

CHECK TURN SIGNAL LAMP

CONSULT-III

1.

Select "FLASHER" of BCM (FLASHER) active test item.

2.

With operating the test items, check that the turn signal lamp blinks.

Does the turn signal lamp blink?

YES

>> Turn signal lamp circuit is normal.

NO

>> Refer to

EXL-48, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005274749

Regarding Wiring Diagram information, refer to

EXL-72, "Wiring Diagram"

.

1.

CHECK TURN SIGNAL LAMP BULB

Check the applicable lamp bulb to be sure the proper bulb standard is in use and the bulb is not open.
Is the bulb OK?

YES

>> GO TO 2

NO

>> Replace the bulb.

2.

CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connectors and the rear
combination lamp connector.

3.

Turn the ignition switch ON.

4.

With turn signal switch operating, check the voltage between the
BCM harness connector M20 and ground.

LH

: Turn signal lamp LH blinking

RH

: Turn signal lamp RH blinking

OFF

: The turn signal lamp OFF

(+)

(

−

)

Voltage

Connector

Terminal

ALLIA0402ZZ
