Nissan Frontier D40. Manual - part 641





HEADLAMP (HI) CIRCUIT

EXL-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP (HI) CIRCUIT

Description

INFOID:0000000005561521

The IPDM E/R (intelligent power distribution module engine room) controls the headlamp LH high and head-
lamp RH high relays based on inputs from the BCM via the CAN communication lines. When the headlamp LH
high and headlamp RH high relays are energized, power flows through fuses 34 and 35, located in the IPDM
E/R. Power then flows to the front combination lamps to the headlamp high beam.

Component Function Check

INFOID:0000000005274736

1.

CHECK HEADLAMP (HI) OPERATION

WITHOUT CONSULT-III

1.

Start IPDM E/R auto active test. Refer to

PCS-13, "Diagnosis Description"

.

2.

Check that the headlamp switches to the high beam.
NOTE:
HI/LO is repeated 1 second each when using the IPDM E/R auto active test.

CONSULT-III

1.

Select "EXTERNAL LAMPS" of IPDM E/R active test item.

2.

With the test item operating, check that the headlamp switches to high beam.

Does the headlamp switch to high beam?

YES

>> Headlamp (HI) circuit is normal.

NO

>> Refer to

EXL-37, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005274737

Regarding Wiring Diagram information, refer to

EXL-51, "Wiring Diagram"

 (without DTRL) or

EXL-55, "Wiring

Diagram"

 (with DTRL).

1.

CHECK HEADLAMP (HI) FUSES

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK HEADLAMP (HI) OUTPUT VOLTAGE

HI

: Headlamp switches to the high beam.

OFF

: Headlamp OFF

Unit

Location

Fuse No.

Capacity

Headlamp HI (LH)

IPDM E/R

35

10A

Headlamp HI (RH)

IPDM E/R

34

10A

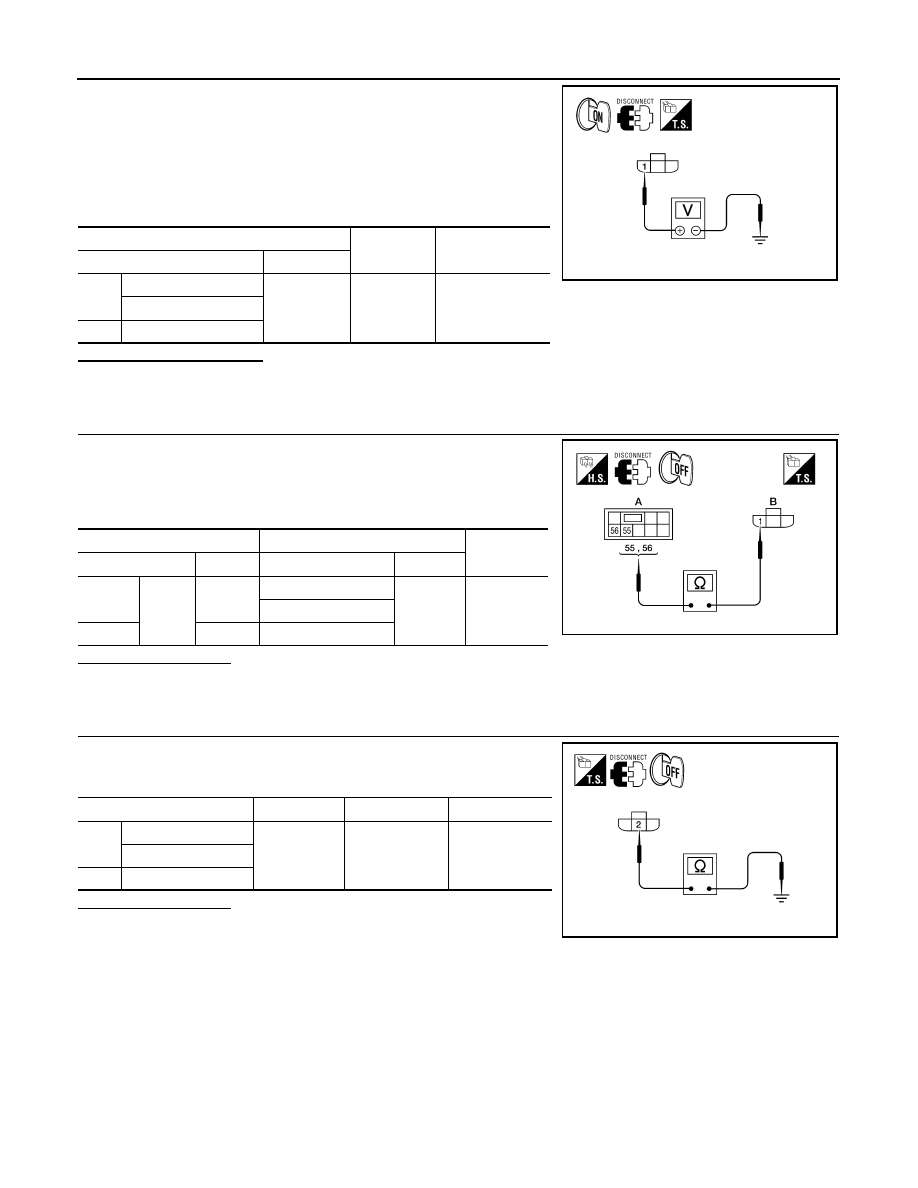

EXL-38

< COMPONENT DIAGNOSIS >

HEADLAMP (HI) CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connector E7 (with
DTRL), E11(without DTRL) or E107.

3.

Turn the ignition switch ON.

4.

Turn the high beam headlamps ON.

5.

With the high beam headlamps ON, check the voltage between
the combination lamp connector and ground.

Is battery voltage present?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK HEADLAMP (HI) CIRCUIT FOR OPEN

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector E123.

3.

Check continuity between the IPDM E/R harness connector (A)
and the front combination lamp harness connector (B).

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

4.

CHECK FRONT COMBINATION LAMP (HI) GROUND CIRCUIT

Check continuity between the front combination lamp harness con-
nector terminal and ground.

Does continuity exist?

YES

>> Inspect the headlamp bulb.

NO

>> Repair the harness.

(+)

(

)

Voltage

Connector

Terminal

LH

E7 (with DTRL)

1

Ground

Battery voltage

E11 (without DTRL)

RH

E107

WKIA4989E

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E123

55

E7 (with DTRL)

1

Yes

E11 (without DTRL)

RH

56

E107

ALLIA0623GB

Connector

Terminal

Continuity

LH

E7 (with DTRL)

2

Ground

Yes

E11 (without DTRL)

RH

E107

ALLIA0624GB

HEADLAMP (LO) CIRCUIT

EXL-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP (LO) CIRCUIT

Description

INFOID:0000000005274738

The IPDM E/R (intelligent power distribution module engine room) controls the headlamp low relay based on
inputs from the BCM via the CAN communication lines. When the headlamp low relay is energized, power
flows through fuses 40 and 41, located in the IPDM E/R. Power then flows to the front combination lamps to
the headlamp low beam.

Component Function Check

INFOID:0000000005274739

1.

CHECK HEADLAMP (LO) OPERATION

WITHOUT CONSULT-III

1.

Start IPDM E/R auto active test. Refer to

PCS-13, "Diagnosis Description"

.

2.

Check that the headlamp is turned ON.
NOTE:
HI/LO is repeated 1 second each when using the IPDM E/R auto active test.

CONSULT-III

1.

Select "EXTERNAL LAMPS" of IPDM E/R active test item.

2.

With the test items operating, check that the headlamp is turned ON.

Is the headlamp turned ON?

YES

>> Headlamp (LO) is normal.

NO

>> Refer to

EXL-39, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005274740

Regarding Wiring Diagram information, refer to

EXL-51, "Wiring Diagram"

 (without DTRL) or

EXL-55, "Wiring

Diagram"

 (with DTRL).

1.

CHECK HEADLAMP (LO) FUSES

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK HEADLAMP (LO) OUTPUT VOLTAGE

LO

: Headlamp ON

OFF

: Headlamp OFF

Unit

Location

Fuse No.

Capacity

Headlamp LO (LH)

IPDM E/R

40

15A

Headlamp LO (RH)

IPDM E/R

41

15A

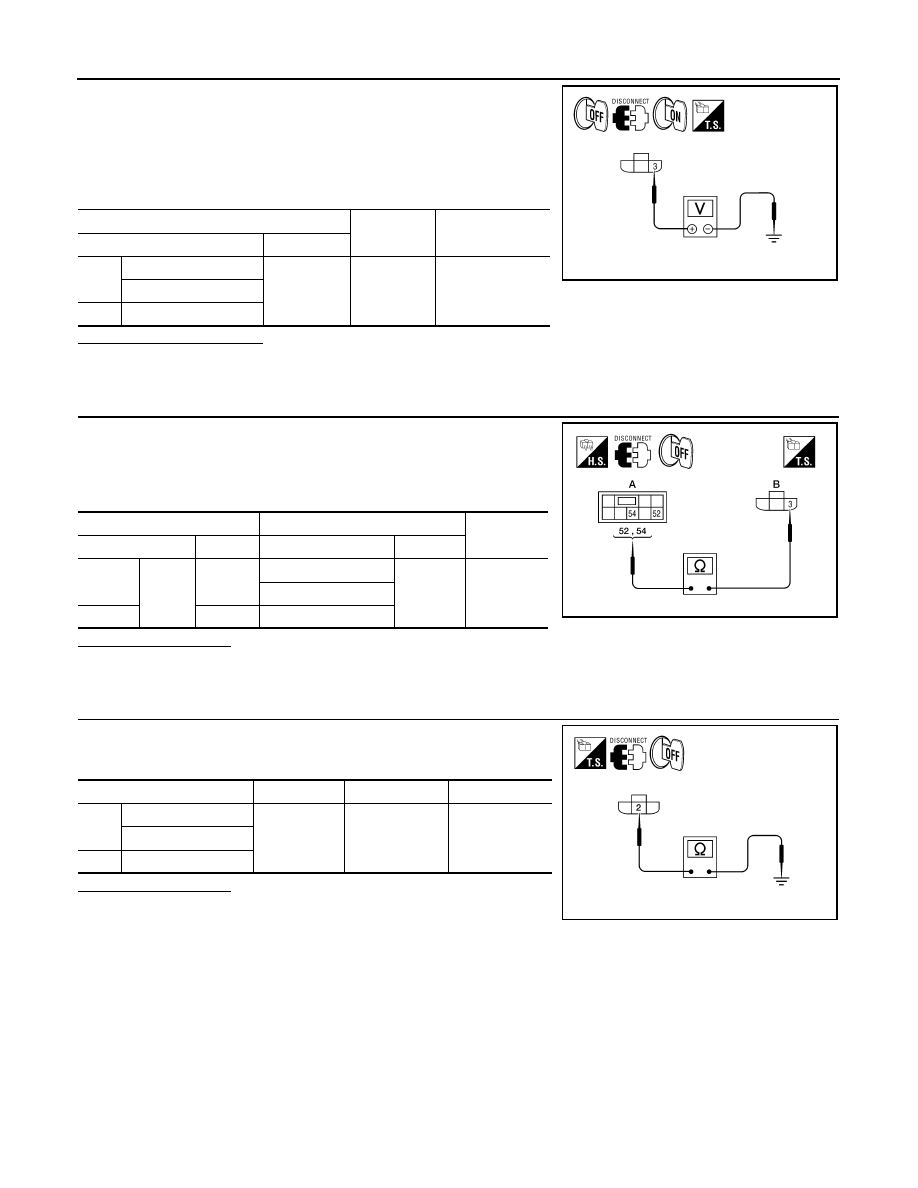

EXL-40

< COMPONENT DIAGNOSIS >

HEADLAMP (LO) CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connector.

3.

Turn the ignition switch ON.

4.

Turn the low beam headlamps ON.

5.

With the low beam headlamps ON, check the voltage between
the combination lamp connector and ground.

Is battery voltage present?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK HEADLAMP (LO) CIRCUIT FOR OPEN

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between the IPDM E/R harness connector (A)
and the front combination lamp harness connector (B).

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

4.

CHECK FRONT COMBINATION LAMP (LO) GROUND CIRCUIT

Check continuity between the front combination lamp harness con-
nector terminal and ground.

Does continuity exist?

YES

>> Inspect the headlamp bulb.

NO

>> Repair the harness.

(+)

(

)

Voltage

Connector

Terminal

LH

E7 (with DTRL)

3

Ground

Battery voltage

E11 (without DTRL)

RH

E107

ALLIA0625GB

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E123

52

E7 (with DTRL)

3

Yes

E11 (without DTRL)

RH

54

E107

ALLIA0626GB

Connector

Terminal

Continuity

LH

E7 (with DTRL)

2

Ground

Yes

E11 (without DTRL)

RH

E107

ALLIA0624GB
