EM-180

< ON-VEHICLE REPAIR >

[VQ40DE]

TIMING CHAIN

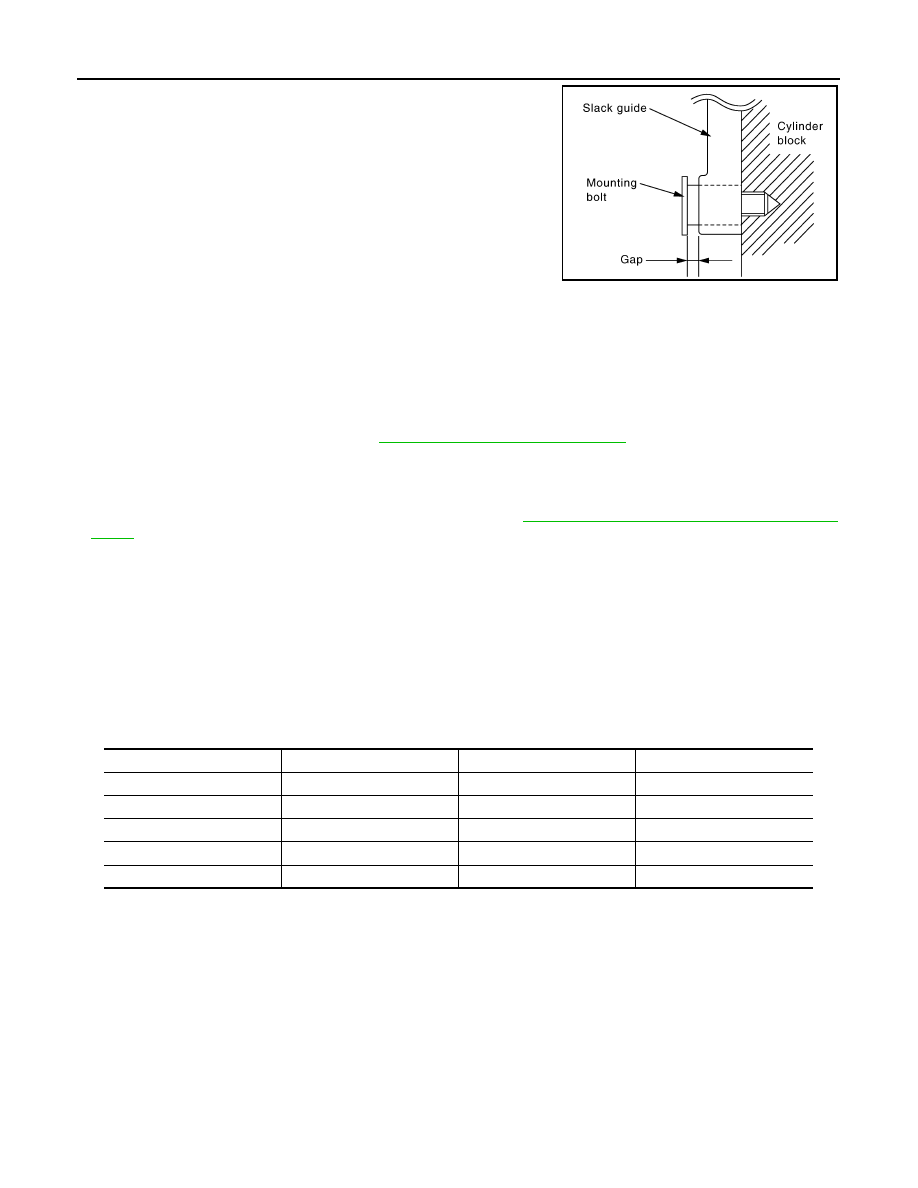

Do not overtighten slack guide bolts. It is normal for a gap
to exist under the bolt seats when bolts are tightened to
specification.

• When installing timing chain tensioner (primary), push in plunger and keep it pressed in with stopper pin.
• Remove any dirt and foreign materials completely from the back and the mounting surfaces of timing

chain tensioner (primary).

• After installation, pull out stopper pin.

7.

Make sure again that the mating marks on camshaft sprockets and timing chain have not slipped out of
alignment.

8.

Install front timing chain case. Refer to

EM-164, "Removal and Installation"

.

INSPECTION AFTER INSTALLATION

• Before starting the engine, check oil/fluid levels including engine coolant and engine oil. If the levels are

lower than required quantity, fill to the specified level. Refer to

MA-16, "For North America: Fluids and Lubri-

cants"

.

• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide
may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop
after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down the engine, again check oil/fluid levels including engine oil and engine coolant. Refill to

specified level if necessary.

• Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

PBIC2633E

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gas

—

Leakage

—

REAR TIMING CHAIN CASE

EM-181

< ON-VEHICLE REPAIR >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

REAR TIMING CHAIN CASE

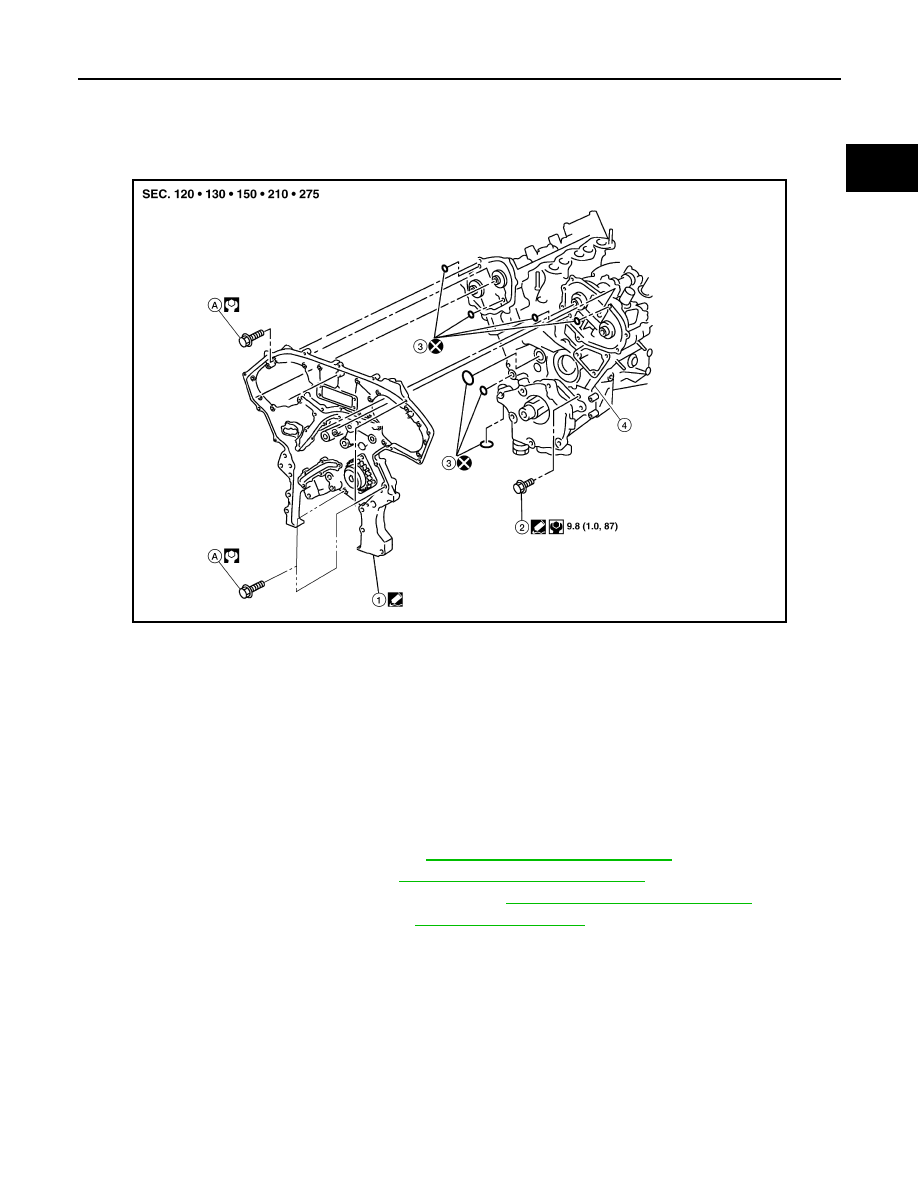

Exploded View

INFOID:0000000005588749

Removal and Installation

INFOID:0000000005588750

CAUTION:

• After removing timing chain, do not turn the crankshaft and camshaft separately, or the valves will

strike the pistons.

• Before removing the upper oil pan, remove the crankshaft position sensor (POS).
• Be careful not to damage sensor edges.

REMOVAL

1.

Remove oil pan (lower) and (upper). Refer to

EM-149, "Removal and Installation"

.

2.

Remove front timing chain case. Refer to

EM-164, "Removal and Installation"

.

3.

Remove timing chains and related components. Refer to

EM-173, "Removal and Installation"

.

4.

Remove water pump, if necessary. Refer to

CO-49, "Exploded View"

.

5.

Remove rear timing chain case as follows:

AWBIA0860GB

1.

Rear timing chain case

2.

Water drain plug (front)

3.

O-rings

4.

Cylinder block

A.

Refer to installation

EM-182

< ON-VEHICLE REPAIR >

[VQ40DE]

REAR TIMING CHAIN CASE

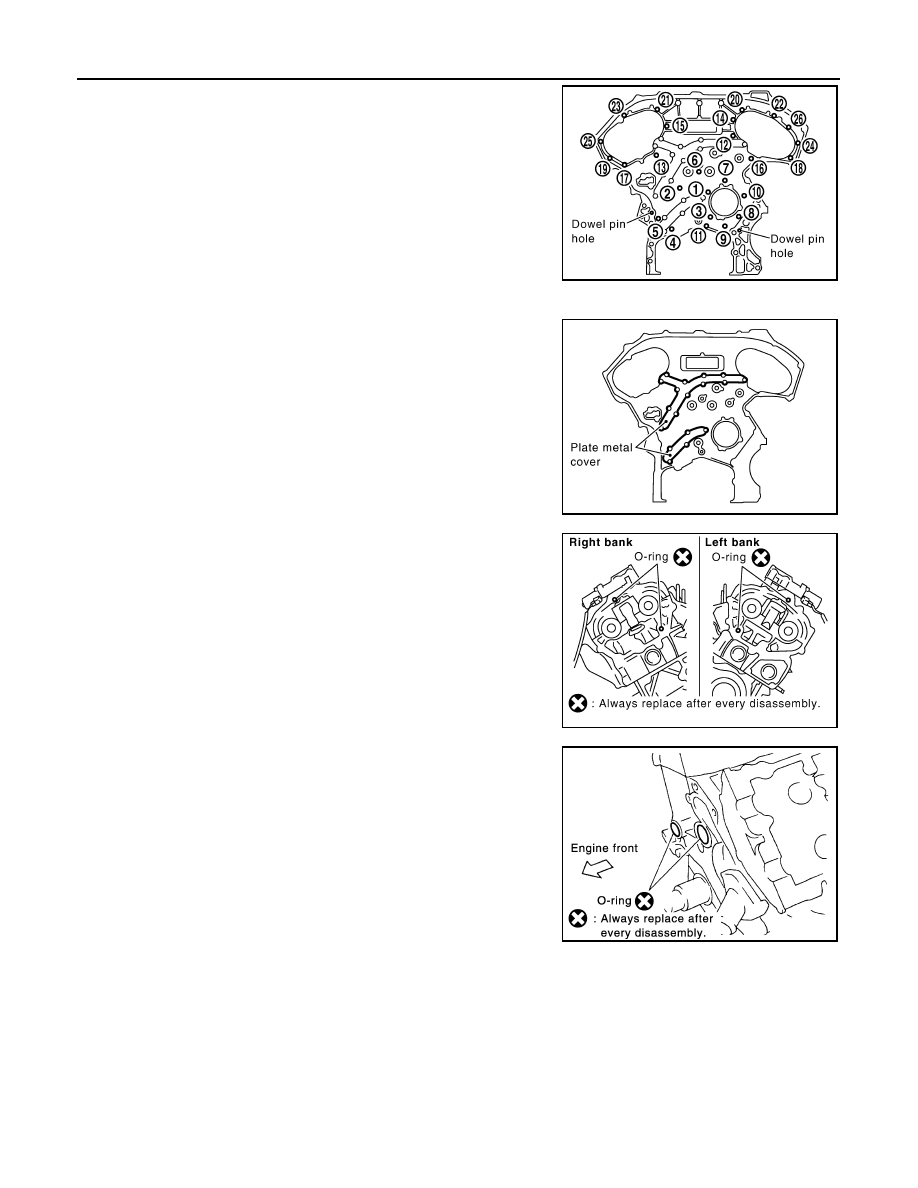

a.

Loosen and remove bolts using power tool in reverse order as
shown.

b.

Cut liquid gasket using Tool and remove rear timing chain case.

CAUTION:

• Do not remove plate metal cover of oil passage.
• After removal, handle rear timing chain case carefully so

it does not twist, bend, or warp under a load.

6.

Remove O-rings from cylinder head and camshaft bracket    (No.
1).

7.

Remove O-rings from cylinder block.

Tool number

: KV10111100 (J-37228)

PBIC2921E

PBIC2922E

SBIA0496E

PBIC0788E

REAR TIMING CHAIN CASE

EM-183

< ON-VEHICLE REPAIR >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

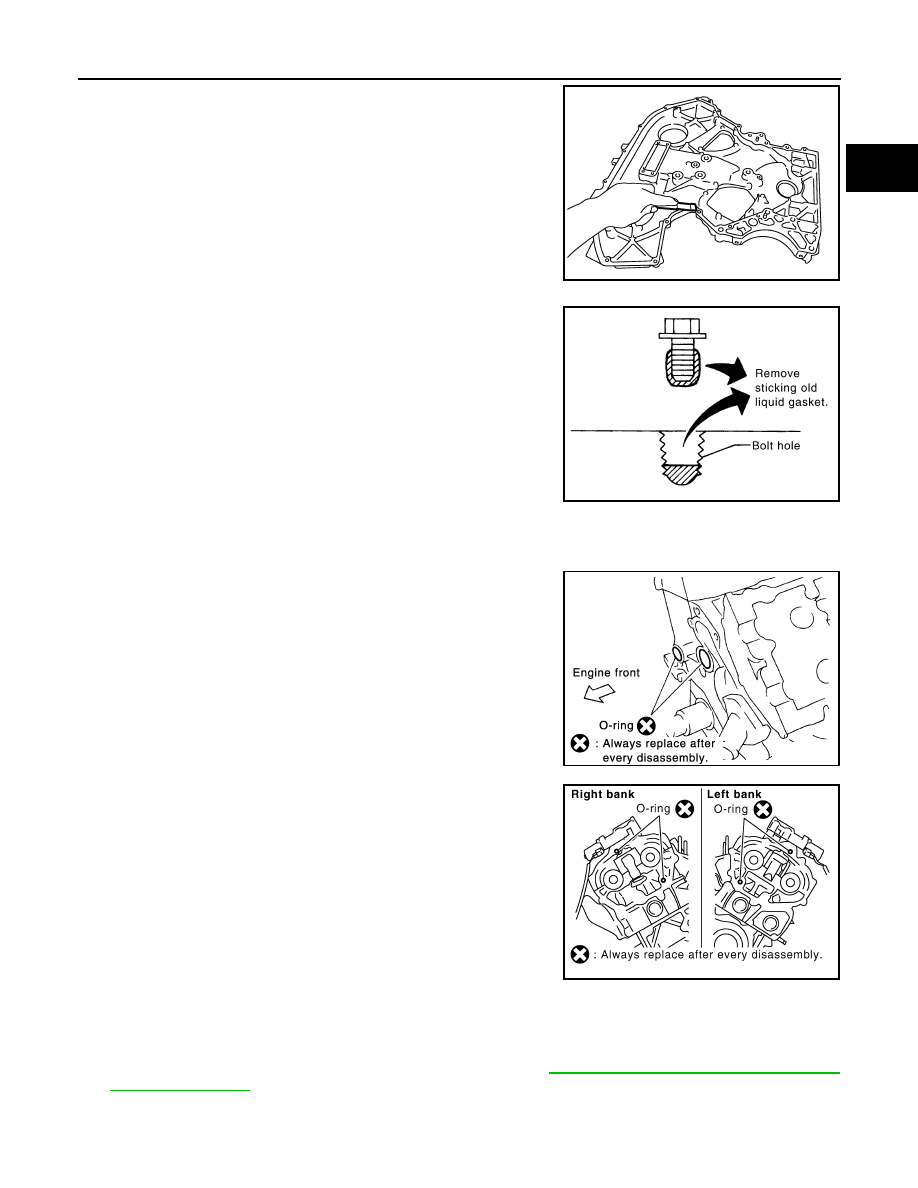

8.

Use scraper to remove all traces of old liquid gasket from rear
timing chain case, and opposite mating surfaces.

• Remove old liquid gasket from bolt hole and thread.

INSTALLATION

1.

Install rear timing chain case as follows:

a.

Install new O-rings onto cylinder block.

b.

Install new O-rings to cylinder head and camshaft bracket
(No. 1).

c.

Apply liquid gasket using Tool to rear timing chain case back side as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-22, "Recommended Chemical Prod-

ucts and Sealants"

.

CAUTION:

• For “A”, completely wipe off liquid gasket covering the area shown.

PBIC2910E

PBIC2084E

PBIC0788E

SBIA0496E

Tool number

: WS39930000 (

—

)
