EM-104

< DISASSEMBLY AND ASSEMBLY >

[QR25DE]

HOW TO SELECT PISTON AND BEARING

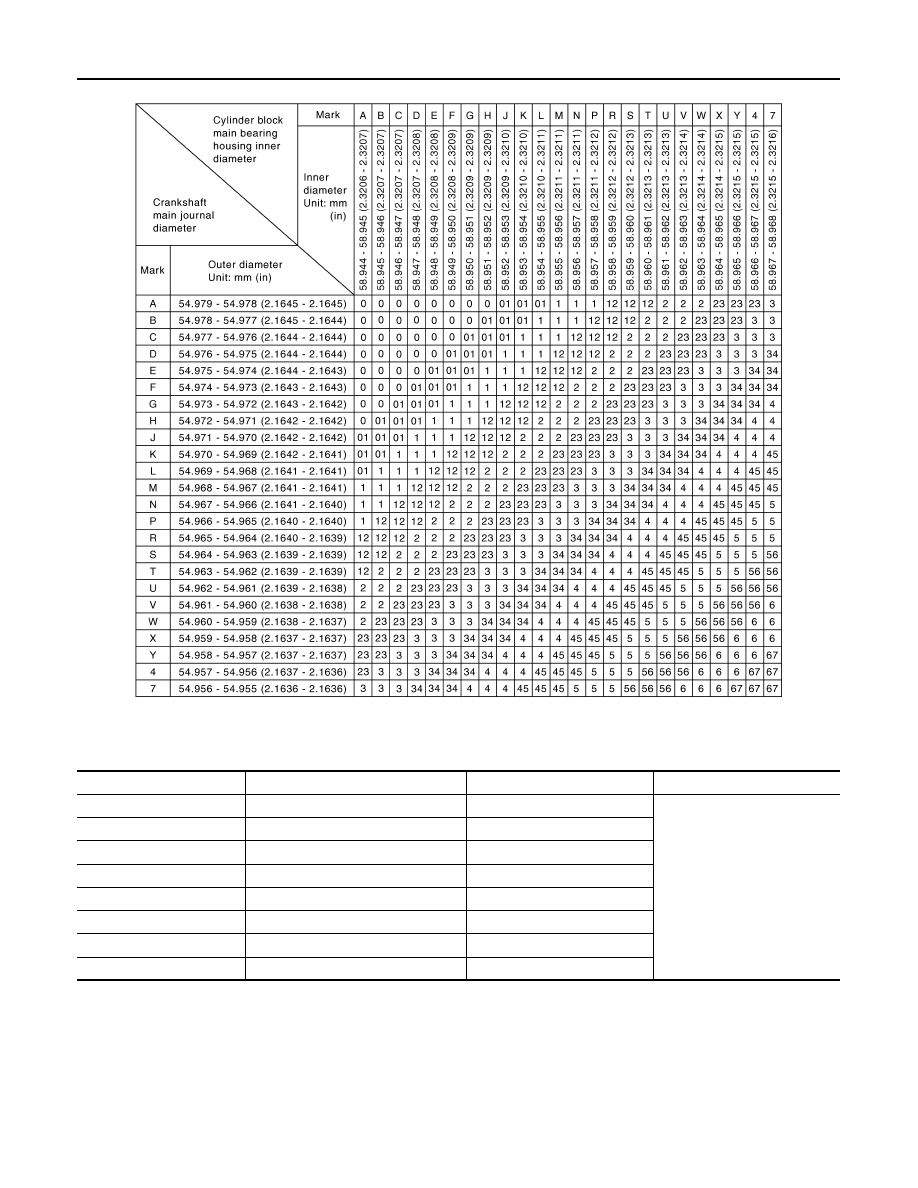

Main Bearing Selection Table (No. 2 and 4 journals)

Main Bearing Grade Table (All Journals)

Unit: mm (in)

PBIC2202E

Grade number

Thickness

Identification color

Remarks

0

1.973 - 1.976 (0.0777 - 0.0778)

Black

Grade and color are the same
for upper and lower bearings.

1

1.976 - 1.979 (0.0778 - 0.0779)

Brown

2

1.979 - 1.982 (0.0779- 0.0780)

Green

3

1.982 - 1.985 (0.0780 - 0.0781)

Yellow

4

1.985 - 1.988 (0.0781 - 0.0783)

Blue

5

1.988 - 1.991 (0.0783 - 0.0784)

Pink

6

1.991 - 1.994 (0.0784 - 0.0785)

Purple

7

1.994 - 1.997 (0.0785 - 0.0786)

White

HOW TO SELECT PISTON AND BEARING

EM-105

< DISASSEMBLY AND ASSEMBLY >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

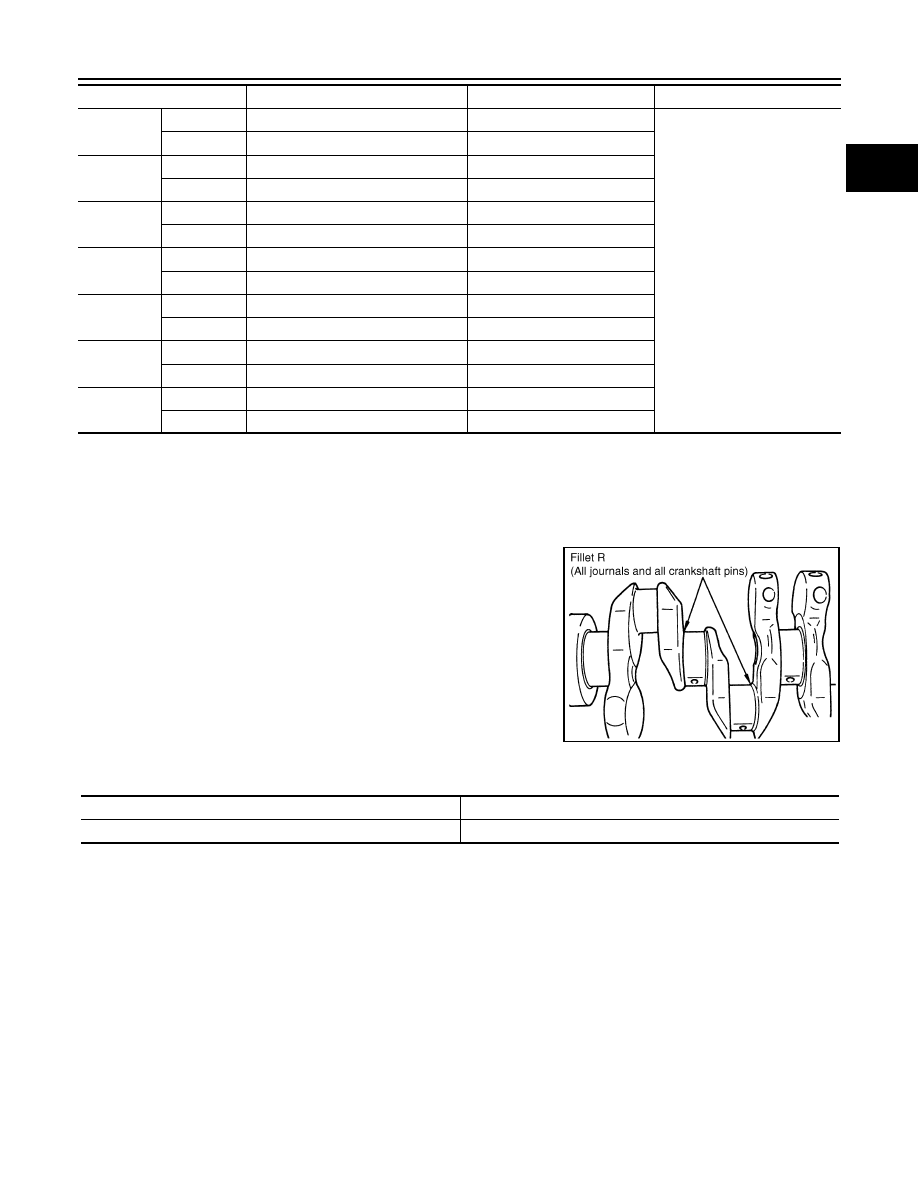

Undersize Bearing Usage Guide

• When the specified main bearing oil clearance is not obtained with standard size main bearings, use under-

size (US) bearing.

• When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and

grind main journal so that the main bearing oil clearance satisfies the standard.

CAUTION:

In grinding crankshaft main journal to use undersize bearings,
keep fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)].

Bearing undersize table

Unit: mm (in)

01

UPR

1.973 - 1.976 (0.0777 - 0.0778)

Black

Grade and color are different
for upper and lower bearings.

LWR

1.976 - 1.979 (0.0778 - 0.0779)

Brown

12

UPR

1.976 - 1.979 (0.0778 - 0.0779)

Brown

LWR

1.979 - 1.982 (0.0779 - 0.0780)

Green

23

UPR

1.979 - 1.982 (0.0779- 0.0780)

Green

LWR

1.982 - 1.985 (0.0780 - 0.0781)

Yellow

34

UPR

1.982 - 1.985 (0.0780 - 0.0781)

Yellow

LWR

1.985 - 1.988 (0.0781 - 0.0783)

Blue

45

UPR

1.985 - 1.988 (0.0781 - 0.0783)

Blue

LWR

1.988 - 1.991 (0.0783 - 0.0784)

Pink

56

UPR

1.988 - 1.991 (0.0783 - 0.0784)

Pink

LWR

1.991 - 1.994 (0.0784 - 0.0785)

Purple

67

UPR

1.991 - 1.994 (0.0784 - 0.0785)

Purple

LWR

1.994 - 1.997 (0.0785 - 0.0786)

White

Grade number

Thickness

Identification color

Remarks

PBIC2200E

Size

Thickness

US 0.25 (0.0098)

2.106 - 2.114 (0.0829 - 0.0832)

EM-106

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000005274301

GENERAL SPECIFICATIONS

DRIVE BELT

EXHAUST MANIFOLD AND THREE WAY CATALYST ASSEMBLY

Unit: mm (in)

SPARK PLUG

*: Always check with the Parts Department for the latest parts information

CYLINDER HEAD

Unit: mm (in)

Cylinder arrangement

In-line 4

Displacement

cm

3

 (cu in)

2,488 (151.82)

Bore and stroke

mm (in)

89.0 x 100.0 (3.504 x 3.937)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.5

Compression pressure

kPa (kg/cm

2

, psi) / 250 rpm

Standard

1,304 (13.3, 189)

Minimum

1,108 (11.3, 161)

Differential limit between cylinders

100 (1.0, 14)

Tension of drive belt

                         Auto adjustment by auto-tensioner

Item

Limit

Surface distortion

0.3 (0.012)

Make

NGK

Standard type*

PLZKAR6A–11

Gap (nominal)

1.1 mm (0.043 in)

Items

Limit

Head surface distortion

                                           0.1 (0.004)

Items

Standard

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-107

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

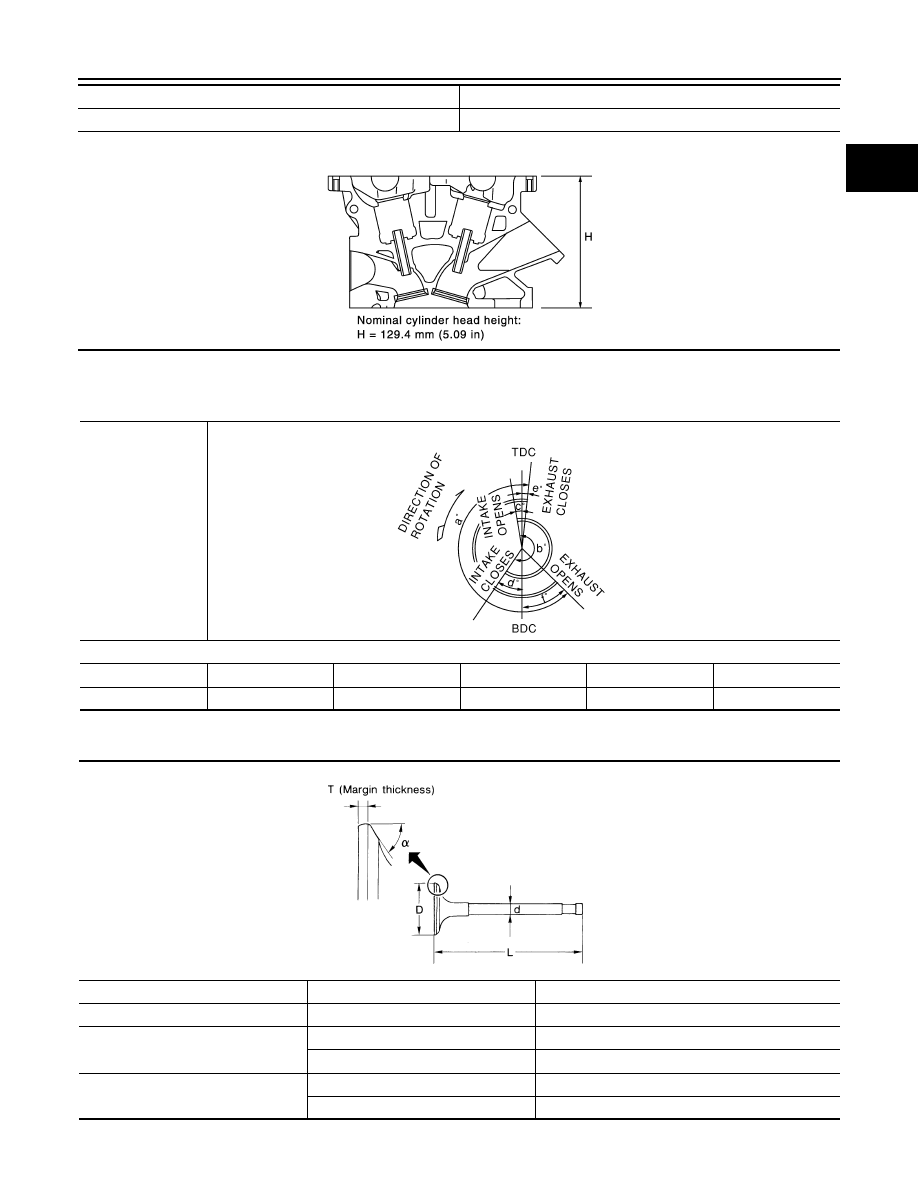

VALVE

Valve Timing

Valve Dimensions

Unit: mm (in)

Camshaft bearing surface length

25.660 - 25.685 (1.0102 - 1.0112)

Items

Limit

PBIC0283E

Valve timing

Unit: degree

a

b

c

d

e

f

236

224

-4

60

32

37

PBIC0187E

Valve head diameter “D”

Intake

35.5 - 35.8 (1.398 - 1.409)

Exhaust

30.5 - 30.8 (1.201 - 1.213)

Valve length “L”

Intake

 97.16 (3.8252)

Exhaust

98.82 (3.8905)

Valve stem diameter “d”

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

SEM188A
