P0507 ISC SYSTEM

EC-747

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3.

REPLACE ECM

1.

Stop engine.

2.

Replace ECM.

3.

Perform initialization of NVIS(NATS) system and registration of all NVIS(NATS) ignition key IDs. Refer to

SEC-7, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

4.

Perform

EC-473, "VIN Registration"

.

5.

Perform

EC-473, "Accelerator Pedal Released Position Learning"

.

6.

Perform

EC-473, "Throttle Valve Closed Position Learning"

.

7.

Perform

EC-473, "Idle Air Volume Learning"

.

>> INSPECTION END

EC-748

< COMPONENT DIAGNOSIS >

[VQ40DE]

P050E COLD START CONTROL

P050E COLD START CONTROL

Description

INFOID:0000000005552924

ECM controls ignition timing and engine idle speed when engine is started with pre-warming up condition.
This control promotes the activation of three way catalyst by heating the catalyst and reduces emissions.

On Board Diagnosis Logic

INFOID:0000000005574974

NOTE:
If DTC P050E is displayed with other DTC, first perform the trouble diagnosis for other DTC.

DTC Confirmation Procedure

INFOID:0000000005574975

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-I

With CONSULT-III

1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Select “DATA MONITOR” mode with CONSULT-III.

4.

Check the indication of “COOLAN TEMP/S”.

With GST

Follow the procedure “With CONSULT-III” above.

Is the value of “COOLAN TEMP/S” between 15

°

C (59

°

F) and 36

°

C (97

°

F)?

YES

>> GO TO 3.

NO-1 [If it is below 15

°

C (59

°

F)]>>Warm up the engine until the value of “COOLAN TEMP/S” reaches 15

°

C

(59

°

F) or more. Retry from step 1.

NO-2 [If it is above 36

°

C (97

°

F)]>>Cool engine down to less than 36

°

C (97

°

F). Retry from step 1.

3.

PERFORM DTC CONFIRMATION PROCEDURE-II

With CONSULT-III

1.

Set the select lever in N range.

2.

Start the engine and warm up in idle with the value of “COOLAN TEMP/S” between 15

°

C (59

°

F) and 40

°

C

(104

°

F) for more than 15 seconds.

3.

Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT-III” above.

Is 1st trip DTC detected?

YES

>> Go to

EC-749, "Diagnosis Procedure"

.

NO

>> INSPECTION END

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P050E

Cold start engine exhaust temper-
ature too low

The temperature of the catalyst inlet does not
rise to the proper temperature when the engine
is started with pre-warming up condition.

• Lack of intake air volume
• Fuel injection system
• ECM

P050E COLD START CONTROL

EC-749

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Diagnosis Procedure

INFOID:0000000005552926

1.

PERFORM IDLE AIR VOLUME LEARNING

Perform

EC-473, "Idle Air Volume Learning"

.

Is Idle Air Volume Learning carried out successfully?

YES

>> GO TO 2.

NO

>> Follow the instruction of Idle Air Volume Learning.

2.

CHECK INTAKE SYSTEM

Check for the cause of intake air volume lacking. Refer to the following.
• Crushed intake air passage
• Intake air passage clogging
• Clogging of throttle body
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace malfunctioning part

3.

CHECK FUEL INJECTION SYSTEM FUNCTION

Perform DTC Confirmation Procedure for DTC P0171, P0174. Refer to

EC-635, "DTC Confirmation Proce-

dure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Go to

EC-636, "Diagnosis Procedure"

 for DTC P0171, P0174.

4.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Erase DTC.

3.

Perform DTC Confirmation Procedure.
See

EC-748, "DTC Confirmation Procedure"

.

Is the 1st trip DTC P050E displayed again?

YES

>> GO TO 5.

NO

>> INSPECTION END

5.

REPLACE ECM

1.

Replace ECM.

2.

Go to

EC-472, "Procedure After Replacing ECM"

.

>> INSPECTION END

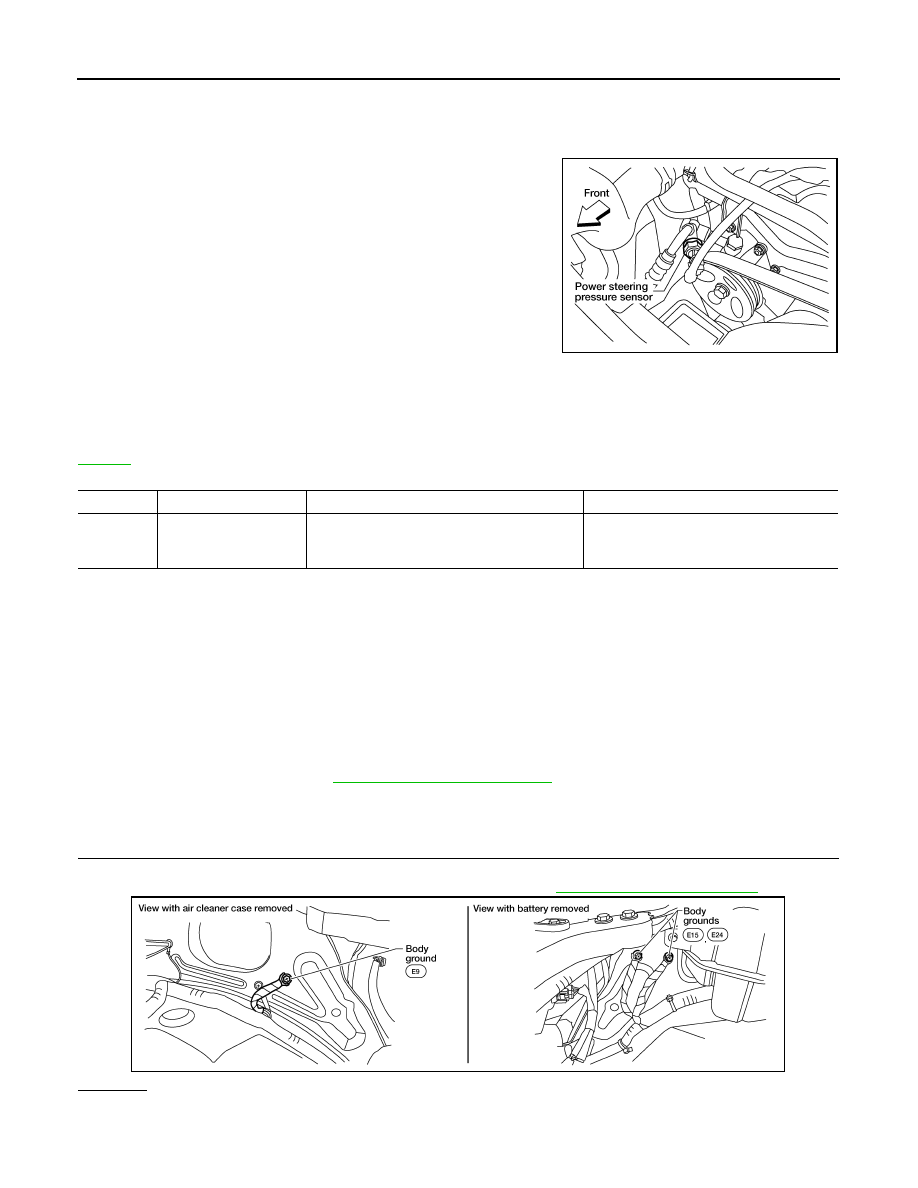

EC-750

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0550 PSP SENSOR

P0550 PSP SENSOR

Component Description

INFOID:0000000005273727

Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.

On Board Diagnosis Logic

INFOID:0000000005273728

The MIL will not illuminate for this diagnosis.
NOTE:
If DTC P0550 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to

EC-758

.

DTC Confirmation Procedure

INFOID:0000000005273729

1.

If DTC Confirmation Procedure has been previously conducted, always perform the following before con-
ducting the next step.

a.

Turn ignition switch OFF and wait at least 10 seconds.

b.

Turn ignition switch ON.

c.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Start engine and let it idle for at least 5 seconds.

3.

Check 1st trip DTC.

4.

If 1st trip DTC is detected, go to

EC-750, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005273730

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body. Refer to

EC-549, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

BBIA0552E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0550
0550

Power steering pressure
sensor circuit

An excessively low or high voltage from the
sensor is sent to ECM.

• Harness or connectors

(The sensor circuit is open or shorted)

• Power steering pressure sensor

BBIA0539E
