P0456 EVAP CONTROL SYSTEM

EC-735

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

24.

CHECK INTERMITTENT INCIDENT

Refer to

GI-46, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000005273701

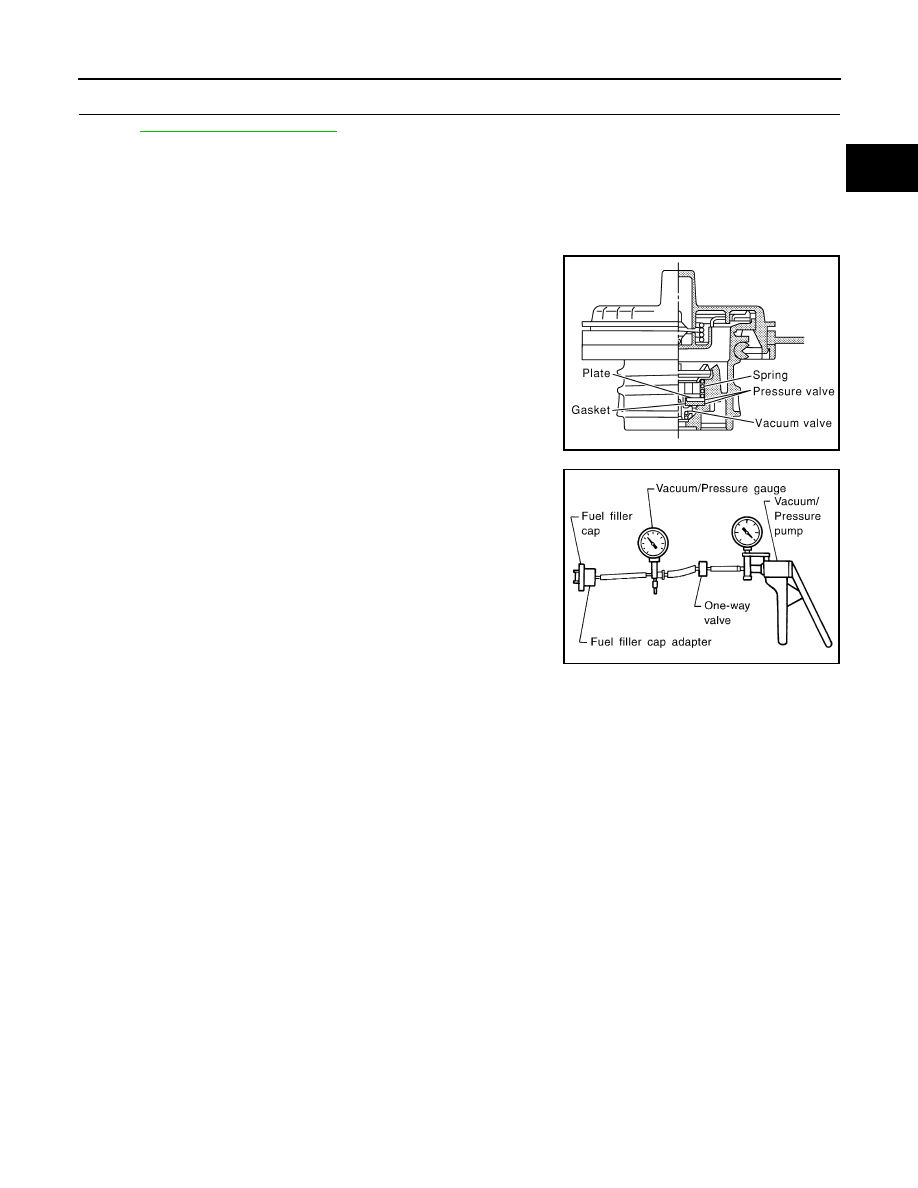

FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)

1.

Wipe clean valve housing.

2.

Check valve opening pressure and vacuum.

3.

If out of specification, replace fuel filler cap as an assembly.

CAUTION:

Use only a genuine fuel filler cap as a replacement. If an incor-
rect fuel filler cap is used, the MIL may come on.

SEF445Y

Pressure:

15.3 - 20.0 kPa (0.156 - 0.204 kg/cm

2

, 2.22 -

2.90 psi)

Vacuum:

−

6.0 to

−

3.3 kPa (

−

0.061 to

−

0.034 kg/cm

2

,

−

0.87 to

−

0.48 psi)

SEF943S

EC-736

< COMPONENT DIAGNOSIS >

[VQ40DE]

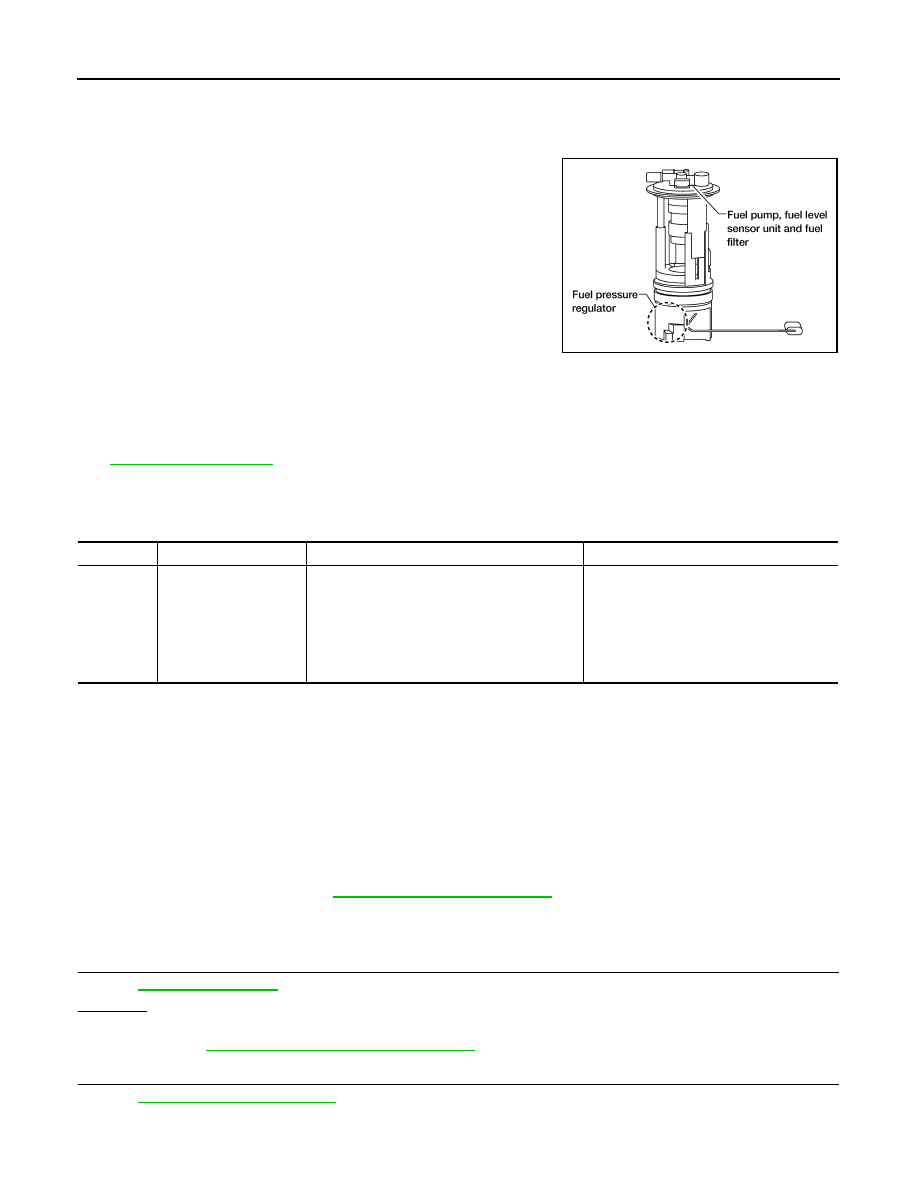

P0460 FUEL LEVEL SENSOR

P0460 FUEL LEVEL SENSOR

Component Description

INFOID:0000000005273702

The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the combination meter. The combination meter sends the fuel level
sensor signal to the ECM through the CAN communication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.

On Board Diagnosis Logic

INFOID:0000000005273703

NOTE:
• If DTC P0460 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P0460 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-757, "Description"

.

When the vehicle is parked, the fuel level in the fuel tank is naturally stable. It means that output signal of the
fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunc-
tion is detected.

DTC Confirmation Procedure

INFOID:0000000005273704

1.

If DTC Confirmation Procedure has been previously conducted, always perform the following before con-
ducting the next step.

a.

Turn ignition switch OFF and wait at least 10 seconds.

b.

Turn ignition switch ON.

c.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Start engine and wait maximum of 2 consecutive minutes.

3.

Check 1st trip DTC.

4.

If 1st trip DTC is detected, go to

EC-736, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005273705

1.

CHECK COMBINATION METER FUNCTION

Refer to

MWI-3, "Work Flow"

.

OK or NG

OK

>> GO TO 2.

NG

>> Go to

MWI-32, "Component Function Check"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-46, "Intermittent Incident"

.

BBIA0529E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0460
0460

Fuel level sensor circuit
noise

Even though the vehicle is parked, a signal be-
ing varied is sent from the fuel level sensor to
ECM.

• Harness or connectors

(The CAN communication line is open or
shorted)

• Harness or connectors

(The sensor circuit is open or shorted)

• Combination meter
• Fuel level sensor

P0460 FUEL LEVEL SENSOR

EC-737

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> INSPECTION END

EC-738

< COMPONENT DIAGNOSIS >

[VQ40DE]

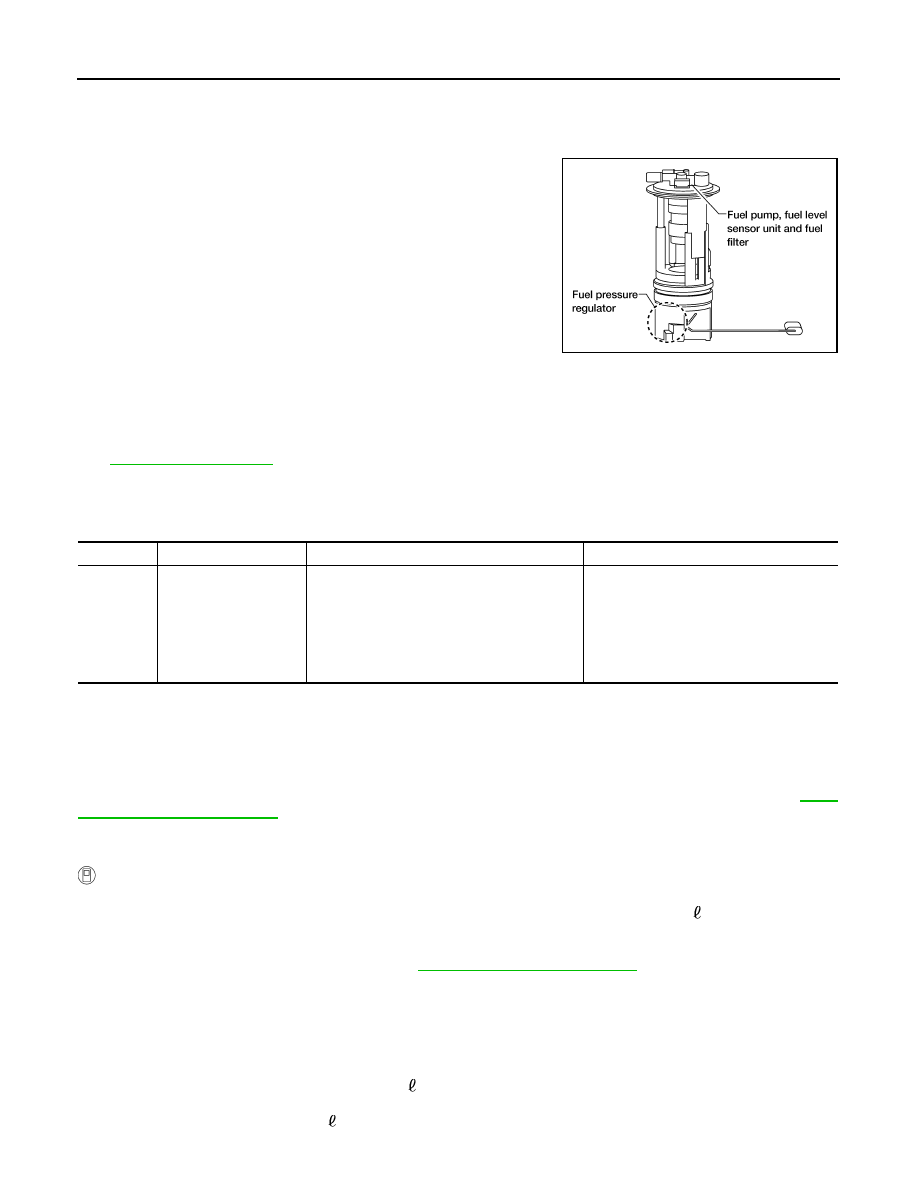

P0461 FUEL LEVEL SENSOR

P0461 FUEL LEVEL SENSOR

Component Description

INFOID:0000000005273706

The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the combination meter. The combination meter sends the fuel level
sensor signal to the ECM through CAN communication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.

On Board Diagnosis Logic

INFOID:0000000005273707

NOTE:
• If DTC P0461 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P0461 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-757, "Description"

.

Driving long distances naturally affect fuel gauge level.
This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has
been driven.

Overall Function Check

INFOID:0000000005273708

Use this procedure to check the overall function of the fuel level sensor. During this check, a 1st trip DTC
might not be confirmed.

WARNING:

When performing the following procedure, always observe the handling of the fuel. Refer to

FL-6,

"Removal and Installation"

.

TESTING CONDITION:
Before starting overall function check, preparation of draining fuel and refilling fuel is required.

 WITH CONSULT-III

NOTE:
Start from step 10, if it is possible to confirm that the fuel cannot be drained by 30   (7-7/8 US gal, 6-5/
8 Imp gal) in advance.
1.

Prepare a fuel container and a spare hose.

2.

Release fuel pressure from fuel line, refer to

EC-954, "Fuel Pressure Check"

.

3.

Remove the fuel feed hose on the fuel level sensor unit.

4.

Connect a spare fuel hose where the fuel feed hose was removed.

5.

Turn ignition switch OFF and wait at least 10 seconds then turn ON.

6.

Select “FUEL LEVEL SE” in “DATA MONITOR” mode with CONSULT-III.

7.

Check “FUEL LEVEL SE” output voltage and note it.

8.

Select “FUEL PUMP” in “ACTIVE TEST” mode with CONSULT-III.

9.

Touch ON and drain fuel approximately 30   (7-7/8 US gal, 6-5/8 Imp gal) and stop it.

10. Check “FUEL LEVEL SE” output voltage and note it.
11. Fill fuel into the fuel tank for 30   (7-7/8 US gal, 6-5/8 Imp gal).
12. Check “FUEL LEVEL SE” output voltage and note it.

BBIA0529E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0461
0461

Fuel level sensor circuit
range/performance

The output signal of the fuel level sensor does
not change within the specified range even
though the vehicle has been driven a long dis-
tance.

• Harness or connectors

(The CAN communication line is open or
shorted)

• Harness or connectors

(The sensor circuit is open or shorted)

• Combination meter
• Fuel level sensor
