P0171, P0174 FUEL INJECTION SYSTEM FUNCTION

EC-635

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION

On Board Diagnosis Logic

INFOID:0000000005273605

With the Air-Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the air fuel ratio (A/F) sensor 1. The
ECM calculates the necessary compensation to correct the offset between the actual and the theoretical
ratios.
In case the amount of the compensation value is extremely large (the actual mixture ratio is too lean), the
ECM judges the condition as the fuel injection system malfunction and illuminates the MIL (2 trip detection
logic).

DTC Confirmation Procedure

INFOID:0000000005551331

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-III.

4.

Clear the self-learning control coefficient by touching “CLEAR”.

5.

Start engine.
If it is difficult to start engine, the fuel injection system has a malfunction.
Performing the following procedure is advised.

a.

Crank engine while depressing accelerator pedal.
NOTE:
When depressing accelerator pedal three-fourths (3/4) or more, the control system does not start the
engine. Do not depress accelerator pedal too much.

b.

If engine starts, go to

EC-170, "Diagnosis Procedure"

.

If engine does not start, check exhaust and intake air leakage visually.

6.

Keep engine at idle for at least 5 minutes.

7.

Check 1st trip DTC.

8.

The 1st trip DTC P0171 or P0174 should be detected at this stage, if a malfunction exists. If so, go to

EC-

170, "Diagnosis Procedure"

.

NOTE:
If 1st trip DTC is not detected during above procedure, performing the following procedure is advised.

a.

Turn ignition switch OFF and wait at least 10 seconds.

b.

Start engine.

c.

Maintain the following conditions for at least 10 consecutive minutes.

Sensor

Input signal to ECM

ECM function

Actuator

A/F sensor 1

Density of oxygen in exhaust gas
(Mixture ratio feedback signal)

Fuel injection
control

Fuel injector

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P0171
0171
(Bank 1)

Fuel injection system
too lean

• Fuel injection system does not operate properly.
• The amount of mixture ratio compensation is too

large. (The mixture ratio is too lean.)

• Intake air leaks
• Air fuel ratio (A/F) sensor 1
• Fuel injector
• Exhaust gas leaks
• Incorrect fuel pressure
• Lack of fuel
• Mass air flow sensor
• Incorrect PCV hose connection

P0174
0174
(Bank 2)

EC-636

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION

Hold the accelerator pedal as steady as possible.

CAUTION:

Always drive vehicle at a safe speed.

d.

Check 1st trip DTC.

e.

If 1st trip DTC is detected, go to

EC-170, "Diagnosis Procedure"

.

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

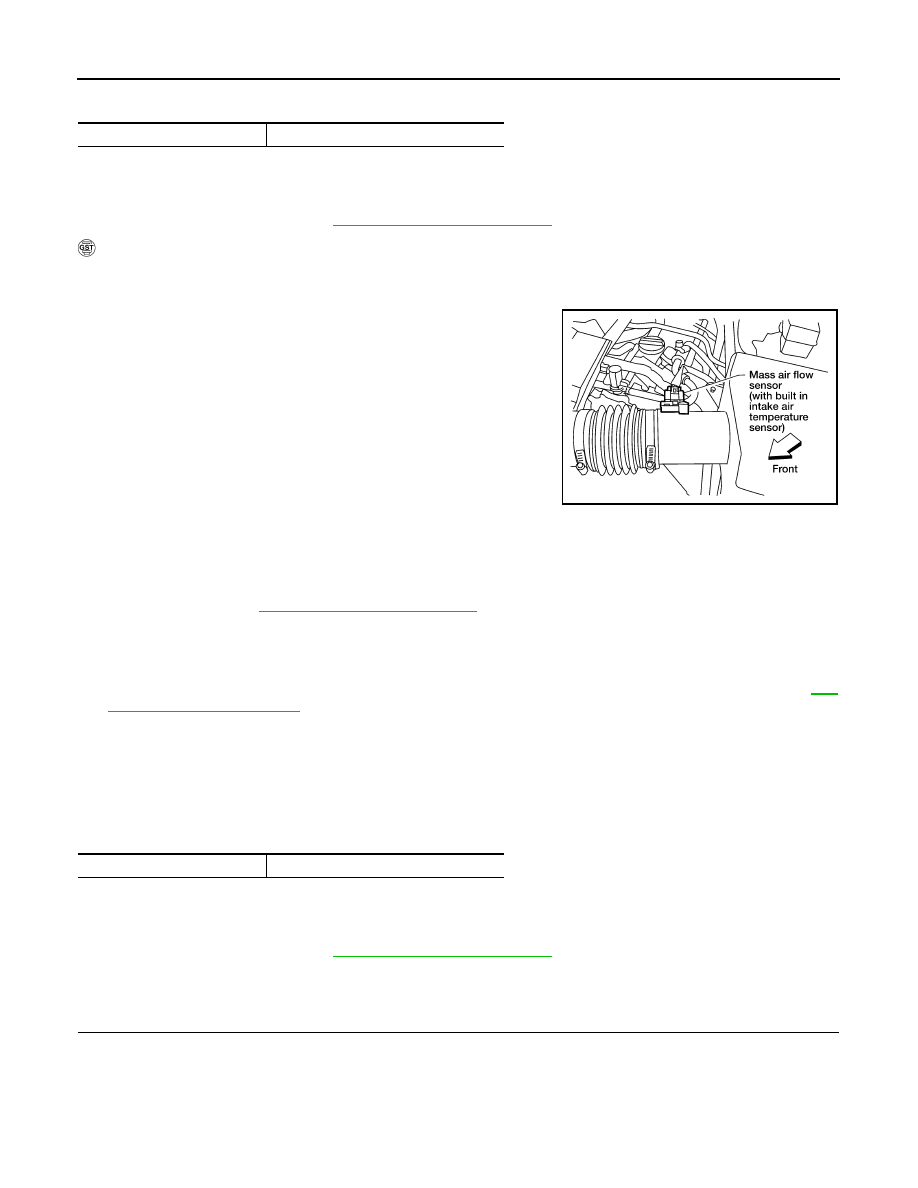

Disconnect mass air flow sensor harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Select Service $03 with GST. Check that DTC P0102 is
detected.

7.

Select Service $04 with GST and erase the DTC P0102.

8.

Start engine.
If it is difficult to start engine, the fuel injection system has a mal-
function.
Performing the following procedure is advised.

a.

Crank engine while depressing accelerator pedal.
NOTE:
When depressing accelerator pedal three-fourths (3/4) or more, the control system does not start the
engine. Do not depress accelerator pedal too much.

b.

If engine starts, go to

EC-170, "Diagnosis Procedure"

If engine does not start, check exhaust and intake air leakage visually.

9.

Keep engine at idle for at least 5 minutes.

10. Check 1st trip DTC.

11. The 1st trip DTC P0171 or P0174 should be detected at this stage, if a malfunction exists. If so, go to

EC-

170, "Diagnosis Procedure"

.

NOTE:
If 1st trip DTC is not detected during above procedure, performing the following procedure is advised.

a.

Turn ignition switch OFF and wait at least 10 seconds.

b.

Start engine.

c.

Maintain the following conditions for at least 10 consecutive minutes.
Hold the accelerator pedal as steady as possible.

CAUTION:

Always drive vehicle at a safe speed.

d.

Check 1st trip DTC.

e.

If 1st trip DTC is detected, go to

EC-170, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005273607

1.

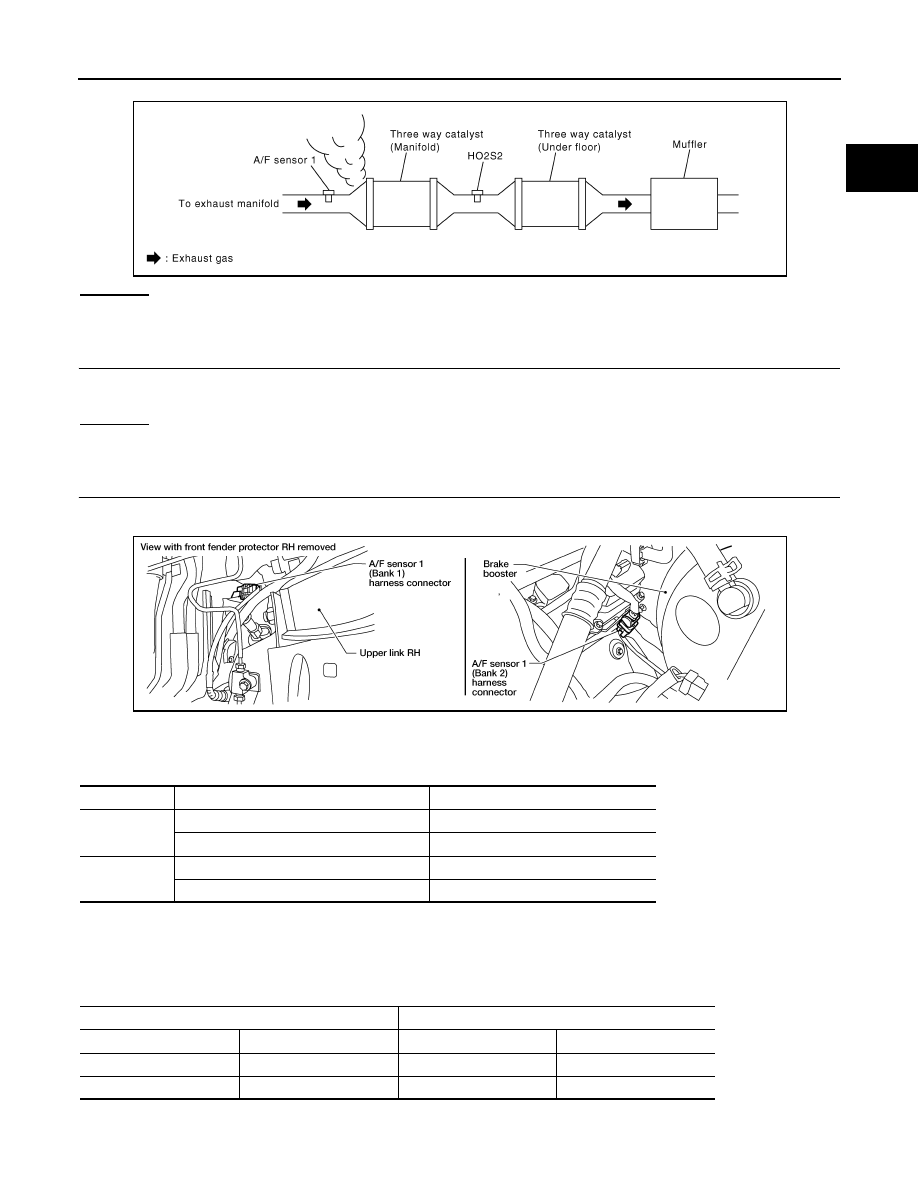

CHECK EXHAUST GAS LEAK

1.

Start engine and run it at idle.

VHCL SPEED SE

50 - 120 km/h (31 - 75 MPH)

VHCL SPEED SE

50 - 120 km/h (31 - 75 MPH)

BBIA0541E

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION

EC-637

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Listen for an exhaust gas leak before three way catalyst (manifold).

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace.

2.

CHECK FOR INTAKE AIR LEAK

1.

Listen for an intake air leak after the mass air flow sensor.

2.

Check PCV hose connection.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect corresponding A/F sensor 1 harness connector.

3.

Disconnect ECM harness connector.

4.

Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.

5.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

PBIB1216E

A/F sensor 1 terminal

ECM terminal

Bank 1

1

35

2

56

Bank 2

1

16

2

75

Continuity should exist.

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

1

35

1

16

2

56

2

75

Continuity should not exist.

BBIA0544E

EC-638

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION

6.

Also check harness for short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK FUEL PRESSURE

1.

Release fuel pressure to zero. Refer to

EC-954, "Fuel Pressure Check"

.

2.

Install fuel pressure gauge and check fuel pressure. Refer to

EC-954, "Fuel Pressure Check"

.

OK or NG

OK (With CONSULT-III)>>GO TO 6.
OK (Without CONSULT-III)>>GO TO 7.
NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.
• Fuel pump and circuit (Refer to

EC-862, "Description"

.)

• Fuel pressure regulator (Refer to

EC-954, "Fuel Pressure Check"

.)

• Fuel lines
• Fuel filter for clogging

>> Repair or replace.

6.

CHECK MASS AIR FLOW SENSOR

 With CONSULT-III

1.

Install all removed parts.

2.

Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-III.

OK or NG

OK

>> GO TO 8.

NG

>> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or

ground. Refer to

EC-565, "Component Description"

.

7.

CHECK MASS AIR FLOW SENSOR

 With GST

1.

Install all removed parts.

2.

Check mass air flow sensor signal in Service $01 with GST.

OK or NG

OK (P0171)>>GO TO 9.
OK (P0174)>>GO TO 11.
NG

>> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or

ground. Refer to

EC-565, "Component Description"

.

8.

CHECK FUNCTION OF FUEL INJECTOR

 With CONSULT-III

1.

Start engine.

2.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

3.

Check that each circuit produces a momentary engine speed drop.

At idling: 350 kPa (3.57 kg/cm

2

, 51 psi)

2.0 - 6.0 g·m/sec:

at idling

7.0 - 20.0 g·m/sec:

at 2,500 rpm

2.0 - 6.0 g·m/sec:

at idling

7.0 - 20.0 g·m/sec:

at 2,500 rpm
