Nissan Frontier D40. Manual - part 418





P2A00 A/F SENSOR 1

EC-363

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

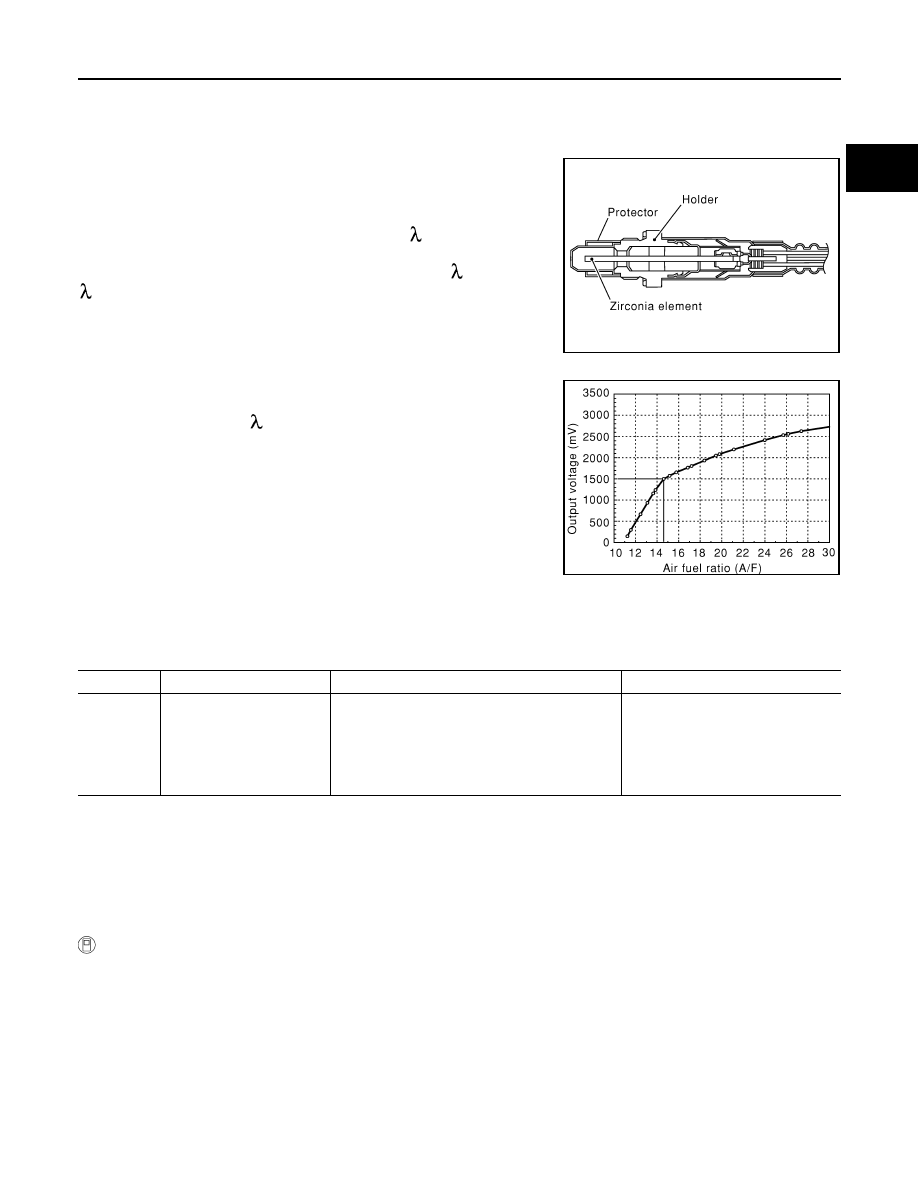

P2A00 A/F SENSOR 1

Component Description

INFOID:0000000005273404

The A/F sensor 1 is a planar dual-cell limit current sensor. The sen-
sor element of the A/F sensor 1 is the combination of a Nernst con-
centration cell (sensor cell) with an oxygen-pump cell, which
transports ions. It has a heater in the element.
The sensor is capable of precise measurement   = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide   range (0.7 <

 < air).

The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.

An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at   = 1. Therefore, the A/F sensor 1 is able to
indicate air-fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800

°

C (1,292 - 1,472

°

F).

On Board Diagnosis Logic

INFOID:0000000005273405

To judge the malfunction, the A/F signal computed by ECM from the air fuel ratio (A/F) sensor 1 signal is mon-
itored not to be shifted to LEAN side or RICH side.

DTC Confirmation Procedure

INFOID:0000000005273406

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

 WITH CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-III.

4.

Clear the self-learning coefficient by touching “CLEAR”.

5.

Turn ignition switch OFF and wait at least 10 seconds.

6.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for 1 minute under no load.

7.

Let engine idle for 1 minute.

8.

Keep engine speed between 2,500 and 3,000 rpm for 20 minutes.

9.

Check 1st trip DTC.

SEF579Z

SEF580Z

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P2A00
2A00

Air fuel ratio (A/F) sensor 1
circuit range/performance

• The output voltage computed by ECM from the

air fuel ratio (A/F) sensor 1 signal is shifted to
the lean side for a specified period.

• The A/F signal computed by ECM from the air

fuel ratio (A/F) sensor 1 signal is shifted to the
rich side for a specified period.

• Air fuel ratio (A/F) sensor 1
• Air fuel ratio (A/F) sensor 1 heater
• Fuel pressure
• Fuel injector
• Intake air leaks

EC-364

< COMPONENT DIAGNOSIS >

[QR25DE]

P2A00 A/F SENSOR 1

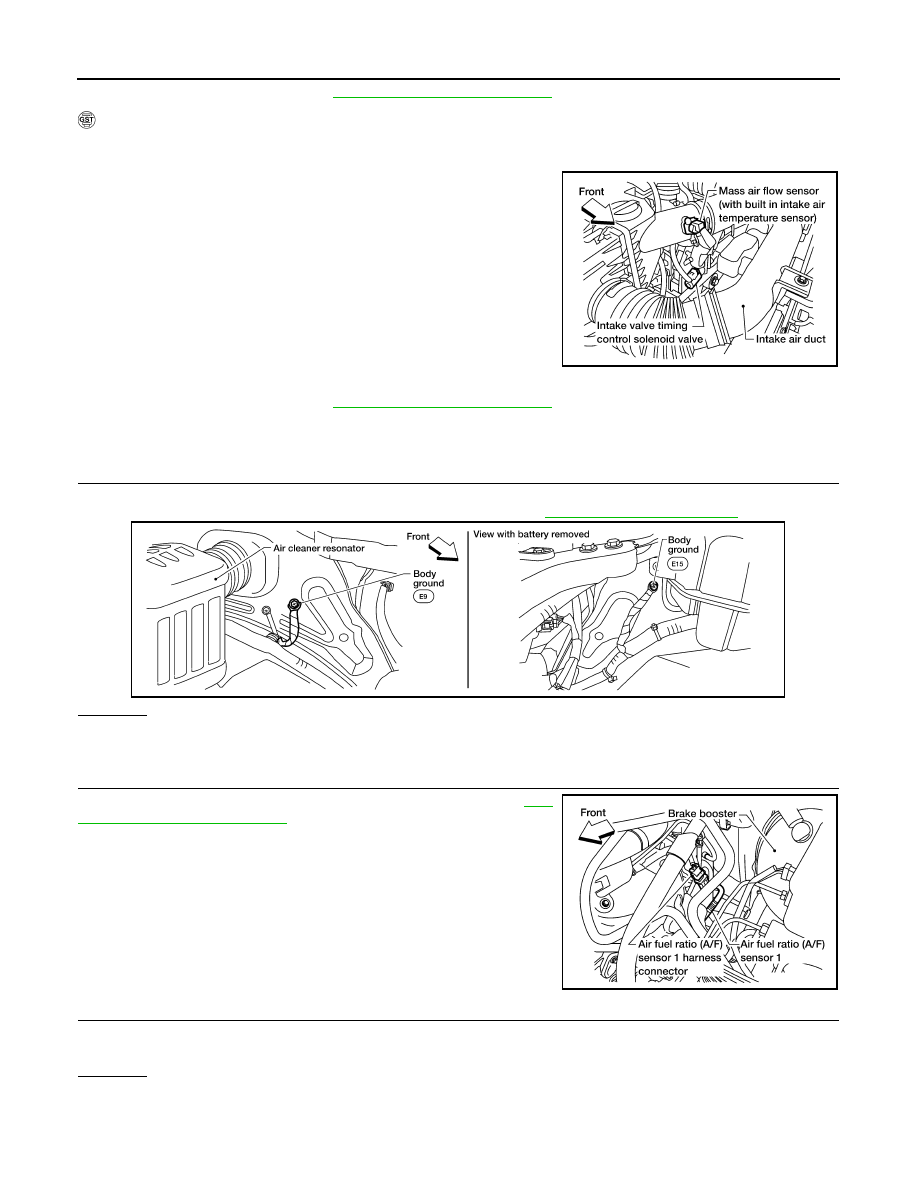

10. If 1st trip DTC is detected, go to

EC-364, "Diagnosis Procedure"

.

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Disconnect mass air flow sensor harness connector.

4.

Start engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Select Service $03 with GST and make sure that DTC P0102 is
detected.

7.

Select Service $04 with GST and erase the DTC P0102.

8.

Start engine and keep the engine speed between 3,500 and
4,000 rpm for 1 minute under no load.

9.

Let engine idle for 1 minute.

10. Keep engine speed between 2,500 and 3,000 rpm for 20 min-

utes.

11. Select Service $07 with GST.

If 1st trip DTC is detected, go to

EC-364, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005273407

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body. Refer to

EC-90, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

Loosen and retighten the air fuel ratio (A/F) sensor 1. Refer to

EM-

30, "Removal and Installation"

>> GO TO 3.

3.

CHECK FOR INTAKE AIR LEAK

1.

Start engine and run it at idle.

2.

Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

BBIA0622E

BBIA0614E

BBIA0617E

P2A00 A/F SENSOR 1

EC-365

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

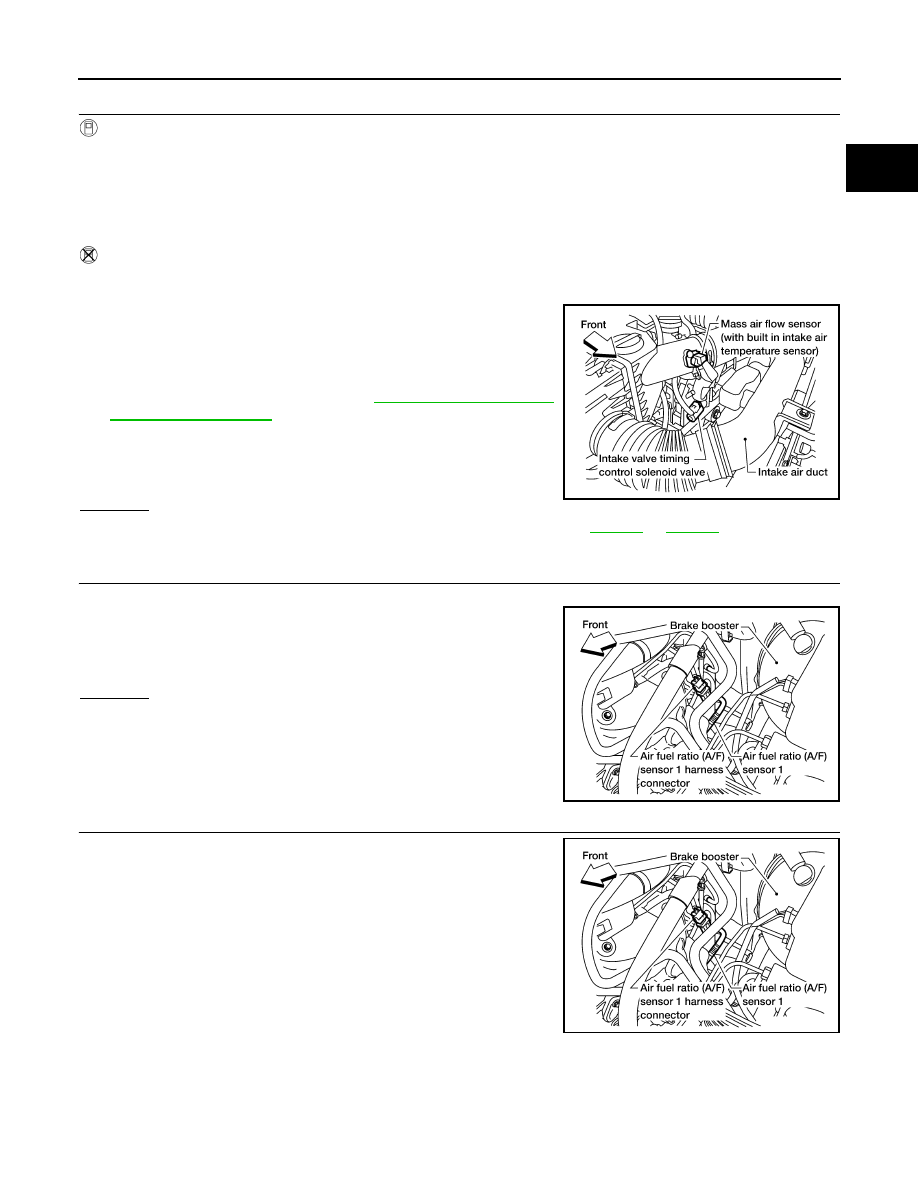

4.

CLEAR THE SELF-LEARNING DATA.

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detected?
Is it difficult to start engine?

 Without CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Make sure DTC P0102 is displayed.

7.

Erase the DTC memory. Refer to

EC-47, "Emission-related

Diagnostic Information"

.

8.

Make sure DTC P0000 is displayed.

9.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0171 or P0172. Refer to

EC-169

 or

EC-174

.

No

>> GO TO 5.

5.

CHECK HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect A/F sensor 1 harness connector.

3.

Check harness connector for water.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness connector.

6.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

BBIA0622E

Water should not exit.

BBIA0617E

BBIA0617E

EC-366

< COMPONENT DIAGNOSIS >

[QR25DE]

P2A00 A/F SENSOR 1

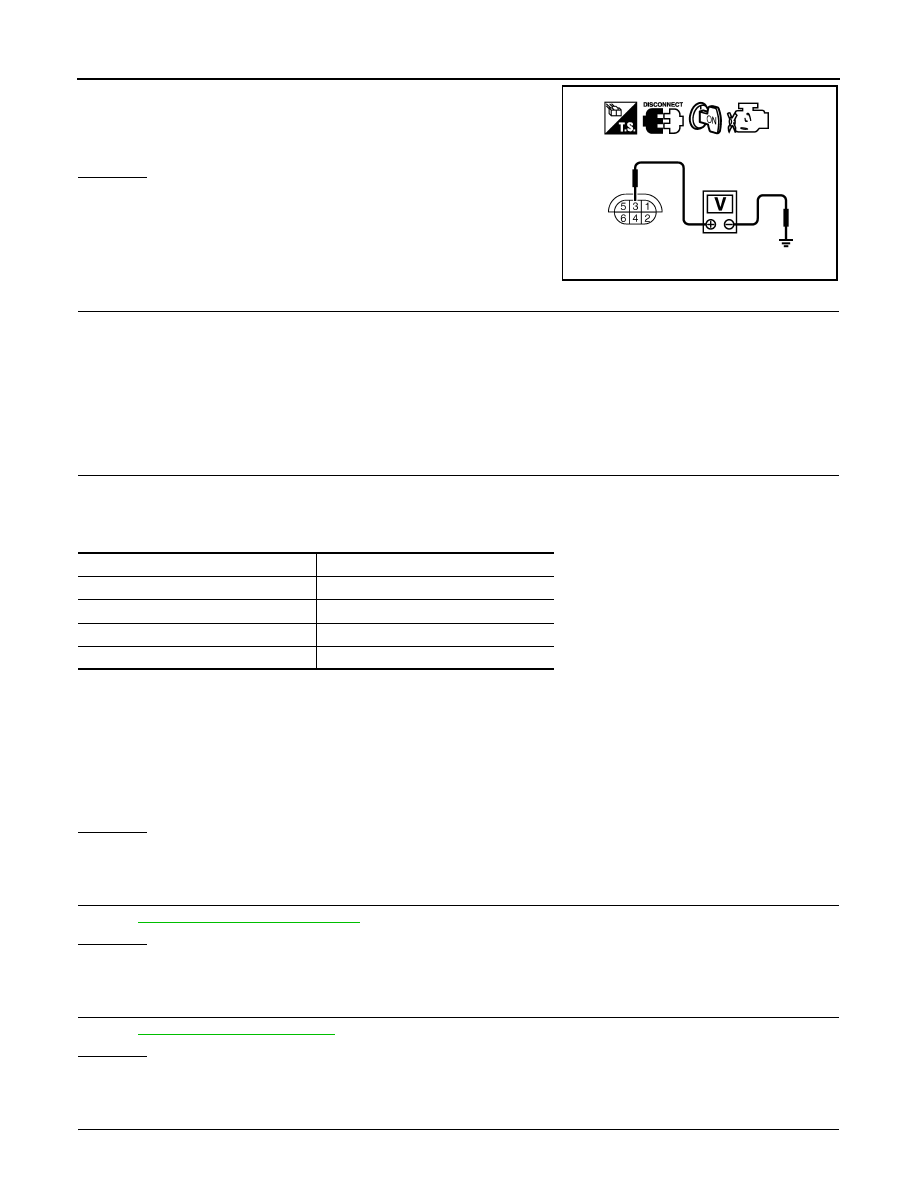

2.

Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-III or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E2, F32
• IPDM E/R harness connector E119
• 10A fuse
• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

8.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between the following terminals. Refer to Wiring Diagram.

4.

Check harness continuity between ECM terminals 16, 35, 56, 75 or A/F sensor 1 terminals 1, 2, 5, 6 and
ground. Refer to Wiring Diagram.

5.

Also check harness for short to power.

OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit, short to ground or short to power in harness or connectors.

9.

CHECK A/F SENSOR 1 HEATER

Refer to

EC-99, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 11.

10.

CHECK INTERMITTENT INCIDENT

Perform

GI-46, "Intermittent Incident"

.

OK or NG

OK

>> GO TO 11.

NG

>> Repair or replace.

11.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Voltage: Battery voltage

PBIB1683E

A/F sensor 1 terminal

ECM terminal

1

16

2

75

5

35

6

56

Continuity should exist.

Continuity should not exist.
