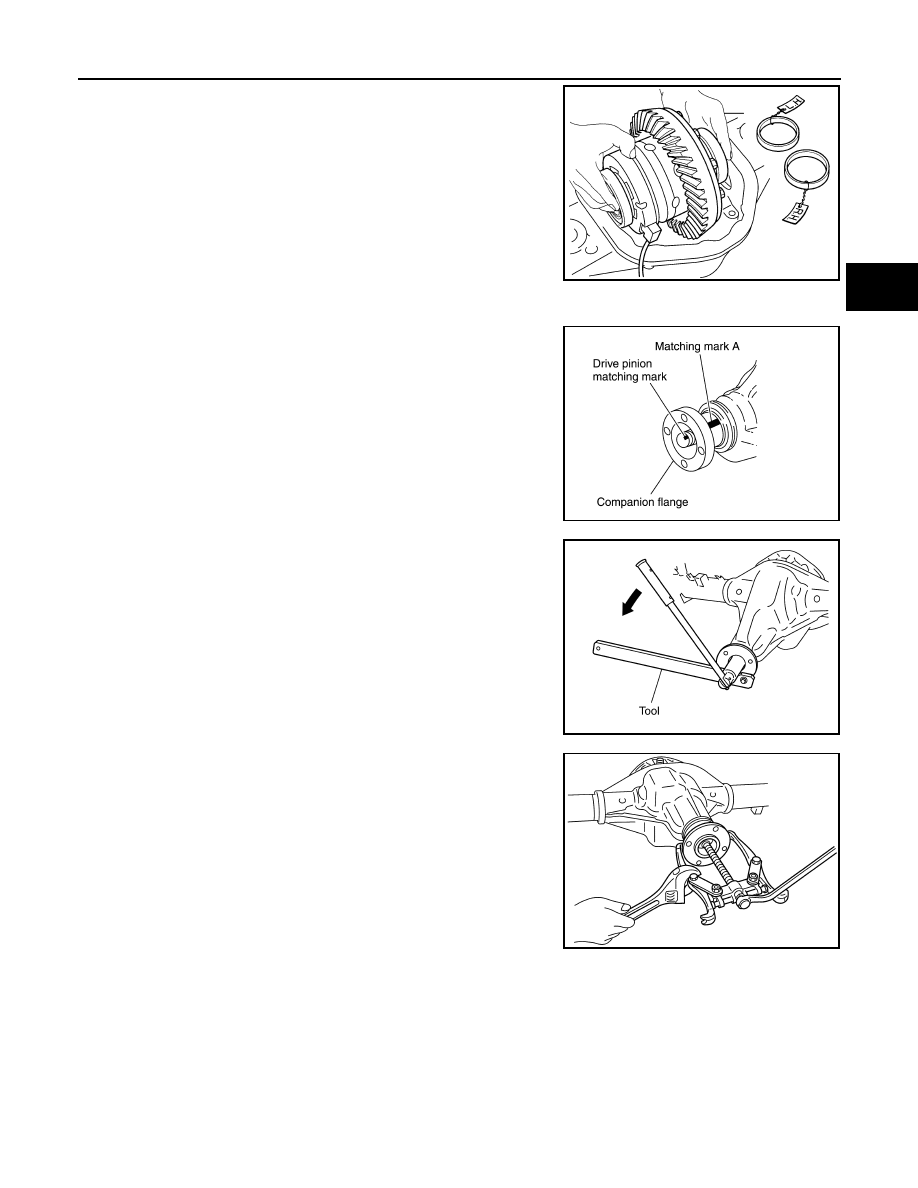

REAR FINAL DRIVE DLN-325 < DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: M226 (ELD) ] C E F G H I J K L M A B DLN N O P 10. Remove the differential case assembly. Label side bearing outer races to keep them together with inner races. Do not mix them Drive Pinion Assembly 1. Put matching marks on the companion flange at location (A) and CAUTION: Use paint to make the matching marks. Do not damage the 2. Remove drive pinion lock nut and washer using suitable tool. 3. Remove companion flange using a suitable tool. 4. Remove oil seal/dust shield and discard. CAUTION: Do not reuse the differential oil seal. SDIA2588E PDIA0675E PDIA0314E PDIA0315E |
