CARRIER COVER

DLN-317

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

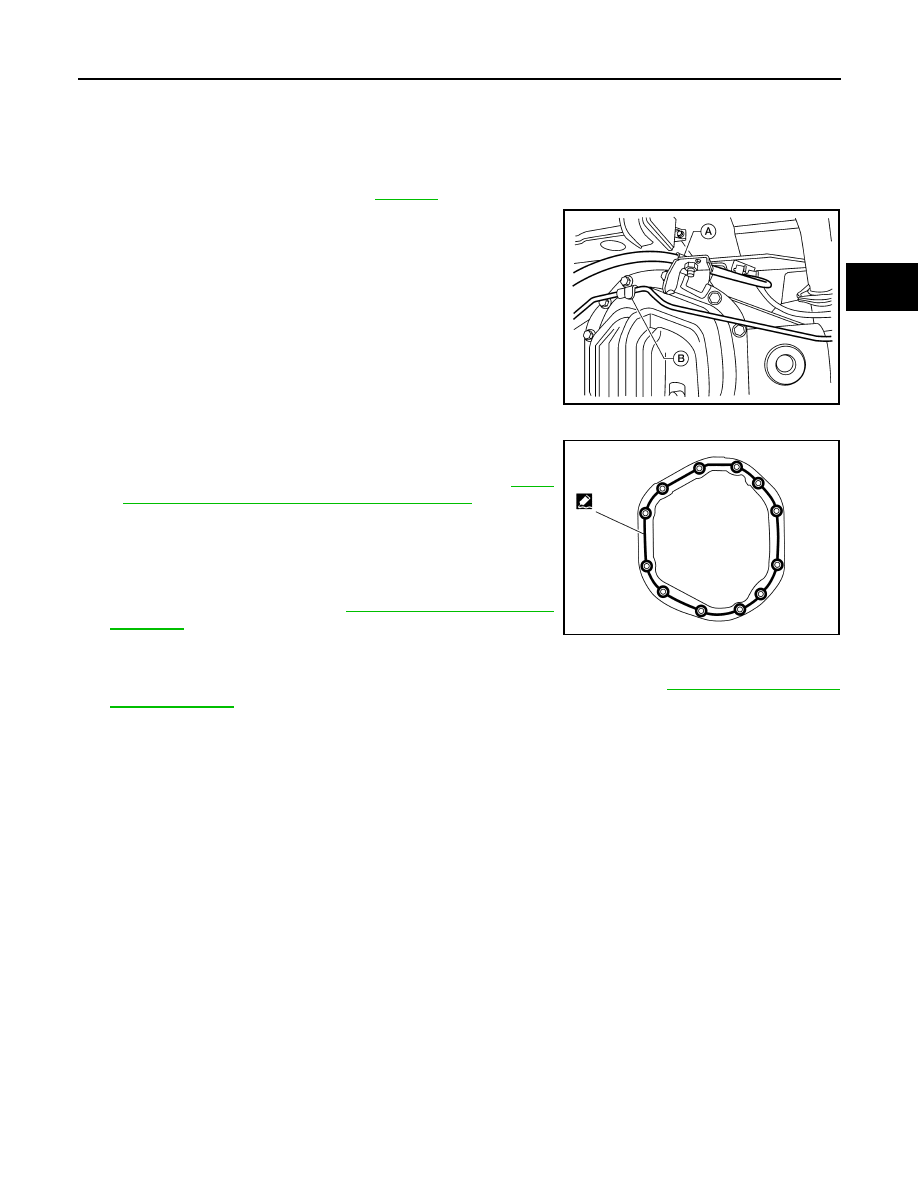

CARRIER COVER

Removal and Installation

INFOID:0000000005275643

REMOVAL

1.

Drain the differential gear oil. Refer to

DLN-309

.

2.

Disconnect the parking brake cable (A) and brake tube (B) from
the carrier cover.

3.

Remove the carrier cover bolts and separate the carrier cover
from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.
• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

INSTALLATION

1.

Apply a bead of sealant to the mating surface of the carrier
cover as shown.
• Use Genuine Silicone RTV or equivalent. Refer to

GI-22,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.

2.

Install the carrier cover to the gear carrier. Tighten the bolts to
the specified torque. Refer to

DLN-320, "Disassembly and

Assembly"

.

3.

Connect the parking brake cable and brake tube to the carrier
cover.

4.

Fill the rear final drive assembly with recommended differential gear oil. Refer to

DLN-309, "Changing Dif-

ferential Gear Oil"

.

Tool number

: KV10111100 (J-37228)

WDIA0330E

PDIA1061E

DLN-318

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 (ELD) ]

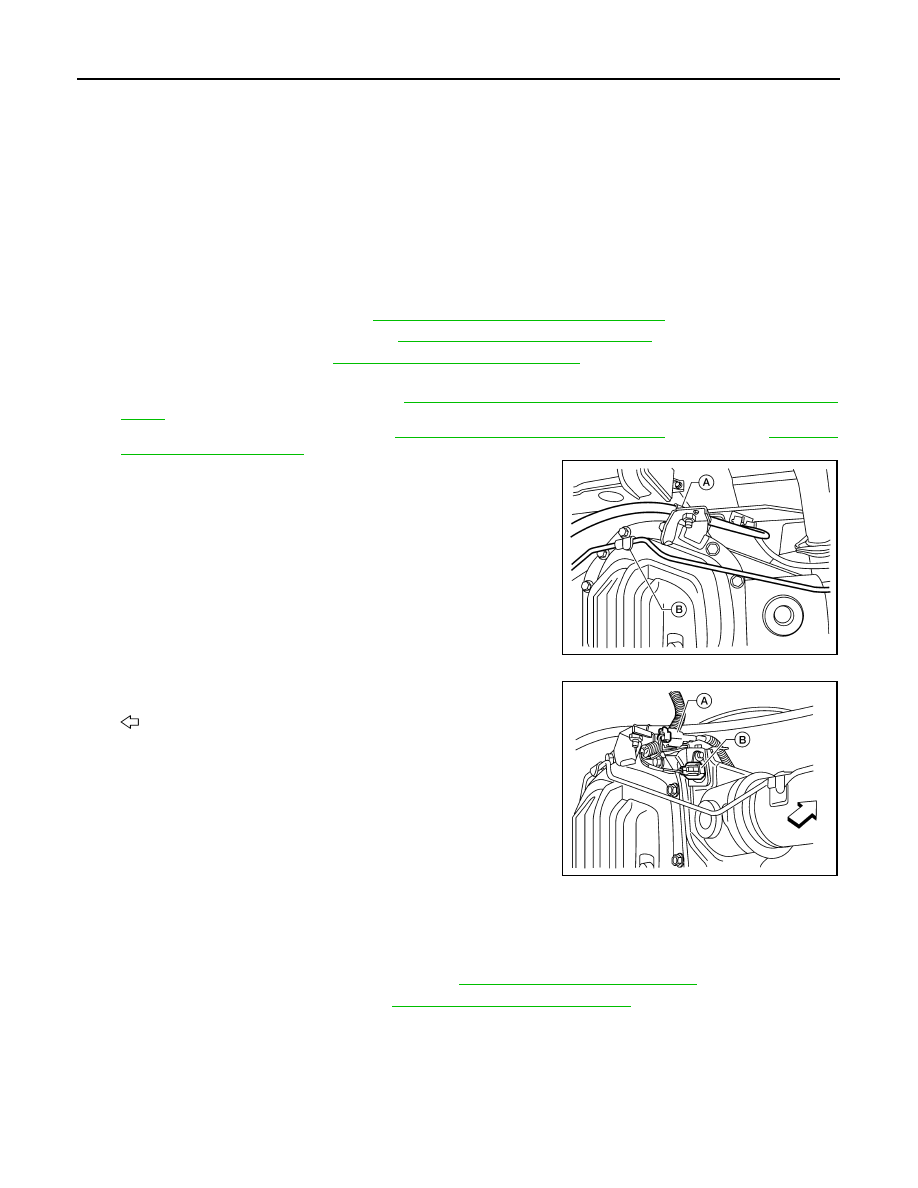

REAR FINAL DRIVE ASSEMBLY

REMOVAL AND INSTALLATION

REAR FINAL DRIVE ASSEMBLY

Removal and Installation

INFOID:0000000005275644

REMOVAL

CAUTION:

• Do not damage spline, companion flange and front oil seal when removing propeller shaft.
• Before removing final drive assembly or rear axle assembly, disconnect ABS sensor harness con-

nector from the assembly and move it away from final drive/rear axle assembly area. Failure to do so
may result in sensor wires being damaged and sensor becoming inoperative.

1.

Drain the differential gear oil. Refer to

DLN-309, "Changing Differential Gear Oil"

.

2.

Remove the rear propeller shaft. Refer to

DLN-173, "Removal and Installation"

.

3.

Remove the axle shaft. Refer to

RAX-19, "Removal and Installation"

.

4.

Disconnect the following components from the rear final drive assembly.
• Brake tube block connectors. Refer to

BR-46, "Removal and Installation of Brake Caliper and Disc

Rotor"

.

• ABS sensor wire harness. Refer to

BRC-178, "Removal and Installation"

 (Type 2) or

BRC-298,

"Removal and Installation"

 (Type 3).

• Parking brake cable (A).
• Brake tube (B).

• Differential lock position switch harness connector (A).
• Differential lock solenoid harness connector (B).
•

: Front

5.

Disconnect brake hose from brake tube at the mounting clip on top of rear final drive assembly. Then
remove the metal clip to disconnect brake line from the mounting clip on top of the rear final drive assem-
bly.

6.

Support rear final drive using a suitable jack.

7.

Remove rear shock absorber lower bolts. Refer to

RSU-8, "Removal and Installation"

.

8.

Remove leaf spring U-bolt nuts. Refer to

RSU-9, "Removal and Installation"

.

9.

Remove rear final drive assembly.

CAUTION:

Secure rear final drive assembly to the jack while removing it.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

WDIA0330E

WDIA0331E

REAR FINAL DRIVE ASSEMBLY

DLN-319

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

• Fill the front final drive assembly with differential gear oil after installation. Refer to

DLN-309,

"Changing Differential Gear Oil"

.

• Bleed the air from brake system. Refer to

BR-21, "Bleeding Brake System"

.

DLN-320

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 (ELD) ]

REAR FINAL DRIVE

DISASSEMBLY AND ASSEMBLY

REAR FINAL DRIVE

Disassembly and Assembly

INFOID:0000000005612403

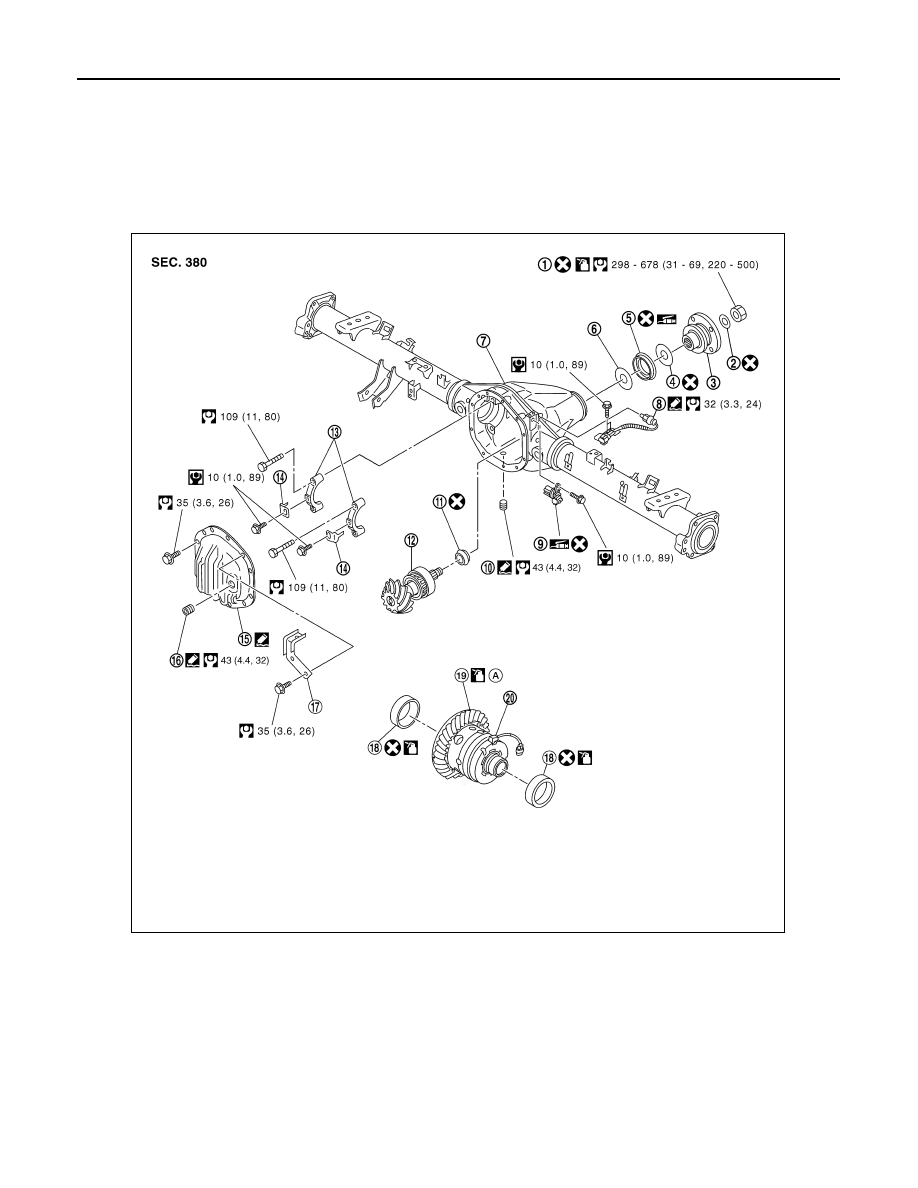

COMPONENTS

1.

Drive pinion lock nut

2.

Drive pinion lock nut washer

3.

Companion flange

4.

Oil seal/dust shield

5.

Front oil seal

6.

Drive pinion front bearing thrust
washer (non-serviceable)

7.

Gear carrier (non-serviceable)

8.

Differential lock position switch

9.

Sensor connector

10. Drain plug (non-serviceable)

11.

Collapsible spacer

12. Drive pinion assembly (non-service-

able)

13. Side bearing cap (non-serviceable)

14. Adjuster lock plate (non-serviceable) 15. Carrier cover

16. Filler plug

17.  Bracket

18. Side bearing

19. Differential lock solenoid (non-ser-

viceable)

20

Differential case assembly (non-ser-
viceable)

A.

Gear oil

AWDIA0665GB
