REAR FINAL DRIVE ASSEMBLY

DLN-261

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Drive Pinion and Drive Gear

• If the gear teeth do not mesh or line-up correctly, replace with new rear final drive assembly. Refer to

DLN-

254, "Removal and Installation"

.

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new rear final

drive assembly. Refer to

DLN-254, "Removal and Installation"

.

Bearings

• If bearings are chipped (by friction), pitted, worn, rusted, scratched, or unusual noise is coming from the

bearing, replace with new rear final drive assembly. Refer to

DLN-254, "Removal and Installation"

.

Differential Case Assembly

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new rear final

drive assembly. Refer to

DLN-254, "Removal and Installation"

.

• If the movement is not smooth when pushing cam ring of differential case assembly by hand. Replace with

new rear final drive assembly. Refer to

DLN-254, "Removal and Installation"

.

Companion Flange

• If any chips (about 0.1mm, 0.004 in) or other damage on the companion flange surface which contacts the

front oil seal lips are found, replace with new one. Refer to

DLN-255, "Disassembly and Assembly"

.

ASSEMBLY

Drive Pinion Assembly

1.

Install drive pinion front bearing thrust washer.

2.

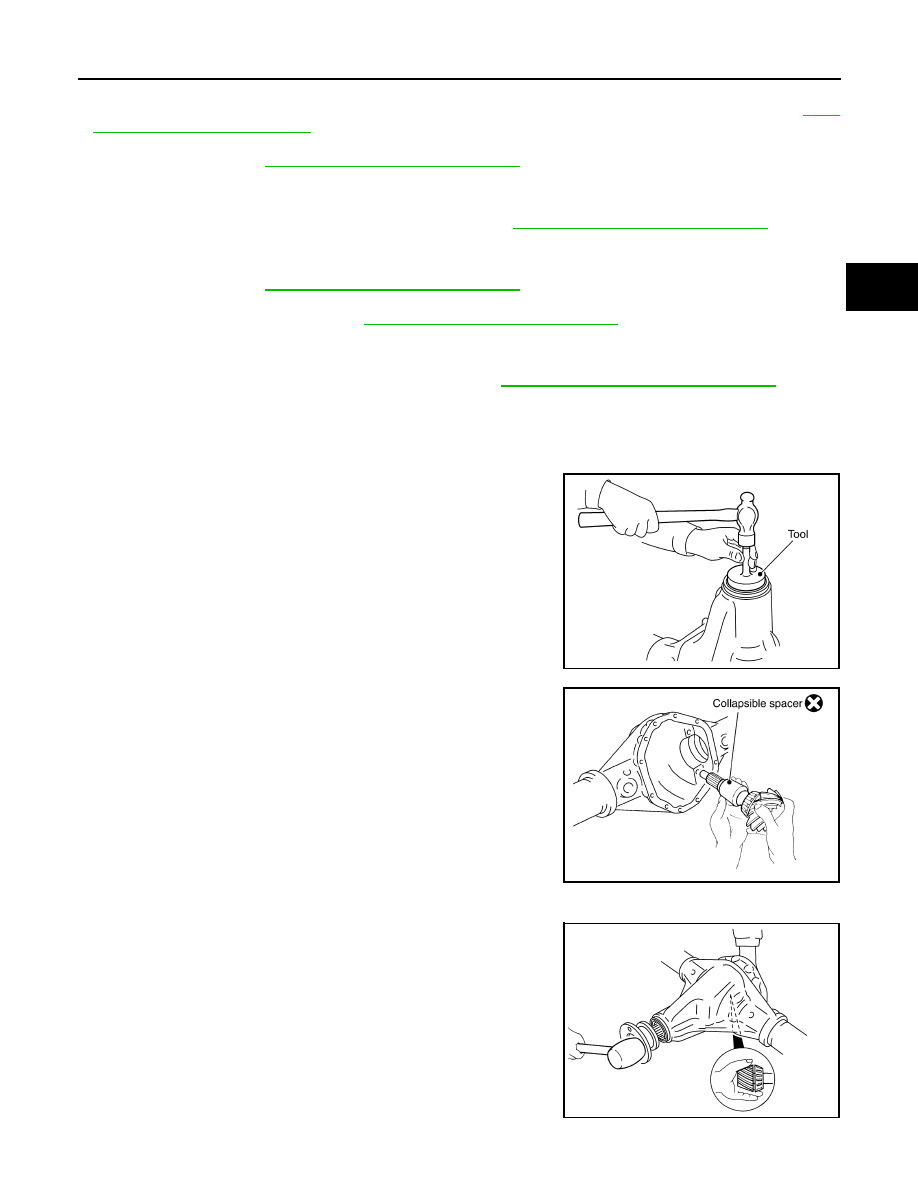

Apply multi-purpose grease to new front oil seal lip. Install front
oil seal into gear carrier using Tool.

CAUTION:

• Do not reuse front oil seal.
• Do not incline the new front oil seal when installing.
• Apply multi-purpose grease to the lips of the new front oil

seal.

3.

Install new collapsible spacer to drive pinion. And then install
drive pinion assembly into gear carrier.

CAUTION:

• Do not reuse collapsible spacer.
• Do not damage front oil seal.

4.

Install a new oil seal/dust shield.

5.

Install the companion flange onto the drive pinion while aligning
the matching marks. Then tap the companion flange using suit-
able tool.

CAUTION:

Do not damage companion flange or front oil seal.

Tool number

: ST15310000 (

)

PDIA0326E

SDIA2595E

PDIA0328E

DLN-262

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

REAR FINAL DRIVE ASSEMBLY

6.

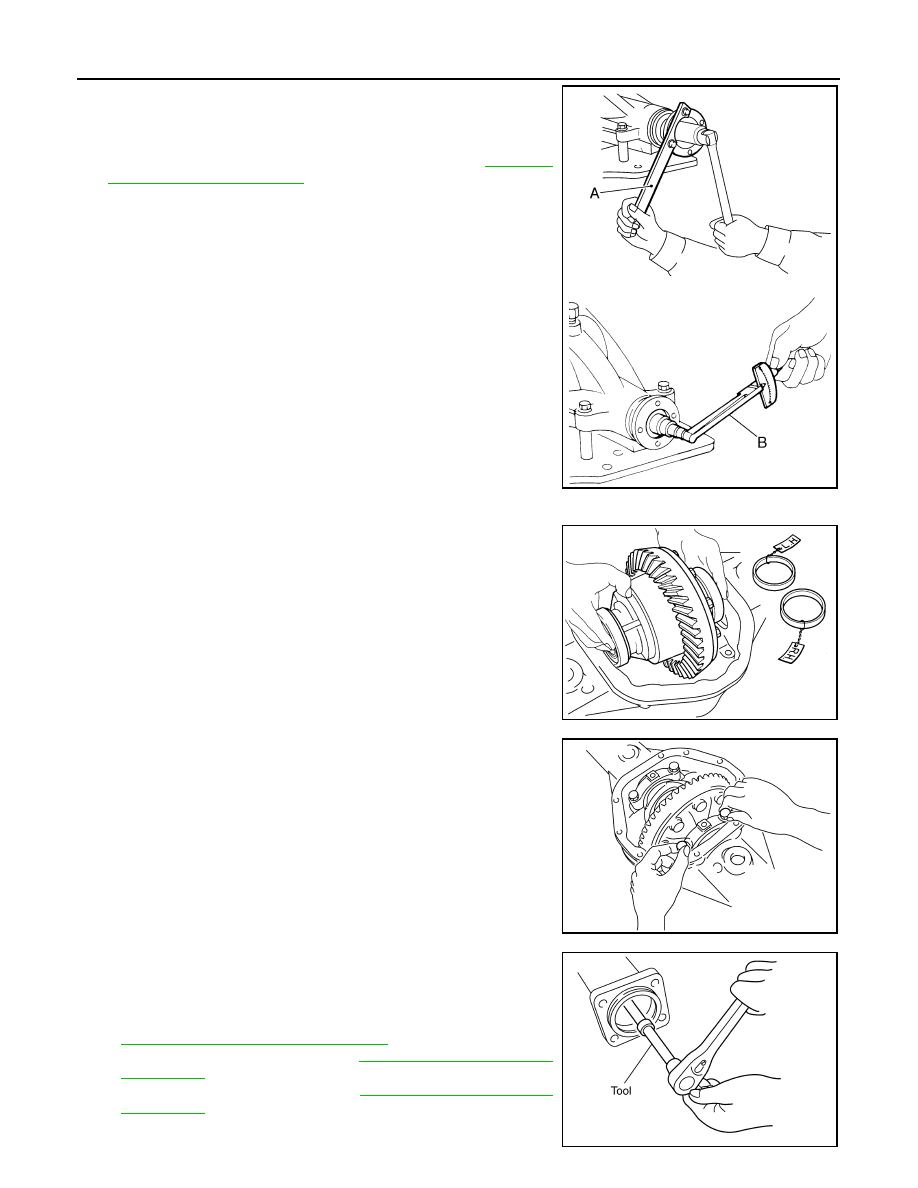

Apply anti-corrosive oil to the threads of the drive pinion and the
seating surface of the new drive pinion lock nut and new drive
pinion lock nut washer. Then adjust the drive pinion lock nut
tightening torque using suitable tool (A), and check the drive pin-
ion bearing preload torque using Tool (B). Refer to

DLN-264,

"Inspection and Adjustment"

.

CAUTION:

• Do not reuse drive pinion lock nut or drive pinion lock nut

washer.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut
specified torque.

• If the drive pinion bearing preload torque exceeds the

specified value, replace collapsible spacer and tighten it
again to adjust. Do not loosen drive pinion lock nut to
adjust the drive pinion bearing preload torque.

• After adjustment, rotate drive pinion back and forth 2 to 3

times to check for unusual noise, rotation malfunction,
and other malfunctions.

Differential Assembly

1.

Apply gear oil to side bearings. Install differential case assembly
with side bearing outer races into gear carrier.

2.

Align paint matching mark on side bearing caps with that on
gear carrier and install side bearing caps on gear carrier.

CAUTION:

Do not tighten side bearing cap bolts at this point. This
allows further tightening of side bearing adjusters.

3.

Tighten each side bearing adjusters using Tool.

• Adjusting backlash of drive gear and drive pinion. Refer to

DLN-264, "Inspection and Adjustment"

.

• Check total preload. Refer to

DLN-264, "Inspection and

Adjustment"

.

• Check tooth contact. Refer to

DLN-264, "Inspection and

Adjustment"

.

Tool number

B: ST3127S000 (J-25765-A)

WDIA0379E

PDIA0312E

PDIA0329E

Tool number

 (C - 4164)

PDIA0337E

REAR FINAL DRIVE ASSEMBLY

DLN-263

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4.

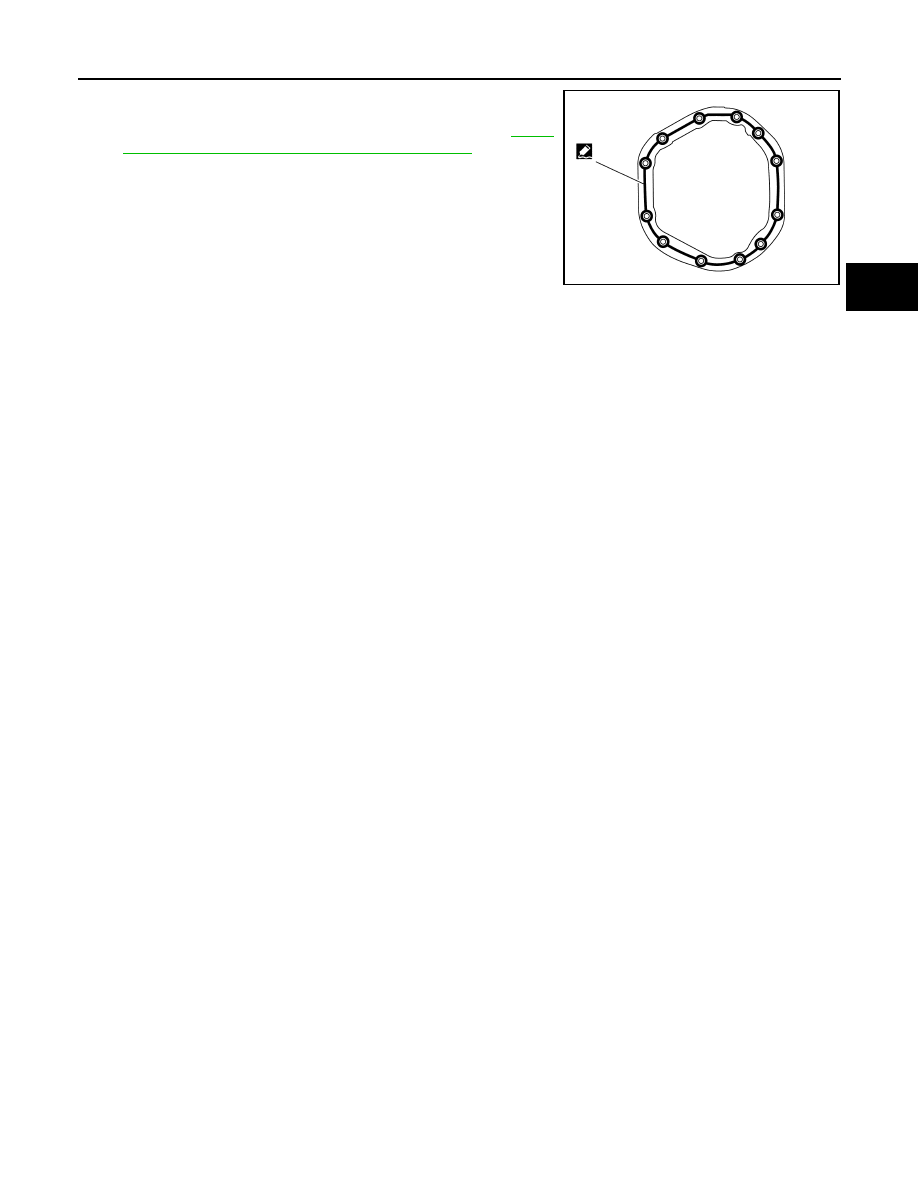

Apply a bead of sealant to the mating surface of the carrier
cover as shown.
• Use Genuine Silicone RTV or equivalent. Refer to

GI-22,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.

5.

Install the carrier cover to the gear carrier. Tighten the bolts to
the specified torque.

PDIA1061E

DLN-264

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: M226 ]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005612406

2WD MODELS

4WD MODELS

Inspection and Adjustment

INFOID:0000000005275578

DIFFERENTIAL SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

Applied model

VQ40DE

6M/T

Final drive model

M226

Gear ratio

3.538

Number of pinion gears

2

Number of teeth (Drive gear / drive pinion)

46/13

Oil capacity (Approx.)

2.01

 (4-1/4 US pt, 3-1/2 lmp pt)

Drive pinion adjustment spacer type

Collapsible

Applied model

VQ40DE

6M/T

Body type

King cab

Crew cab

Final drive model

M226

Gear ratio

3.538

3.692

Number of pinion gears

2

Number of teeth (Drive gear / drive pinion)

46/13

48/13

Oil capacity (Approx.)

2.01

 (4-1/4 US pt, 3-1/2 lmp pt)

Drive pinion adjustment spacer type

Collapsible

Item

Standard

Side gear back clearance
(Clearance between side gear and differential case
for adjusting side gear backlash)

0.305 (0.0120) or less.

(Each gear should rotate smoothly without excessive resistance during differ-

ential motion.)

Item

Specification

Drive pinion bearing preload torque

1.7 - 3.1 (0.18 - 0.31, 15 - 27)

Total preload torque
(Total preload torque = drive pinion bearing preload
torque + Side bearing preload torque)

2.49 - 4.57 (0.26 - 0.46, 22 - 40)

Item

Standard

Drive gear to drive pinion gear

0.12 - 0.20 (0.0050 - 0.0079)
