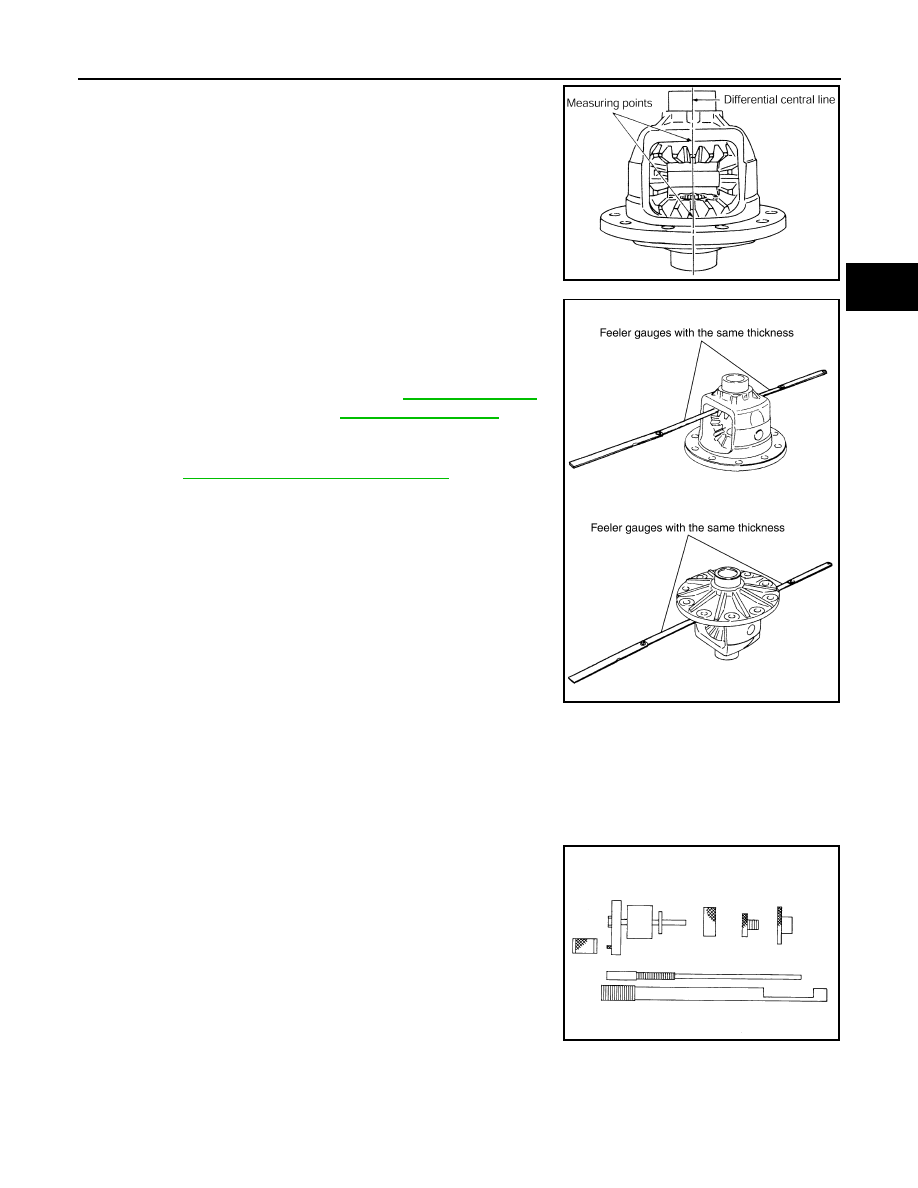

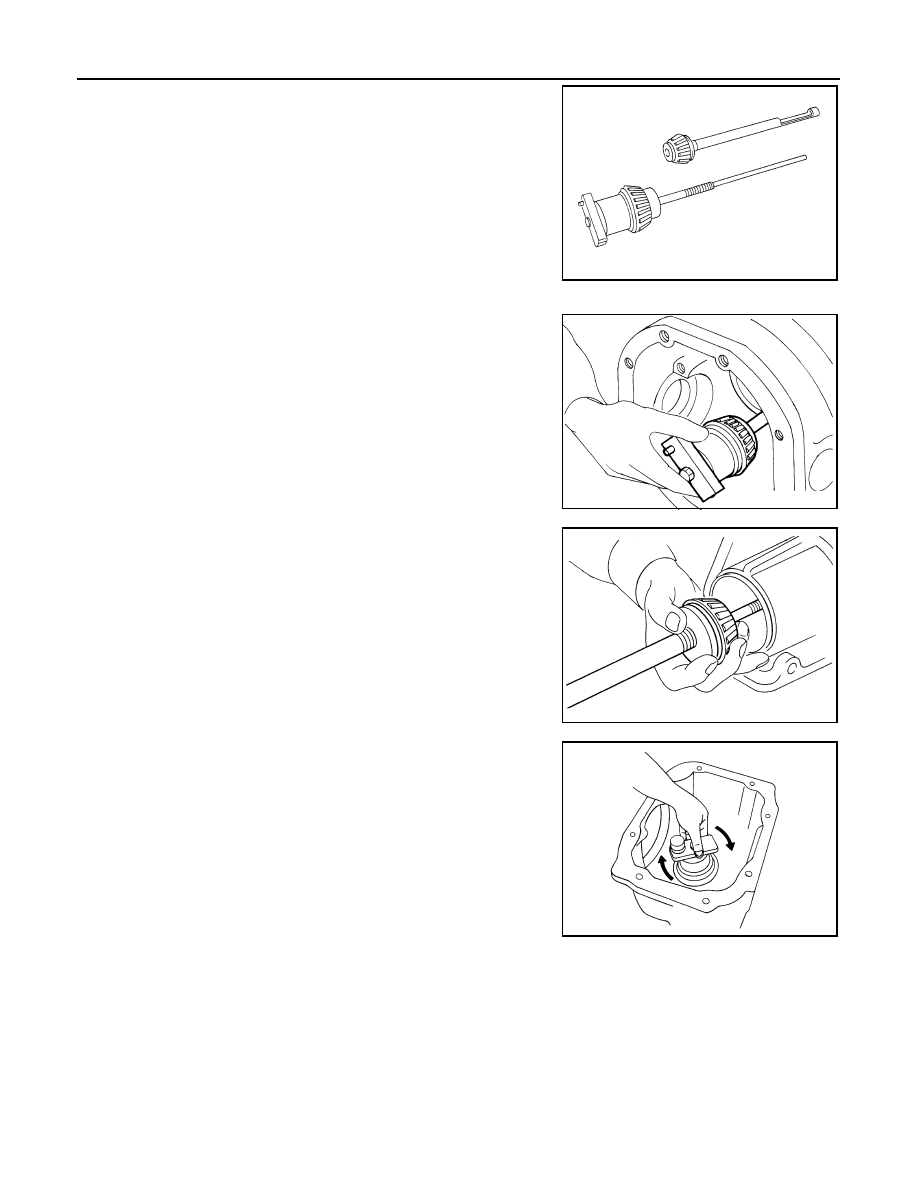

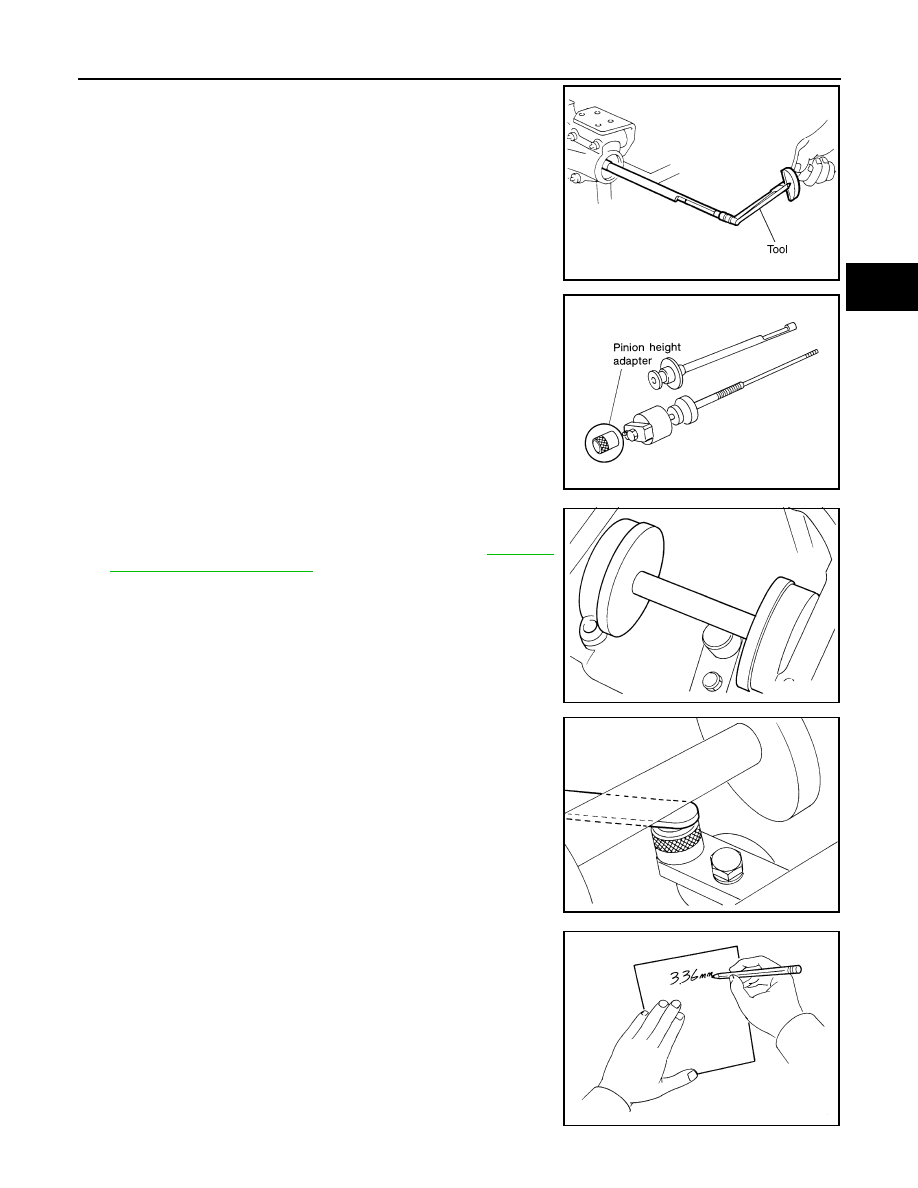

FRONT FINAL DRIVE DLN-201 < DISASSEMBLY AND ASSEMBLY > [FRONT FINAL DRIVE: R180A] C E F G H I J K L M A B DLN N O P 1. Place the differential case straight up so that the side gear to be 2. Using feeler gauges, measure the clearance between the side • If the side gear back clearance is outside of the specification, use a thicker or thinner side gear thrust washer to adjust. DLN-211, "Inspection and Adjustment" . CAUTION: • Insert feeler gauges with the same thickness on both sides to prevent side gear from tilting. • Each gear should rotate smoothly without excessive resistance during differential motion. • Select a side gear thrust washer for right and left individually. Drive Pinion Height 1. Make sure all parts are clean and that the bearings are well lubricated. 2. Assemble the drive pinion bearings onto the Tool. PDIA0460E Side gear back clearance: Refer to If the side gear back clearance is greater than Use a thicker side gear thrust washer. If the side gear back clearance is less than spec- Use a thinner side gear thrust washer. PDIA0576E Tool number : — (J-34309) SPD769 |
