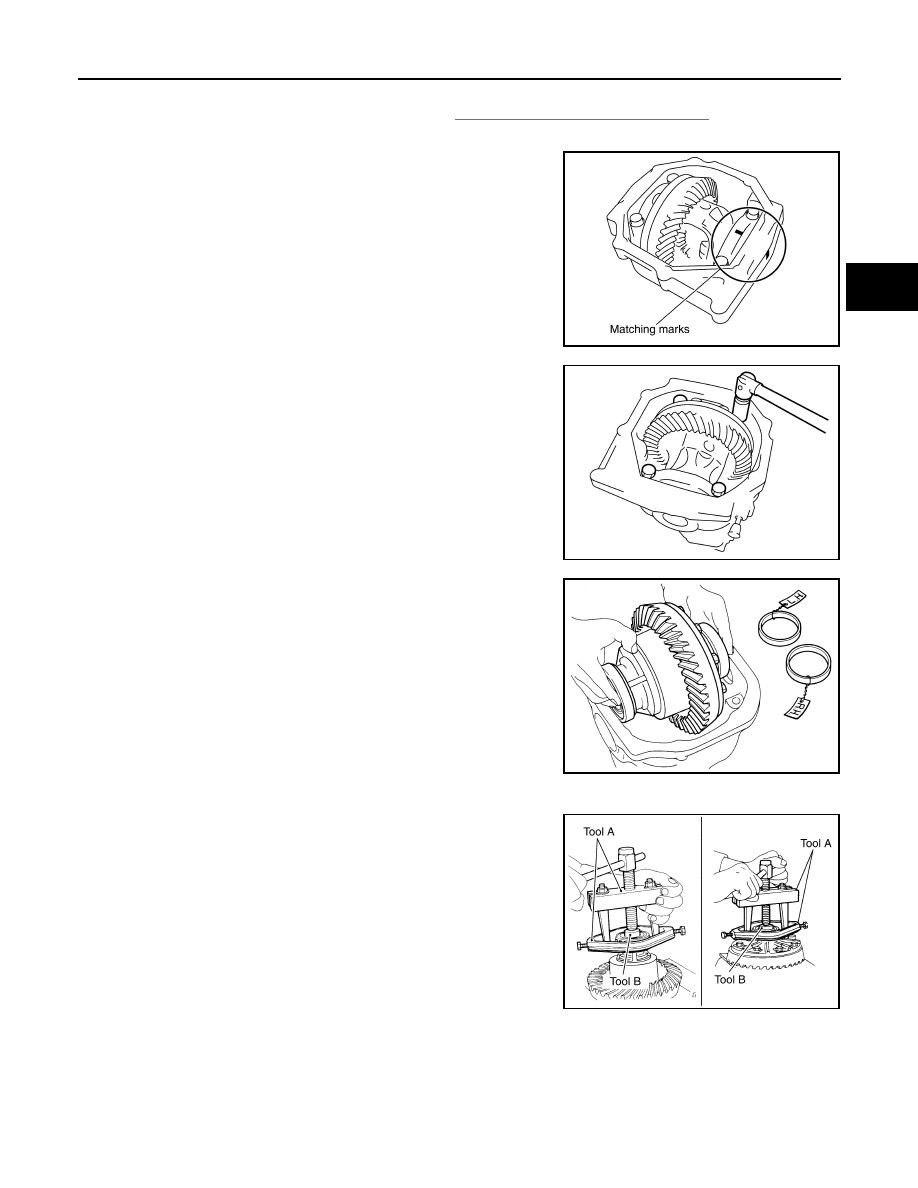

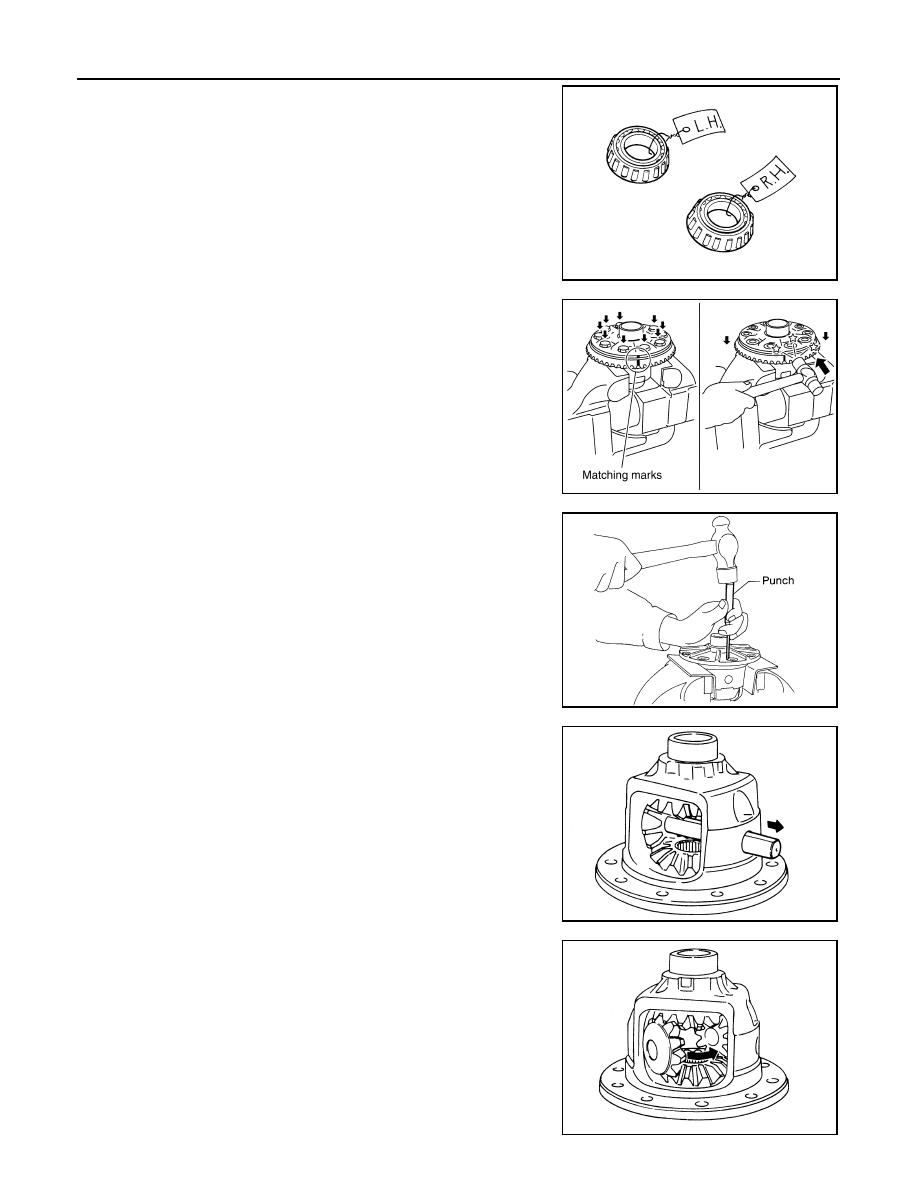

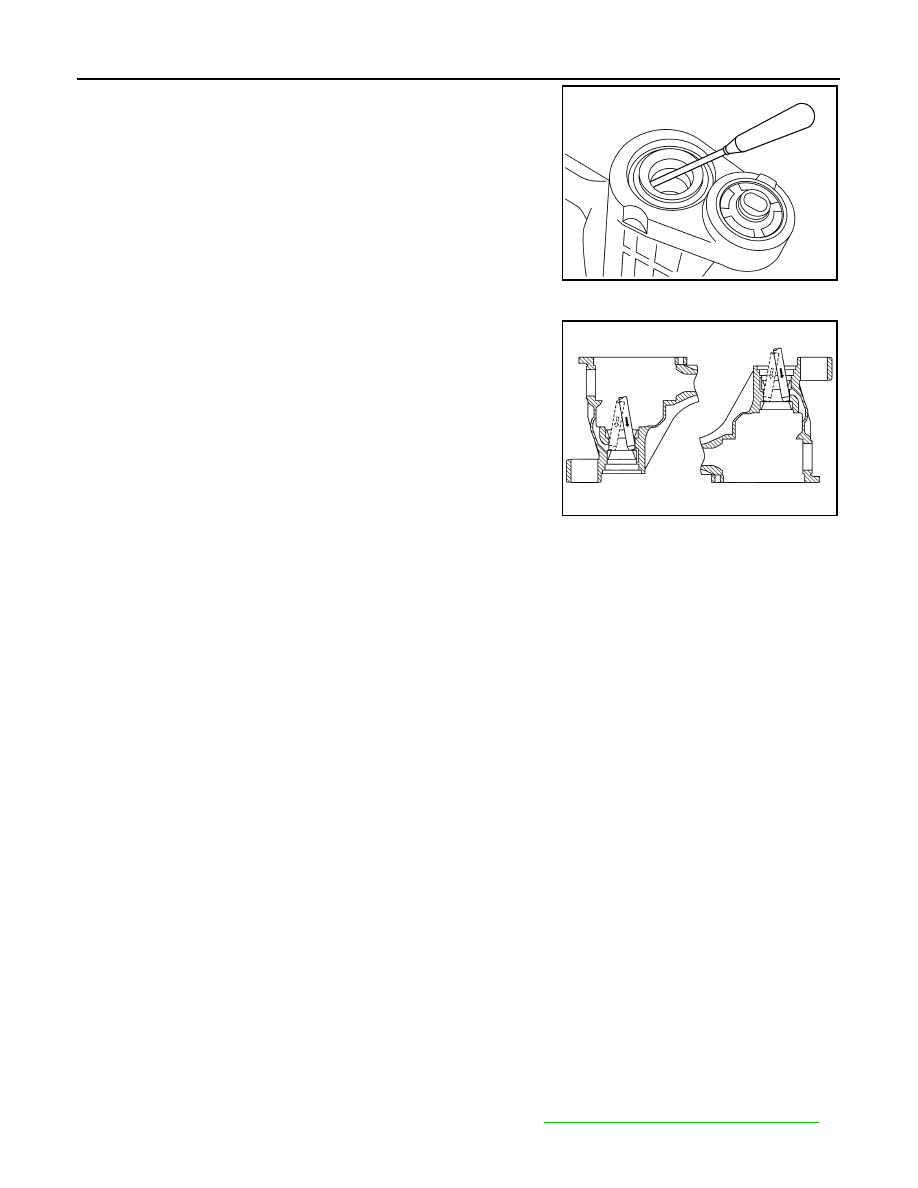

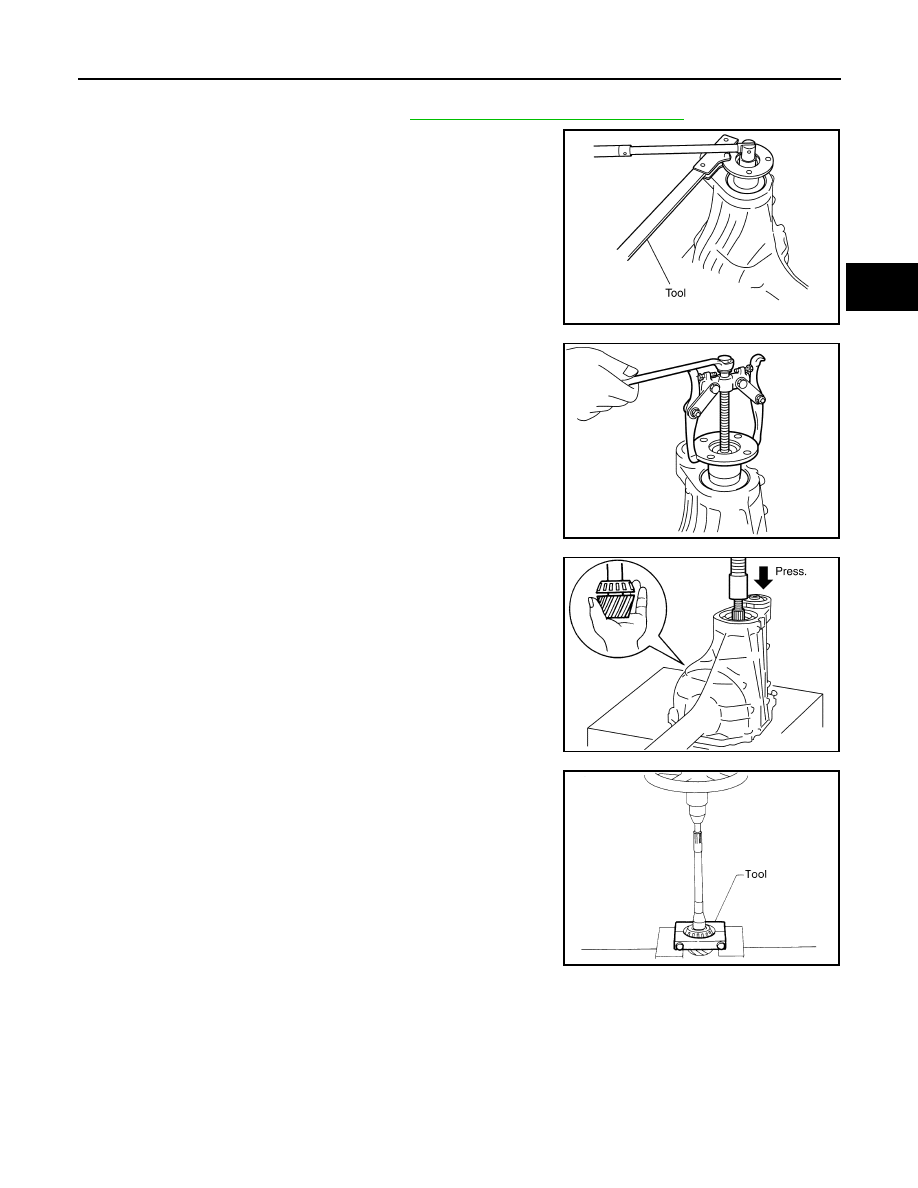

FRONT FINAL DRIVE DLN-197 < DISASSEMBLY AND ASSEMBLY > [FRONT FINAL DRIVE: R180A] C E F G H I J K L M A B DLN N O P Differential Assembly 1. Remove differential side shaft assembly. Refer to DLN-188, "Removal and Installation" . 2. Remove side seal from gear carrier using suitable tool. 3. For proper reinstallation, paint matching marks on one side of CAUTION: • For matching marks, use paint. Do not damage side bear- ing cap or gear carrier. • Side bearing caps are line-board during manufacture. The matching marks are used to reinstall them in their original 4. Remove the side bearing caps. 5. Lift the differential case assembly out of the gear carrier. CAUTION: • Keep side bearing outer races together with side bearing inner races. Do not mix them up. • Keep side bearing adjusting washers together with side bearings. 6. Remove housing spacer. 7. Remove side bearing inner race using Tools as shown. CAUTION: • Do not remove side bearing inner race unless it is being replaced. • Place copper plates between the vise and the side bearing inner race and drive gear to prevent damage. PDIA0700E PDIA0701E SPD919 Tool number A: ST33051001 (J-22888-20) B: ST33061000 (J-8107-2) PDIA0827E |
