STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000005275392

REMOVAL

1.

Remove the spiral cable. Refer to

SR-6, "Removal and Installation"

.

2.

Remove the screws and remove the steering angle sensor from the spiral cable.

INSTALLATION

Installation is in the reverse order of removal.
• Reset the neutral position of the steering angle sensor. Refer to

BRC-189, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

CAUTION:

Any time the steering angle sensor is removed and installed or replaced, you must reset the neutral
position of the steering angle sensor. Refer to

BRC-189, "ADJUSTMENT OF STEERING ANGLE SEN-

SOR NEUTRAL POSITION : Special Repair Requirement"

.

G SENSOR

BRC-303

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

G SENSOR

Removal and Installation

INFOID:0000000005593801

REMOVAL

1.

Remove center console rear base. Refer to

IP-10, "Exploded View"

.

2.

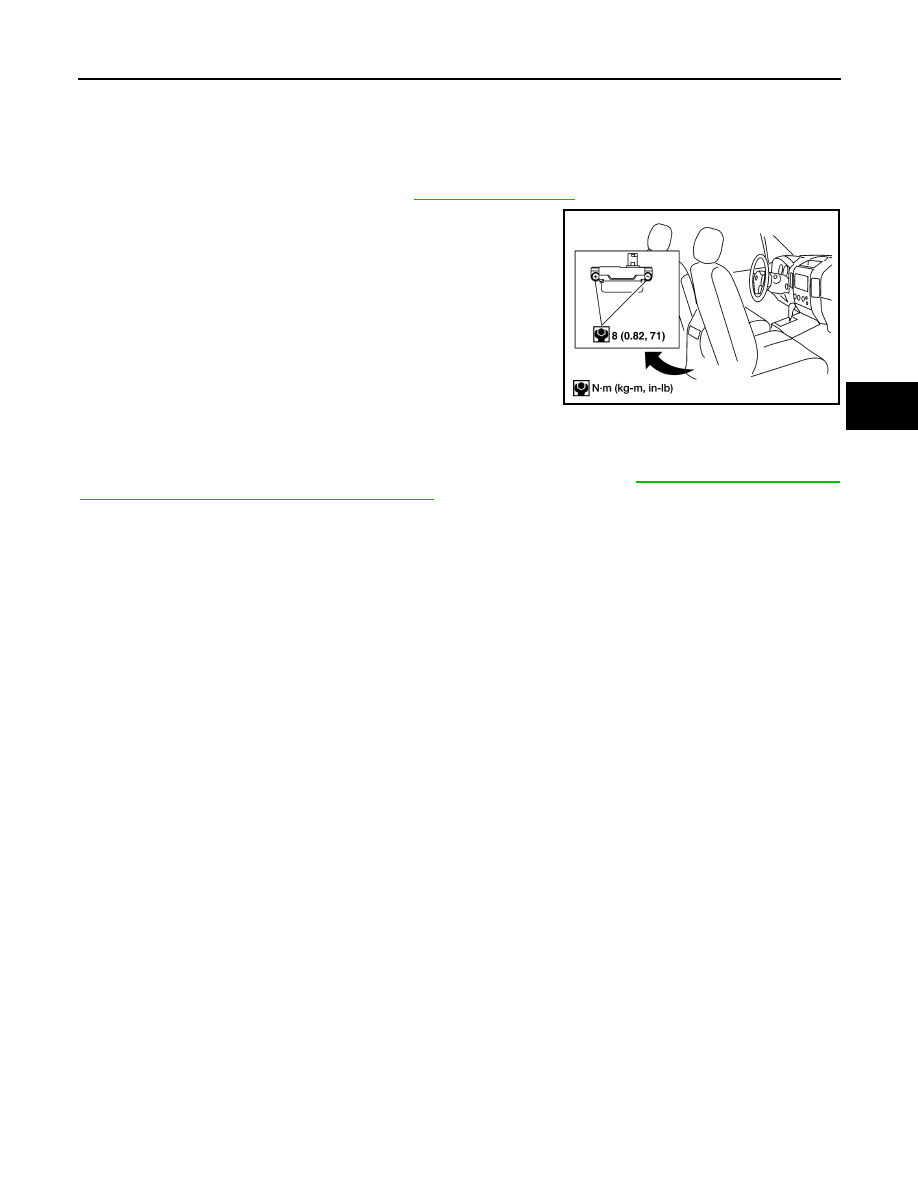

Remove yaw rate/side/decel G sensor attaching nuts as shown.
• The location of the sensor is the same for all models.

CAUTION:

• Do not use power tools to remove or install yaw rate/side/

decel G sensor.

• Do not drop or strike the yaw rate/side/decel G sensor.

3.

Disconnect harness connector and remove the yaw rate/side/
decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
After performing the above work, calibrate the yaw decel G sensor. Refer to

BRC-79, "CALIBRATION OF

DECEL G SENSOR : Special Repair Requirement"

.

WFIA0230E

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

FEATURES OF NEW MODEL ......................

2

BODY EXTERIOR PAINT COLOR  .....................

2

Body Exterior Paint Color  ..........................................

2

PRECAUTION ...............................................

7

PRECAUTIONS ...................................................

7

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

7

HANDLING PRECAUTIONS ...............................

8

Handling Precaution for Plastics  ...............................

8

ON-VEHICLE REPAIR .................................

11

BODY COMPONENT PARTS  ............................

11

Body Component Parts  ...........................................

11

CORROSION PROTECTION  ............................

19

Corrosion Protection ................................................

19

Body Sealing  ...........................................................

21

BODY CONSTRUCTION ..................................

25

Body Construction  ...................................................

25

BODY ALIGNMENT  ..........................................

27

Body Alignment  .......................................................

27

Body Mounting .........................................................

50

REPAIRING HIGH STRENGTH STEEL  ...........

53

Precaution in Repairing High Strength Steel  ...........

53

REPLACEMENT OPERATIONS .......................

56

Replacement Operation ...........................................

56

Foam Repair ............................................................

83

BRM-2

< FEATURES OF NEW MODEL >

BODY EXTERIOR PAINT COLOR

FEATURES OF NEW MODEL

BODY EXTERIOR PAINT COLOR

Body Exterior Paint Color

INFOID:0000000005274688

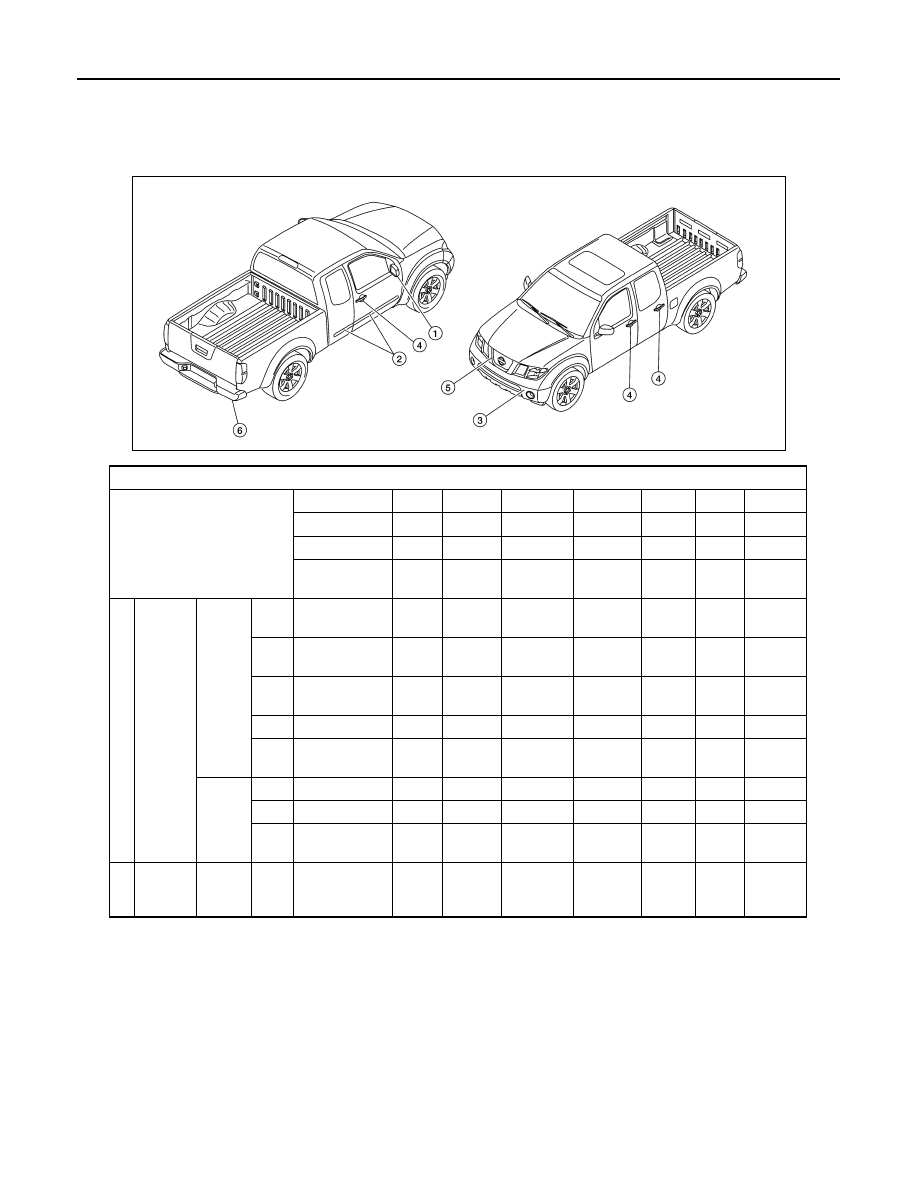

AWKIA1439ZZ
