C1163 ST ANGLE SEN SAFE

C1163 ST ANGLE SEN SAFE

Description

INFOID:0000000005275324

The steering angle sensor detects the rotation amount, angular velocity and direction of the steering wheel,
and transmits the data to the ABS actuator and electric unit (control unit) via CAN communication.

DTC Logic

INFOID:0000000005275325

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-254, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000005275326

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Adjust steering angle sensor neutral position. Refer to

BRC-189, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Description"

.

>> GO TO 2

2.

INDICATOR LAMP CHECK

Check that VDC OFF indicator lamp is off.

Is VDC OFF indicator lamp off?

YES

>> Inspection End

NO

>> Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to

BRC-212, "CON-

SULT-III Function (ABS)"

.

DTC

Display item

Malfunction detected condition

Possible cause

C1163

ST ANGL SEN SAFE

When steering angle sensor is in safe mode.

• Adjust steering angle sensor

neutral position

Self-diagnosis results

ST ANGL SEN SAFE

C1164, C1165, C1166, C1167 CV/SV SYSTEM

BRC-255

< COMPONENT DIAGNOSIS >

[TYPE 3]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1164, C1165, C1166, C1167 CV/SV SYSTEM

Description

INFOID:0000000005275327

CV1, CV2 (CUT VALVE)

The cut valve shuts off the normal brake fluid path from the master cylinder, when VDC/TCS is activated.

SV1, SV2 (SUCTION VALVE)

The suction valve supplies the brake fluid from the master cylinder to the pump, when VDC/TCS is activated.

DTC Logic

INFOID:0000000005275328

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-255, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000005549808

Regarding Wiring Diagram information, refer to

BRC-275, "Wiring Diagram - BRAKE CONTROL SYSTEM -

WITH HILL DESCENT CONTROL/HILL START ASSIST"

.

1.

CONNECTOR INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connector.

3.

Check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair
or replace terminals.

4.

Reconnect connectors and then perform the self-diagnosis. Refer to

BRC-212, "CONSULT-III Function

(ABS)"

.

Is any item indicated on the self-diagnosis display?

DTC

Display item

Malfunction detected condition

Possible cause

C1164

CV1

VDC switch-over solenoid valve (CV1) on the primary
side is open circuit or shorted, or the control line is open
or shorted to the power supply or the ground.

• Harness or connector
• ABS actuator and electric unit

(control unit)

C1165

CV2

VDC switch-over solenoid valve (CV2) on the primary
side is open circuit or shorted, or the control line is open
or shorted to the power supply or the ground.

C1166

SV1

VDC switch-over solenoid valve (SV1) on the primary
side is open circuit or shorted, or the control line is open
or shorted to the power supply or the ground.

C1167

SV2

VDC switch-over solenoid valve (SV2) on the primary
side is open circuit or shorted, or the control line is open
or shorted to the power supply or the ground.

Self-diagnosis results

CV1

CV2

SV1

SV2

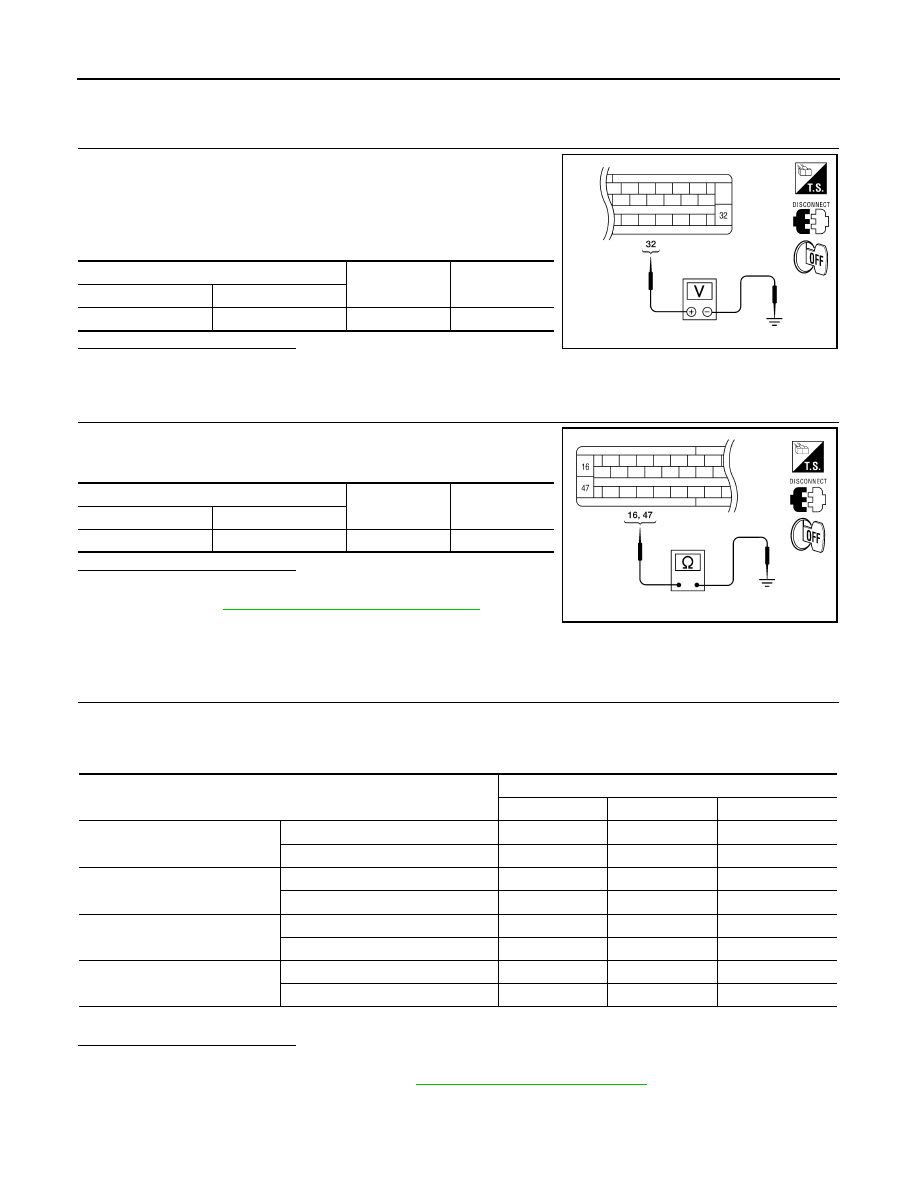

BRC-256

< COMPONENT DIAGNOSIS >

[TYPE 3]

C1164, C1165, C1166, C1167 CV/SV SYSTEM

YES

>> GO TO 2

NO

>> Poor connection of connector terminals. Repair or replace connector.

2.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connec-
tor.

3.

Check voltage between ABS actuator and electric unit (control
unit) connector E127 terminal 32 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY GROUND CIRCUIT

Check continuity between ABS actuator and electric unit (control
unit) connector E127 terminals 16, 47 and ground.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit).

Refer to

BRC-300, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning components.

Component Inspection

INFOID:0000000005275330

1.

CHECK ACTIVE TEST

1.

Select each test menu item on “ACTIVE TEST”.

2.

On the display, touch “Up”, “ACT UP”, and “ACT KEEP”, and check that the system operates as shown in
the table below.

*: ON for 1 to 2 seconds after the touch, and then OFF

Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-255, "Diagnosis Procedure"

.

ABS actuator and electric unit (control unit)

—

Voltage

Connector

Terminal

E127

32

Ground

Battery voltage

AWFIA0018ZZ

ABS actuator and electric unit (control unit)

—

Continuity

Connector

Terminal

E127

16, 47

Ground

Yes

AWFIA0016ZZ

Operation

ABS solenoid valve (ACT)

Up

ACT UP

ACT KEEP

FR RH ABS SOLENOID (ACT)

FR RH IN SOL

Off

Off

Off

FR RH OUT SOL

Off

Off

Off

FR LH ABS SOLENOID (ACT)

FR LH IN SOL

Off

Off

Off

FR LH OUT SOL

Off

Off

Off

RR RH ABS SOLENOID (ACT)

RR RH IN SOL

Off

Off

 Off

RR RH OUT SOL

Off

Off

Off

RR LH ABS SOLENOID (ACT)

RR LH IN SOL

Off

Off

Off

RR LH OUT SOL

Off

Off

Off

C1164, C1165, C1166, C1167 CV/SV SYSTEM
