FRONT WASHER NOZZLE

Removal and Installation

INFOID:0000000005272720

REMOVAL

1.

Remove cowl top. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove washer nozzles.

INSTALLATION

Installation is in the reverse order of removal.

Washer Nozzle Adjustment

INFOID:0000000005272721

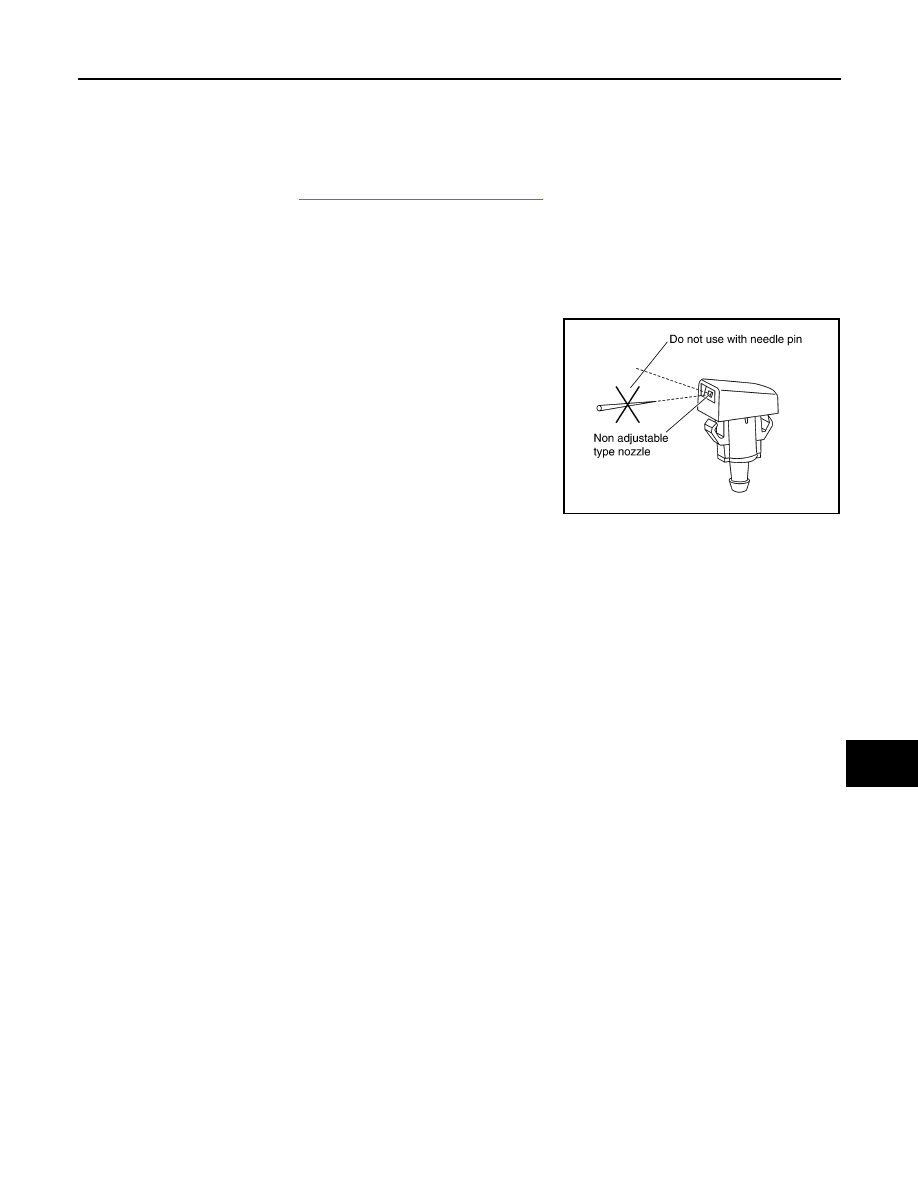

• This vehicle is equipped with non-adjustable washer nozzles.
• If not satisfied with washer fluid spray coverage, confirm that the

washer nozzle is installed correctly.

• If the washer nozzle is installed correctly, and the washer fluid

spray coverage is not satisfactory, replace washer nozzle.

PKIA2552E

WW-66

< ON-VEHICLE REPAIR >

WASHER TANK

WASHER TANK

Washer Fluid Reservoir

INFOID:0000000005272722

REMOVAL AND INSTALLATION

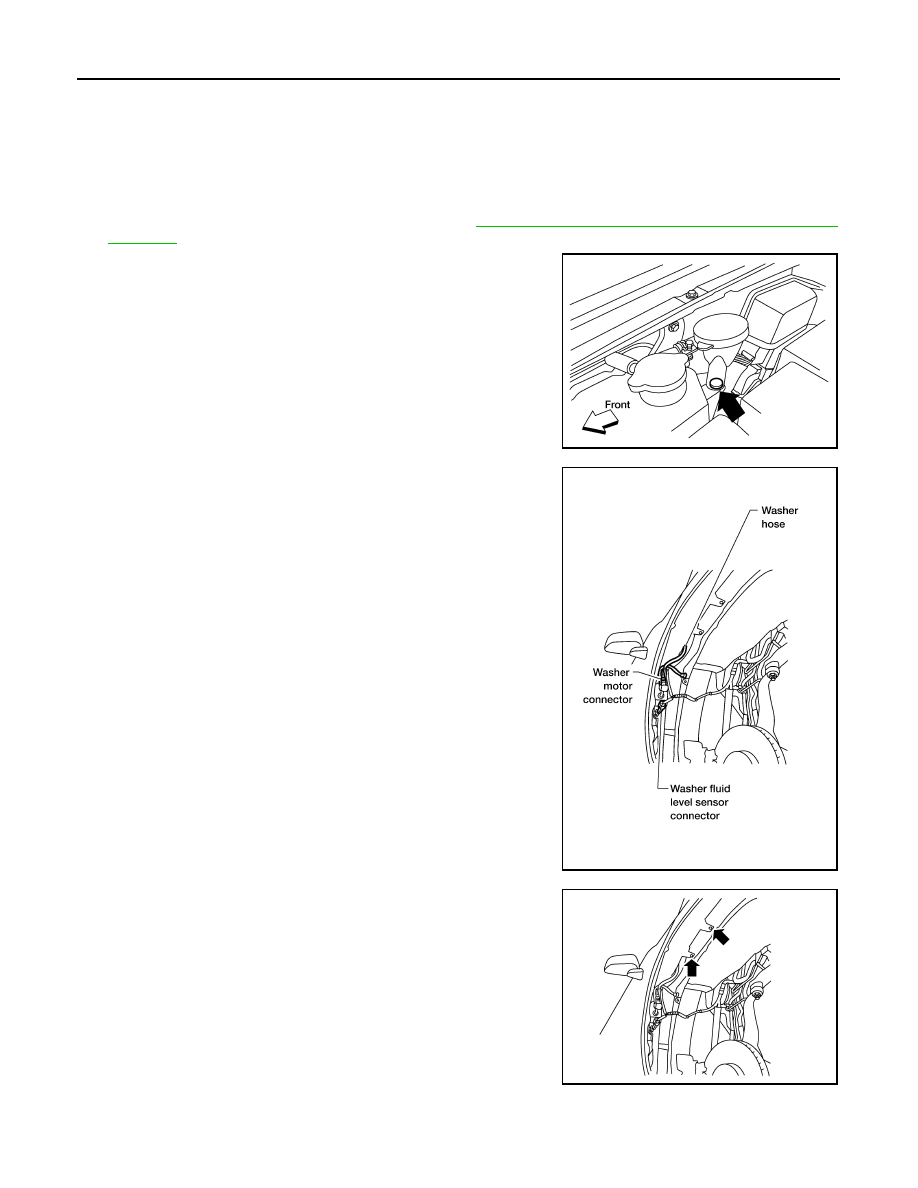

Removal

1.

Remove passenger front fender protector. Refer to

EXT-22, "Removal and Installation of Front Fender

Protector"

.

2.

Remove clip, then remove washer fluid reservoir filler neck from
washer fluid reservoir.

3.

Disconnect washer hose.

4.

Disconnect washer motor connector.

5.

Disconnect washer fluid level sensor connector if equipped.

6.

Remove washer fluid reservoir screws and remove washer fluid
reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

LKIA0538E

WKIA3454E

LKIA0539E

WASHER TANK

WW-67

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

After installation, add water up to the upper level of the washer fluid reservoir inlet and check for water
leaks.

WW-68

< ON-VEHICLE REPAIR >

WASHER PUMP

WASHER PUMP

Washer Motor

INFOID:0000000005272723

REMOVAL AND INSTALLATION

Removal

1.

Remove RH front fender protector. Refer to

EXT-22, "Removal and Installation of Front Fender Protector"

.

2.

Disconnect the washer hoses.

3.

Disconnect the washer motor connector.

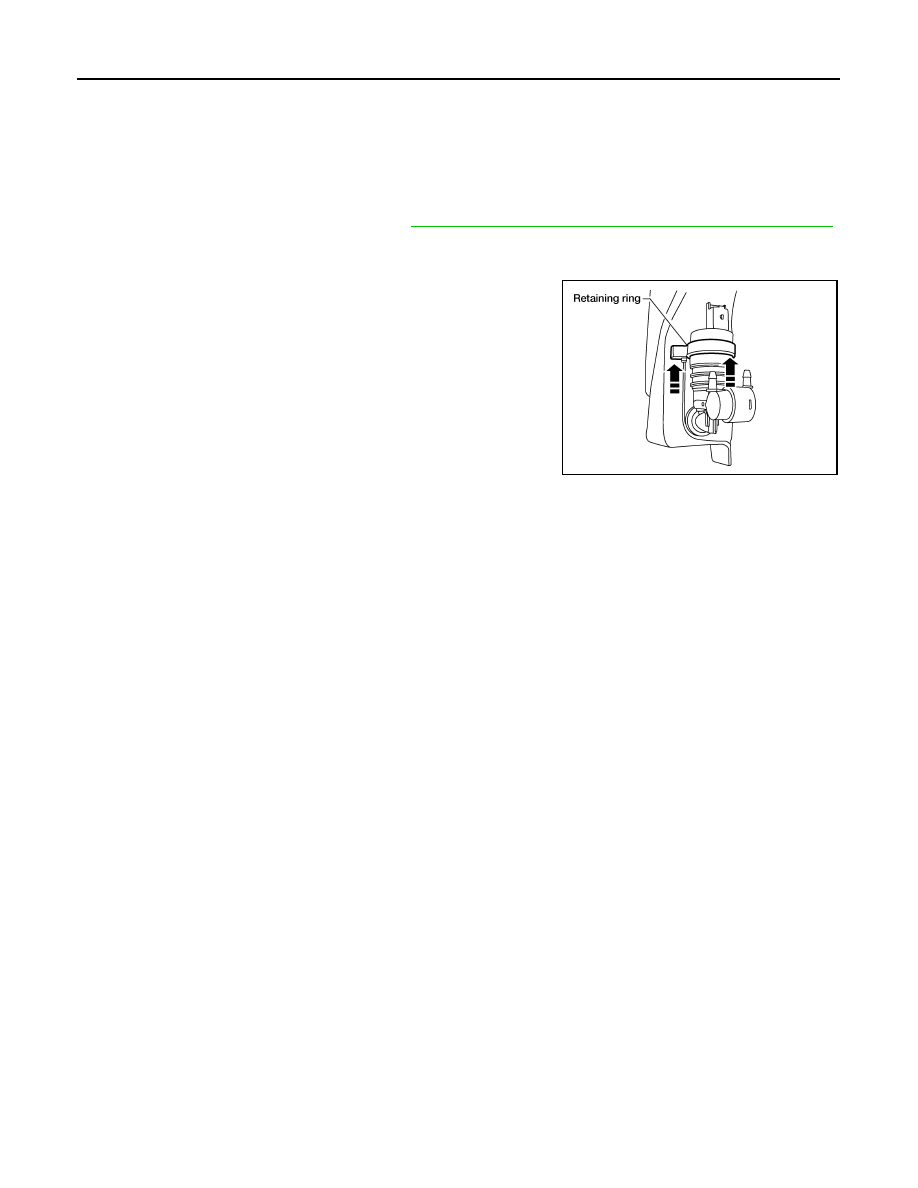

4.

Slide retaining ring upward to release washer motor.

5.

Remove washer motor from washer fluid reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

When installing front and rear washer motor, there should be no packing twists, etc.

LKIA0540E
