PRECAUTION

WW-61

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PRECAUTION

PRECAUTION

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005528988

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

WW-62

< ON-VEHICLE REPAIR >

FRONT WIPER ARM

ON-VEHICLE REPAIR

FRONT WIPER ARM

Front Wiper Arms

INFOID:0000000005272717

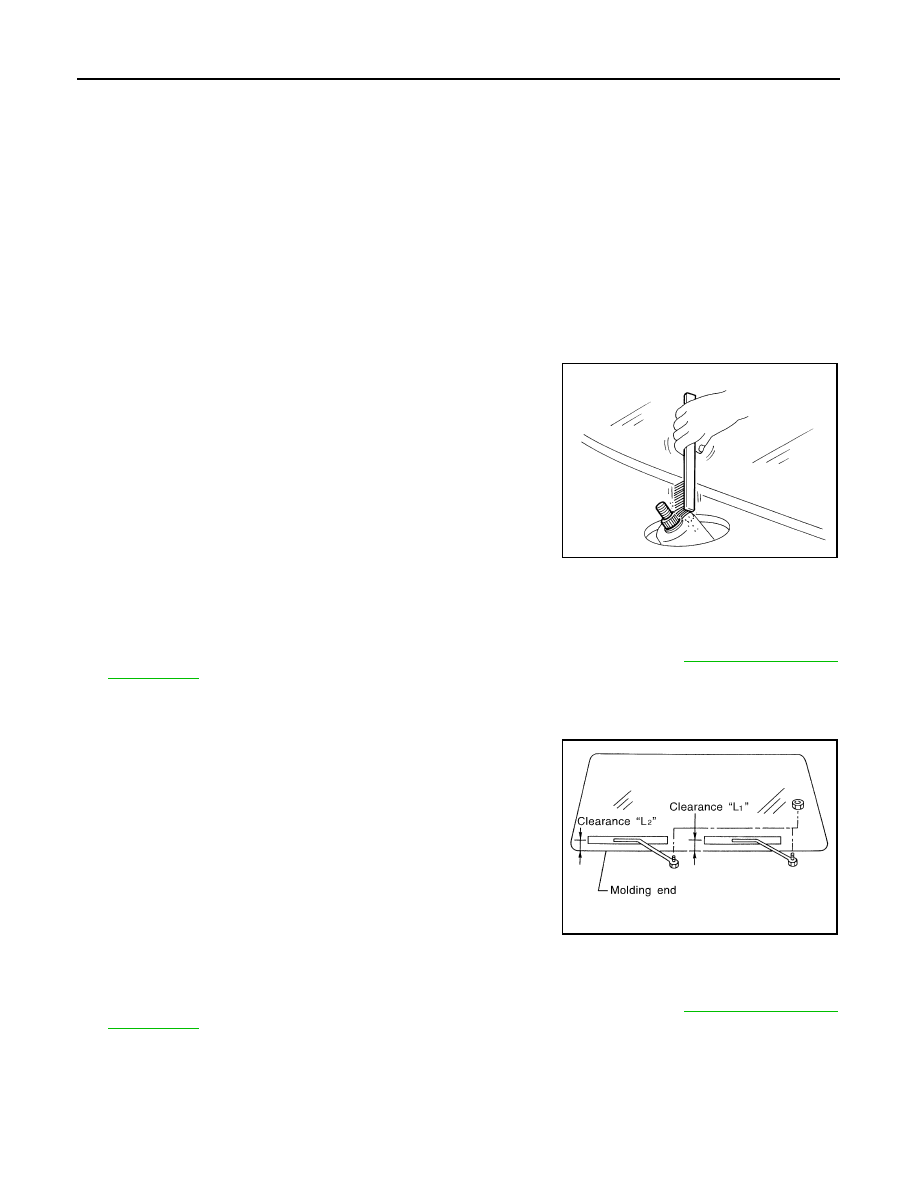

REMOVAL AND INSTALLATION

Removal

1.

Remove wiper arm covers and wiper arm nuts.

2.

Remove front RH wiper arm and front LH wiper arm.

3.

Remove front RH and LH blade assembly from the front RH and LH arm.

Installation

1.

Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).

2.

Clean up the pivot area as shown. This will reduce possibility of
wiper arm looseness.

3.

Install front RH and LH blade assembly on the front RH and LH arm.

4.

Install front RH wiper arm and front LH wiper arm.

5.

Ensure that wiper blades stop within proper clearance. Perform "FRONT WIPER ARM ADJUSTMENT"  .

6.

Tighten wiper arm nuts to specified torque, and install wiper arm covers. Refer to

WW-63, "Wiper Motor

and Linkage"

.

FRONT WIPER ARM ADJUSTMENT

1.

Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).

2.

Lift the wiper blade up and then rest it onto glass surface, check
the blade clearance "L1" and "L2".

3.

Remove wiper arm covers and wiper arm nuts.

4.

Adjust front wiper arms on wiper motor pivot shafts to obtain above specified blade clearances.

5.

Tighten wiper arm nuts to specified torque, and install wiper arm covers. Refer to

WW-63, "Wiper Motor

and Linkage"

.

SEL024J

Clearance "L1"

: 24.5 - 39.5 mm (0.965 - 1.555 in)

Clearance "L2"

: 23.5 - 38.5 mm (0.925 - 1.516 in)

SEL543TA

FRONT WIPER DRIVE ASSEMBLY

WW-63

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DRIVE ASSEMBLY

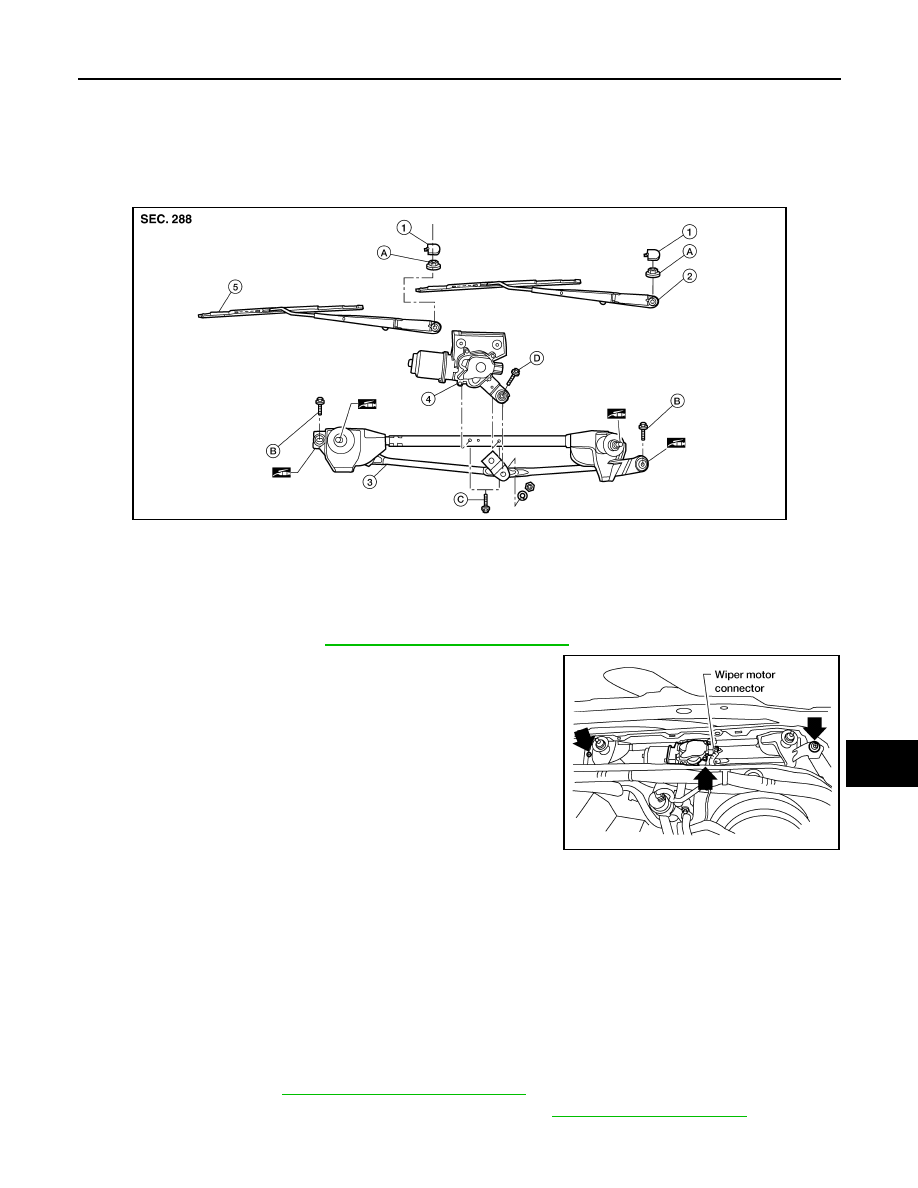

Wiper Motor and Linkage

INFOID:0000000005272718

REMOVAL AND INSTALLATION

Removal

1.

Remove the cowl top. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove wiper frame bolts, disconnect wiper motor connector
and remove wiper frame assembly.

3.

Remove wiper motor from wiper frame assembly.

Installation

CAUTION:

• Do not drop the wiper motor or cause it to contact other parts.
• Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.

1.

Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper
switch OFF (auto stop).

2.

Disconnect wiper motor electrical connector.

3.

Install wiper motor to wiper frame assembly, and install wiper frame assembly.

4.

Connect wiper motor electrical connector.

5.

Install cowl top. Refer to

EXT-19, "Removal and Installation"

.

6.

Ensure that wiper blades stop within proper clearance. Refer to

WW-62, "Front Wiper Arms"

.

AWKIA1471ZZ

1.

Wiper arm covers

2.

Front LH wiper arm and blade assembly

3.

Wiper frame assembly

4.

Wiper motor

5.

Front RH wiper arm and blade assembly

A.

Wiper arm nuts

B.

Wiper frame bolts

C.

Wiper motor bolts

D.

Wiper motor pivot arm bolt

LKIA0534E

WW-64

< ON-VEHICLE REPAIR >

FRONT WASHER TUBE

FRONT WASHER TUBE

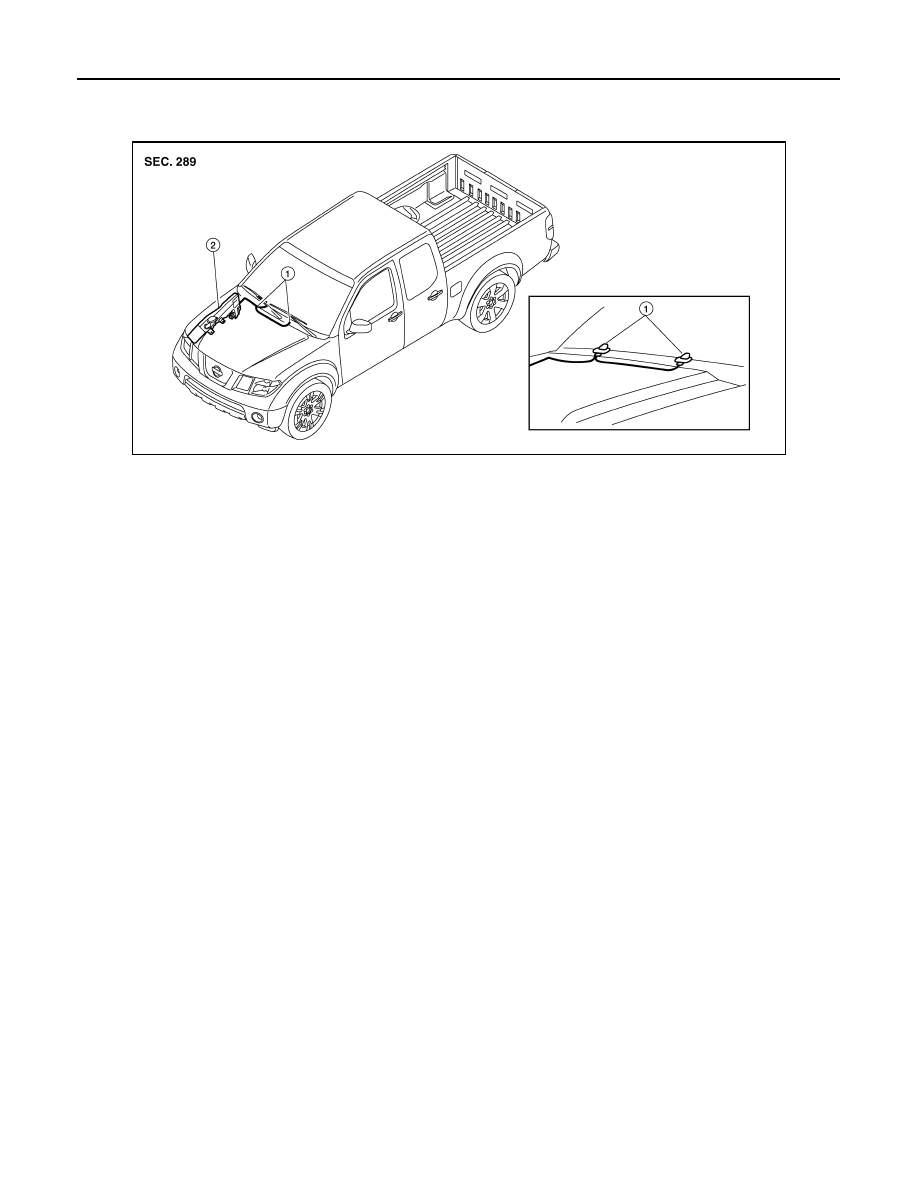

Washer Tube Layout

INFOID:0000000005272719

WKIA4886E

1. Washer

nozzles

2.

Washer

tube
