MODE DOOR MOTOR

MODE DOOR MOTOR

Removal and Installation

INFOID:0000000005275979

Mode Door Motor

REMOVAL

1.

Remove the BCM. Refer to

BCS-54, "Removal and Installation"

.

2.

Disconnect the mode door motor electrical connector.

3.

Remove the three screws and remove the mode door motor.

INSTALLATION

Installation is in the reverse order of removal.

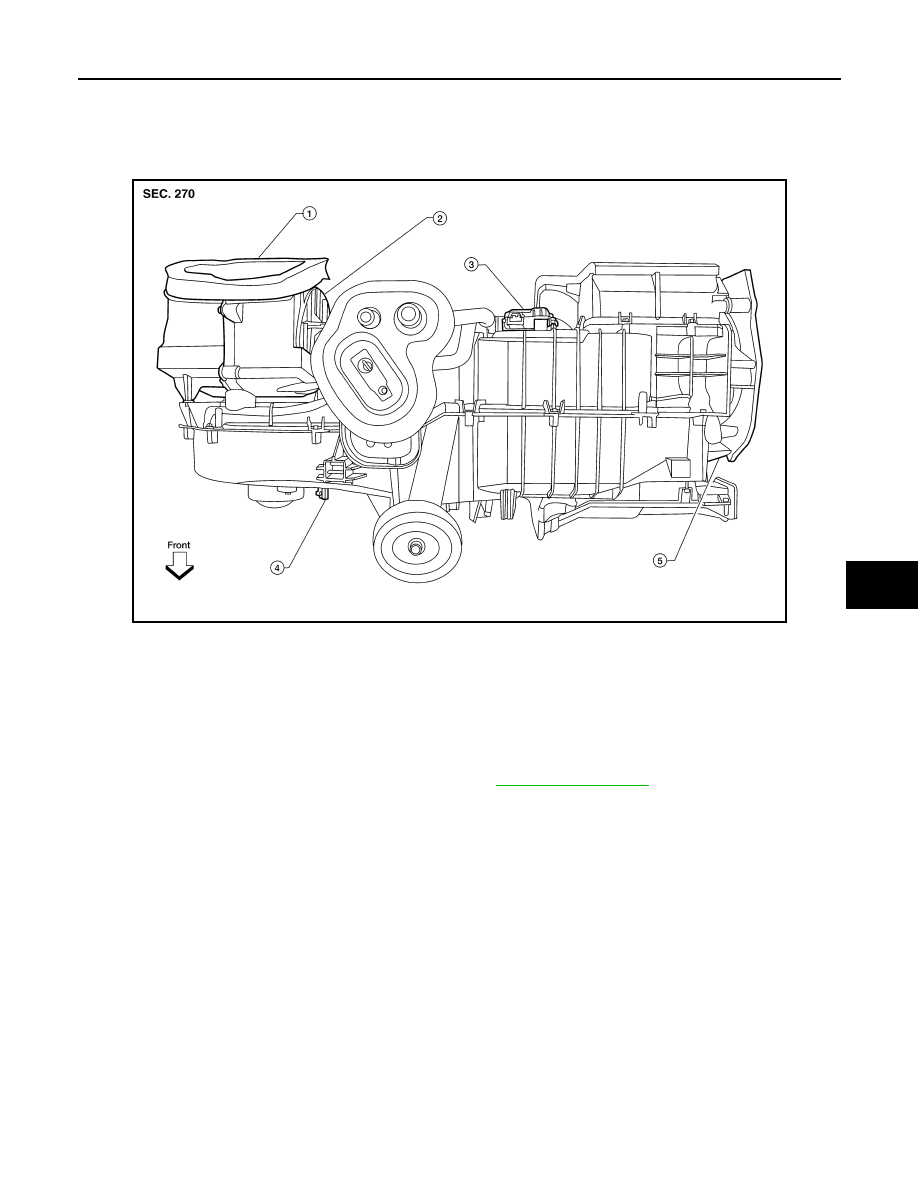

WJIA1480E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor

4.

Variable blower control/Blower motor resistor

5.

Mode door motor

AIR MIX DOOR MOTOR

VTL-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AIR MIX DOOR MOTOR

Component

INFOID:0000000005275980

Air Mix Door Motor

Removal and Installation

INFOID:0000000005275981

REMOVAL

1.

Remove the heater and cooling unit assembly. Refer to

VTL-12, "Component"

.

2.

Disconnect the air mix door motor electrical connector.

3.

Remove the three screws and remove the air mix door motor.

INSTALLATION

Installation is in the reverse order of removal.

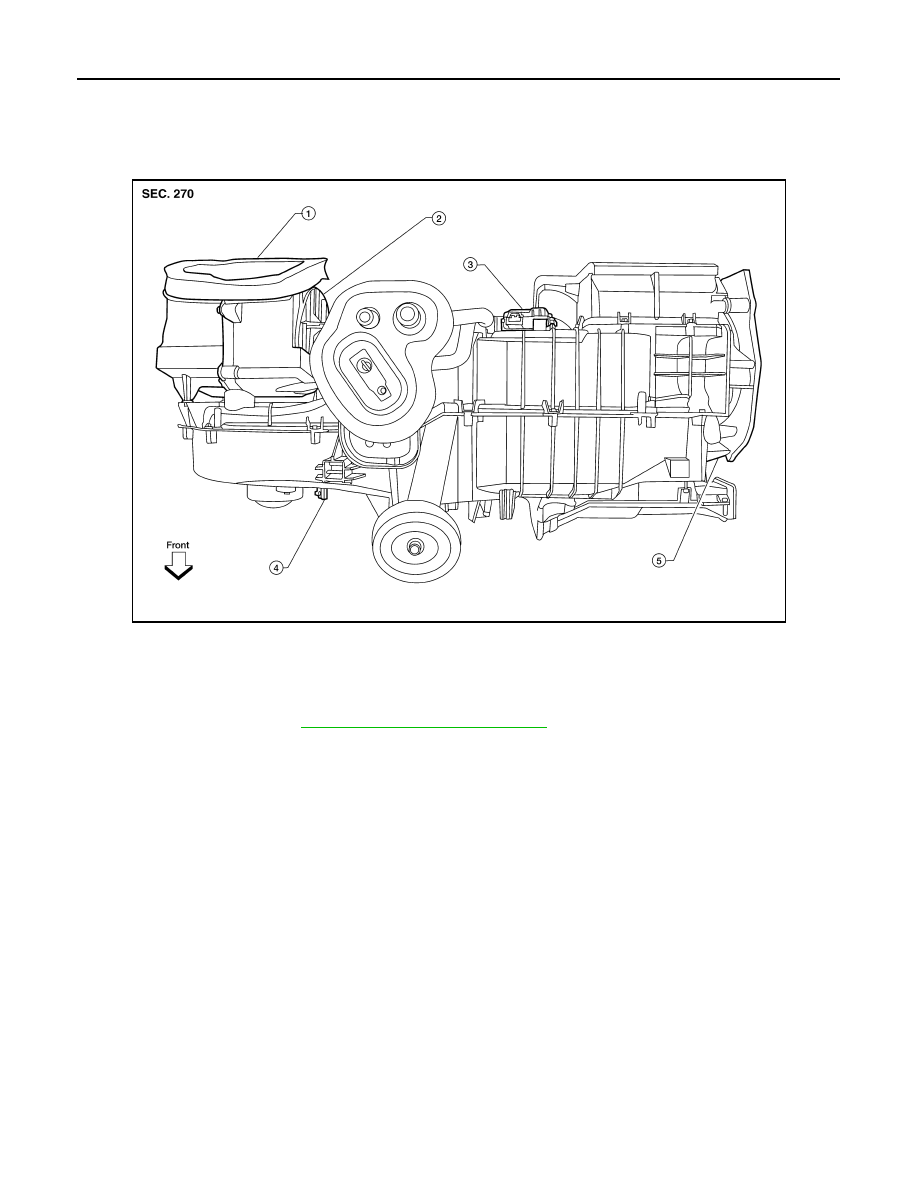

WJIA1480E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor

4.

Variable blower control/Blower motor re-
sistor

5.

Mode door motor

VTL-20

< ON-VEHICLE REPAIR >

DUCTS AND GRILLES

DUCTS AND GRILLES

Component

INFOID:0000000005275982

Ducts

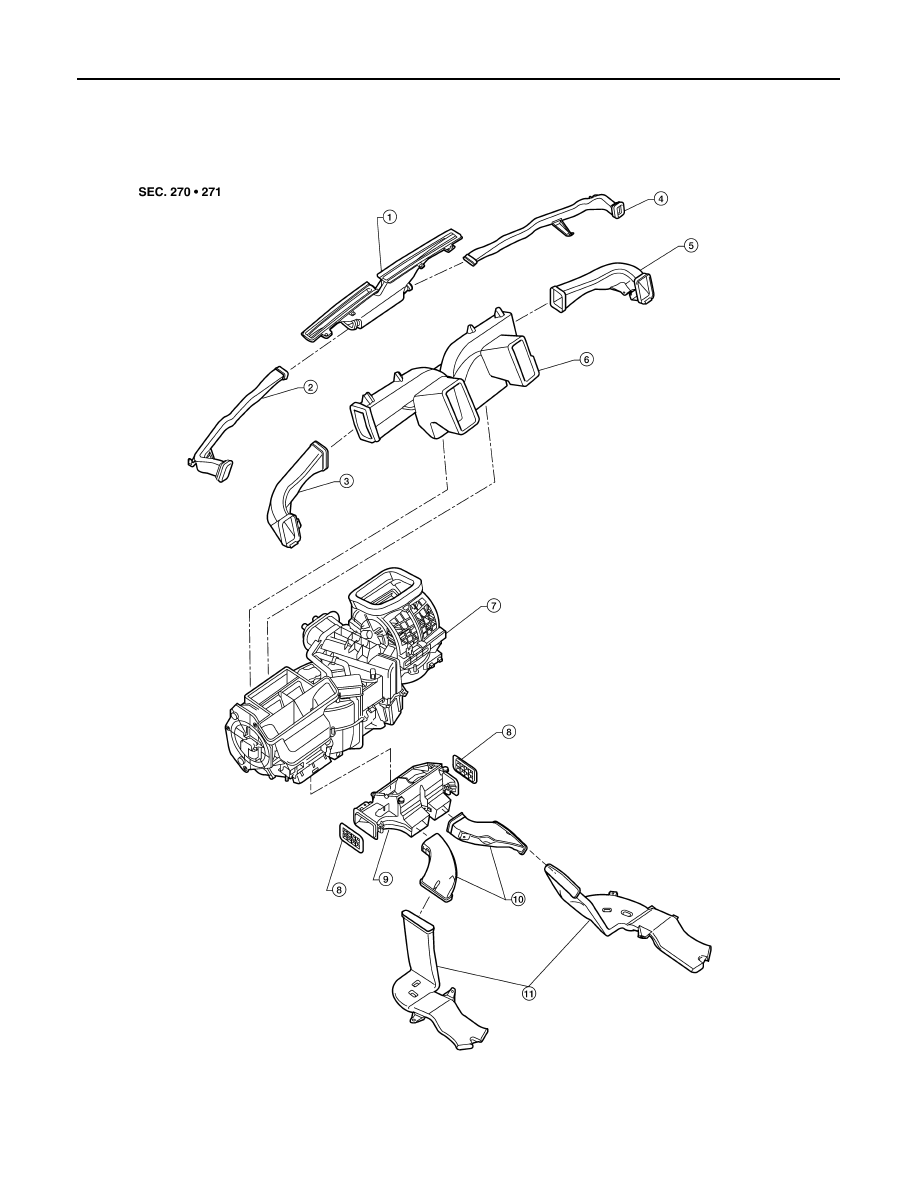

WJIA1260E

1.

Defroster nozzle

2.

LH side demister duct

3.

LH ventilator duct

4.

RH side demister duct

5.

RH ventilator duct

6.

Center ventilator duct

DUCTS AND GRILLES

VTL-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Grilles

Removal and Installation

INFOID:0000000005275983

DEFROSTER NOZZLE

Removal

1.

Remove the heater and cooling unit assembly. Refer to

VTL-12, "Component"

.

2.

Remove the defroster nozzle.

Installation

Installation is in the reverse order of removal.

RH AND LH SIDE DEMISTER DUCTS

Removal

1.

Remove the heater and cooling unit assembly. Refer to

VTL-12, "Component"

.

2.

Remove the RH or LH side demister duct.

Installation

7.

Front heater and cooling unit assembly

8.

Floor connector duct grilles

9.

Floor connector duct

10. Front floor ducts

11.

Rear floor ducts

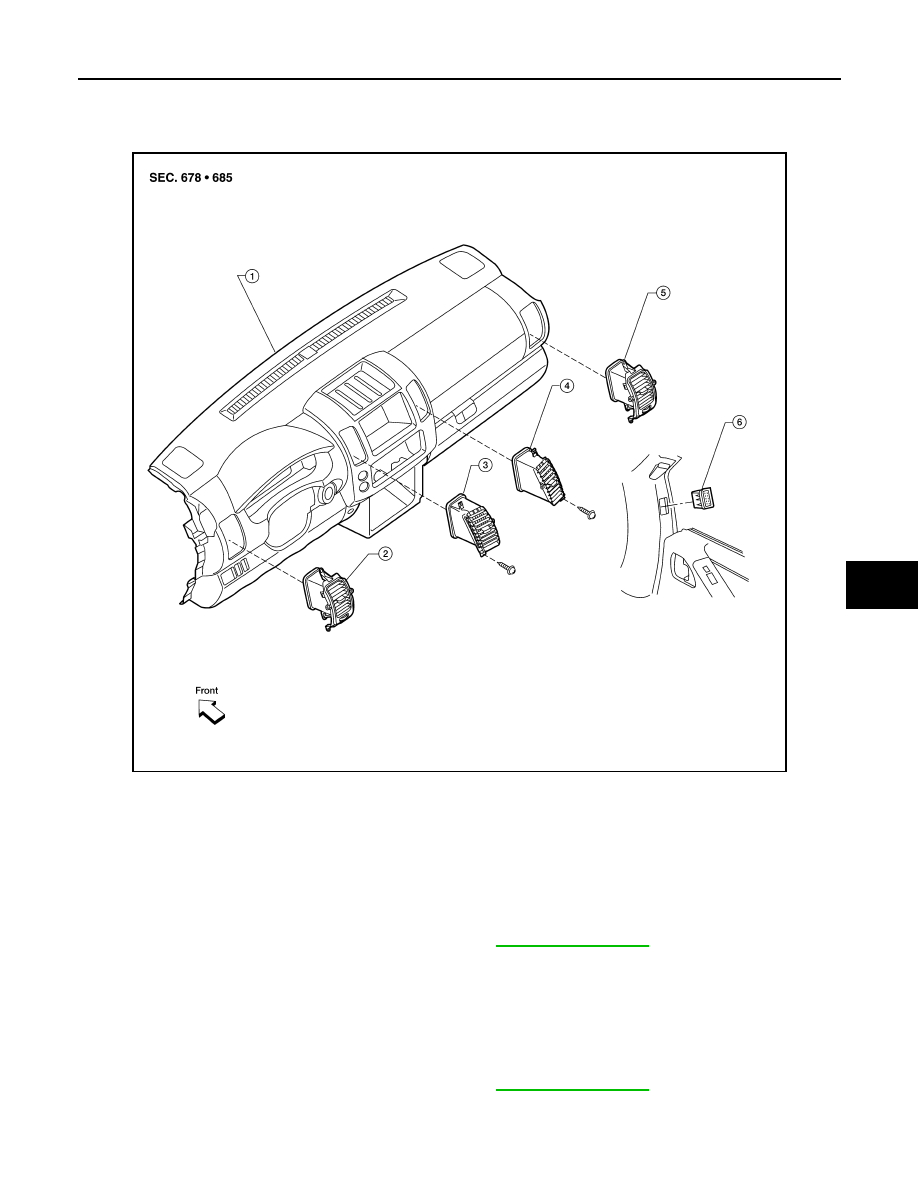

WJIA1261E

1.

Instrument panel

2.

LH side ventilator grille

3.

LH ventilator grille

4.

RH ventilator grille

5.

RH side ventilator grille

6.

RH side demister grille
