TM-378

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

ASSEMBLY

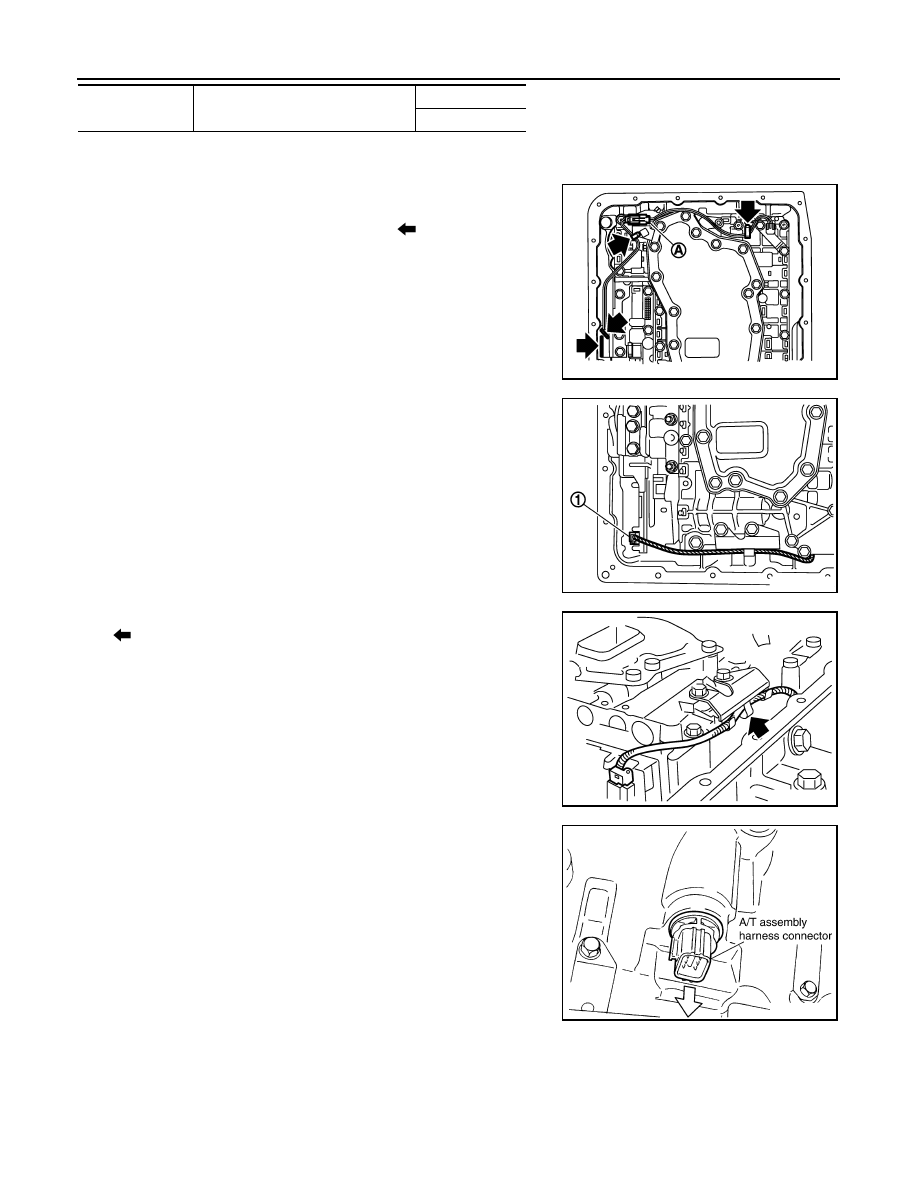

17. After installing the A/T fluid temperature sensor 2, connect the A/T fluid temperature sensor 2 connector

as shown below.

a.

Connect A/T fluid temperature sensor 2 connector (A).

b.

Securely fasten terminal cord assembly and A/T fluid tempera-
ture sensor 2 harness with terminal clips (

).

18. Connect output speed sensor connector (1).

19. Securely fasten output speed sensor harness with terminal clip

(

).

20. Pull down A/T assembly harness connector.

CAUTION:

Do not damage connector.

Tightening torque
N·m (km-g, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8124E

JSDIA1319ZZ

JSDIA1320ZZ

SCIA5299E

ASSEMBLY

TM-379

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

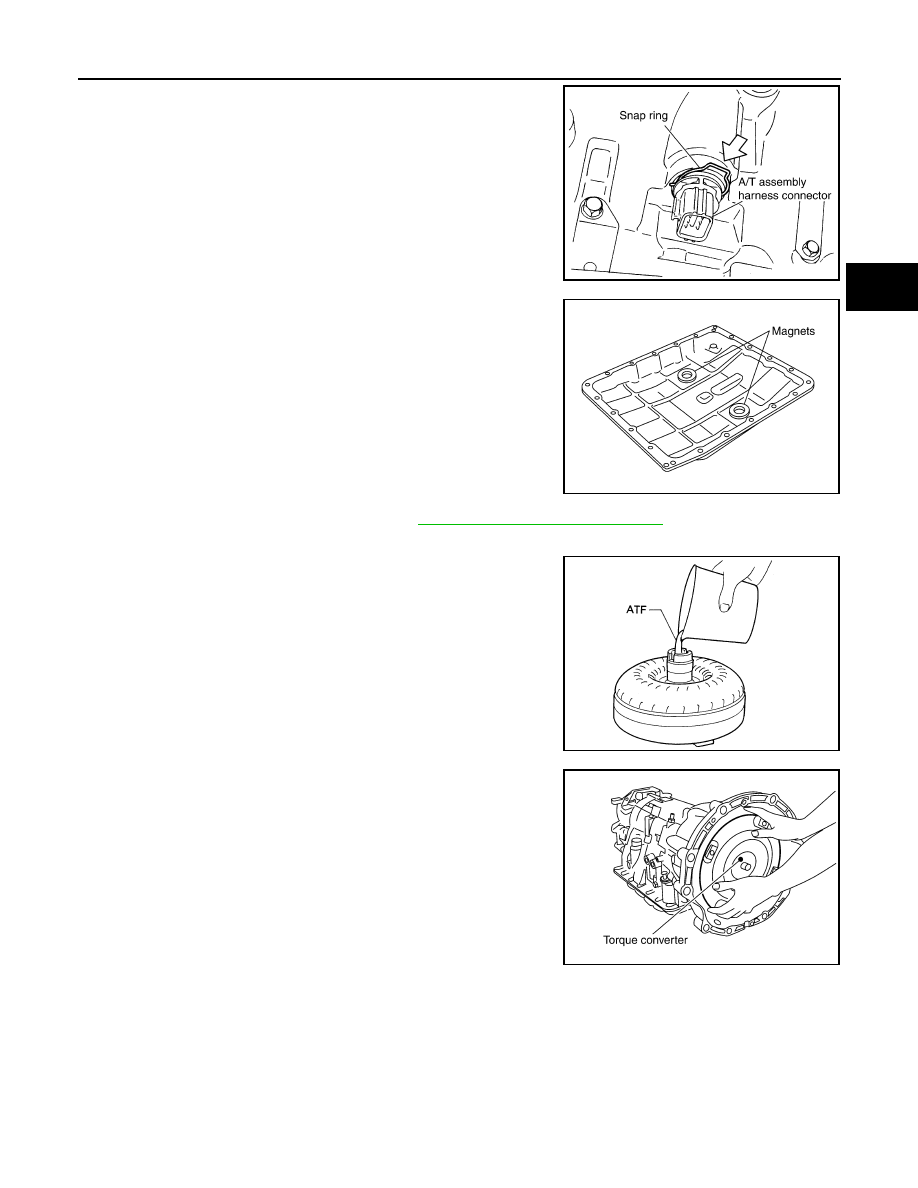

21. Install snap ring to A/T assembly harness connector.

22. Install magnets in oil pan.

23. Install oil pan to transmission case. Refer to

TM-278, "Removal and Installation"

.

24. Install torque converter.

a.

Pour ATF into torque converter.
NOTE:
• Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is

required for a new torque converter.

• When reusing old torque converter, add the same amount of

fluid as was drained.

b.

Install torque converter while aligning notches of torque con-
verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

SCIA5300E

SCIA5200E

SAT428DA

SCIA5010E

TM-380

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

ASSEMBLY

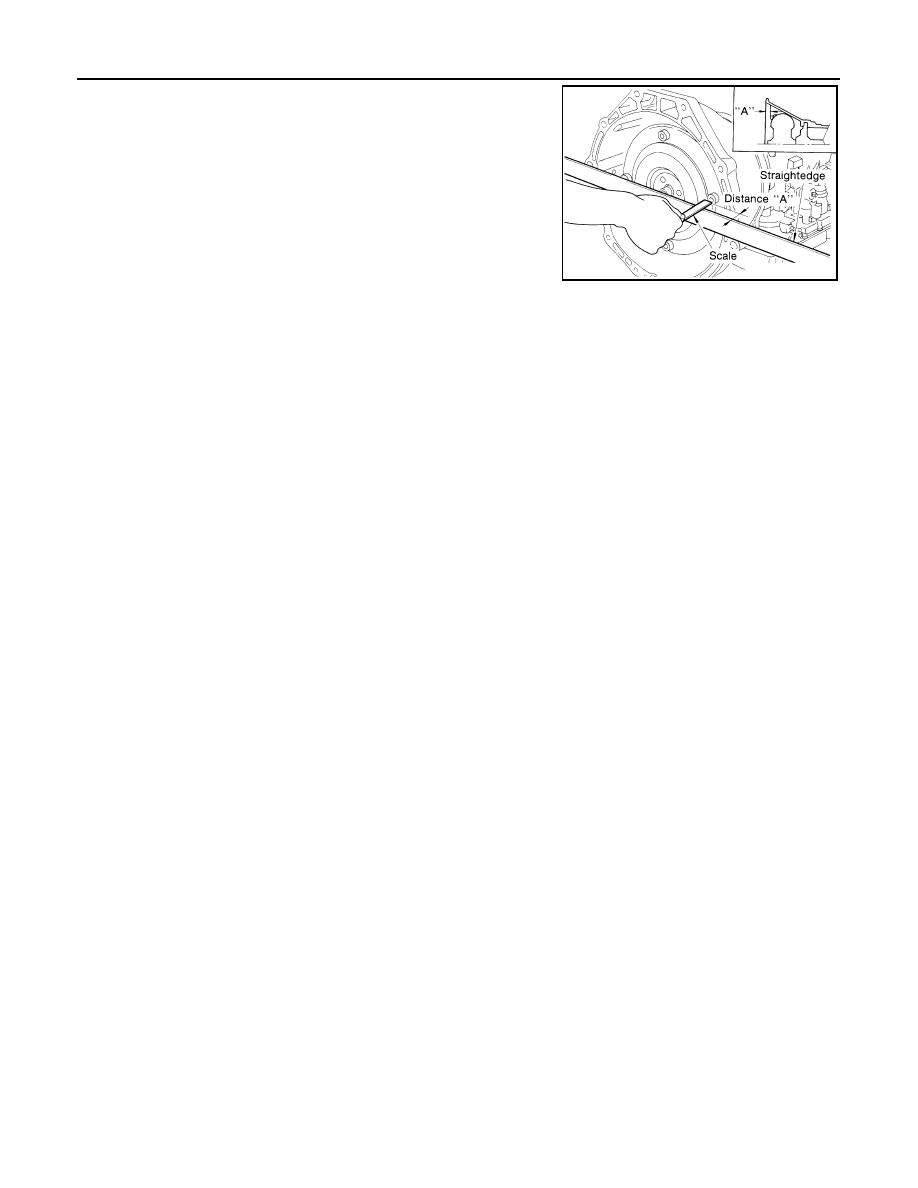

c.

Measure distance "A" to make sure that torque converter is in
proper position.

Distance "A"

: 25.0 mm (0.98 in) or more

SCIA5694E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-381

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005274232

*1: Refer to

MA-16, "For North America: Fluids and Lubricants"

.

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000005274233

QR25DE MODELS

• At half throttle, the accelerator opening is 1/2 of the full opening.

VQ40DE MODELS FOR 2WD

Applied model

QR25DE

VQ40DE

2WD

4WD

Automatic transmission model

RE5R05A

Transmission model code number

3FX3D

3FX3A

3FX2D

Stall torque ratio

1.84:1

1.76: 1

Transmission gear ratio

1st

3.842

2nd

2.353

3rd

1.529

4th

1.000

5th

0.839

Reverse

2.765

Recommended fluid

Genuine NISSAN Matic S ATF*1

Fluid capacity

10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)

CAUTION:

If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used, Using automatic transmission
fluid other than Genuine NISSAN Matic S ATF or Matic J ATF will cause deterioration in driveability and automatic transmission
durability, and may damage automatic transmission, which is not covered by the NISSAN new vehicle limited warranty.

Throttle position

Vehicle speed km/h (MPH)

D

1



→

D

2

D

2



→

D

3

D

3



→

D

4

D

4



→

D

5

D

5



→

D

4

D

4



→

D

3

D

3



→

D

2

D

2



→

D

1

Full throttle

49 - 53

(30 - 33)

80 - 88

(50 - 55)

125-135

(78 - 84)

194 - 204

(121 - 127)

190 - 200

(118 - 124)

115 - 125

(72 - 77)

69 - 77

(43 - 48)

32 - 36

(20 - 23)

Half throttle

36 - 40

(23 - 25)

59 - 65

(37 - 44)

91 - 99

(57 - 62)

127 - 135

(79 - 83)

99 - 107

(62 - 66)

63 - 71

(39 - 44)

44 - 50

(27 - 30)

11 - 15

(7 - 9)

Final

gear
ratio

Tire size

Throttle
position

Vehicle speed km/h (MPH)

D

1



→

D

2

D

2



→

D

3

D

3



→

D

4

D

4



→

D

5

D

5



→

D

4

D

4



→

D

3

D

3



→

D

2

D

2



→

D

1

2.937

P265/70R16
P265/65R17
P265/60R18

Full
throttle

68 - 72

(43 - 44)

109 - 117

(68 - 72)

169 - 179

(106 - 111)

249 - 259

(156 - 162)

245 - 255

(153 - 158)

157 - 167

(98 - 103)

95 - 103

(60 - 64)

43 - 47

(27 - 29)

Half
throttle

54 - 58

(34 - 36)

88 - 94

(55 - 58)

137 - 145

(86 - 90)

165 - 175

(103 - 108)

137 - 145

(86 - 90)

77 - 85

(48 - 52)

54 - 60

(34 - 38)

11 - 15

(7 - 9)
