Nissan Frontier D40. Manual - part 1095





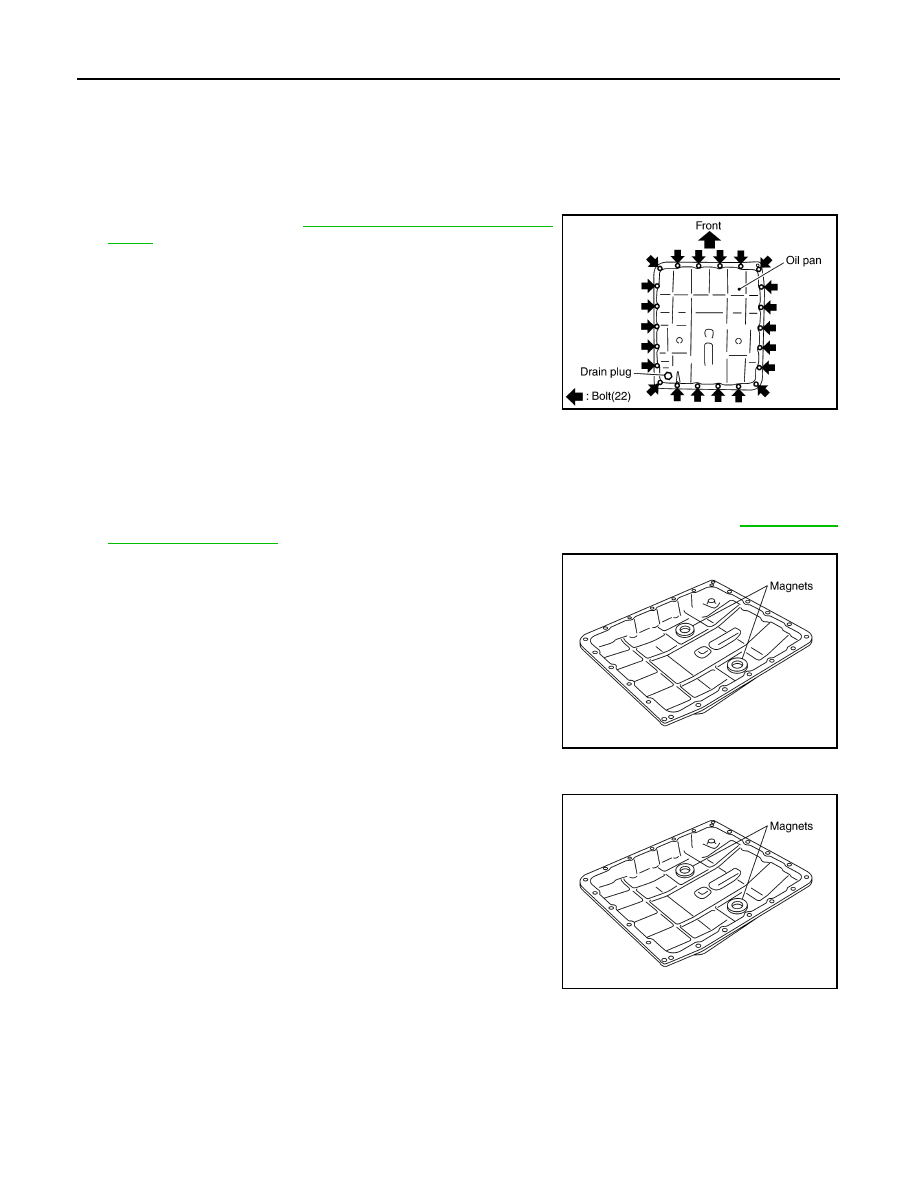

TM-278

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

OIL PAN

OIL PAN

Removal and Installation

INFOID:0000000005589592

REMOVAL AND INSTALLATION

Removal

1.

Drain A/T fluid. Refer to

TM-263, "Changing the A/T Fluid

(ATF)"

.

2.

Remove oil pan bolts.

3.

Remove oil pan and gasket.

4.

Check for foreign materials in oil pan to help determine cause of malfunction. If the A/T fluid is very dark,
has some burned smell, or contains foreign particles then friction material (clutches, band) may need
replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves,
servo, and clutches to stick and can inhibit pump pressure.

CAUTION:

If friction material is detected, flush the transmission cooler after repair. Refer to

TM-264, "A/T

Fluid Cooler Cleaning"

.

5.

Remove magnets from oil pan.

Installation

1.

Install the oil pan magnets as shown.

SCIA2308E

SCIA5200E

SCIA5200E

OIL PAN

TM-279

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

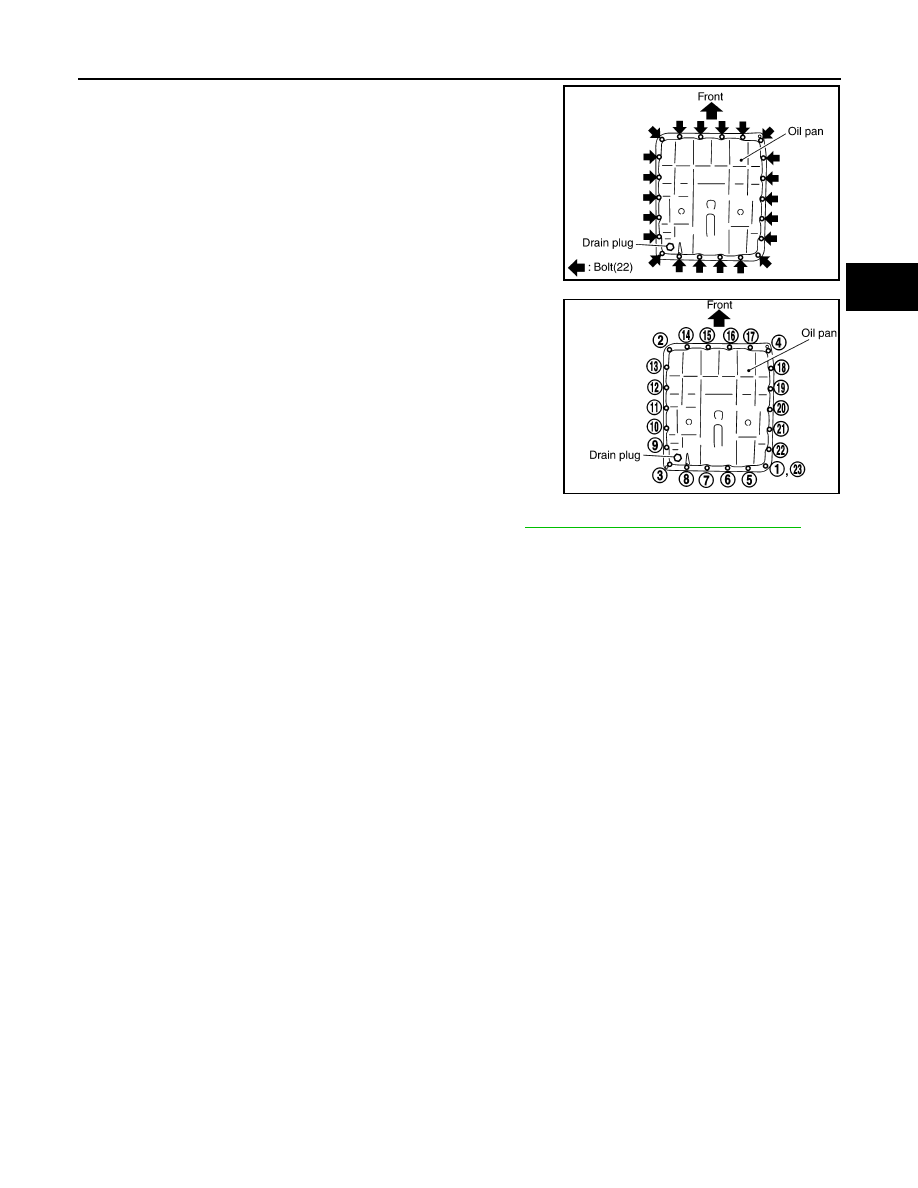

2.

Install the oil pan with new oil pan gasket.

CAUTION:

• Be sure the oil drain plug is located to the rear of the

transmission assembly.

• Before installing oil pan bolts, remove any traces of old

sealant from the sealing surfaces and threaded holes.

• Do not reuse old gasket, replace with a new one.
• Always replace the oil pan bolts as they are self-sealing.
• Partially install the oil pan bolts in a criss-cross pattern to

prevent dislocation of the gasket.

3.

Tighten oil pan bolts in numerical order as shown.

4.

Refill the A/T with fluid and check for fluid leakage. Refer to

TM-261, "Checking the A/T Fluid (ATF)"

.

SCIA2308E

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA4113E

TM-280

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

CONTROL VALVE WITH TCM

Removal and Installation

INFOID:0000000005274206

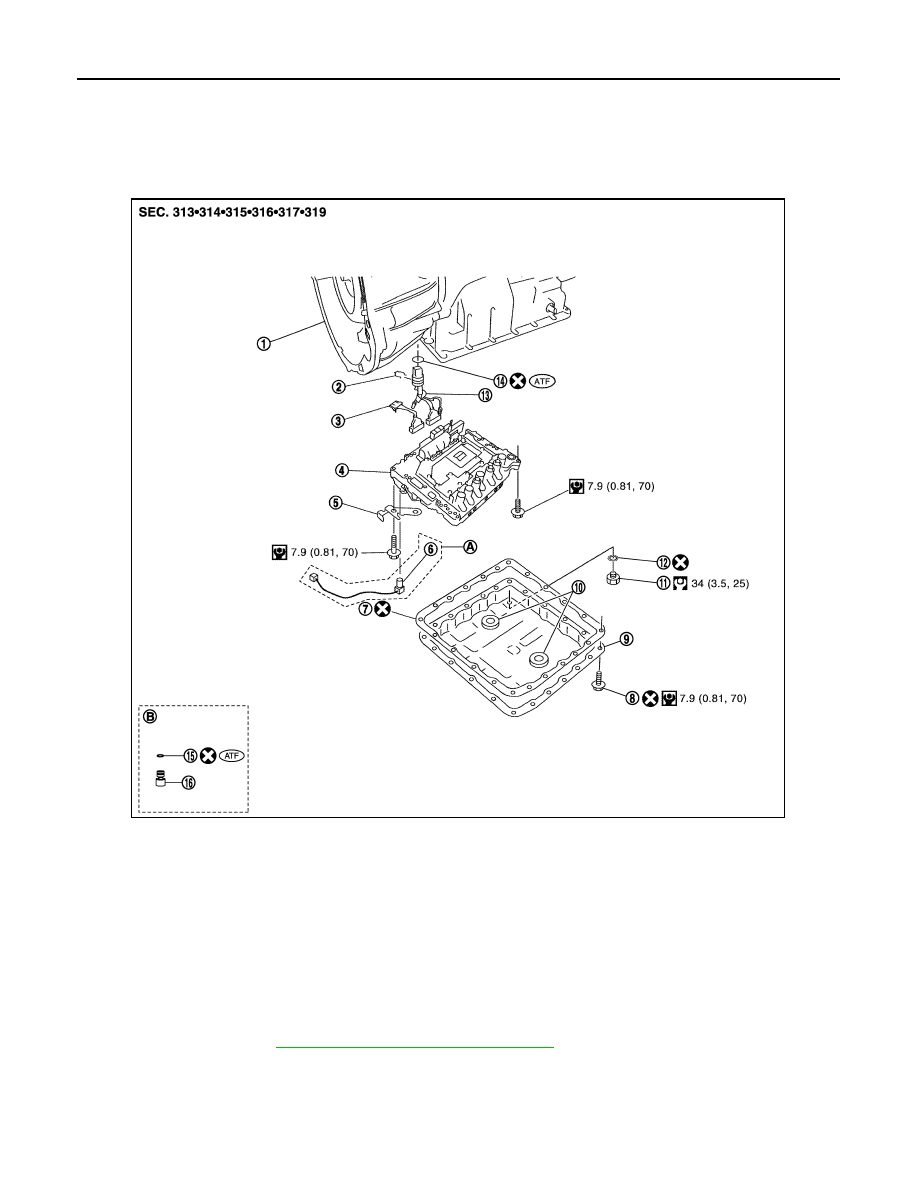

COMPONENTS

REMOVAL

1.

Disconnect negative battery terminal.

2.

Drain A/T fluid. Refer to

TM-263, "Changing the A/T Fluid (ATF)"

.

3.

Disconnect A/T assembly harness connector.

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

A/T fluid temperature sensor 2

7.

Oil pan gasket

8.

Oil pan bolt

9.

Oil pan

10. Magnet

11.

Drain plug

12. Drain plug gasket

13. Terminal cord assembly

14. O-ring

15.  O-ring

16. Plug

A/T fluid temperature sensor 2 (A) can be changed to plug (B), depending on vehicles.

JSDIA1431GB

CONTROL VALVE WITH TCM

TM-281

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

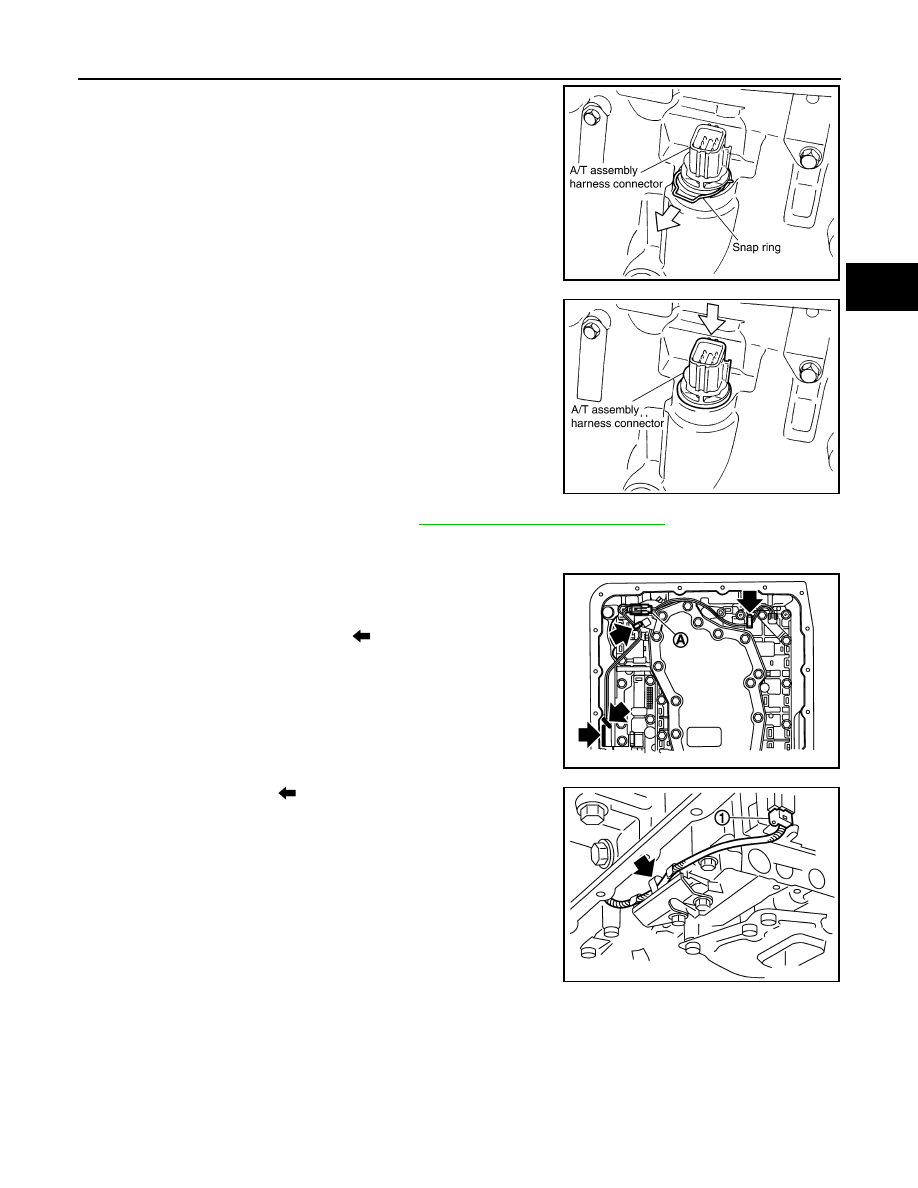

4.

Remove snap ring from A/T assembly harness connector.

5.

Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

6.

Remove oil pan and oil pan gasket. Refer to

TM-278, "Removal and Installation"

.

7.

If an A/T fluid temperature sensor 2 is attached, disconnect the A/T fluid temperature sensor 2 connector
as shown below.

a.

Disconnect A/T fluid temperature sensor 2 connector (A).

CAUTION:

 Do not damage connector.

b.

Straighten the four terminal clips (

) to free the terminal cord

assembly for A/T fluid temperature sensor 2 harness.

8.

Straighten terminal clip (

) to free the output speed sensor har-

ness.

9.

Disconnect output speed sensor connector (1).

CAUTION:

Do not damage connector.

SCIA5021E

SCIA5022E

SCIA8124E

JSDIA1316ZZ
