Nissan Frontier D40. Manual - part 1080





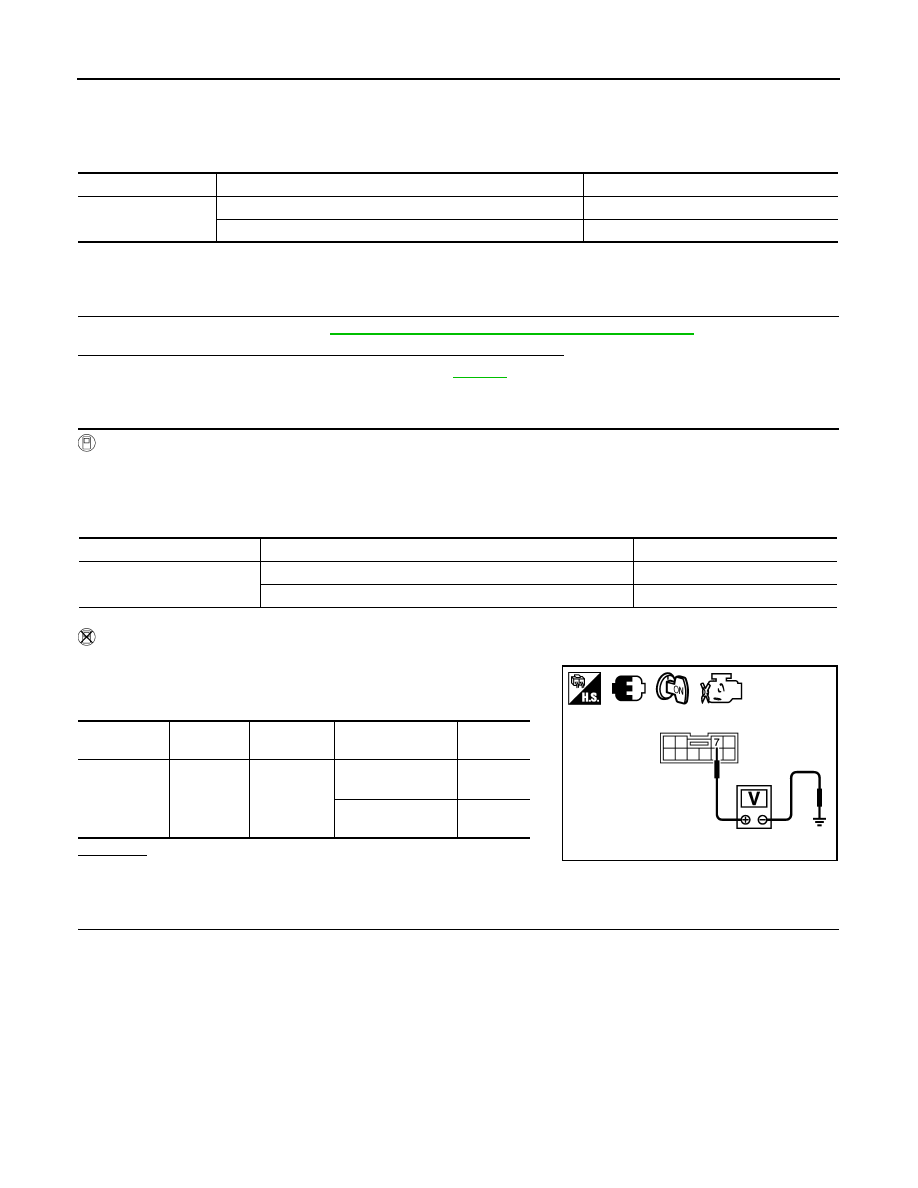

TM-218

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

OVERDRIVE CONTROL SWITCH

OVERDRIVE CONTROL SWITCH

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005274155

Diagnosis Procedure

INFOID:0000000005274156

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

TM-151, "CONSULT-III Function (TRANSMISSION)"

.

Is any malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

TM-159

.

NO

>> GO TO 2.

2.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT

 With CONSULT-III

1.

Turn ignition switch “ON”.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out “OD CONT SW”.
Check the signal of the overdrive control switch is indicated properly.

 Without CONSULT-III

1.

Turn ignition switch “ON”. (Do not start engine)

2.

Check voltage between A/T shift selector connector terminal
and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

CHECK OVERDRIVE CONTROL SWITCH

1.

Turn ignition switch “OFF”.

2.

Disconnect A/T shift selector connector.

Item name

Condition

Display value

OD CONT SW

Releasing overdrive control switch

OFF

Holding overdrive control switch

ON

Monitor item

Condition

Display value

OD CONT SW

Releasing overdrive control switch

OFF

Holding overdrive control switch

ON

Item

Connector

Terminal

Condition

Data

(Approx.)

Overdrive

control switch

M156

7 - Ground

Releasing over-
drive control switch

Battery
voltage

Holding overdrive
control switch

0V

JSDIA1481ZZ

OVERDRIVE CONTROL SWITCH

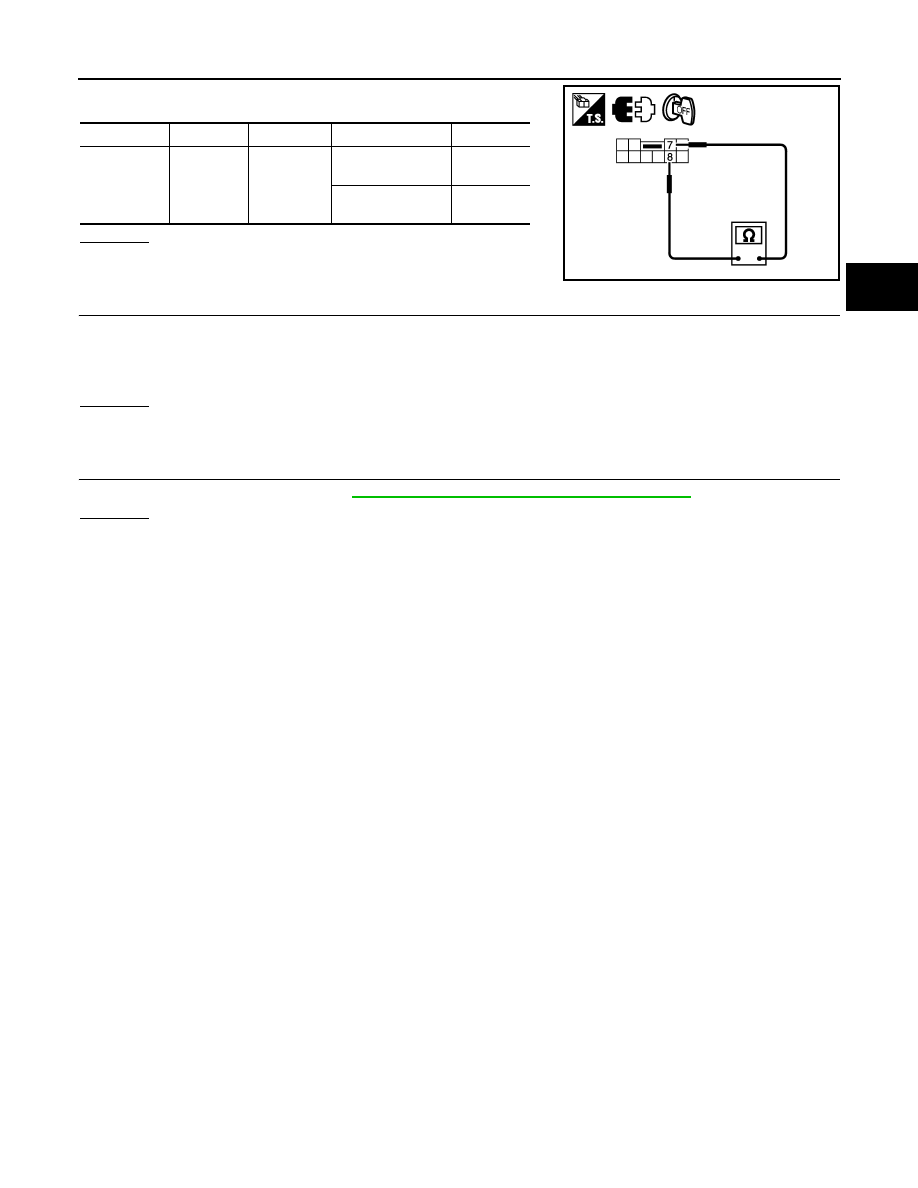

TM-219

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

Check continuity between A/T shift selector connector terminals.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace overdrive control switch.

4.

DETECT MALFUNCTIONING ITEM

Check the following. If any items are damaged, repair or replace damaged parts.
• Harness for short or open between combination meter connector terminal 20 and A/T shift selector connec-

tor terminal 7.

• Harness for short or open between A/T shift selector connector terminal 8 and ground.
OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK COMBINATION METER

Check the combination meter. Refer to

MWI-4, "METER SYSTEM : System Description"

.

OK or NG

OK

>> INSPECTION END

NO

>> Repair or replace damaged parts.

Item

Connector

Terminal

Condition

Continuity

Overdrive

control switch

M156

7 - 8

Releasing over-
drive control switch

No

Holding overdrive
control switch

Yes

JSDIA1482ZZ

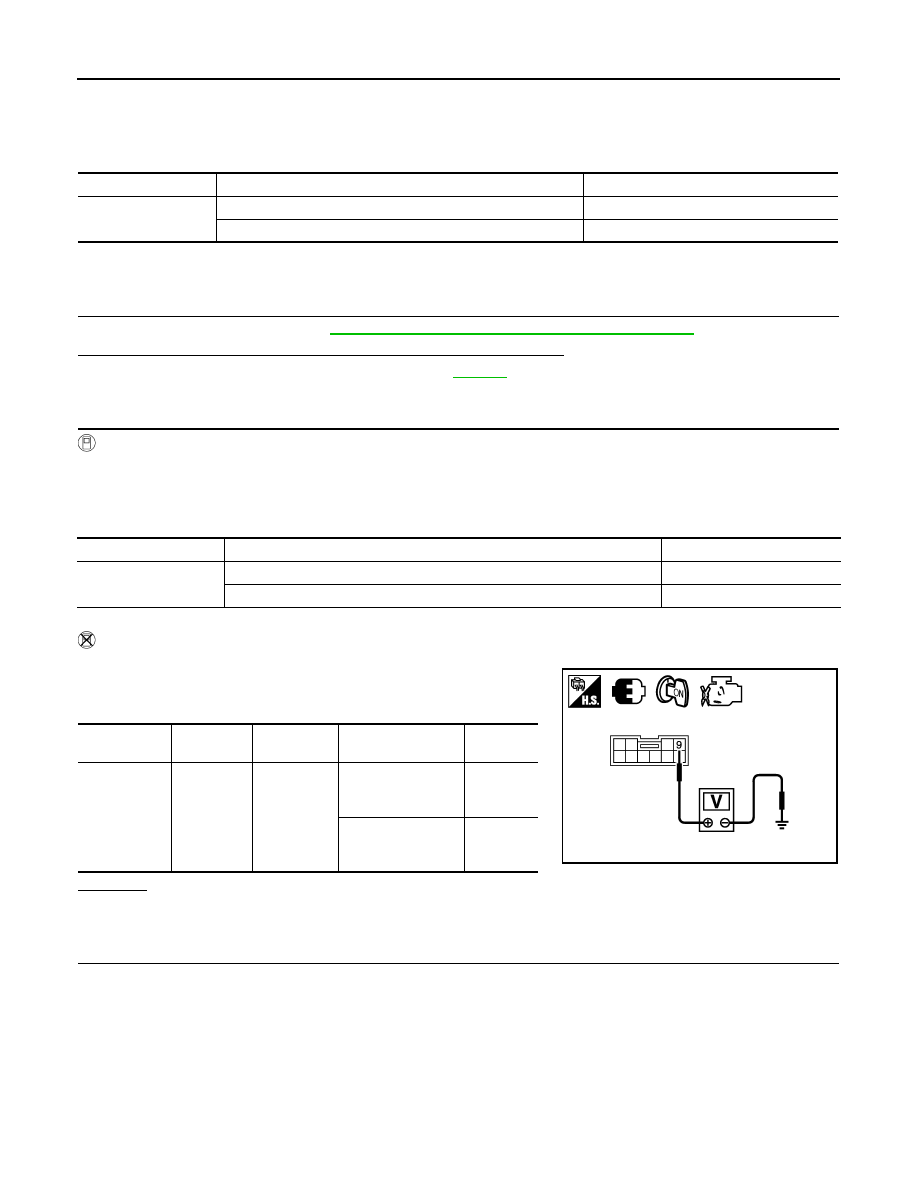

TM-220

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

1ST POSITION SWITCH

1ST POSITION SWITCH

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005473881

Diagnosis Procedure

INFOID:0000000005473882

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

TM-151, "CONSULT-III Function (TRANSMISSION)"

.

Is any malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

TM-159

.

NO

>> GO TO 2.

2.

CHECK 1ST POSITION SWITCH CIRCUIT

 With CONSULT-III

1.

Turn ignition switch “ON”.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out “1 POSITION SW”.
Check the signal of the 1st position switch is indicated properly.

 Without CONSULT-III

1.

Turn ignition switch “ON”. (Do not start engine)

2.

Check voltage between A/T shift selector connector terminal
and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

CHECK 1ST POSITION SWITCH

1.

Turn ignition switch “OFF”.

2.

Disconnect A/T shift selector connector.

Item name

Condition

Display value

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

Monitor item

Condition

Display value

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

Item

Connector

Terminal

Condition

Data

(Approx.)

1st position

switch

M156

9 - Ground

When setting selec-
tor lever to “1” posi-
tion.

0V

When setting selec-
tor lever to other po-
sitions.

Battery
voltage

JSDIA1483ZZ

1ST POSITION SWITCH

TM-221

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

Check continuity between A/T shift selector connector terminals.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace A/T shift selector assembly.

4.

DETECT MALFUNCTIONING ITEM

Check the following. If any items are damaged, repair or replace damaged parts.
• Harness for short or open between combination meter connector terminal 18 and A/T shift selector connec-

tor terminal 9.

• Harness for short or open between A/T shift selector connector terminal 10 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK COMBINATION METER

Check the combination meter. Refer to

MWI-23, "Diagnosis Description"

.

OK or NG

OK

>> INSPECTION END

NO

>> Repair or replace damaged parts.

Item

Connector

Terminal

Condition

Continuity

1st position

switch

M156

9 - 10

When setting se-
lector lever to “1”
position.

Yes

When setting se-
lector lever to other
positions.

No

JSDIA1484ZZ
