TM-210

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

MAIN POWER SUPPLY AND GROUND CIRCUIT

MAIN POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000005274148

1.

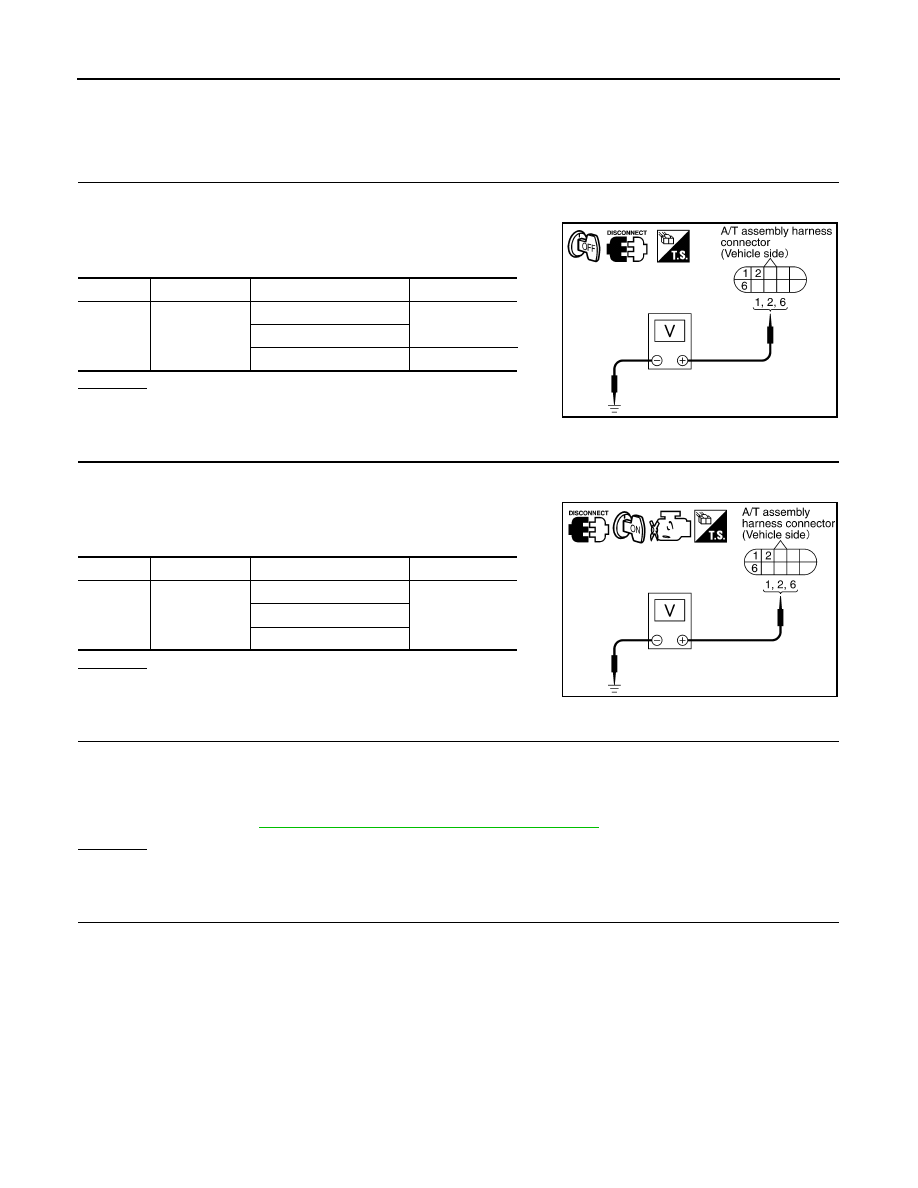

CHECK TCM POWER SOURCE STEP 1

1.

Turn ignition switch OFF.

2.

Disconnect A/T assembly harness connector.

3.

Check voltage between A/T assembly harness connector termi-
nals and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK TCM POWER SOURCE STEP 2

1.

Disconnect A/T assembly harness connector.

2.

Turn ignition switch ON. (Do not start engine.)

3.

Check voltage between A/T assembly harness connector termi-
nals and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING ITEM

Check the following.
• Harness for short or open between battery and A/T assembly harness connector terminals 1, 2
• Harness for short or open between ignition switch and A/T assembly harness connector terminal 6
• 10A fuse (No. 22, located in the fuse and fusible link block) and 10A fuse (No. 49, located in the IPDM E/R)
• Ignition switch. Refer to

PG-17, "Wiring Diagram—Ignition Power Supply"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK TCM GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect A/T assembly harness connector.

Item

Connector

Terminal

Voltage

TCM

F9

1 - Ground

Battery voltage

2 - Ground

6 - Ground

0V

SCIA2104E

Item

Connector

Terminal

Voltage

TCM

F9

1 - Ground

Battery voltage

2 - Ground

6 - Ground

SCIA2105E

MAIN POWER SUPPLY AND GROUND CIRCUIT

TM-211

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

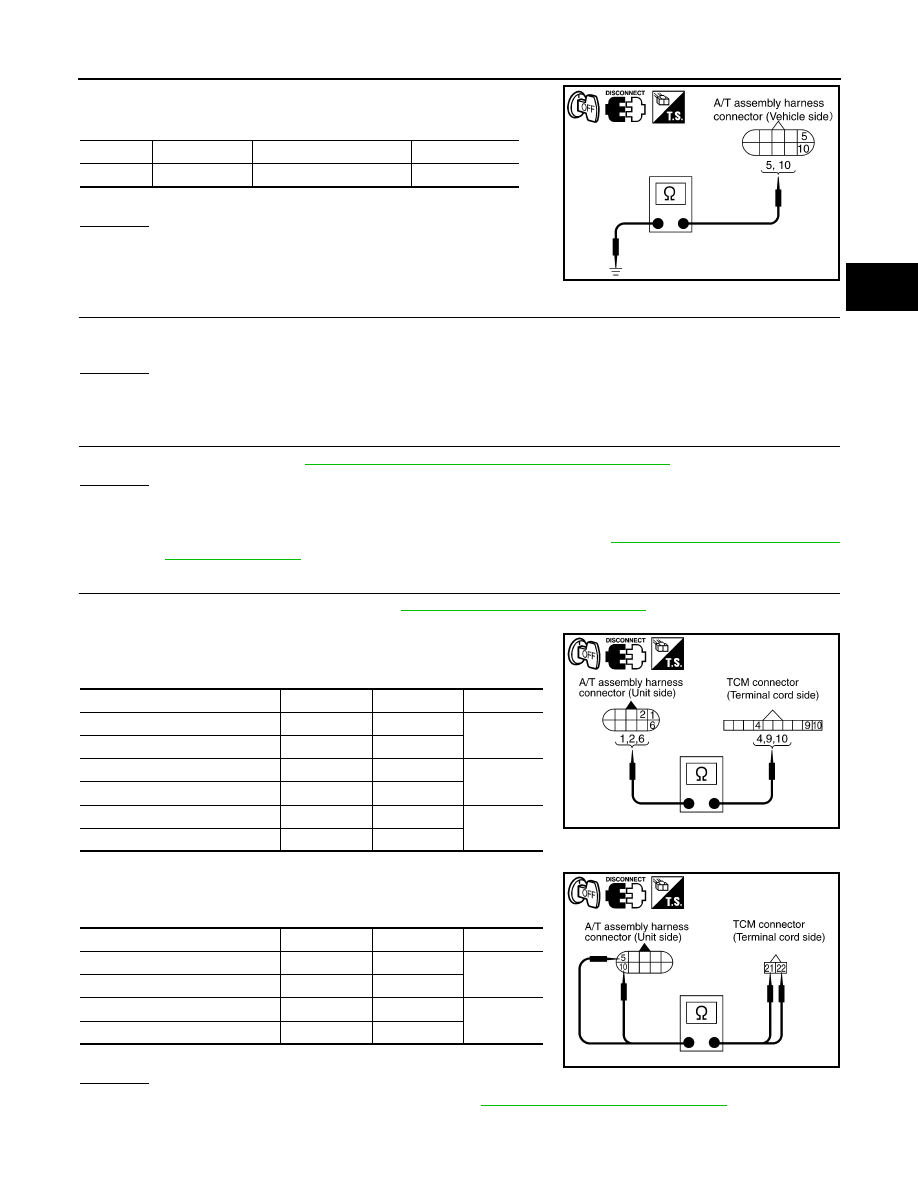

3.

Check continuity between A/T assembly harness connector ter-
minals and ground.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

5.

DETECT MALFUNCTIONING ITEM

Check the following.
• The A/T assembly harness connector terminals for damage or loose connection with harness connector.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis. Refer to

TM-151, "CONSULT-III Function (TRANSMISSION)"

.

OK or NG

OK

>> INSPECTION END

NG-1

>> Self-diagnosis does not activate: GO TO 7.

NG-2

>> DTC is displayed: Check the malfunctioning system. Refer to

TM-151, "CONSULT-III Function

(TRANSMISSION)"

.

7.

CHECK TERMINAL CORD ASSEMBLY

1.

Remove control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

2.

Disconnect A/T assembly harness connector and TCM connector.

3.

Check continuity between A/T assembly harness connector ter-
minals and TCM connector terminals.

4.

Check continuity between A/T assembly harness connector ter-
minals and TCM connector terminals.

5.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

Item

Connector

Terminal

Continuity

TCM

F9

5, 10 - Ground

Yes

SCIA2106E

Item

Connector

Terminal

Continuity

A/T assembly harness connector

F9

1

Yes

TCM connector

F502

9

A/T assembly harness connector

F9

2

Yes

TCM connector

F502

10

A/T assembly harness connector

F9

6

Yes

TCM connector

F502

4

SCIA5464E

Item

Connector

Terminal

Continuity

A/T assembly harness connector

F9

5

Yes

TCM connector

F504

21

A/T assembly harness connector

F9

10

Yes

TCM connector

F504

22

SCIA5465E

TM-212

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIR-

CUIT

CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION
CIRCUIT

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005274149

Diagnosis Procedure

INFOID:0000000005274150

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

TM-151, "CONSULT-III Function (TRANSMISSION)"

.

Is a malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

TM-159

.

NO

>> GO TO 2.

2.

CHECK THROTTLE POSITION SIGNAL CIRCUIT

With CONSULT-III

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Depress accelerator pedal and read out the value of “CLSD THL POS” and “W/O THL POS”.

OK or NG

OK

>> INSPECTION END

NG

>>

Check the following. If NG, repair or replace damaged parts.

• Perform the self-diagnosis for “ENGINE” with CONSULT-III.
• Open circuit or short to ground or short to power in harness or connectors.
• Pin terminals for damage or loose connection with harness connector.

Item name

Condition

Display value

CLSD THL POS

Released accelerator pedal.

ON

Fully depressed accelerator pedal.

OFF

W/O THL POS

Fully depressed accelerator pedal.

ON

Released accelerator pedal.

OFF

BRAKE SIGNAL CIRCUIT

TM-213

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

BRAKE SIGNAL CIRCUIT

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005274151

Diagnosis Procedure

INFOID:0000000005274152

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

TM-151, "CONSULT-III Function (TRANSMISSION)"

.

Is a malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

TM-159

.

NO

>> GO TO 2.

2.

CHECK STOP LAMP SWITCH CIRCUIT

With CONSULT-III

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out ON/OFF switching action of the “BRAKE SW”.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 3.

3.

CHECK STOP LAMP SWITCH

Check continuity between stop lamp switch harness connector termi-
nals 1 and 2.

Check stop lamp switch after adjusting brake pedal — refer to

BR-19, "Inspection and Adjustment"

.

OK or NG

OK

>>

Check the following. If NG, repair or replace damaged parts.

• Harness for short or open between battery and stop lamp switch.
• Harness for short or open between stop lamp switch and combination meter.

NG

>> Repair or replace the stop lamp switch.

Item name

Condition

Display value

BRAKE SW

Depressed brake pedal.

ON

Released brake pedal.

OFF

Item

Condition

Terminal

Continuity

Stop lamp

switch harness

connector

When brake pedal is de-
pressed

1 - 2

Yes

When brake pedal is released

No

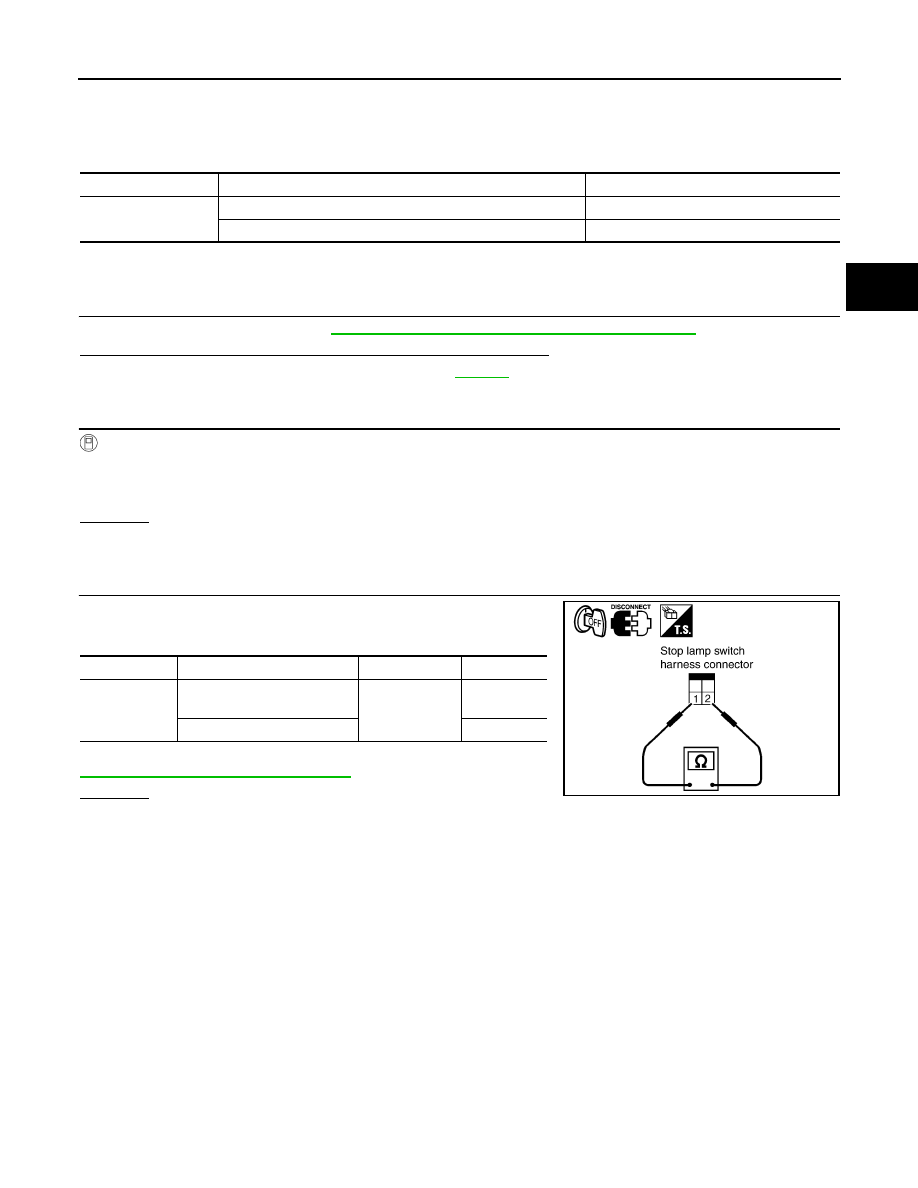

SCIA2144E
