P1710 TRANSMISSION FLUID TEMPERATURE SENSOR

P1710 TRANSMISSION FLUID TEMPERATURE SENSOR

Description

INFOID:0000000005274087

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005274088

On Board Diagnosis Logic

INFOID:0000000005274089

• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P1710 (A/T), P0710 (ENGINE)” with CONSULT-III or 10th judgment flicker without

CONSULT-III is detected when TCM receives an excessively low or high voltage from the sensor.

Possible Cause

INFOID:0000000005274090

• Harness or connectors

(The sensor circuit is open or shorted.)

• A/T fluid temperature sensor 1

DTC Confirmation Procedure

INFOID:0000000005274091

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to
maintain continuously.)
VHCL/S SE-AT: 10 km/h (6 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position

4.

If DTC is detected, go to

TM-190, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-III”.

Diagnosis Procedure

INFOID:0000000005274092

1.

CHECK A/T FLUID TEMPERATURE SENSOR 1 SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out the value of “ATF TEMP SE 1”.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK A/T FLUID TEMPERATURE SENSOR 1

Check A/T fluid temperature sensor 1. Refer to

TM-191, "Component Inspection"

.

OK or NG

OK

>> GO TO 3.

Item name

Condition

°

C (

°

F)

Display value (Approx.)

ATF TEMP SE 1

0 (32) - 20 (68) - 80 (176)

3.3 - 2.7 - 0.9 V

P1710 TRANSMISSION FLUID TEMPERATURE SENSOR

TM-191

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

NG

>> Replace the control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

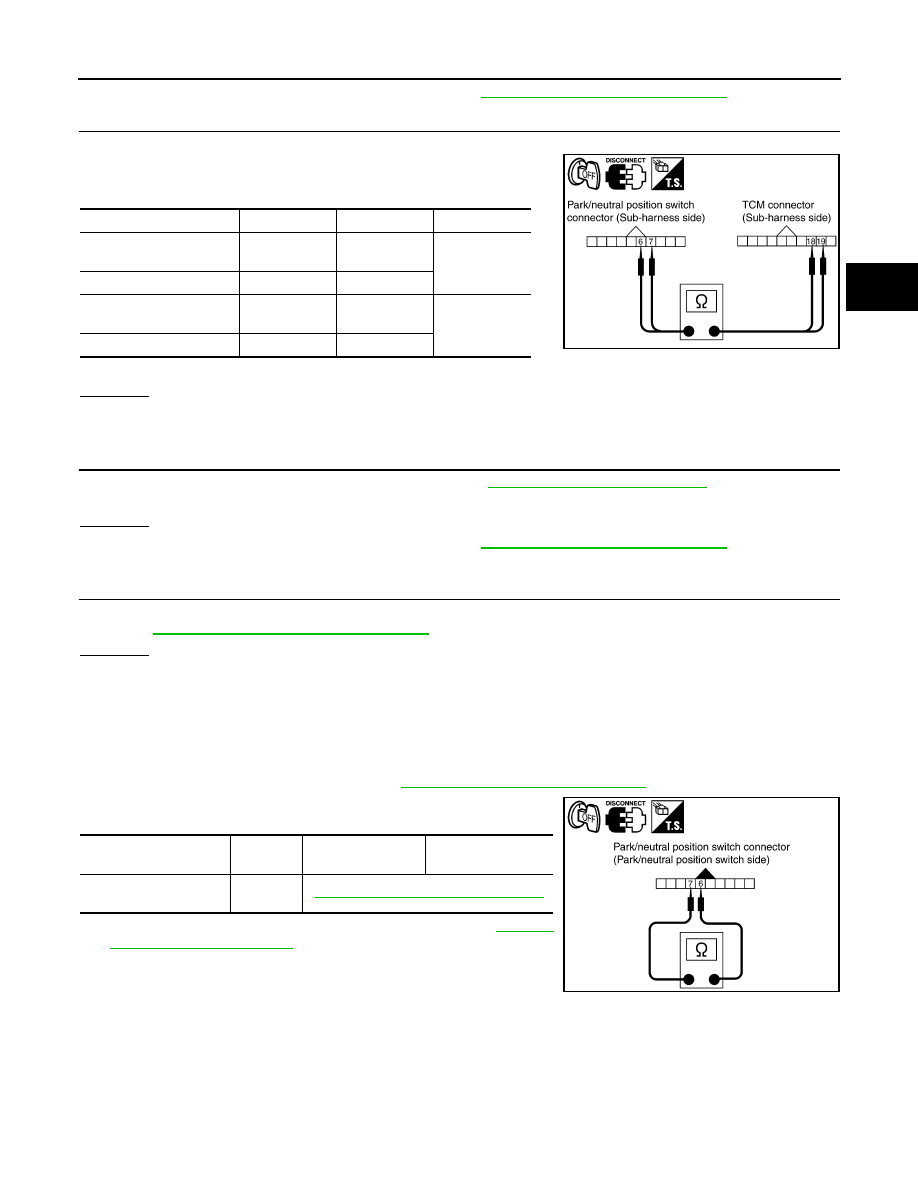

3.

CHECK SUB-HARNESS

1.

Disconnect transmission range switch connector and TCM connector.

2.

Check continuity between transmission range switch connector
terminals and TCM connector terminals.

3.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

4.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

1.

Check TCM power supply and ground circuit. Refer to

TM-210, "Diagnosis Procedure"

.

2.

Reinstall any part removed.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

NG

>> Repair or replace damaged parts.

5.

CHECK DTC

Perform “DTC Confirmation Procedure”.
• Refer to

TM-190, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 1.

Component Inspection

INFOID:0000000005274093

A/T FLUID TEMPERATURE SENSOR 1

1.

Remove control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

2.

Check resistance between terminals.

3.

If NG, replace the control valve with TCM. Refer to

TM-280,

"Removal and Installation"

.

Item

 Connector

Terminal

Continuity

Transmission range
switch connector

F505

6

Yes

TCM connector

F503

19

Transmission range
switch connector

F505

7

Yes

TCM connector

F503

18

SCIA5461E

Name

Terminal

Temperature

°

C

(

°

F)

Resistance (Ap-

prox.)

A/T fluid temperature
sensor 1

6 - 7

TM-383, "A/T Fluid Temperature Sensor"

SCIA5463E

TM-192

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

P1721 VEHICLE SPEED SIGNAL

P1721 VEHICLE SPEED SIGNAL

Description

INFOID:0000000005274094

The vehicle speed signal is transmitted from combination meter to TCM by CAN communication line. The sig-
nal functions as an auxiliary device to the output speed sensor when it is malfunctioning. The TCM will then
use the vehicle speed signal.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005274095

On Board Diagnosis Logic

INFOID:0000000005274096

• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “P1721” with CONSULT-III is detected when TCM does not receive the proper vehi-

cle speed signal (input by CAN communication) from combination meter.

Possible Cause

INFOID:0000000005274097

Harness or connectors
(The sensor circuit is open or shorted.)

DTC Confirmation Procedure

INFOID:0000000005274098

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Start engine and maintain the following conditions for at least 5 consecutive seconds.
ACCELE POSI: 1/8 or less
VHCL/S SE-A/T: 30 km/h (19 MPH) or more

4.

If DTC is detected, go to

TM-192, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005274099

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

TM-151, "CONSULT-III Function (TRANSMISSION)"

.

Is malfunction in the CAN communication indicated in the result?

YES

>> Check CAN communication line. Refer to

TM-159

.

NO

>> GO TO 2.

2.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Drive vehicle and read out the value of “VHCL/S SE-MTR”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

CHECK COMBINATION METERS

Check combination meters. Refer to

MWI-4, "METER SYSTEM : System Description"

.

Item name

Condition

Display value (km/h)

VHCL/S SE-MTR

During driving

Approximately matches the speedometer reading.

P1721 VEHICLE SPEED SIGNAL

TM-193

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.
• Refer to

TM-192, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

TM-210, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

DETECT MALFUNCTIONING ITEM

Check the following.
• The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG

OK

>> Replace the control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

NG

>> Repair or replace damaged parts.
