Nissan Frontier D40. Manual - part 1062





TM-146

< FUNCTION DIAGNOSIS >

[5AT: RE5R05A]

A/T CONTROL SYSTEM

FUNCTION OF PRESSURE SWITCH

Pilot valve A

Adjusts the line pressure and produces the constant pressure (pilot pressure) required
for line pressure control, shift change control, and lock-up control.

Pilot valve B

Adjusts the line pressure and produces the constant pressure (pilot pressure) required
for shift change control.

Low coast brake switching valve

During engine braking, supplies the line pressure to the low coast brake reducing valve.

Low coast brake reducing valve

When the low coast brake is coupled, adjusts the line pressure to the optimum pressure
(low coast brake pressure) and supplies it to the low coast brake.

N-R accumulator

Produces the stabilizing pressure for when N-R is selected.

Direct clutch piston switching valve

Operates in 4GR and switches the direct clutch coupling capacity.

High and low reverse clutch control valve

When the high and low reverse clutch is coupled, adjusts the line pressure to the opti-
mum pressure (high and low reverse clutch pressure) and supplies it to the high and low
reverse clutch. (In 1GR, 3GR, 4GR and 5GR, adjusts the clutch pressure.)

Input clutch control valve

When the input clutch is coupled, adjusts the line pressure to the optimum pressure (in-
put clutch pressure) and supplies it to the input clutch. (In 4GR and 5GR, adjusts the
clutch pressure.)

Direct clutch control valve

When the direct clutch is coupled, adjusts the line pressure to the optimum pressure (di-
rect clutch pressure) and supplies it to the direct clutch. (In 2GR, 3GR, and 4GR, adjusts
the clutch pressure.)

TCC control valve
TCC control plug
TCC control sleeve

Switches the lock-up to operating or released. Also, by performing the lock-up operation
transiently, lock-up smoothly.

Torque converter lubrication valve

Operates during lock-up to switch the torque converter, cooling, and lubrication system
oil path.

Cool bypass valve

Allows excess oil to bypass cooler circuit without being fed into it.

Line pressure relief valve

Discharges excess oil from line pressure circuit.

N-D accumulator

Produces the stabilizing pressure for when N-D is selected.

Manual valve

Sends line pressure to each circuit according to the select position. The circuits to which
the line pressure is not sent drain.

Name

Function

Name

Function

Pressure switch 2 (LC/B)

Detects any malfunction in the low coast brake hydraulic pressure. When it detects any
malfunction, it puts the system into fail-safe mode.

A/T CONTROL SYSTEM

TM-147

< FUNCTION DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

A/T Electrical Parts Location

INFOID:0000000005273988

AWDIA0748GB

TM-148

< FUNCTION DIAGNOSIS >

[5AT: RE5R05A]

A/T SHIFT LOCK SYSTEM

A/T SHIFT LOCK SYSTEM

System Description

INFOID:0000000005273989

• The selector lever cannot be shifted from “P” (Park) unless the brake pedal is applied and the ignition switch

is in the “ON” position.

• Battery voltage is supplied to the shift lock solenoid by the stop lamp switch.
• Ground is supplied to the shift lock solenoid by the park position switch (shift selector).
• With the the ignition switch “ON”, brake pedal applied and the A/T shift selector in “P” (Park), the shift lock

solenoid is energized, allowing the selector lever to be shifted from Park.

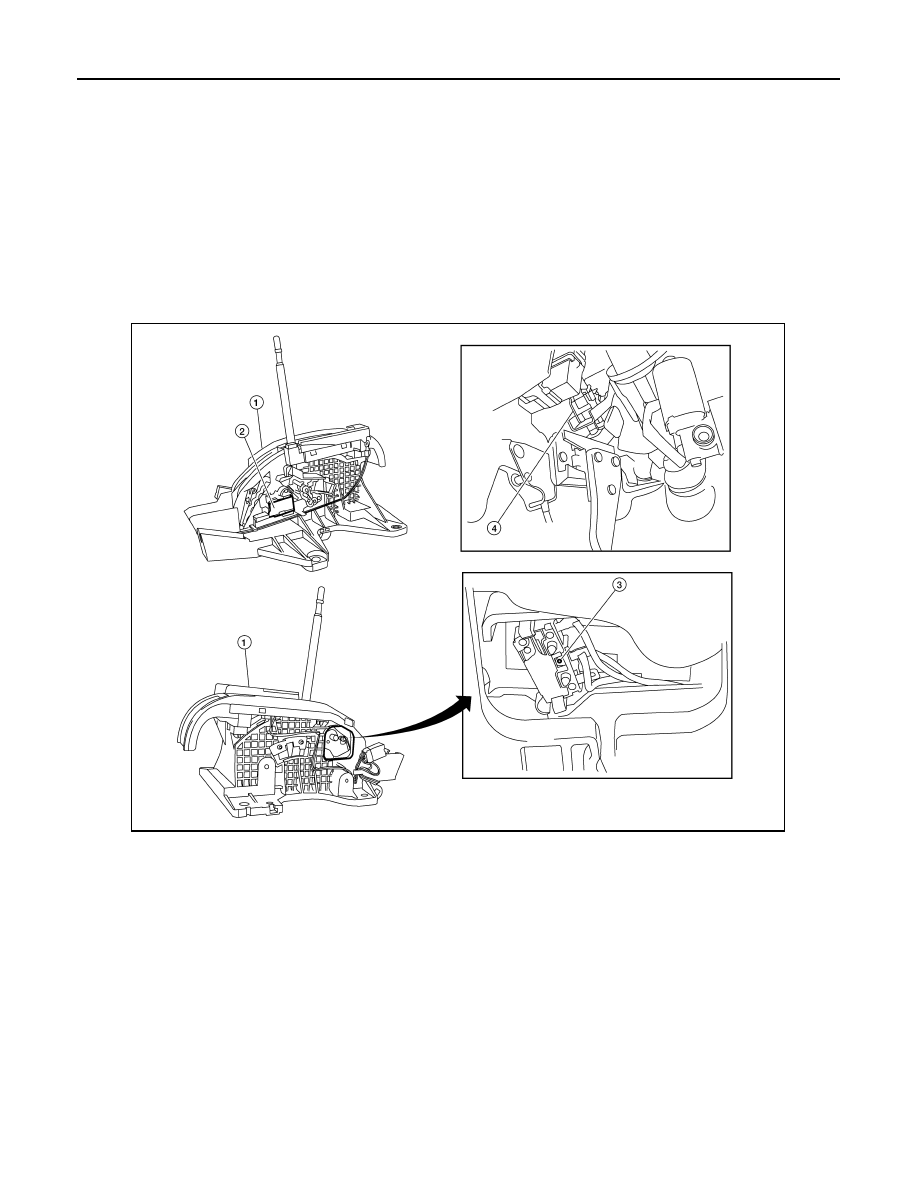

Component Parts Location

INFOID:0000000005273990

1.

A/T shift selector

2.

Shift lock solenoid

3.

Park position switch (shift selector)

4.

Stop lamp switch E39

AWDIA0735GB

ON BOARD DIAGNOSTIC (OBD) SYSTEM

TM-149

< FUNCTION DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Introduction

INFOID:0000000005273991

The A/T system has two self-diagnostic systems.
The first is the emission-related on board diagnostic system (OBD-II) performed by the TCM in combination
with the ECM. The malfunction is indicated by the MIL (malfunction indicator lamp) and is stored as a DTC in
the ECM memory but not the TCM memory.
The second is the TCM original self-diagnosis indicated by the O/D OFF indicator lamp. The malfunction is
stored in the TCM memory. The detected items are overlapped with OBD-II self-diagnostic items. For detail,
refer to

TM-151, "CONSULT-III Function (TRANSMISSION)"

.

OBD-II Function for A/T System

INFOID:0000000005273992

The ECM provides emission-related on board diagnostic (OBD-II) functions for the A/T system. One function
is to receive a signal from the TCM used with OBD-related parts of the A/T system. The signal is sent to the
ECM when a malfunction occurs in the corresponding OBD-related part. The other function is to indicate a
diagnostic result by means of the MIL (malfunction indicator lamp) on the instrument panel. Sensors, switches
and solenoid valves are used as sensing elements.
The MIL automatically illuminates in One or Two Trip Detection Logic when a malfunction is sensed in relation
to A/T system parts.

One or Two Trip Detection Logic of OBD-II

INFOID:0000000005273993

ONE TRIP DETECTION LOGIC

If a malfunction is sensed during the first test drive, the MIL will illuminate and the malfunction will be stored in
the ECM memory as a DTC. The TCM is not provided with such a memory function.

TWO TRIP DETECTION LOGIC

When a malfunction is sensed during the first test drive, it is stored in the ECM memory as a 1st trip DTC
(diagnostic trouble code) or 1st trip freeze frame data. At this point, the MIL will not illuminate. — 1st Trip
If the same malfunction as that experienced during the first test drive is sensed during the second test drive,
the MIL will illuminate. — 2nd Trip
The “Trip” in the “One or Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation.

OBD-II Diagnostic Trouble Code (DTC)

INFOID:0000000005273994

HOW TO READ DTC AND 1ST TRIP DTC

DTC and 1st trip DTC can be read by the following methods.
(

 with CONSULT-III or

 GST) CONSULT-III or GST (Generic Scan Tool) Examples: P0705, P0720 etc.

These DTC are prescribed by SAE J2012.
(CONSULT-III also displays the malfunctioning component or system.)
• 1st trip DTC No. is the same as DTC No.
• Output of the diagnostic trouble code indicates that the indicated circuit has a malfunction. How-

ever, in case of the Mode II and GST, they do not indicate whether the malfunction is still occurring or
occurred in the past and returned to normal.
CONSULT-III can identify them as shown below, therefore, CONSULT-III (if available) is recom-
mended.

Freeze Frame Data and 1st Trip Freeze Frame Data

The ECM has a memory function, which stores the driving condition such as fuel system status, calculated
load value, engine coolant temperature, short term fuel trim, long term fuel trim, engine speed and vehicle
speed at the moment the ECM detects a malfunction.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data,
and the data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-III
or GST. The 1st trip freeze frame data can only be displayed on the CONSULT-III screen, not on the GST. For
detail, refer to

TM-149

.

Only one set of freeze frame data (either 1st trip freeze frame data of freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
