Nissan Frontier D40. Manual - part 1016





STEERING GEAR AND LINKAGE

ST-27

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

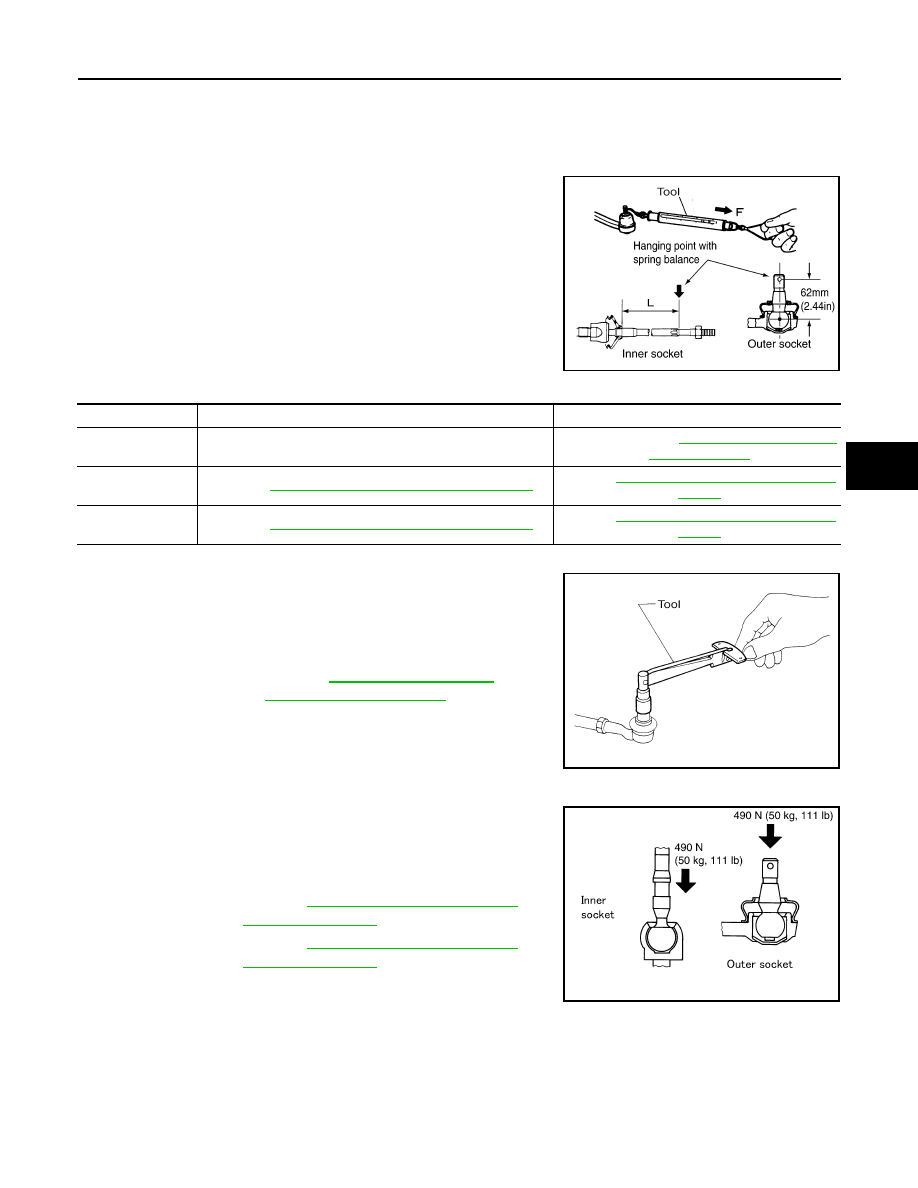

Gear Housing Assembly

Check gear housing assembly for dents, cracks or damage. Replace as an assembly if necessary.

Outer Socket and Inner Socket

SWING TORQUE

• Measure the swing torque, using Tool. When ball stud and inner

socket start moving the measured value must be within the specifi-
cation. If the reading is outside the specification, replace the
socket.

ROTATING TORQUE

• Measure the rotating torque, using Tool. If the value is outside the

specification, replace the outer sockets.

AXIAL END PLAY

• Apply a load of 490 N (50 kg-f, 110 lb-f) to the ball stud axially. Use

a dial gauge to measure the amount of the movement that the stud
makes. If the value is outside the specification, replace the sock-
ets.

ASSEMBLY

1.

Install the inner sockets.

Tool number

:

(J-44372)

WGIA0131E

Item

Outer socket

Inner socket

Measuring point

Cotter pin hole of stud

Shown as L: Refer to

ST-29, "Steering Gear Outer

and Inner Socket"

Swing torque

Refer to

ST-29, "Steering Gear Outer and Inner Socket"

Refer to

ST-29, "Steering Gear Outer and Inner

Socket"

Measuring value

Refer to

ST-29, "Steering Gear Outer and Inner Socket"

Refer to

ST-29, "Steering Gear Outer and Inner

Socket"

Tool number

: ST3127S000 (J-25765-A)

Outer socket
rotating torque

Refer to

ST-29, "Steering Gear

Outer and Inner Socket"

WGIA0132E

Outer socket

Refer to

ST-29, "Steering Gear Outer

and Inner Socket"

Inner socket

Refer to

ST-29, "Steering Gear Outer

and Inner Socket"

SGIA0057E

ST-28

< DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

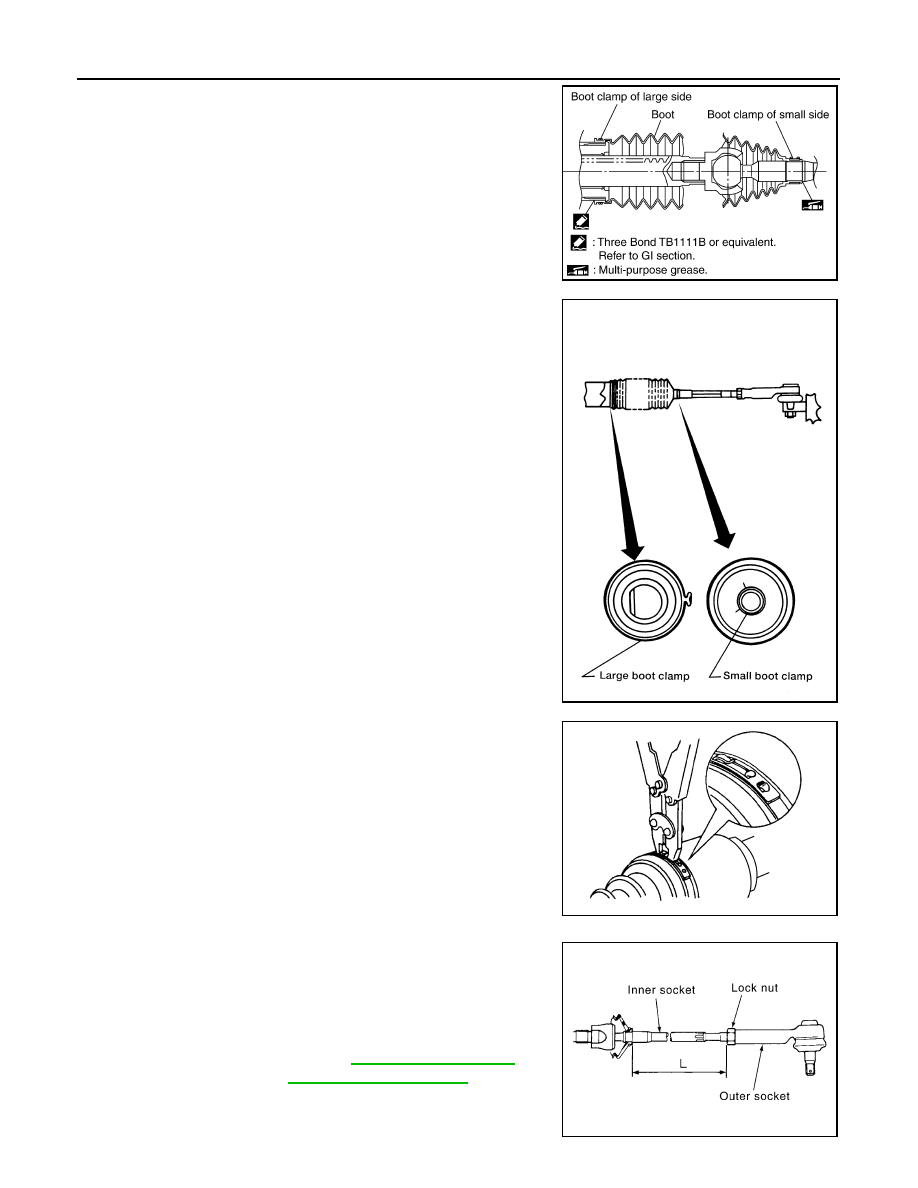

2.

Install the large-diameter side of the boots to the gear housing
assembly.

3.

Install the small-diameter side of the boots to the groove of the
inner sockets.

4.

Install the boot clamps to the boots, as shown.

CAUTION:

Do not reuse the large boot clamps.

5.

Crimp the large boot clamps, using Tool.

6.

Install the cylinder tubes to the gear housing assembly.

7.

Install the lock nuts and outer sockets to the inner sockets.

8.

Thread the outer sockets onto the inner sockets to the specified
length (L) and a minimum thread depth of 18 threads, then
tighten the lock nuts to the specified torque. Refer to "Disassem-
bly and Assembly". Reconfirm that the tie-rod length (L) is within
specification.

SGIA0550E

AST139

Tool number

: KV40107300 (

)

RAC1133D

Maximum inner
socket length (L)

Refer to

ST-29, "Steering Gear

Outer and Inner Socket"

SGIA0167E

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-29

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

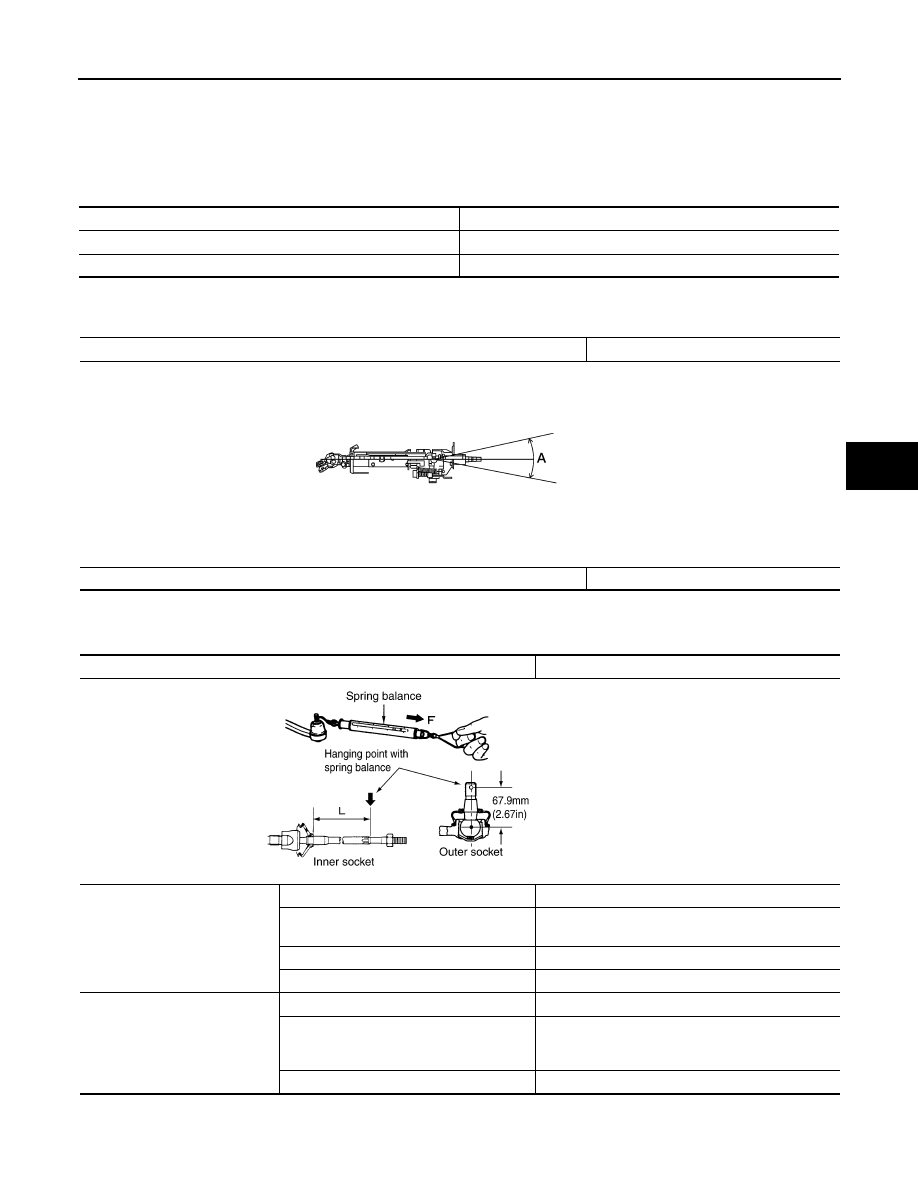

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Wheel

INFOID:0000000005276032

Steering Column

INFOID:0000000005276033

Steering Gear Outer and Inner Socket

INFOID:0000000005276034

End play of the axle direction for steering wheel

0 mm (0 in)

Steering wheel turning force

39 N (4 kg-f, 9 lb-f) or less

Steering wheel play on the outer circumference

 35 mm (0

 1.38 in)

Steering column length

553.0 mm (21.77 in)

Tilt range (A)

18

°

 - 21

°

 of tilt range

WGIA0083E

Steering gear type

PR26AM

Outer socket

Swinging torque

0.3

 2.9 N·m (0.03

 0.29 kg-m, 3

 25 in-lb)

Measurement on spring balance
• Measuring point: cotter pin hole of stud

4.84

 46.7 N (0.50

 4.7 kg-f, 4

 34 lb-f)

Rotating torque

0.3

 2.9 N·m (0.03

 0.29 kg-m, 3

 25 in-lb)

Axial end play

0.5 mm (0.020 in) or less

Inner socket

Swinging torque

1.0

 7.8 N·m (0.11

 0.79 kg-m, 9

 69 in-lb)

Measurement on spring balance
• Measuring point: L mark see above,

L=83.2 mm (3.276 in).

12.1

 93.7 N (1.3

 9.5 kg-f, 9

 69 lb-f)

Axial end play

0.2 mm (0.08 in) or less

SGIA0358E

ST-30

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

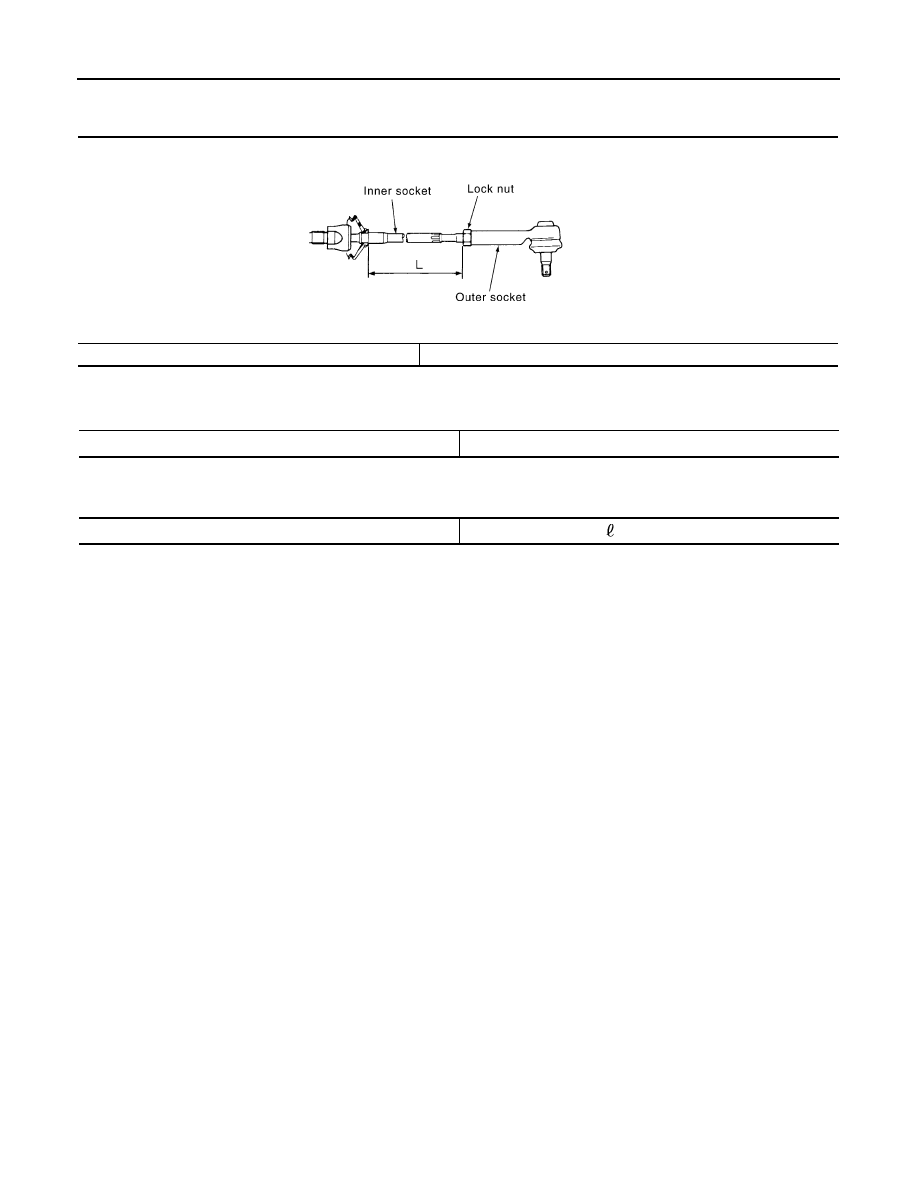

Tie-rod

INFOID:0000000005276035

Oil Pump

INFOID:0000000005276036

Steering Fluid

INFOID:0000000005276037

Tie-rod maximum length (L)

84 mm (3.31 in)

SGIA0167E

Oil pump relief hydraulic pressure

8.0

 8.8 mPa (81.60

 89.76 kg/cm

2

, 1160

 1276 psi)

Fluid capacity

Approx. 1.0

 (2 1/8 US pt, 1 3/4 Imp pt)
