SRC-56

< COMPONENT DIAGNOSIS >

B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT-lll.
Is the DTC detected?

YES

>> Refer to

SRC-56, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT-III"

.

>> END

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000005274426

Recheck SRS after each replacement.

1.

DTC

Does CONSULT-III indicate B1019 or B1022?

YES or NO

YES

>> GO TO 2

NO

>> GO TO 6

2.

HARNESS CONNECTOR

Is there any visible damage to the connector?

YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

SRC-57

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

3.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 4

4.

DTC

Does CONSULT-III indicate B1022?

YES or NO

YES

>> GO TO 6

NO

>> GO TO 5

5.

REPLACE RH FRONT SEAT BELT ASSEMBLY

Replace the RH front seat belt assembly.

>> GO TO 6

6.

REPLACE RH FRONT SEAT CUSHION ASSEMBLY

Replace the RH front seat cushion assembly.  Refer to

SE-28, "Removal and Installation"

.

>> GO TO 7

7.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-15, "Removal and Installation"

.

>> END.

SRC-58

< COMPONENT DIAGNOSIS >

B1209 – B1211 COLLISION DETECTION

B1209 – B1211 COLLISION DETECTION

Description

INFOID:0000000005274427

DTC B1209 - B1211 COLLISION DETECTION

The air bag diagnosis sensor unit will set this DTC if it has detected a collision or rollover which has resulted in
a deployment of one or more air bags or pre-tensioners.  If this DTC is detected after a SRS repair, the air bag
diagnosis sensor unit has not yet been replaced.  This DTC can not be erased.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000005274428

DTC DETECTION LOGIC

With CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT-lll.

Is the DTC detected?

YES

>> Refer to

SRC-58, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000005274429

Refer to

SR-18, "For Frontal Collision"

 or

SR-19, "For Side and Rollover Collision"

.

CONSULT-III name

DTC

DTC detecting condition

Repair order

FRONTAL COLLISION

DETECTION

B1209

Driver and/or front passenger air bag mod-
ules are deployed.

Refer to

SR-18, "For Frontal Collision"

.

SIDE COLLISION DE-

TECTION

B1210

Side and/or curtain air bag modules are
deployed.

Refer to

SR-19, "For Side and Rollover Collision"

.

ROLLOVER DETEC-

TION

B1211

Curtain air bag module and seat belt pre-
tensioner are deployed.

DIAGNOSIS SENSOR UNIT

SRC-59

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ECU DIAGNOSIS

DIAGNOSIS SENSOR UNIT

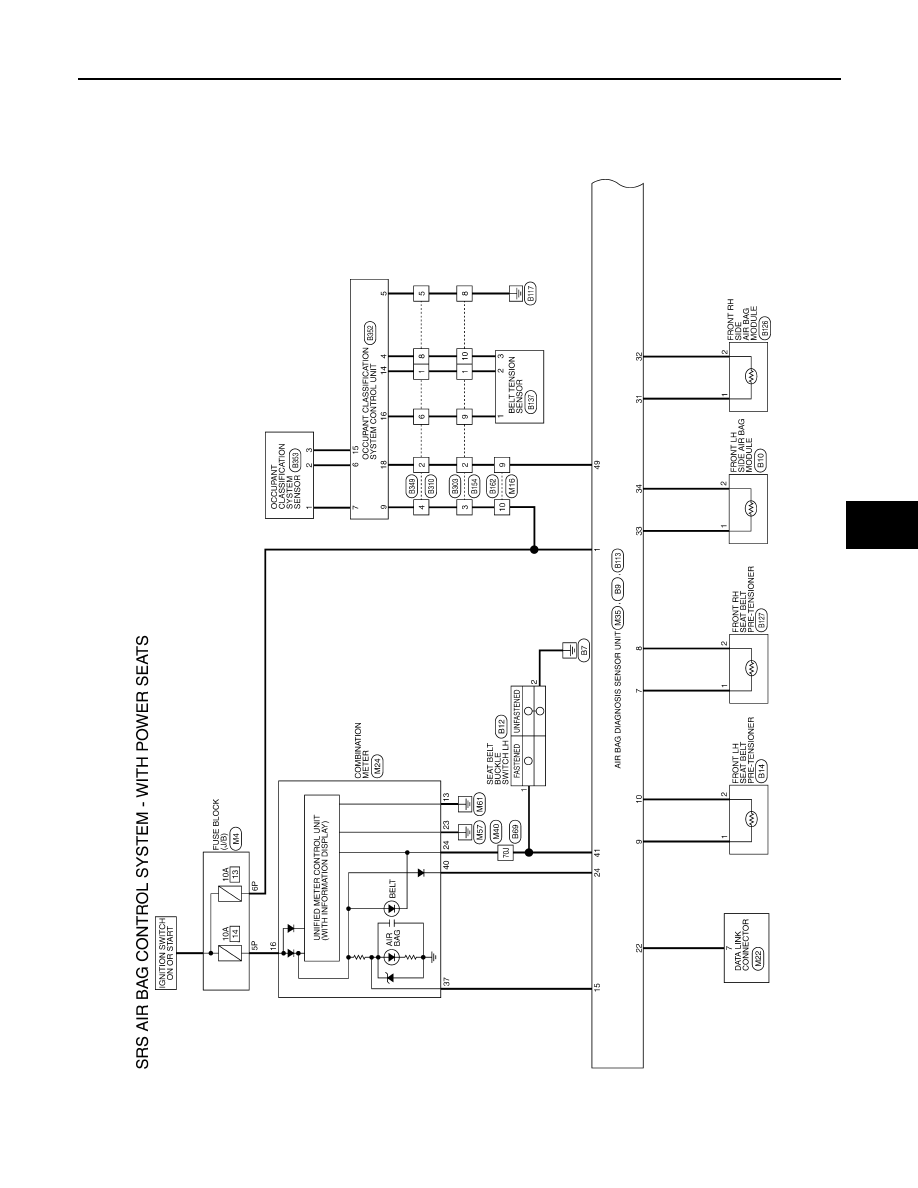

Wiring Diagram — With Power Seats

INFOID:0000000005274430

ABHWA0077GB
