SENSOR ROTOR

SENSOR ROTOR

Removal and Installation

INFOID:0000000005275111

FRONT

Removal and Installation

The wheel sensor rotors are built into the wheel hubs and are not removable. If damaged, replace wheel hub
and bearing assembly. Refer to

FAX-8, "Removal and Installation"

.

REAR (C200)

Removal and Installation

It is necessary to disassemble the rear axle to replace the sensor rotor. Perform the axle shaft assembly
removal procedure to replace sensor rotor. Refer to

RAX-7, "Removal and Installation"

.

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

BRC-71

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

Removal and Installation

INFOID:0000000005275112

Type 1

REMOVAL

1.

Disconnect the negative battery terminal.

2.

Drain the brake fluid. Refer to

BR-21, "Drain and Refill"

.

3.

Remove air cleaner case. Refer to

EM-25, "Exploded View"

.

4.

Disconnect the actuator harness from the ABS actuator and electric unit (control unit).

CAUTION:

• To remove the brake tubes, use a flare nut wrench to prevent the flare nuts and brake tubes from

being damaged.

• Be careful not to splash brake fluid on painted areas.

5.

Disconnect the brake tubes.

6.

Remove the bolts and remove the ABS actuator and electric unit (control unit).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.
• Make sure there is no interference with other parts when turning steering both clockwise and coun-

terclockwise.

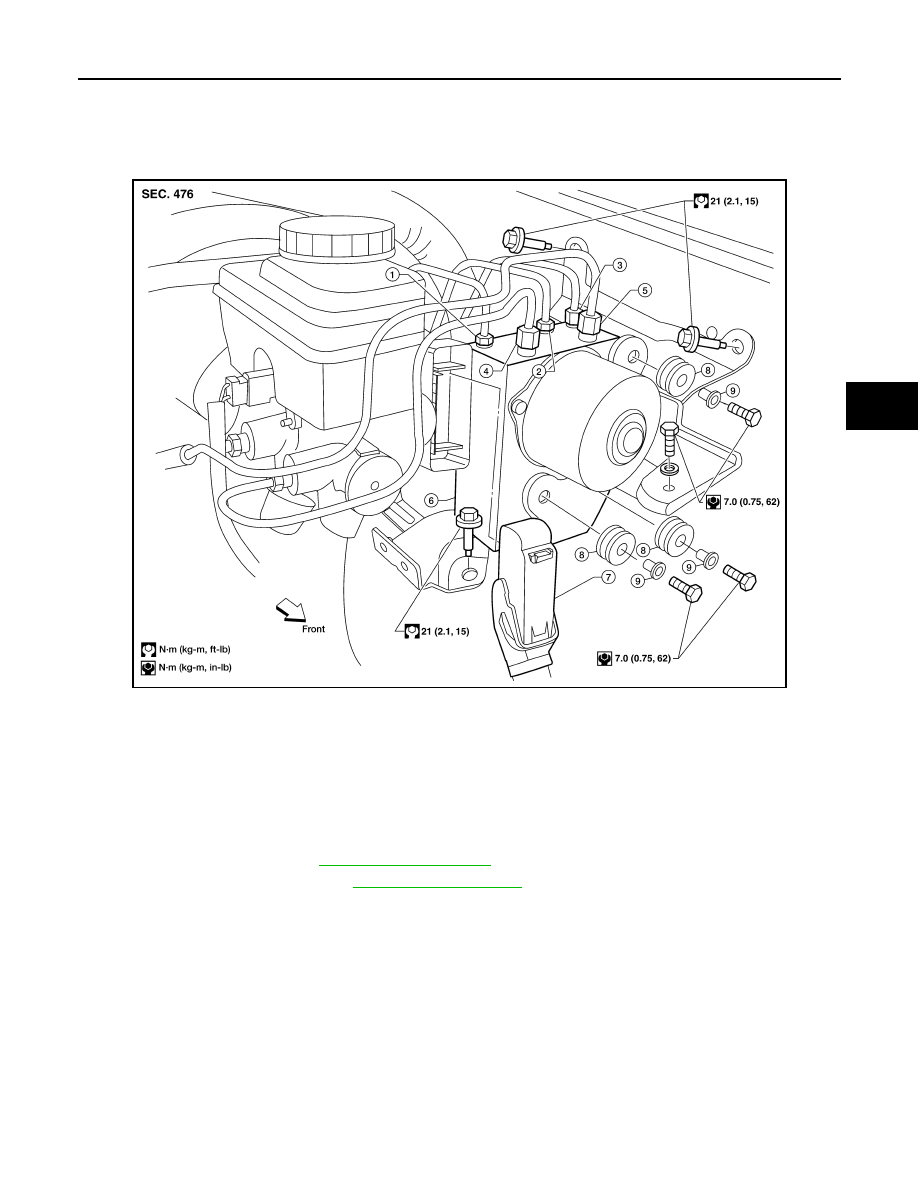

WFIA0388E

1.

To rear left and right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

2.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

From the master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

5.

From the master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

6.

ABS actuator and electric unit
(control unit)

7.

Harness connector

8.

Grommet

9.

Collar

BRC-72

< REMOVAL AND INSTALLATION >

[TYPE 1]

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

• The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the

parts. Replace applicable part with a new one, if necessary.

• Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend or twist brake hose sharply, or strongly pull it.
• When removing components, cover connections so that no dirt, dust, or other foreign matter gets in.
• Do not reuse drained brake fluid.
• After installation of the ABS actuator and electric unit (control unit), refill brake system with new

brake fluid. Then bleed the air from the system. Refer to

BR-21, "Bleeding Brake System"

.
