Nissan Frontier D40. Manual - part 68

BR-28

< ON-VEHICLE REPAIR >

BRAKE TUBE AND HOSE

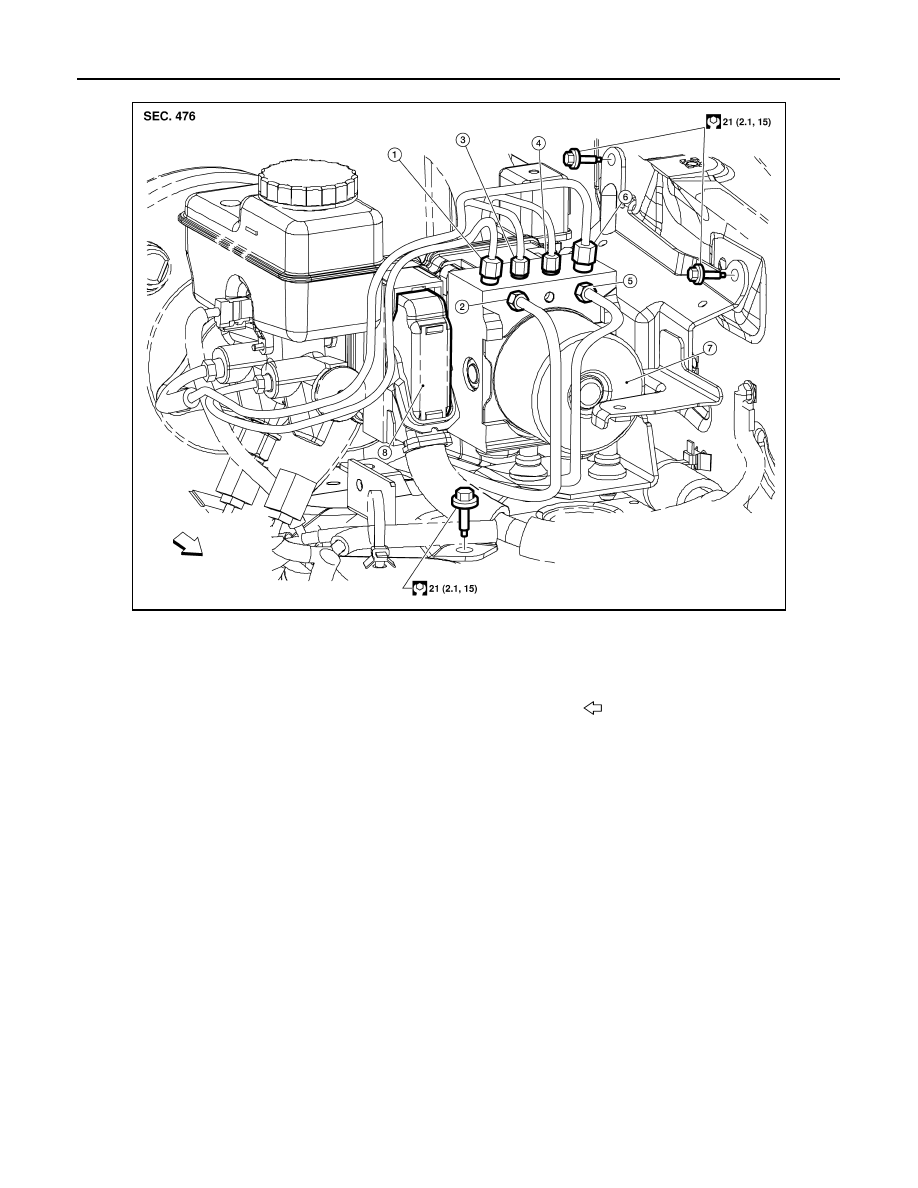

Type 2

ALFIA0146ZZ

1.

From master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

2.

To rear right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To rear left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

5.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

6.

From master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

7.

ABS actuator and electric unit (control
unit)

8.

Harness connector

Front

BRAKE TUBE AND HOSE

BR-29

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

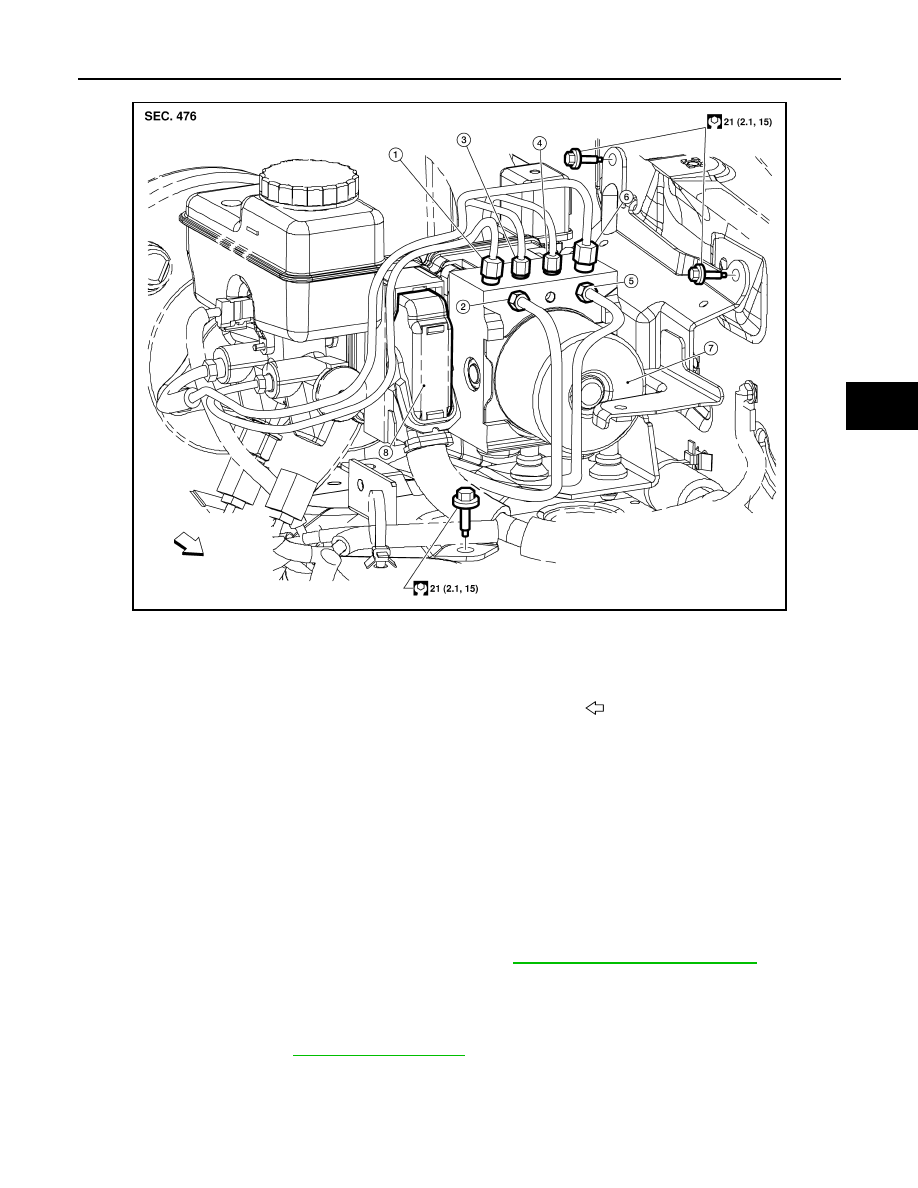

Type 3

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.
• Make sure there is no interference with other parts when turning steering both clockwise and coun-

terclockwise.

• The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the

parts. Replace applicable part with a new one, if necessary.

• Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend or twist brake hose sharply, or strongly pull it.
• When removing components, cover connections so that no dirt, dust, or other foreign matter gets in.
• Do not reuse drained brake fluid.
• After installation of the ABS actuator and electric unit (control unit), refill brake system with new

brake fluid. Then bleed the air from the system. Refer to

BR-21, "Bleeding Brake System"

.

Removal and Installation of Front Brake Piping and Brake Hose

INFOID:0000000005272478

REMOVAL

1.

Drain brake fluid. Refer to

BR-21, "Drain and Refill"

.

ALFIA0146ZZ

1.

From master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

2.

To rear right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To rear left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

5.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

6.

From master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

7.

ABS actuator and electric unit (control
unit)

8.

Harness connector

Front

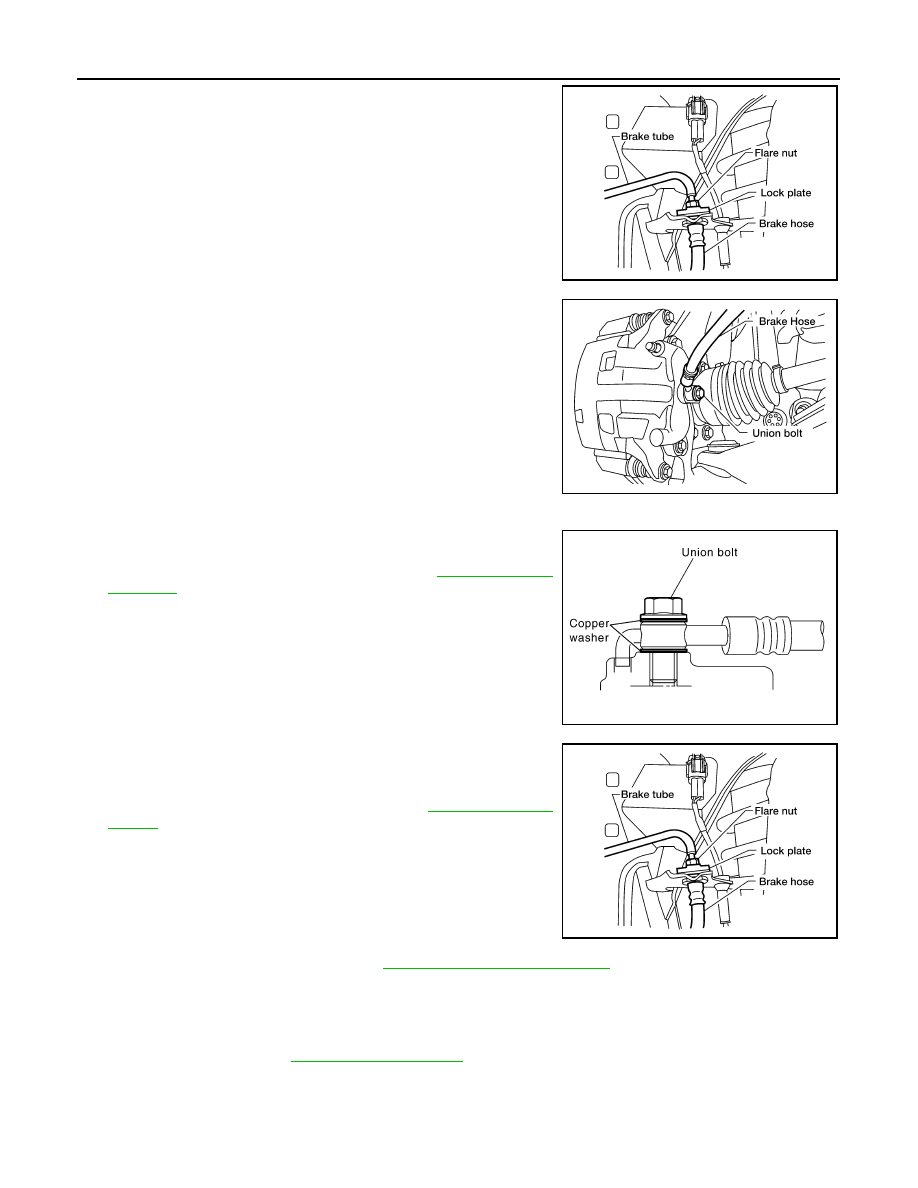

BR-30

< ON-VEHICLE REPAIR >

BRAKE TUBE AND HOSE

2.

Remove brake tube from brake hose, using a suitable tool.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt and copper washers, then remove brake
hose from caliper assembly.

CAUTION:

Do not reuse copper washers.

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, then install new copper washers and union bolt.
Tighten union bolt to specified torque. Refer to

BR-13, "Hydrau-

lic Circuit"

.

CAUTION:

Use new copper washers for installation.

2.

Insert brake hose end through bracket, then secure it to bracket
with lock plate.

3.

Install brake tube to brake hose, then tighten flare nut to the
specified torque using a suitable tool. Refer to

BR-13, "Hydraulic

Circuit"

.

4.

Refill brake fluid and bleed air. Refer to

BR-21, "Bleeding Brake System"

.

Removal and Installation of Rear Brake Piping and Brake Hose

INFOID:0000000005272479

REMOVAL

1.

Drain brake fluid. Refer to

BR-21, "Drain and Refill"

.

LFIA0236E

LFIA0235E

SFIA1137E

LFIA0236E

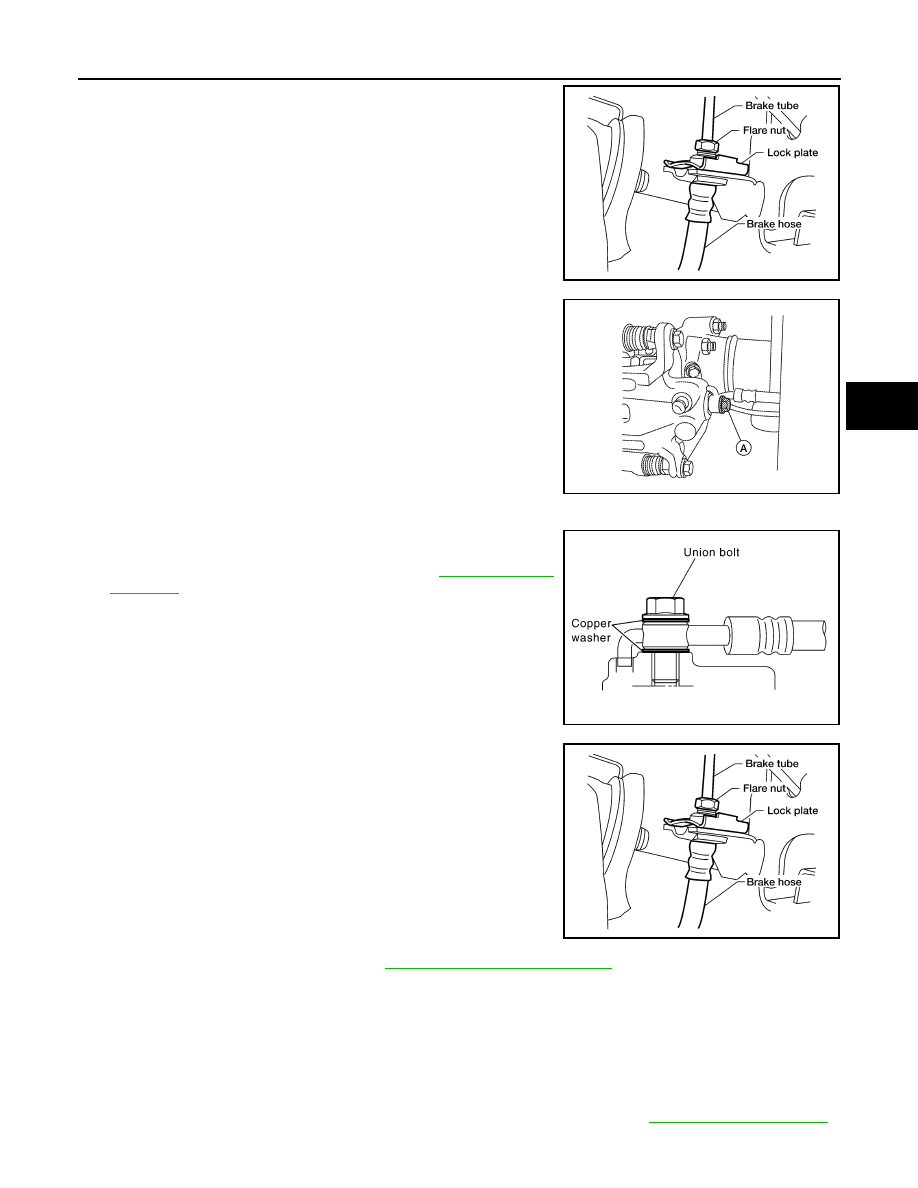

BRAKE TUBE AND HOSE

BR-31

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

2.

Remove brake tube from brake hose, using a suitable tool.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt (A) and copper washers, then remove brake
hose from caliper assembly.

CAUTION:

Do not reuse copper washers.

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, then install new copper washers and union bolt.
Tighten union bolt to specified torque. Refer to

BR-13, "Hydrau-

lic Circuit"

.

CAUTION:

Do not reuse copper washers.

2.

Insert brake hose end through bracket, then secure it to bracket
with lock plate.

3.

Install brake tube to brake hose, then tighten flare nut to the
specified torque using a suitable tool.

4.

Refill brake fluid and bleed air. Refer to

BR-21, "Bleeding Brake System"

.

Inspection After Installation

INFOID:0000000005272480

CAUTION:

Brake pies and hoses are important safety parts. Always disassemble the parts and retighten their fit-
tings if a brake fluid leak is detected. Replace applicable part with a new one, if a damaged part is
detected.

1.

Check brake pipes and hoses, and connections for fluid leaks, damage, twist, deformation, contact with
other parts, and loose connections. Replace any parts as necessary. Refer to

BR-13, "Hydraulic Circuit"

.
