BR-24

< ON-VEHICLE REPAIR >

BRAKE PEDAL

CAUTION:

Do not reuse the nuts for installation.

INSPECTION AFTER REMOVAL

Check brake pedal for following items.

• Cracking or deformation of the clevis pin stopper
• Clevis pin deformation
• Crack of any welded portion
• Brake pedal bent or deformed

INSTALLATION

Installation is in the reverse order of removal.
• Check the brake pedal for smooth operation. There should be no binding or sticking when applying or

releasing the brake pedal.

• After installing the brake pedal assembly, adjust it as necessary. Refer to

BR-19, "Inspection and Adjust-

ment"

.

CAUTION:

Do not reuse the nuts for installation, discard and install with new lock nuts.

SBR997

BRAKE TUBE AND HOSE

BR-25

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE TUBE AND HOSE

Hydraulic Circuit

INFOID:0000000005272477

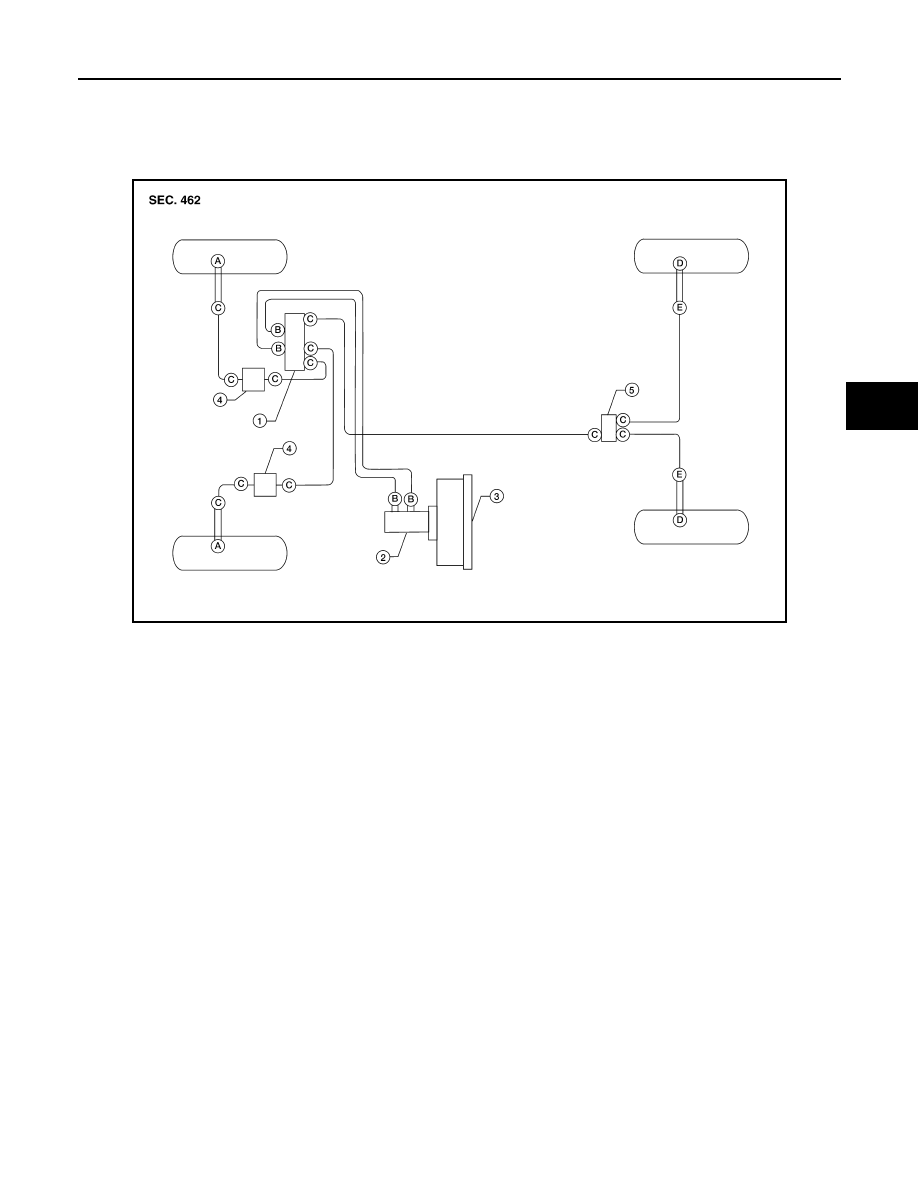

Type 1 - Three Channel Hydraulic System

AWFIA0426ZZ

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

5.

Connector block
9.3 N·m (0.95 kg-m, 82 in-lb)

A.

Union bolt (front caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

D.

Union bolt (rear caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

E.

Flare nut to rear hose
16.2 N·m (1.7 kg-m, 12 ft-lb)

BR-26

< ON-VEHICLE REPAIR >

BRAKE TUBE AND HOSE

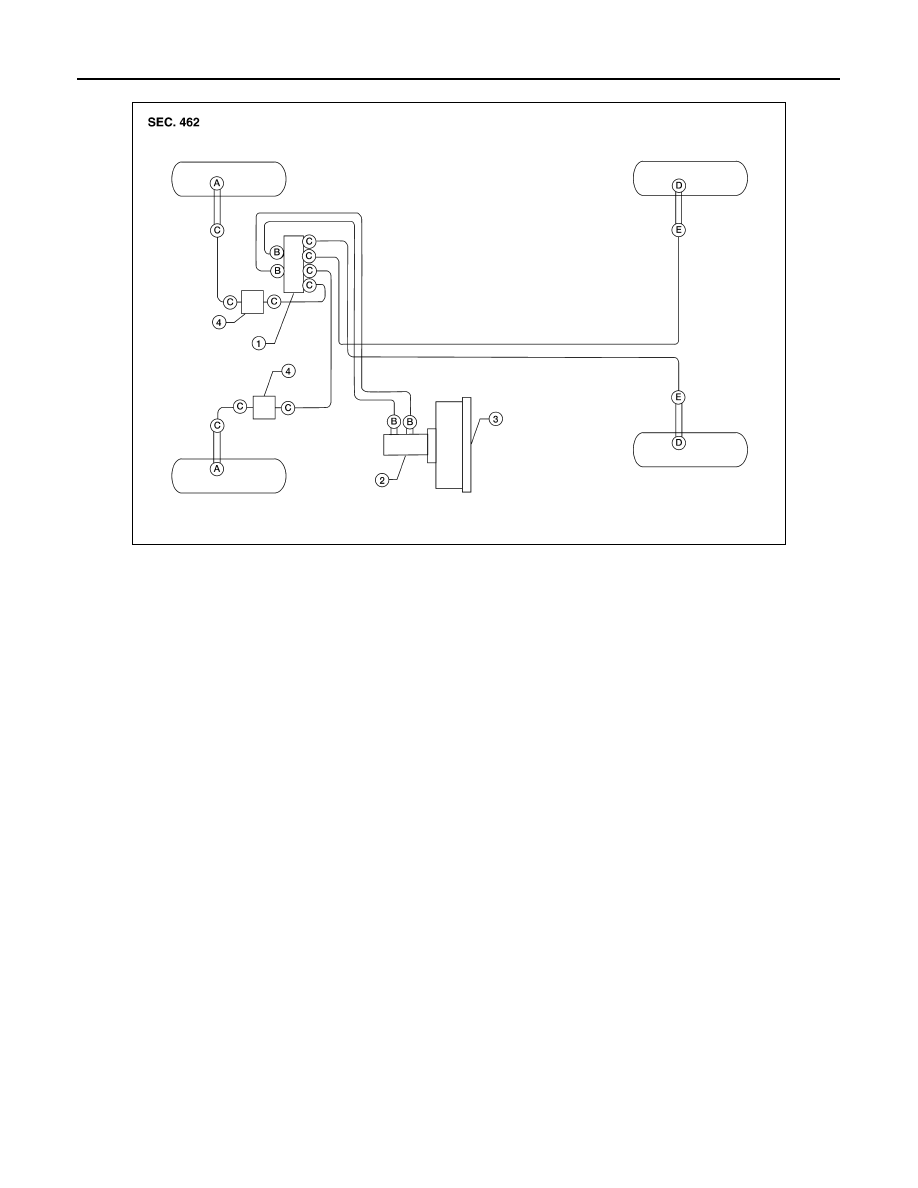

Type 2 and Type 3 - Four Channel Hydraulic System

AWFIA0481ZZ

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

A.

Union bolt (front caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

D.

Union bolt (rear caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

E.

Flare nut to rear hose
16.2 N·m (1.7 kg-m, 12 ft-lb)

BRAKE TUBE AND HOSE

BR-27

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

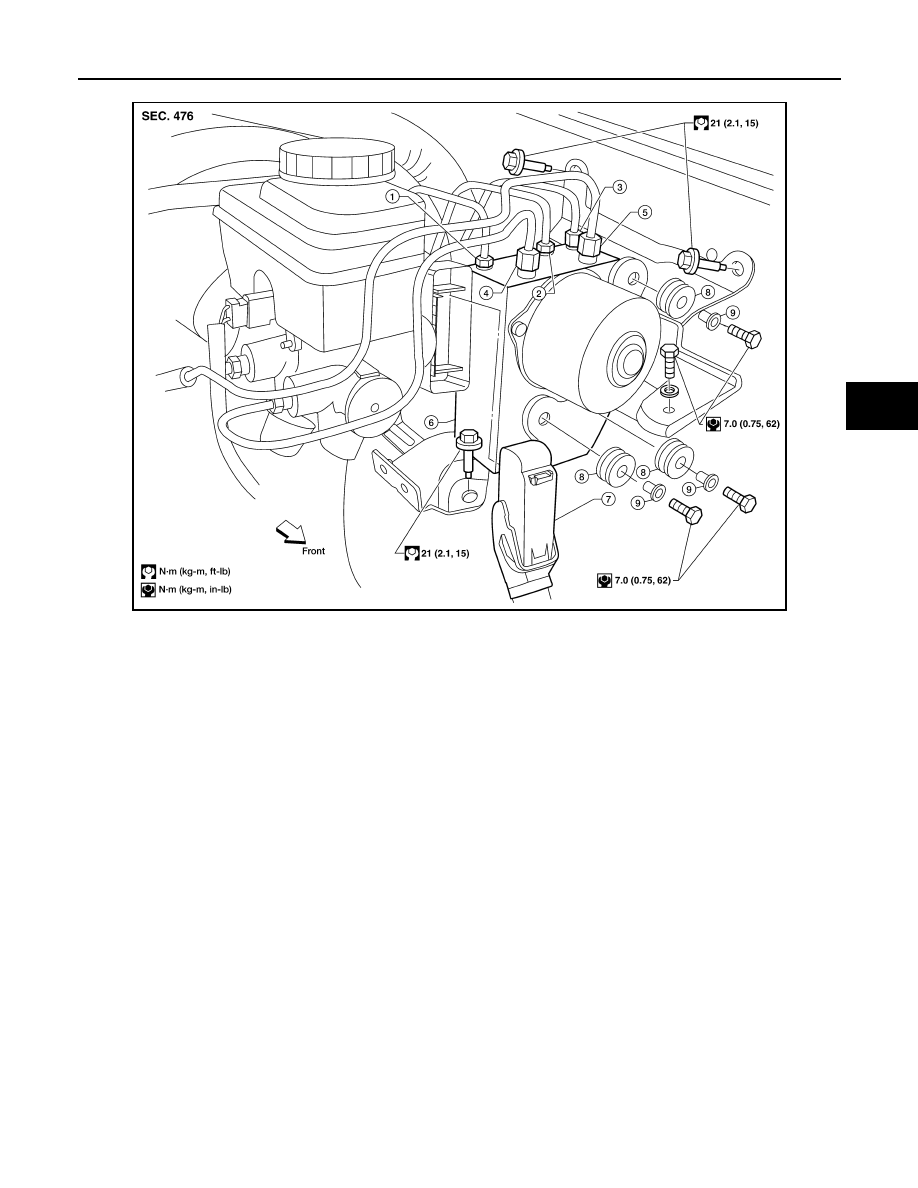

Type 1

WFIA0388E

1.

To rear left and right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

2.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

From the master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

5.

From the master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

6.

ABS actuator and electric unit
(control unit)

7.

Harness connector

8.

Grommet

9.

Collar
