BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

On Board Inspection

INFOID:0000000005272467

LEAK INSPECTION

Check for leaks at master cylinder to brake booster attachment point, reservoir tank, and brake tube connec-
tions.

BRAKE TUBE AND HOSE

BR-13

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE TUBE AND HOSE

Hydraulic Circuit

INFOID:0000000005272468

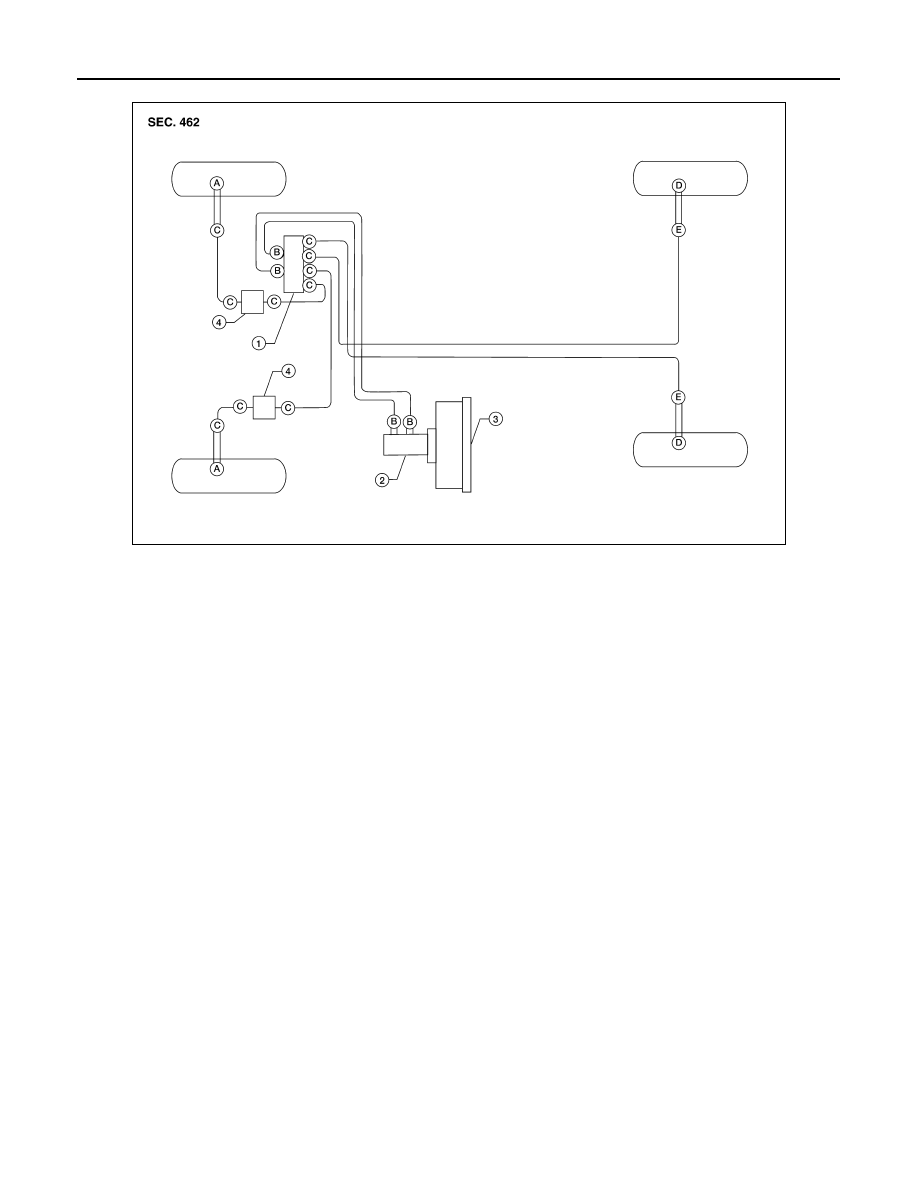

Type 1 - Three Channel Hydraulic System

AWFIA0426ZZ

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

5.

Connector block
9.3 N·m (0.95 kg-m, 82 in-lb)

A.

Union bolt (front caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

D.

Union bolt (rear caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

E.

Flare nut to rear hose
16.2 N·m (1.7 kg-m, 12 ft-lb)

BR-14

< BASIC INSPECTION >

BRAKE TUBE AND HOSE

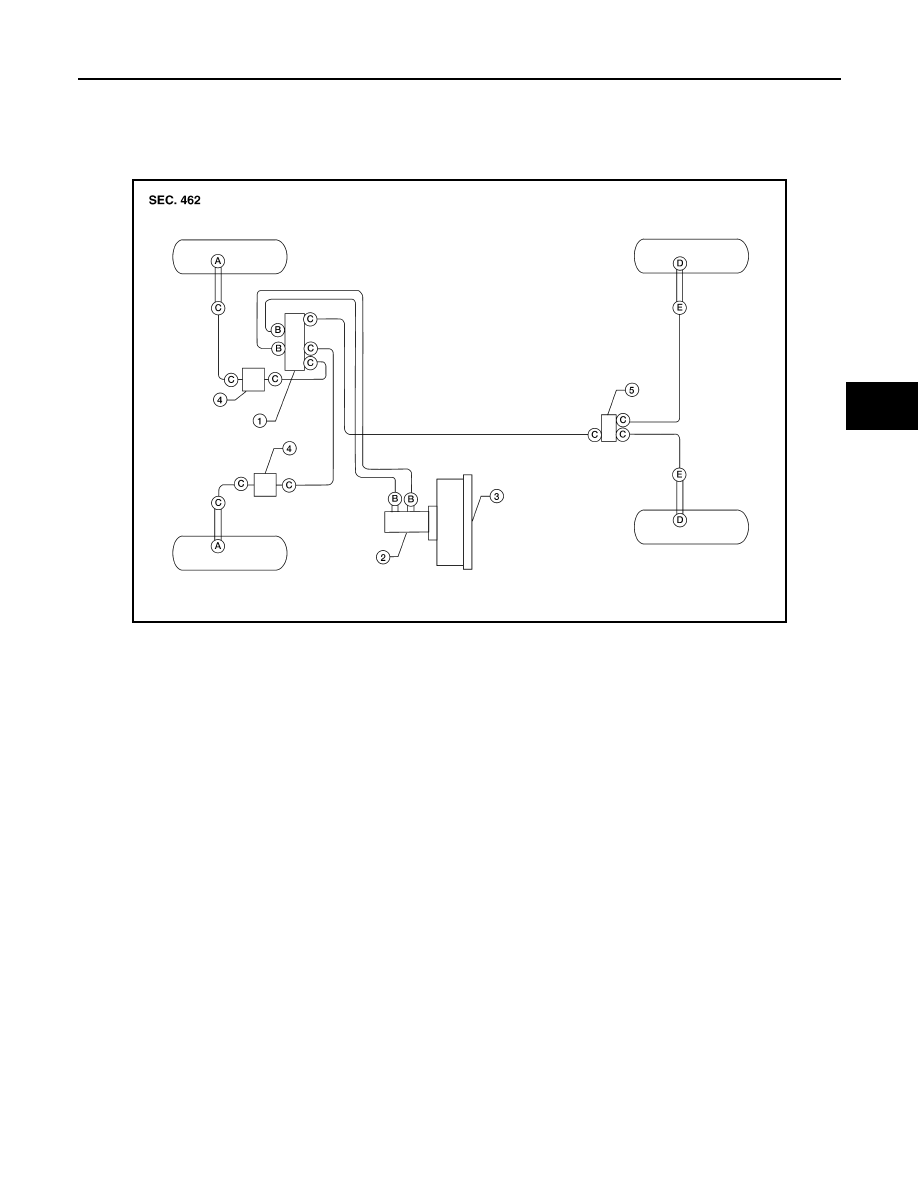

Type 2 and Type 3 - Four Channel Hydraulic System

AWFIA0481ZZ

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

A.

Union bolt (front caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

D.

Union bolt (rear caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

E.

Flare nut to rear hose
16.2 N·m (1.7 kg-m, 12 ft-lb)

BRAKE TUBE AND HOSE

BR-15

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

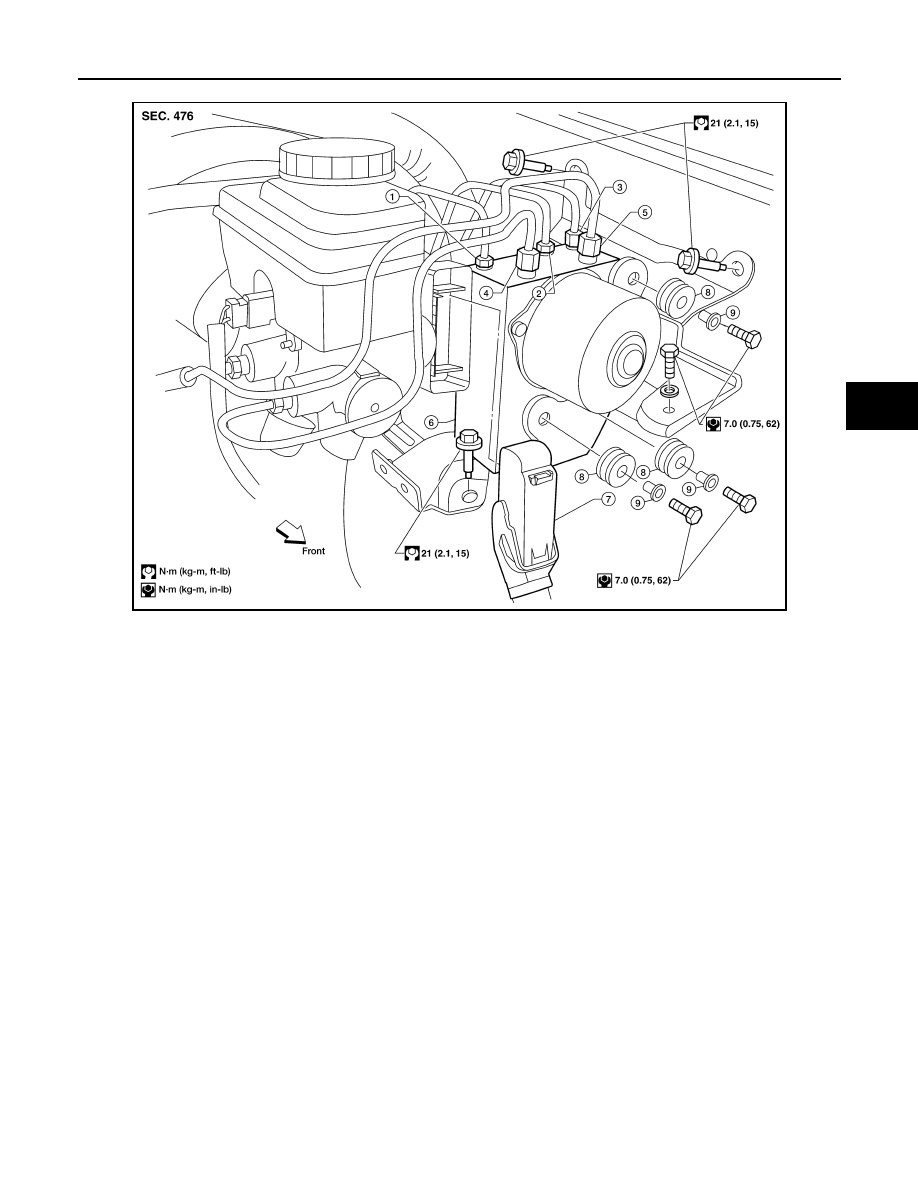

Type 1

WFIA0388E

1.

To rear left and right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

2.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

From the master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

5.

From the master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

6.

ABS actuator and electric unit
(control unit)

7.

Harness connector

8.

Grommet

9.

Collar
