< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000005275682

DATA MONITOR

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000005275683

WORK SUPPORT

*: Initial setting

DATA MONITOR

PASSING SW
[OFF/ON]

Displays the status of the PASSING switch in combination switch judged by BCM with the combination switch
reading function

AUTO LIGHT SW
[OFF/ON]

Displays the status of the AUTO LIGHT switch in combination switch judged by BCM with the combination
switch reading function

FR FOG SW
[OFF/ON]

Displays the status of the FR FOG switch in combination switch judged by BCM with the combination switch
reading function

FR WIPER HI
[OFF/ON]

Displays the status of the FR WIPER HI switch in combination switch judged by BCM with the combination
switch reading function

FR WIPER LOW
[OFF/ON]

Displays the status of the FR WIPER LOW switch in combination switch judged by BCM with the combination
switch reading function

FR WIPER INT
[OFF/ON]

Displays the status of the FR WIPER INT switch in combination switch judged by BCM with the combination
switch reading function

FR WASHER SW
[OFF/ON]

Displays the status of the FR WASHER switch in combination switch judged by BCM with the combination
switch reading function

INT VOLUME
[1 - 7]

Displays the status of wiper intermittent dial position judged by BCM with the combination switch reading
function

Monitor Item

[Unit]

Description

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position.

Test Item

Description

THEFT IND

This test is able to check security indicator operation [ON/OFF].

Work Item

Setting Item

Setting

ROOM LAMP TIMER SET

MODE 1*

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

MODE 3

10 min.

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

KEY ON SW [ON/OFF]

The switch status input from key switch

DOOR SW-DR [ON/OFF]

The switch status input from front door switch (driver side)

DOOR SW-AS [ON/OFF]

The switch status input from front door switch (passenger side)

DOOR SW-RR [ON/OFF]

The switch status input from rear door switch RH

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-23

< FUNCTION DIAGNOSIS >

ACTIVE TEST

*: Each lamp switch is in ON position.

RETAINED PWR

RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000005275685

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

SIGNAL BUFFER

SIGNAL BUFFER : CONSULT-III Function (BCM - SIGNAL BUFFER)

INFOID:0000000005275686

DATA MONITOR

DOOR SW- RL [ON/OFF]

The switch status input from rear door switch LH

KEY CYL LK-SW [ON/OFF]

Lock switch status input from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Unlock switch status input from door key cylinder switch

CDL LOCK SW [ON/OFF]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Unlock switch status input from door lock and unlock switch

KEYLESS LOCK [ON/OFF]

Lock signal status received from remote keyless entry receiver (integrated in the
BCM)

KEYLESS UNLOCK [ON/OFF]

Unlock signal status received from remote keyless entry receiver (integrated in the
BCM)

Monitor Item

[Unit]

Description

Test Item

Operation

Description

BATTERY SAVER

OFF

Cuts the interior room lamp power supply to turn interior room lamps OFF.

Outputs the interior room lamp power supply to turn interior room lamps ON.*

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch.

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH.

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH.

Test Item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-III screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-III can be operated with ignition switch in OFF position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-III screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-III might be stuck if “RE-
TAINED PWR” is turned “ON” or “OFF” on CONSULT-III screen when ignition switch is OFF.

Work item

Description

RETAINED PWR SET

RAP signal’s power supply period can be changed by mode setting. Selects RAP signal’s power
supply period between three steps
• MODE1 (45 sec.)/MODE2 (OFF)/MODE 3 (2 min.).

BCS-24

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

AIR PRESSURE MONITOR

AIR PRESSURE MONITOR : Diagnosis Description

INFOID:0000000005275687

DESCRIPTION

During driving, the TPMS receives the signal transmitted from the transmitter installed in each wheel, when
the tire pressure becomes low. The control unit (BCM) of this system has pressure judgment and trouble diag-
nosis functions.
When the TPMS detects low inflation pressure or another unusual symptom, the warning lamps in the combi-
nation meter comes on.

SELF DIAGNOSTIC PROCEDURE (WITH CONSULT-III)

With CONSULT-III

• Touch “SELF-DIAG RESULTS” display to show malfunction experienced since the last erasing operation.

Refer to

BCS-50, "DTC Index"

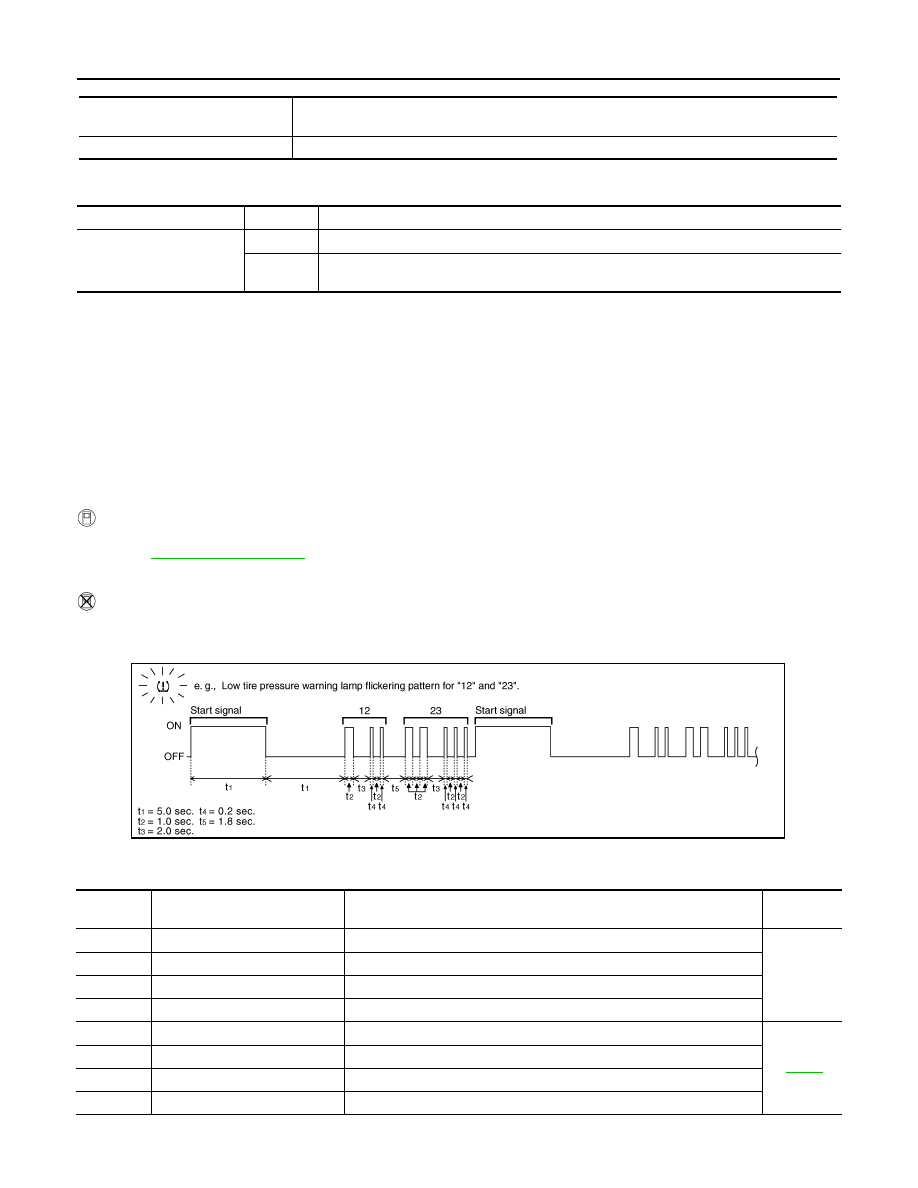

SELF DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-III)

Without CONSULT-III

To start the self-diagnostic results mode, ground terminal of the tire pressure warning check connector. The
malfunction location is indicated by the warning lamp flashing.

NOTE:
When the low tire warning lamp flashes 5 Hz and continues repeating it, the system is normal.

Monitor Item

[Unit]

Description

OIL PRESS SW [ON/OFF]

Displays the status of oil pressure switch received from IPDM E/R via CAN communication.

Test Item

Operation

Description

OIL PRESSURE SW

OFF

BCM transmits the oil pressure switch signal to the combination meter via CAN communica-
tion, which operates the oil pressure gauge in the combination meter.

SEIA0745E

Flickering

pattern

Items

Diagnostic items detected when···

Check item

Tire pressure value (Front LH)

Front LH tire pressure drops to 181 kPa (1.8 kg/cm, 25.25 psi) or less.

–

Tire pressure value (Front RH)

Front RH tire pressure drops to 181 kPa (1.8 kg/cm, 25.25 psi) or less.

Tire pressure value (Rear RH)

Rear RH tire pressure drops to 181 kPa (1.8 kg/cm, 25.25 psi) or less.

Tire pressure value (Rear LH)

Rear LH tire pressure drops to 181 kPa (1.8 kg/cm, 25.25 psi) or less.

Transmitter no data (Front LH)

Data from front LH transmitter can not be received.

WT-33

Transmitter no data (Front RH)

Data from front RH transmitter can not be received.

Transmitter no data (Rear RH)

Data from Rear RH transmitter can not be received.

Transmitter no data (Rear LH)

Data from Rear LH transmitter can not be received.

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-25

< FUNCTION DIAGNOSIS >

ERASE SELF-DIAGNOSIS

With CONSULT-III

Perform applicable inspection of malfunctioning item and then repair or replace.

Turn ignition switch “ON” and select “SELF-DIAG RESULTS” mode for “AIR PRESSURE MONITOR” with
CONSULT-III.

Touch “ERASE” on CONSULT-III screen to erase memory.

Without CONSULT-III

• In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is

stored into the control unit as necessary during use by the user. This memory is not erased no matter how
many times the ignition switch is turned “ON” and “OFF”.

• However, this information is erased by turning ignition switch “OFF” after performing self-diagnostic or by

erasing the memory using the CONSULT-III.

AIR PRESSURE MONITOR : CONSULT-III Function

INFOID:0000000005275688

WORK SUPPORT

Transmitter checksum error
(Front LH)

Checksum data from front LH transmitter is malfunctioning.

WT-33

Transmitter checksum error
(Front RH)

Checksum data from front RH transmitter is malfunctioning.

Transmitter checksum error
(Rear RH)

Checksum data from rear RH transmitter is malfunctioning.

Transmitter checksum error
(Rear LH)

Checksum data from rear RH transmitter is malfunctioning.

Transmitter pressure data error
(Front LH)

Air pressure data from front LH transmitter is malfunction.

WT-33

Transmitter pressure data error
(Front RH)

Air pressure data from front RH transmitter is malfunction.

Transmitter pressure data error
(Rear RH)

Air pressure data from rear RH transmitter is malfunction.

Transmitter pressure data error
(Rear LH)

Air pressure data from rear LH transmitter is malfunction.

Transmitter function code error
(Front LH)

Function code data from front LH transmitter is malfunction.

WT-33

Transmitter function code error
(Front RH)

Function code data from front RH transmitter is malfunction.

Transmitter function code error
(Rear RH)

Function code data from rear RH transmitter is malfunction.

Transmitter function code error
(Rear LH)

Function code data from rear LH transmitter is malfunction.

Transmitter battery voltage low
(Front LH)

Battery voltage of front LH transmitter drops.

WT-33

Transmitter battery voltage low
(Front RH)

Battery voltage of front RH transmitter drops.

Transmitter battery voltage low
(Rear RH)

Battery voltage of rear RH transmitter drops.

Transmitter battery voltage low
(Rear LH)

Battery voltage of rear LH transmitter drops.

Vehicle speed signal error

Speed signal is not detected.

WT-33

No flicker-

ing

Tire pressure warning check
switch

Tire pressure warning switch circuit is open.

–

Flickering

pattern

Items

Diagnostic items detected when···

Check item
