AV-180

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (CREW CAB)]

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000005571029

Removal

1.

Remove the cluster lid D. Refer to

IP-11, "Removal and Installation"

.

2.

Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

AV

SATELLITE RADIO ANTENNA

AV-181

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (CREW CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

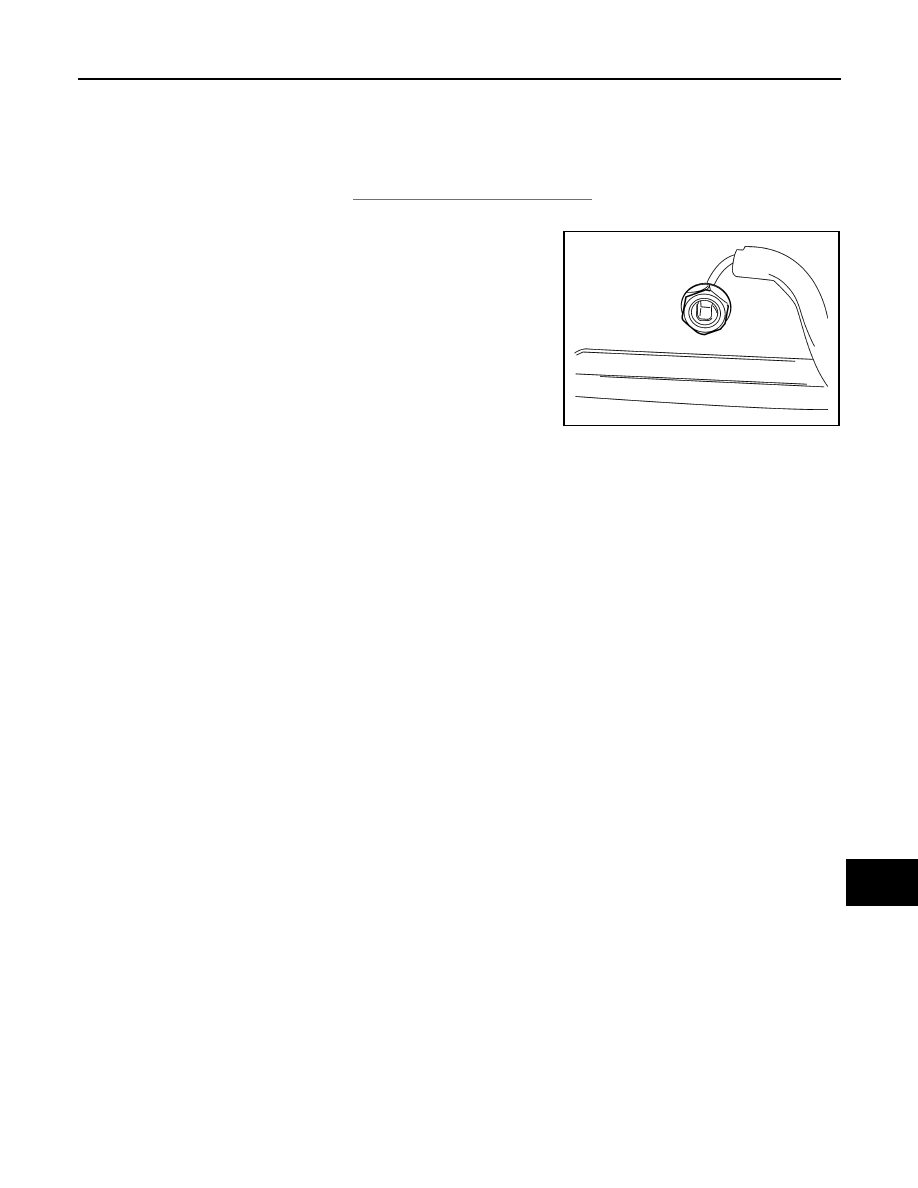

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000005274989

REMOVAL

1.

Remove the roof console. Refer to

INT-24, "Removal and Installation"

.

2.

Disconnect the satellite radio antenna connector.

3.

Remove the satellite radio antenna nut.

4.

Remove the satellite radio antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

AV-182

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (CREW CAB)]

SATELLITE RADIO TUNER

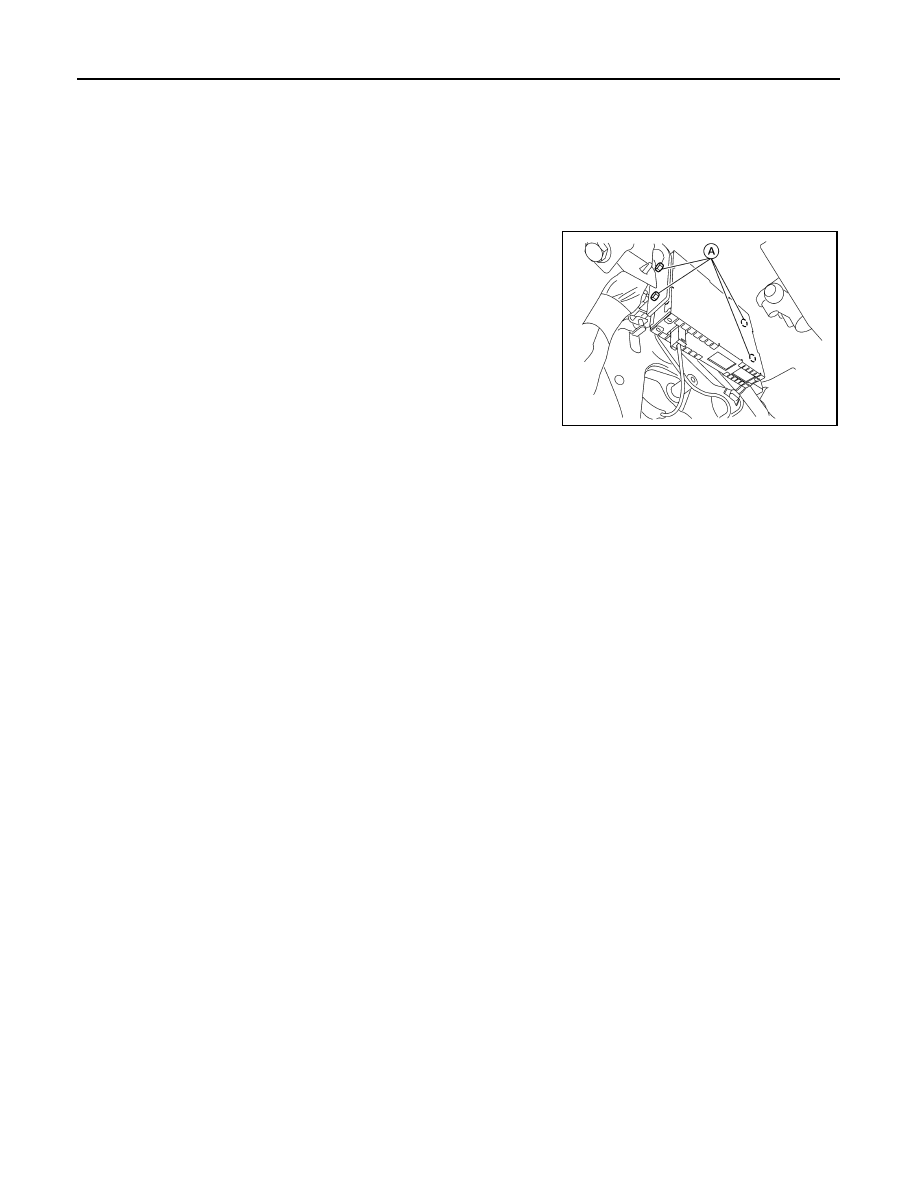

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000005274990

REMOVAL

1. Disconnect the battery negative terminal.
2. Disconnect the satellite radio tuner connectors.
3. Remove satellite radio tuner screws (A), and remove satellite

radio tuner.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0684E

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

BASIC INSPECTION  ....................................

3

INSPECTION AND ADJUSTMENT .....................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ..........................................................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ..................................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .......

3

CONFIGURATION .......................................................

3

CONFIGURATION : Description  ...............................

3

CONFIGURATION : Special Repair Requirement

......

4

FUNCTION DIAGNOSIS ...............................

5

BODY CONTROL SYSTEM ................................

5

System Description  ...................................................

5

Component Parts Location ........................................

5

COMBINATION SWITCH READING SYSTEM

.....

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

9

SIGNAL BUFFER SYSTEM  ...............................

11

System Diagram ......................................................

11

System Description  .................................................

11

POWER CONSUMPTION CONTROL SYS-
TEM ....................................................................

12

System Diagram ......................................................

12

System Description  .................................................

12

Component Parts Location ......................................

13

DIAGNOSIS SYSTEM (BCM)  ............................

14

COMMON ITEM  .........................................................

14

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

14

BCM ...........................................................................

14

BCM : CONSULT-III Function (BCM - BCM) ...........

14

DOOR LOCK ..............................................................

15

DOOR LOCK : CONSULT-III Function (BCM -
DOOR LOCK) ..........................................................

15

REAR WINDOW DEFOGGER  ...................................

15

REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER) .....................

15

BUZZER .....................................................................

16

BUZZER : CONSULT-III Function (BCM - BUZZ-
ER) ..........................................................................

16

INT LAMP ...................................................................

16

INT LAMP : CONSULT-III Function (BCM - INT
LAMP) ......................................................................

16

MULTIREMOTE ENT  .................................................

18

MULTIREMOTE ENT : CONSULT-III Function
(BCM - MULTIREMOTE ENT) .................................

18

HEADLAMP ...............................................................

19

HEADLAMP : CONSULT-III Function (BCM -
HEAD LAMP) ...........................................................

19

WIPER ........................................................................

20

WIPER : CONSULT-III Function (BCM - WIPER) ....

20

FLASHER ...................................................................

21

FLASHER : CONSULT-III Function (BCM -
FLASHER) ...............................................................

21

AIR CONDITIONER  ...................................................

21

AIR CONDITIONER : CONSULT-III Function
(BCM - AIR CONDITIONER) ...................................

21

COMB SW ..................................................................

21

COMB SW : CONSULT-III Function (BCM -
COMB SW) ..............................................................

21

IMMU ..........................................................................

22

IMMU : CONSULT-III Function (BCM - IMMU) ........

22
