Nissan Frontier D40. Manual - part 46





AV-176

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (CREW CAB)]

BLUETOOTH CONTROL UNIT

Installation is in the reverse order of removal.

AV

MICROPHONE

AV-177

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (CREW CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000005274986

REMOVAL

1.

Remove the front roof console finisher. Refer to

INT-24, "Removal and Installation"

.

2.

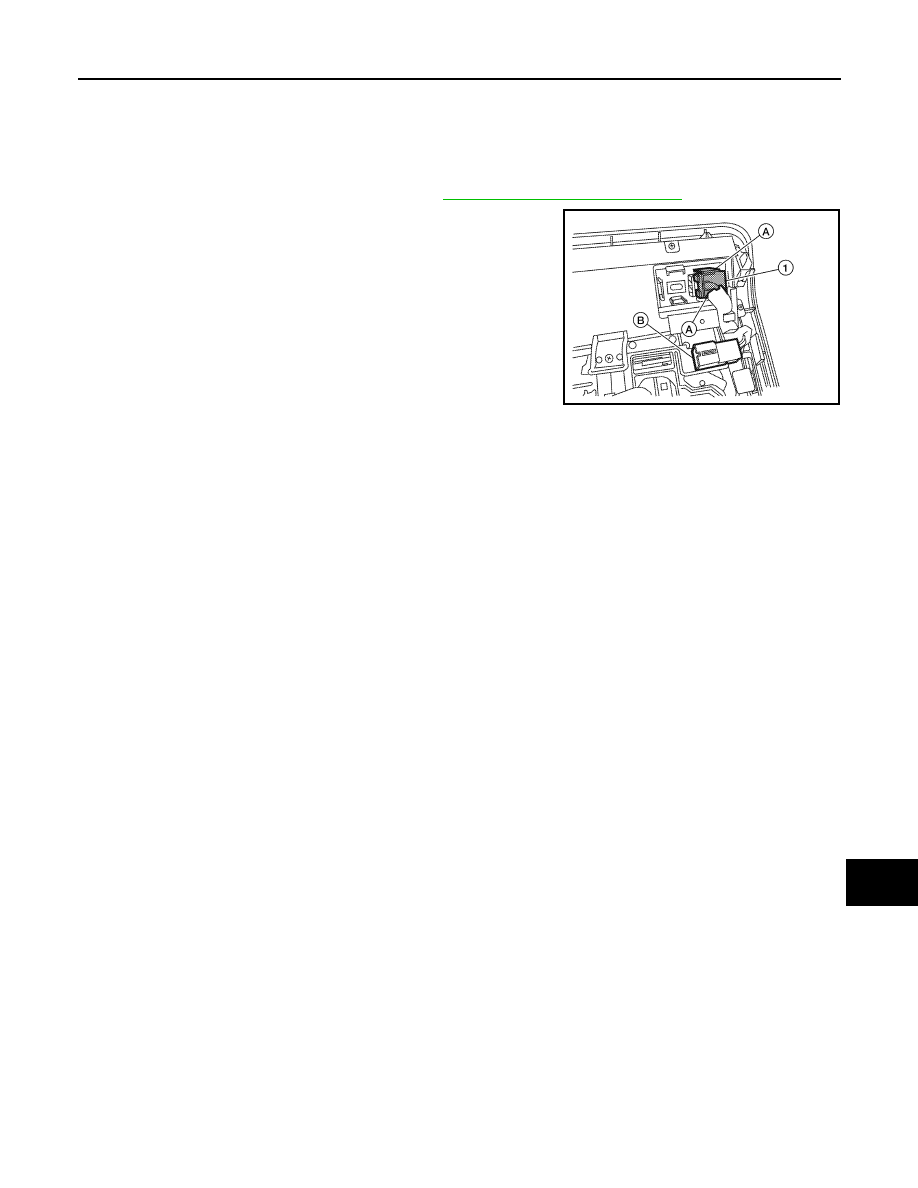

Detach the Bluetooth microphone (1) from the front console fin-
isher tabs (A).

3.

Detach the Bluetooth microphone connector (B) and remove the
Bluetooth microphone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0379ZZ

AV-178

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (CREW CAB)]

AUDIO ANTENNA

AUDIO ANTENNA

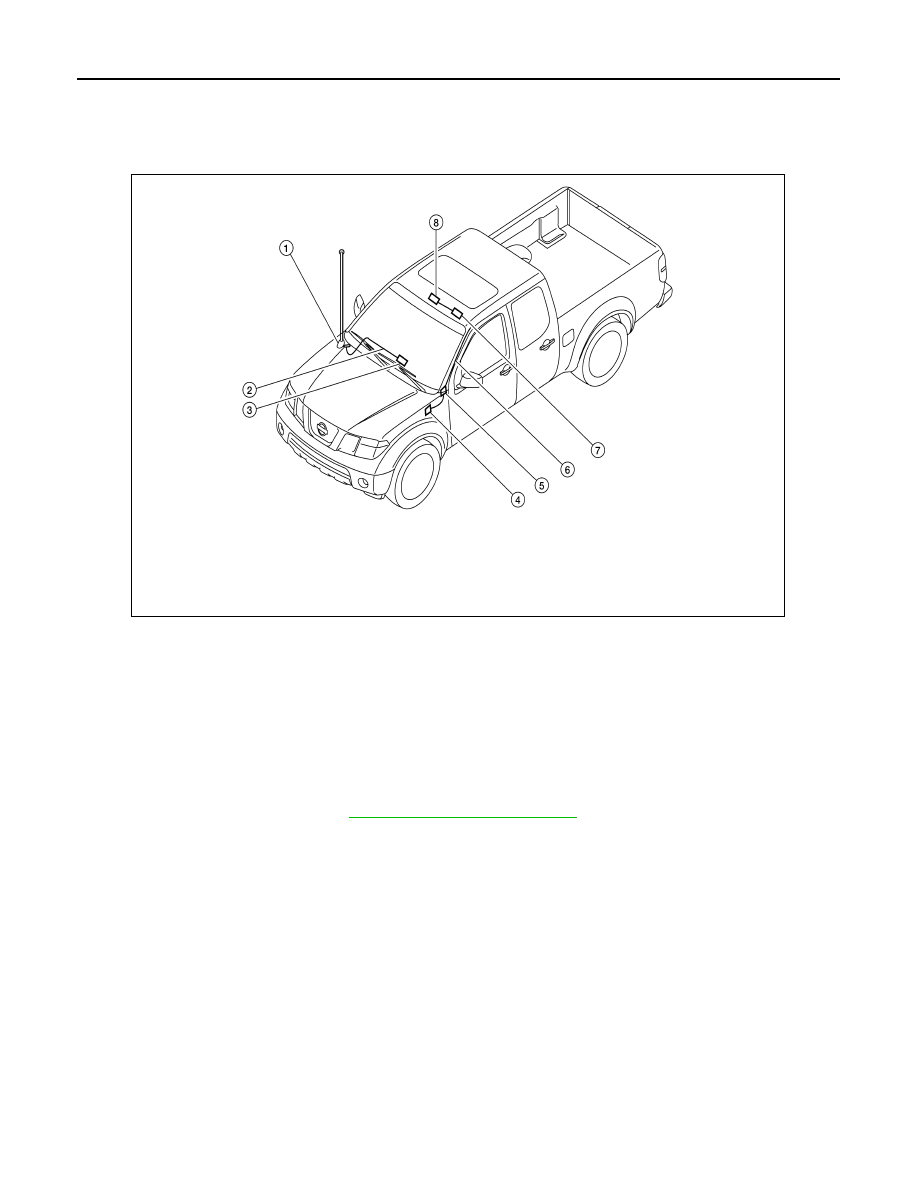

Location of Antenna

INFOID:0000000005274987

Removal and Installation

INFOID:0000000005274988

REMOVAL

1.

Remove lower glove box. Refer to

IP-11, "Removal and Installation"

.

2.

Disconnect audio antenna cable from antenna feeder.

1.

Audio antenna

2.

Antenna feeder

3.

Audio unit M46, M48, M65, M66

4.

Satellite radio tuner
M41, M129

5.

Harness connector
M250, M68

6.

Satellite antenna feeder

7.

Harness connector
M251

8.

Satellite antenna

AWNIA1809ZZ

AV

AUDIO ANTENNA

AV-179

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (CREW CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

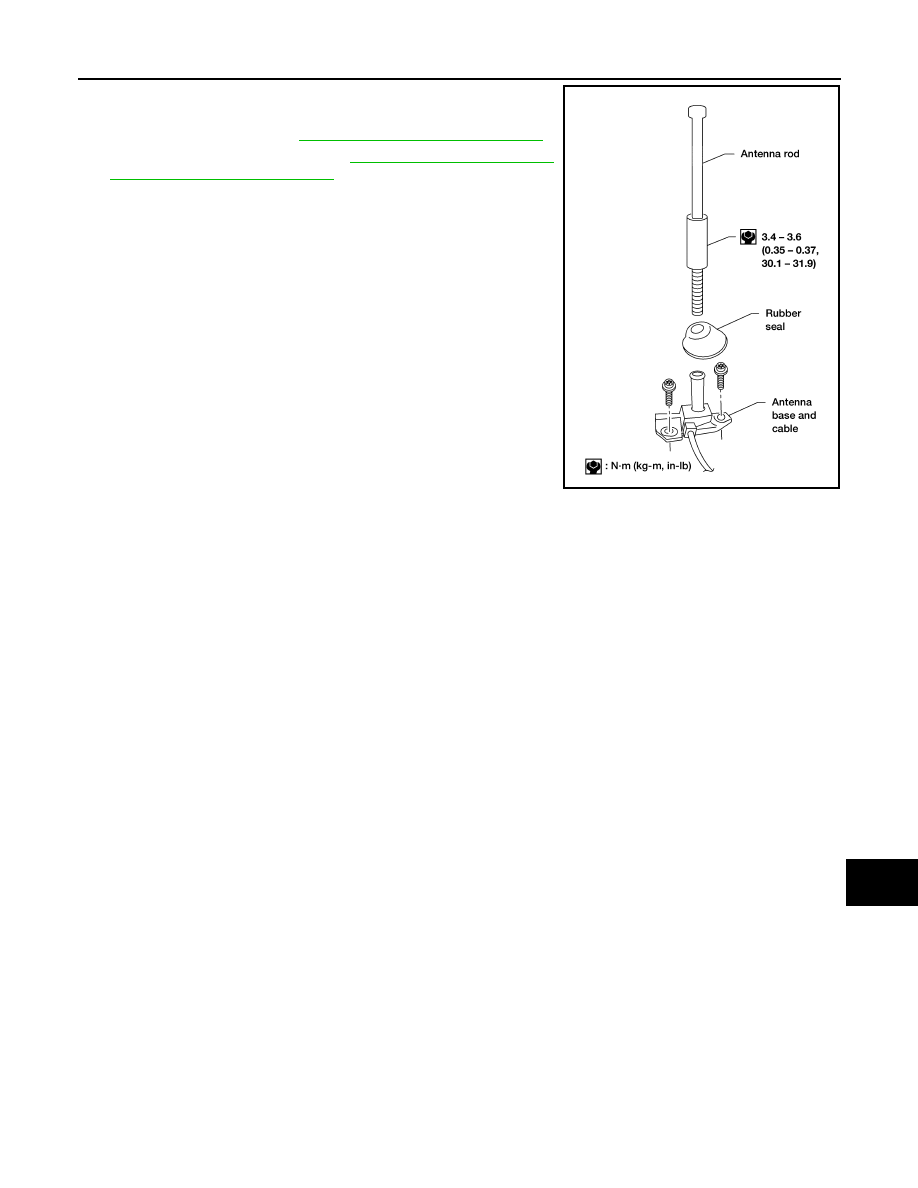

3.

Remove antenna rod.

4.

Remove rubber seal.

5.

Remove cowl top. Refer to

EXT-19, "Removal and Installation"

.

6.

Remove fender protector. Refer to

EXT-22, "Removal and Instal-

lation of Front Fender Protector"

.

7.

Remove antenna base bolts.

8.

Remove antenna base and cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Always properly tighten the antenna rod during installation or the antenna rod may bend or break dur-
ing vehicle operation.

AEL610C
