AV-152

< ECU DIAGNOSIS >

[PREMIUM AUDIO (CREW CAB)]

AUDIO UNIT

ABNIA1715GB

AV

AUDIO UNIT

AV-153

< ECU DIAGNOSIS >

[PREMIUM AUDIO (CREW CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA1716GB

AV-154

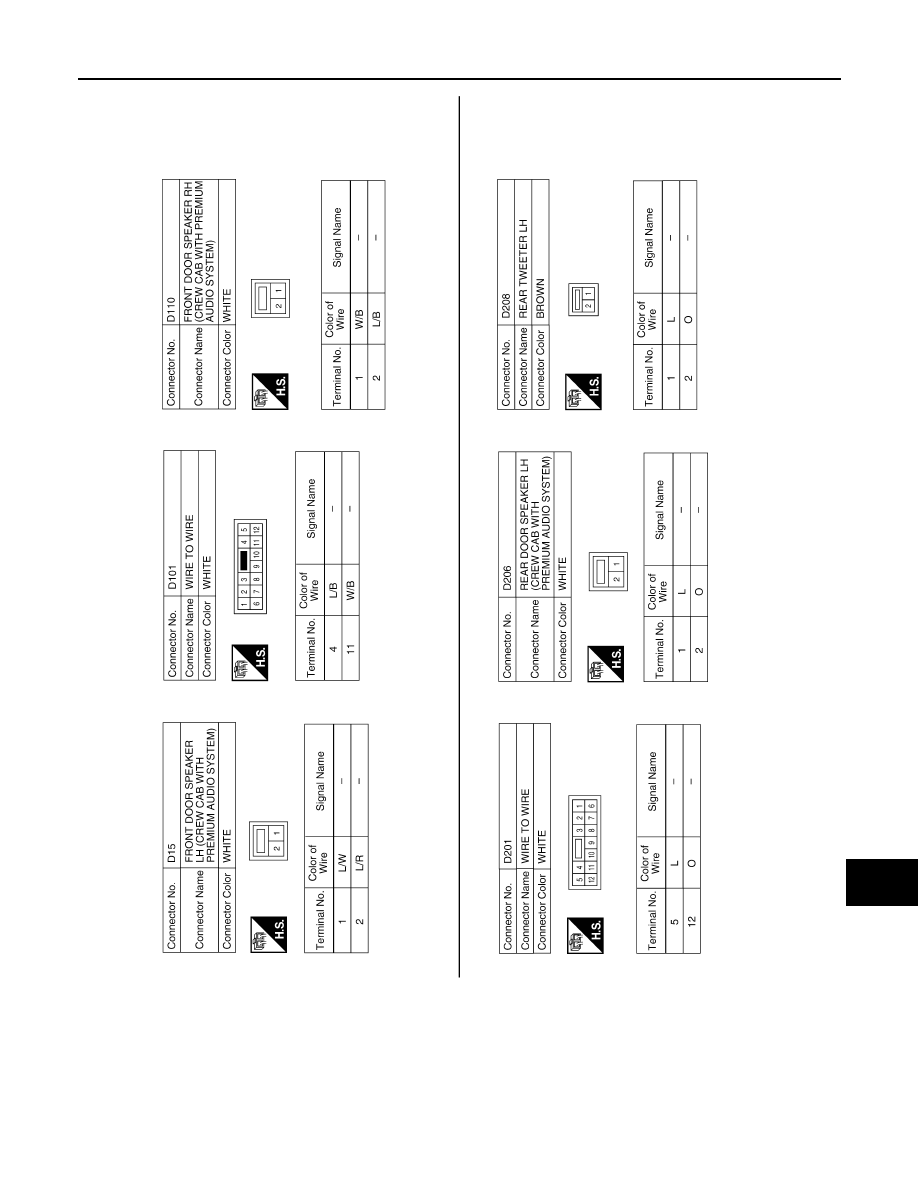

< ECU DIAGNOSIS >

[PREMIUM AUDIO (CREW CAB)]

AUDIO UNIT

ABNIA1717GB

AV

AUDIO AMP

AV-155

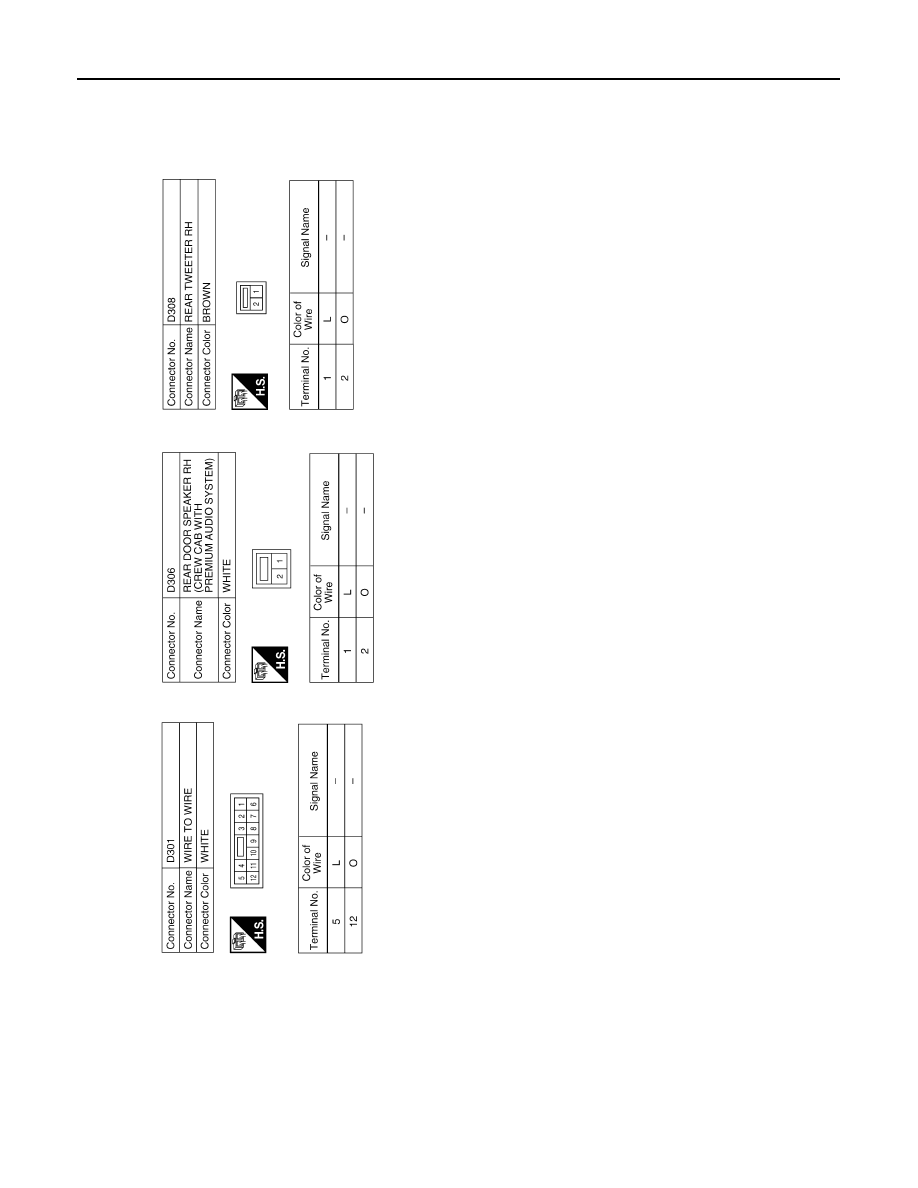

< ECU DIAGNOSIS >

[PREMIUM AUDIO (CREW CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO AMP

Reference Value

INFOID:0000000005274969

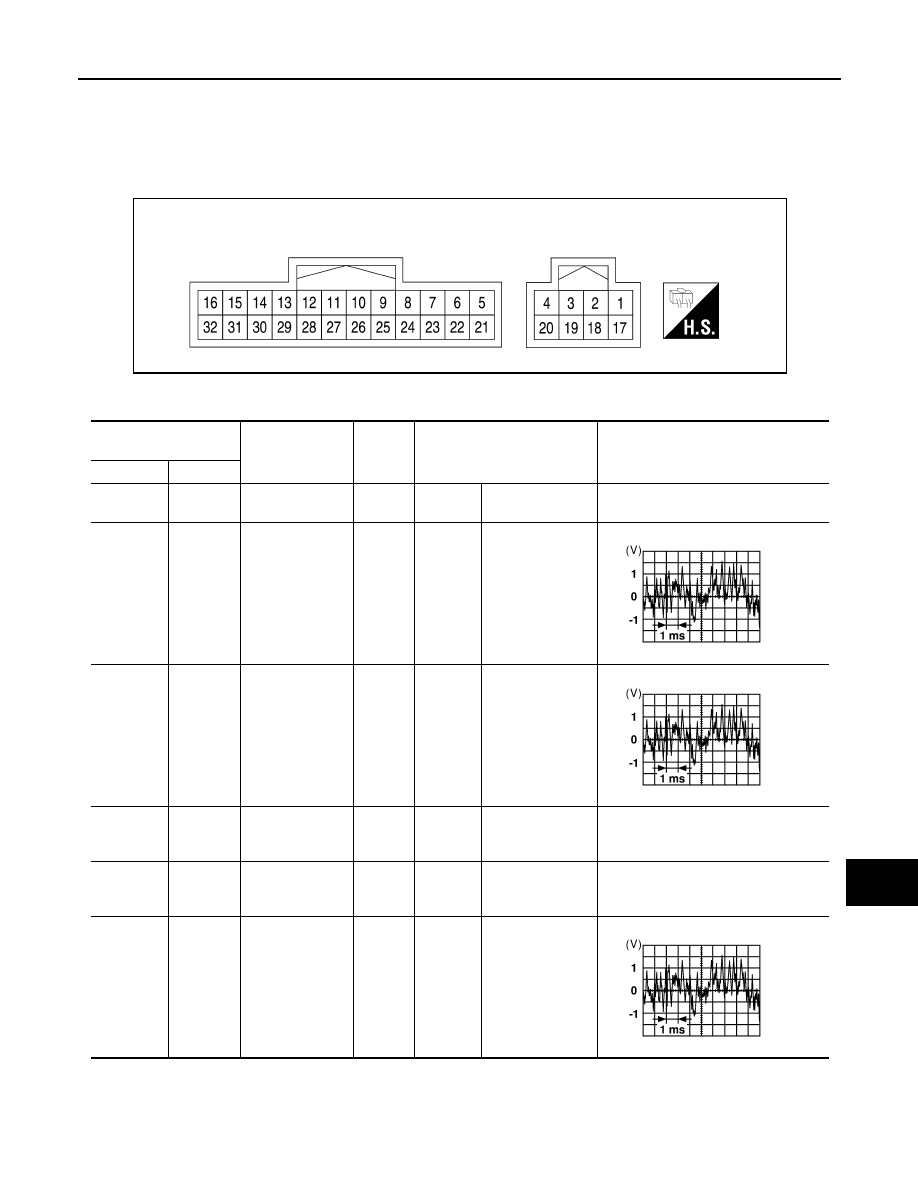

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA1808ZZ

Terminal

(wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

+

–

1

 (Y)

Ground

Battery

Input

–

–

Battery voltage

2

 (W)

18

(G)

Subwoofer

Output

Ignition

switch

ON

Receive audio sig-
nal

3

(O)

19

(BR)

Subwoofer

Output

Ignition

switch

ON

Receive audio sig-
nal

4

 (B)

Ground

Ground

–

Ignition

switch

ON

–

–

9

(G/W)

Ground

Amp. ON signal

Input

Ignition

switch

ON

–

More than 6.5V

11

(G)

27

 (B)

Rear door speak-
er LH and rear
door tweeter LH

Output

Ignition

switch

ON

Receive audio sig-
nal

SKIA0177E

SKIA0177E
