AUDIO SYSTEM

FUNCTION DIAGNOSIS

AUDIO SYSTEM

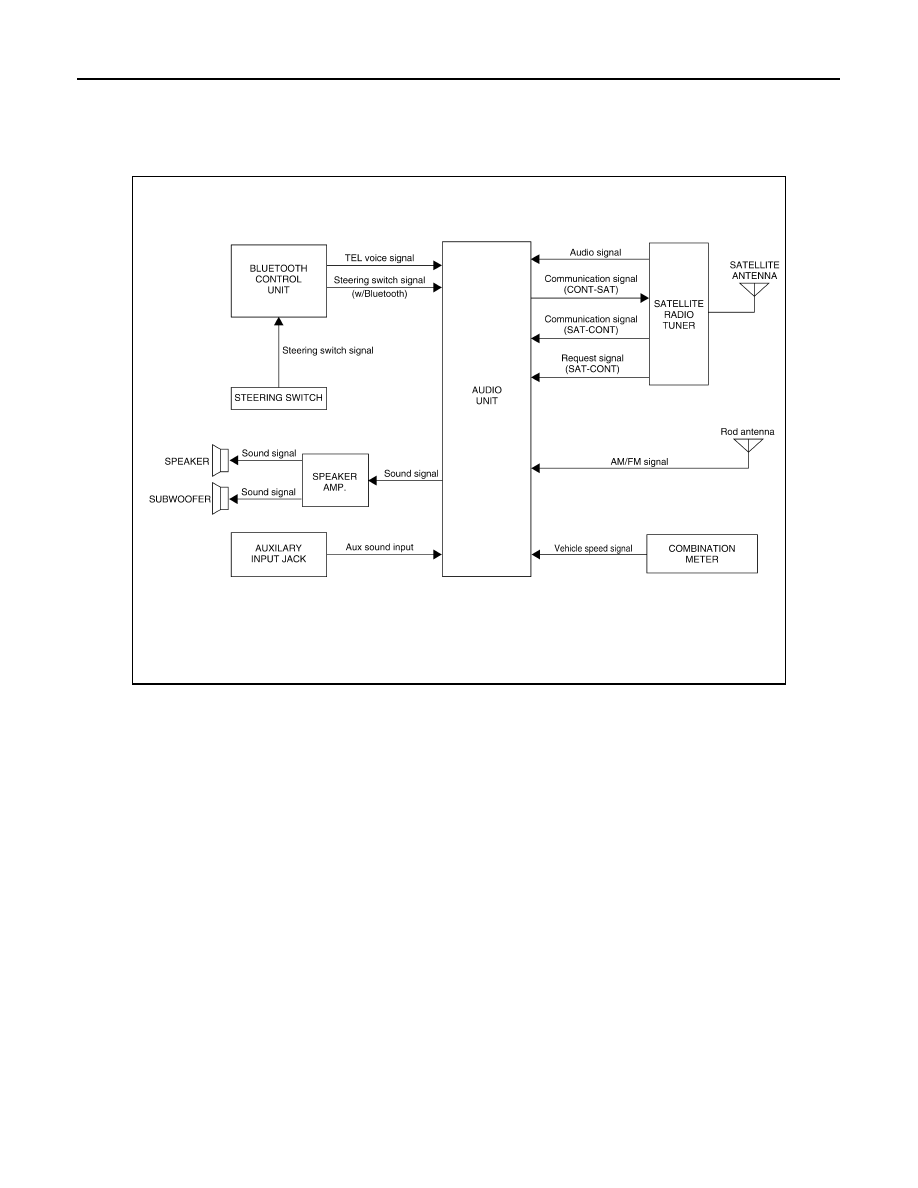

System Diagram

INFOID:0000000005274931

System Description

INFOID:0000000005274932

AUDIO SYSTEM

The audio system consists of the following components
• Audio unit
• Audio amp.
• Rod antenna
• Steering wheel audio control switches
• Front door speakers
• Front tweeters
• Rear door speakers
• Rear door tweeters
• Subwoofer
When the audio system is on, radio signals are received by the rod antenna. The audio unit then sends audio
signals to the audio amp. The audio amp. amplifies the audio signals before sending them to the front door
speakers, front tweeters, rear door speakers, rear door tweeters and the subwoofer.
Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components
• Satellite antenna
• Satellite radio tuner
When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite
antenna. The satellite radio tuner then sends audio signals to the audio unit.
Refer to Owner's Manual for satellite radio system operating instructions.

AWNIA0927GB

AV

AUDIO SYSTEM

AV-101

< FUNCTION DIAGNOSIS >

[PREMIUM AUDIO (CREW CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.

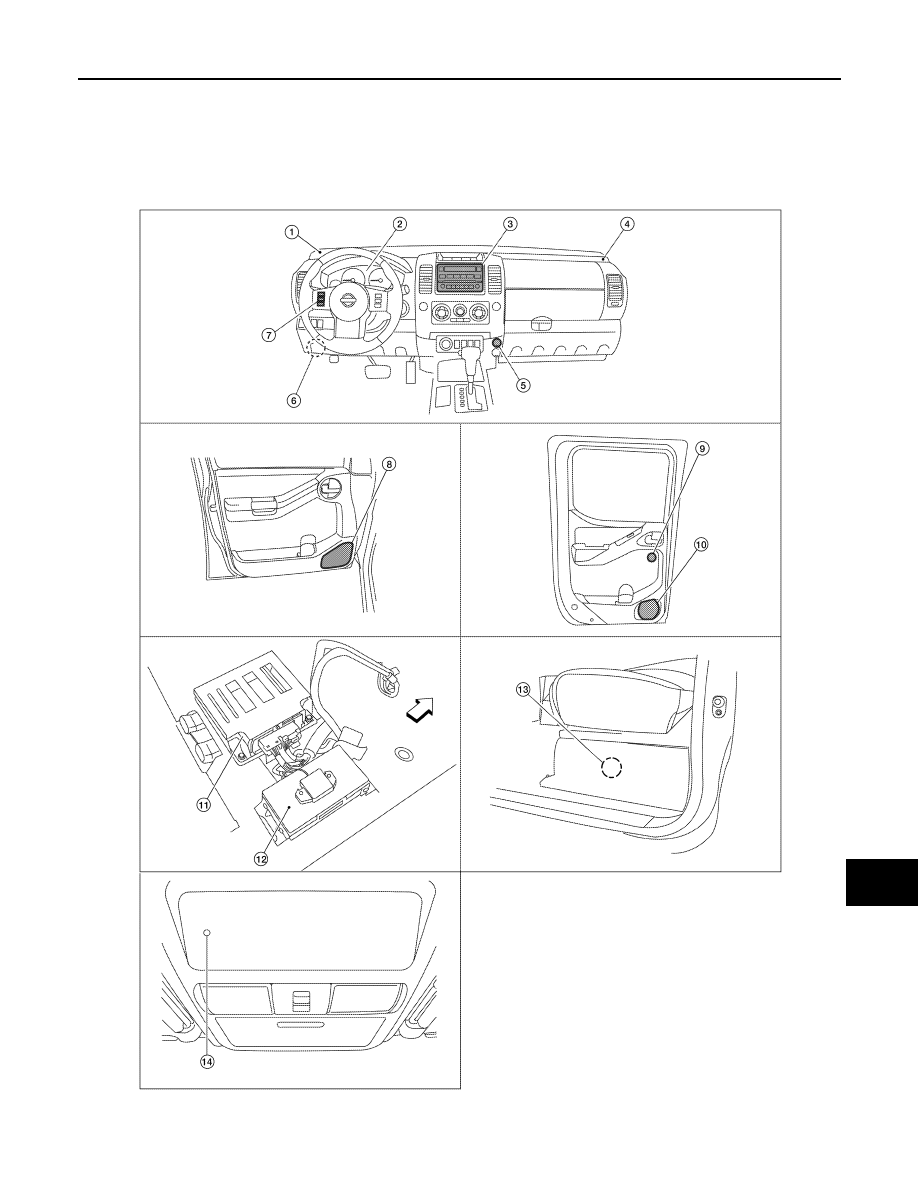

Component Parts Location

INFOID:0000000005274933

AWNIA2025ZZ

AV-102

< FUNCTION DIAGNOSIS >

[PREMIUM AUDIO (CREW CAB)]

AUDIO SYSTEM

 :FRONT

Component Description

INFOID:0000000005274934

1.

Front tweeter LH M107

2.

Combination meter M24

3.

Audio unit M46, M48, M65, M66

4.

Aux in jack M85

5.

Front tweeter RH M108

6.

Satellite radio tuner M41, M129

7.

Steering wheel audio control switch-
es

8.

Front door speaker
LH D15
RH D110

9.

Rear tweeter
LH D208
RH D308

10. Rear door speaker

LH D206
RH D306

11. Audio amp. B158, B159 (view under

passenger front seat)

12. Bluetooth control unit B141, B142

13. Subwoofer B72 (under driver’s seat)

14. Microphone R8

Part name

Description

Audio unit

Controls audio system and satellite radio system functions

Audio amp.

Receives power (amp ON) and audio signals from Audio unit and outputs au-
dio signals to each speaker.

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Front door speakers

• Outputs audio signal from audio  amp.
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from audio  amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

Rear door tweeters

• Outputs audio signal from audio amp.
• Outputs high range sounds

Subwoofer

• Outputs audio signal from audio amp.
• Outputs low range sounds

Satellite radio tuner

• Receives radio signals from satellite antenna
• Sends audio signals to Audio unit

Satellite antenna

Audio signal (satellite radio) is received and output to Audio unit.

AV

HANDS-FREE PHONE SYSTEM

AV-103

< FUNCTION DIAGNOSIS >

[PREMIUM AUDIO (CREW CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

HANDS-FREE PHONE SYSTEM

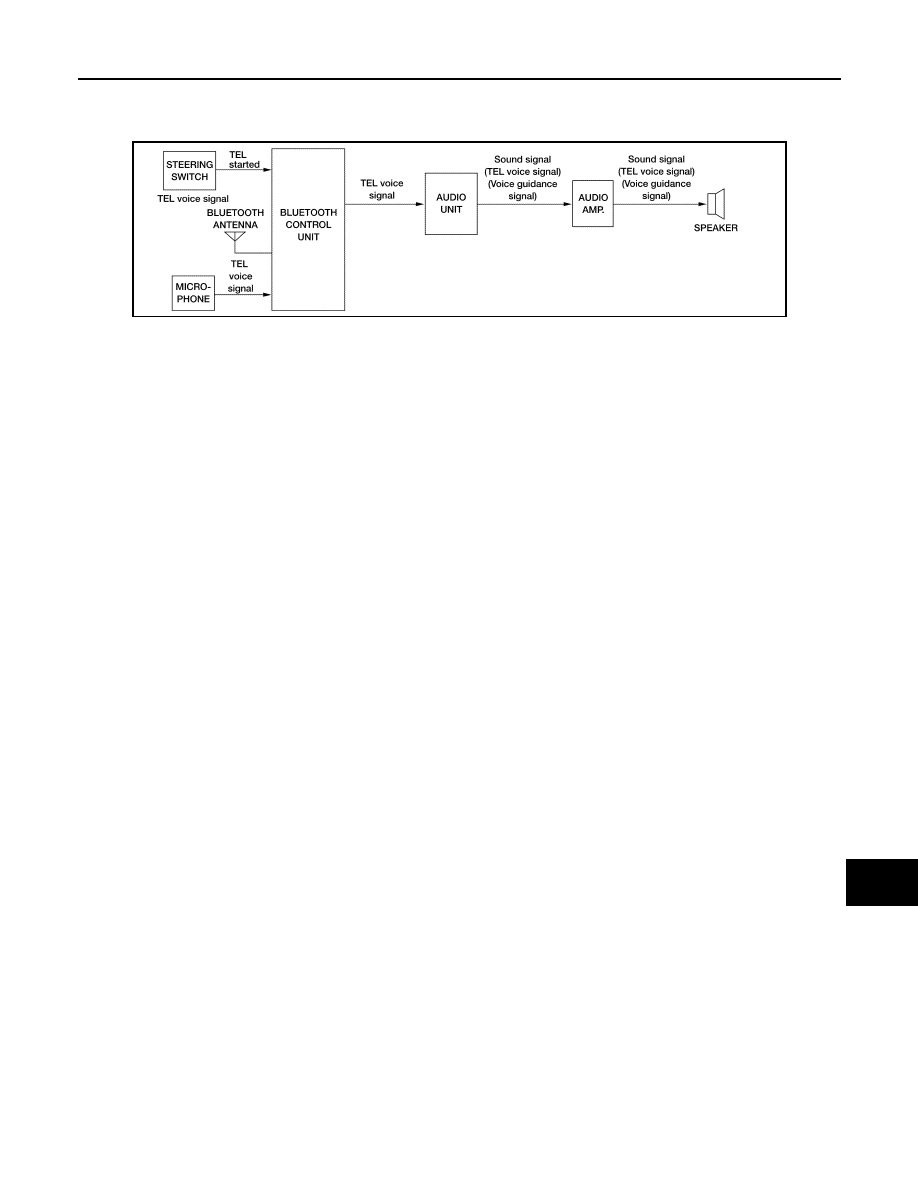

System Diagram

INFOID:0000000005274935

System Description

INFOID:0000000005274936

Refer to the Owner's Manual for Bluetooth telephone system operating instructions.
NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone
system.
Bluetooth telephone system allows users who have a Bluetooth equipped cellular telephone to make a wire-
less connection between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone
calls can be sent and received. Some Bluetooth cellular telephones may not be recognized by the Bluetooth
control unit. When a cellular telephone or the Bluetooth control unit is replaced, the telephone must be paired
with the Bluetooth control unit. Different cellular telephones may have different pairing procedures. Refer to
the cellular telephone operating manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the
Bluetooth control unit is initialized and performs various self checks. Initialization may take up to 10 seconds. If
a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will then
become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition system.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio
control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-
nal to perform various functions while navigating through the voice recognition system.
The following functions can be performed using the steering wheel audio control switch:
• Initiate Self Diagnosis of the Bluetooth telephone system
• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume of calls

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-
trol unit. The microphone can be actively tested during self-diagnosis.

AUDIO UNIT

The audio unit receives signals from the Bluetooth control unit and sends audio signals to the audio amp. then
on to the speakers.

AWNIA2024GB
