Nissan Frontier D40. Manual - part 9





AV-28

< ON-VEHICLE REPAIR >

[BASE AUDIO]

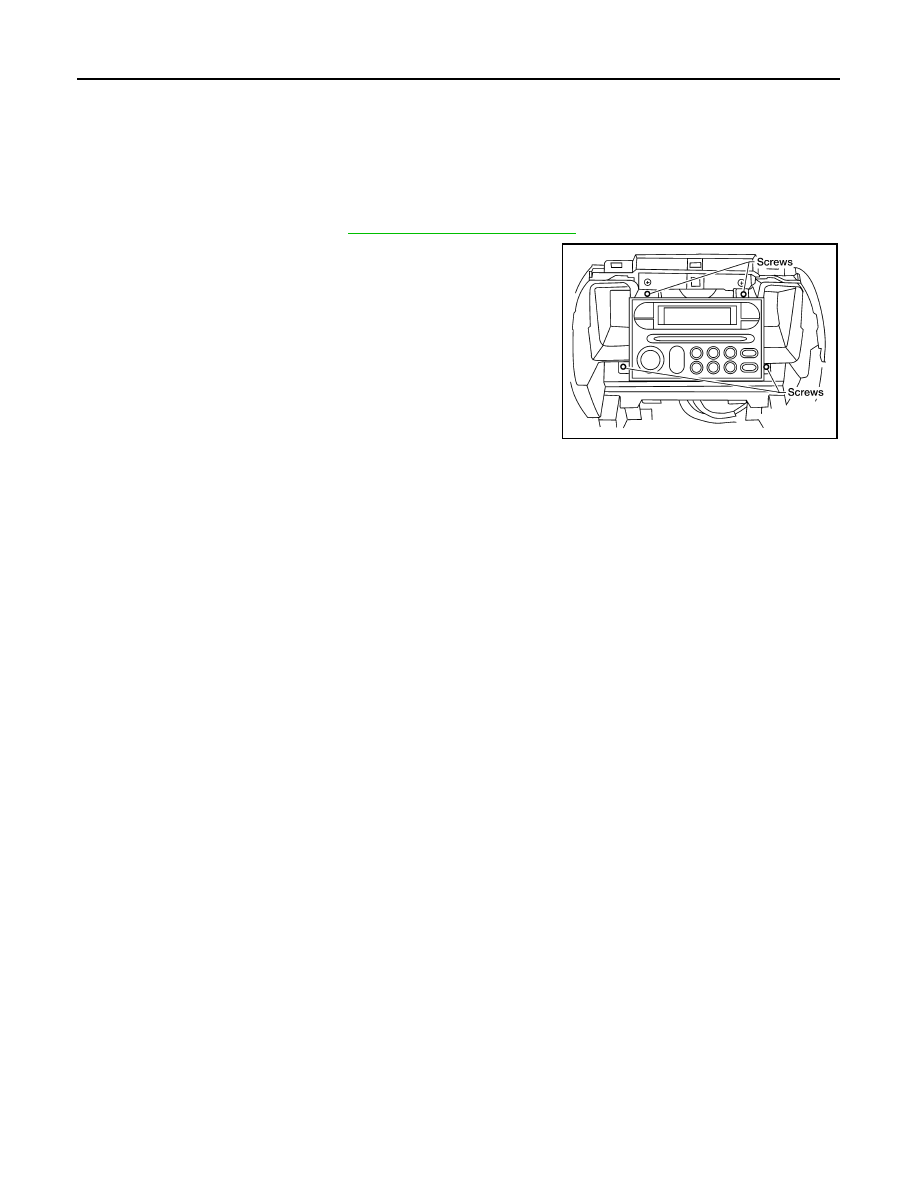

AUDIO UNIT

ON-VEHICLE REPAIR

AUDIO UNIT

Removal and Installation

INFOID:0000000005274874

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-11, "Removal and Installation"

.

2.

Remove the audio control unit screws, using power tool.

3.

Pull out the audio control unit from the instrument panel and dis-
connect the audio control unit connectors.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0582E

AV

FRONT TWEETER

AV-29

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

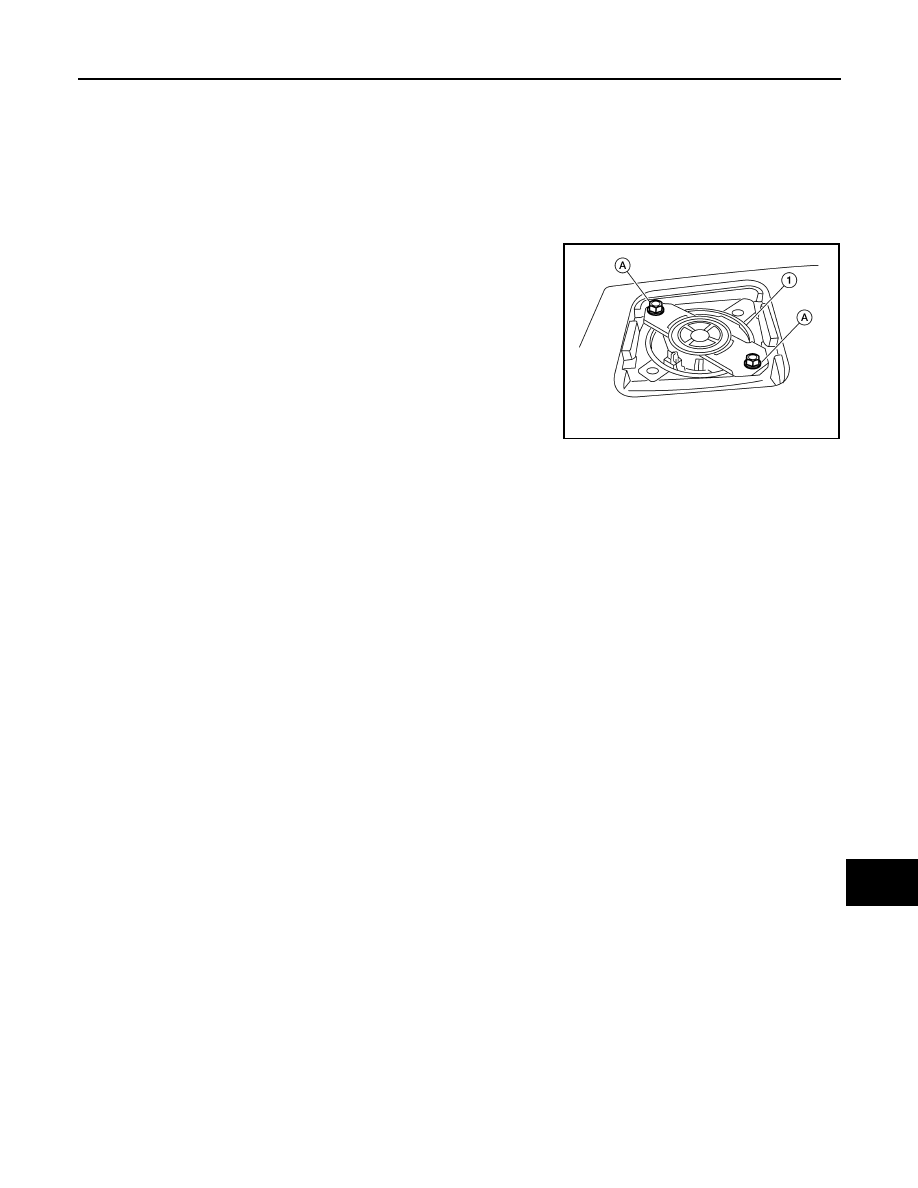

FRONT TWEETER

Removal and Installation

INFOID:0000000005274875

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1.

Remove the front tweeter grille.

2.

Remove the front tweeter screws (A).

3.

Pull out the front tweeter speaker (1) and disconnect front
tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1074ZZ

AV-30

< ON-VEHICLE REPAIR >

[BASE AUDIO]

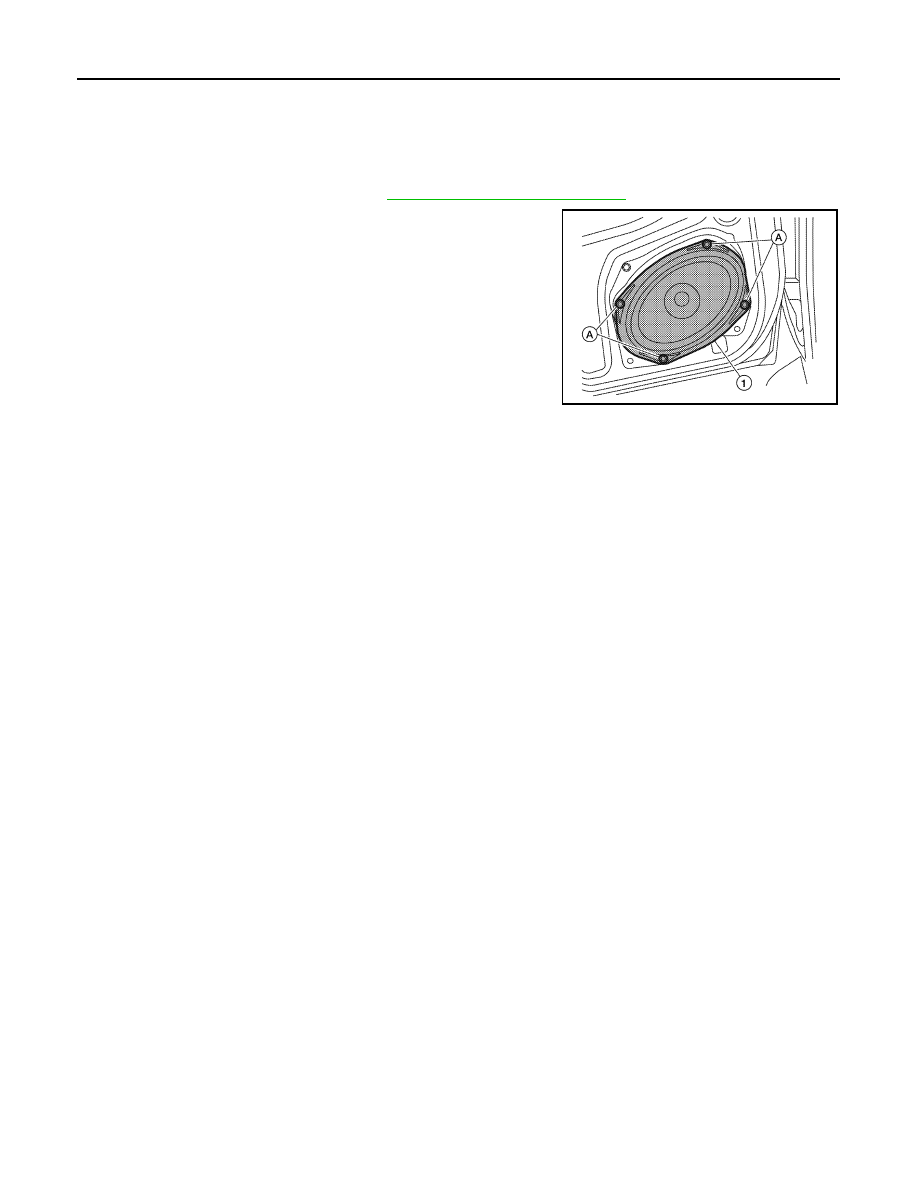

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000005274876

REMOVAL

1.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the front door speaker screws (A).

3.

Pull out the front door speaker (1), and disconnect the front door
speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

AV

REAR DOOR SPEAKER

AV-31

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

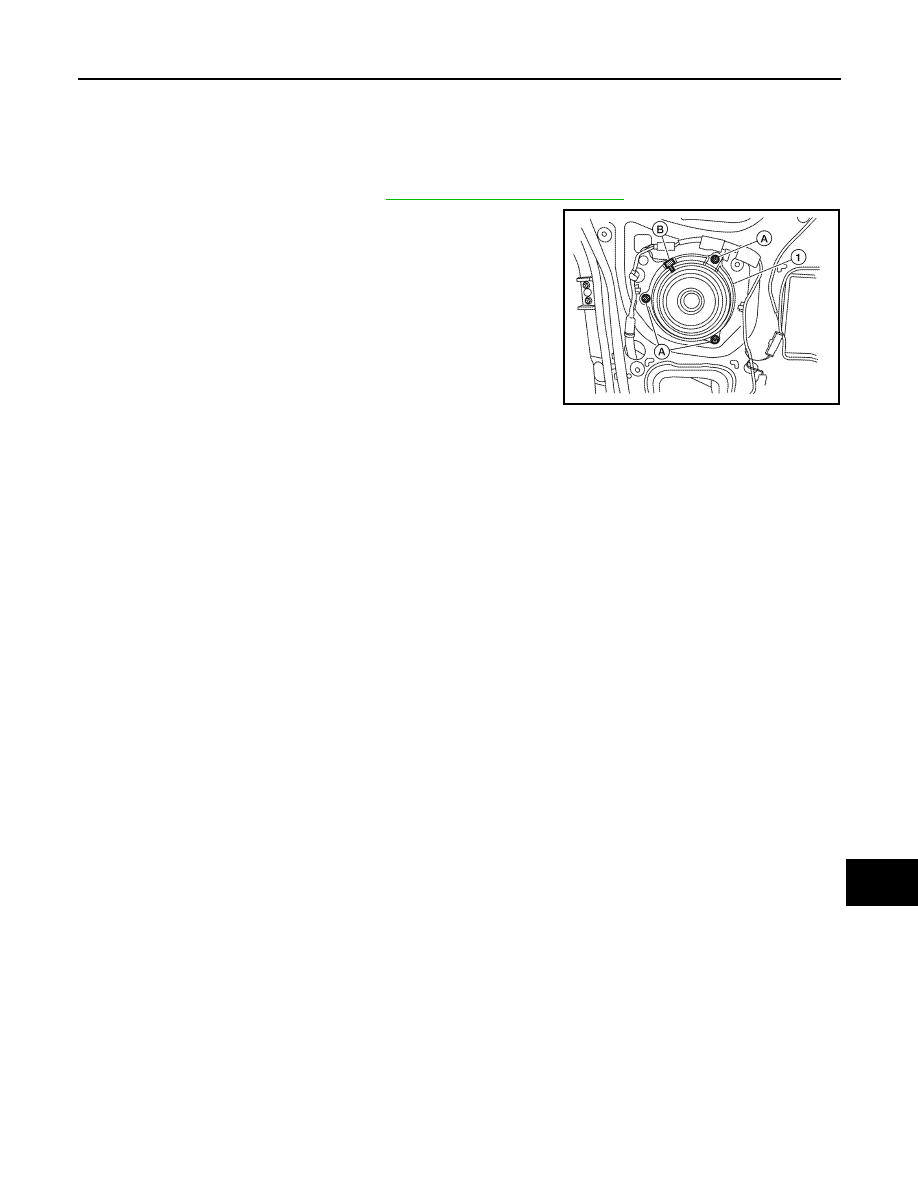

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000005274877

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the rear door speaker screws (A).

3.

Remove rear door speaker (1), disconnect rear door speaker
connector (B).
NOTE:
King cab shown, crew cab similar.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1071ZZ
