AV-16

< ECU DIAGNOSIS >

[BASE AUDIO]

AUDIO UNIT

ECU DIAGNOSIS

AUDIO UNIT

Reference Value

INFOID:0000000005274868

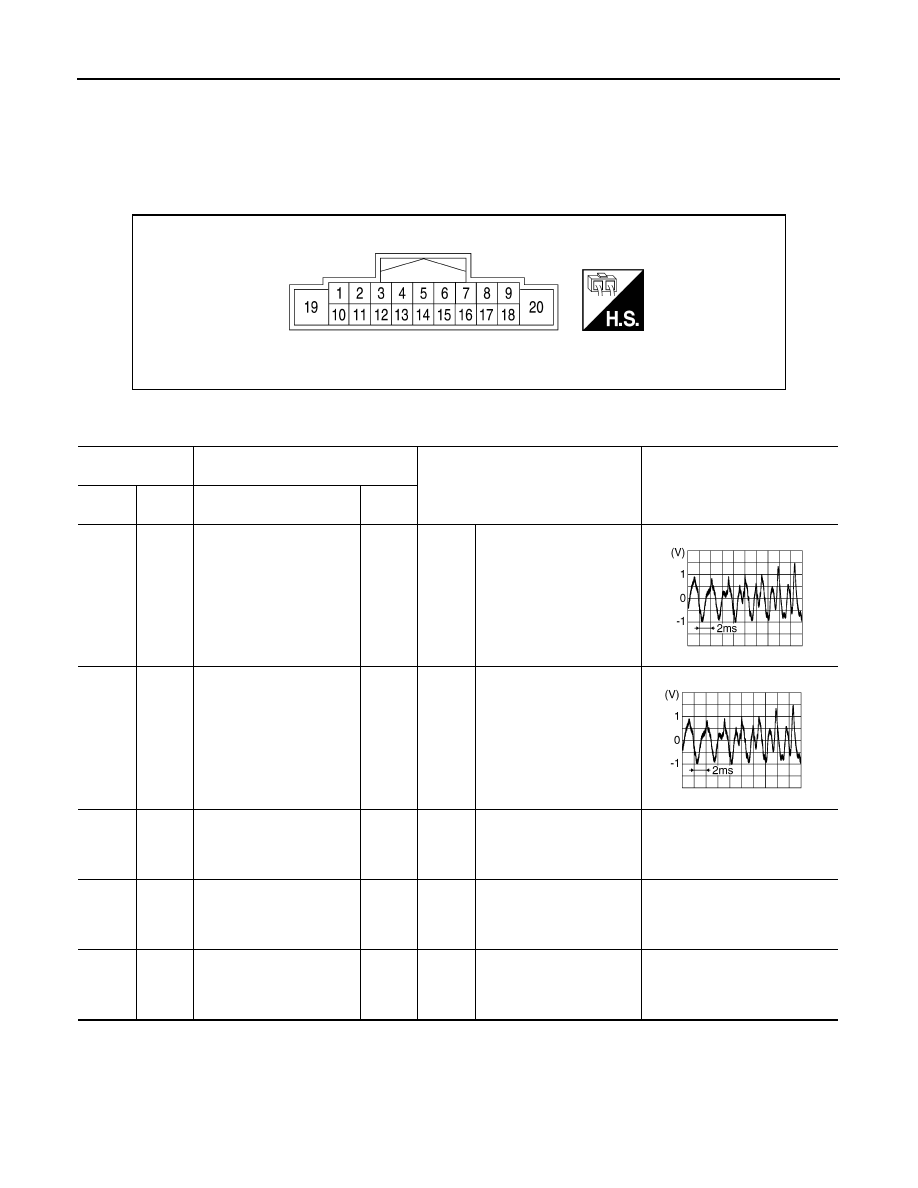

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA1774ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

2

(BR)

3

(L)

Sound signal front door
speaker and  front tweeter
LH

Output

Ignition

switch

ON

Audio output

4

(G)

5

(B)

Sound signal rear door
speaker LH

Output

Ignition

switch

ON

Audio output

7

(G/B)

Ground

ACC power supply

Input

Ignition

switch

ACC or

ON

—

Battery voltage

8

(GR)

Ground

ILL control

Input

Ignition

switch

ACC or

ON

—

0V

9

(R)

Ground

Light switch

Input

Ignition

switch

ACC or

ON

—

Battery voltage

SKIB3609E

SKIB3609E

AV

AUDIO UNIT

AV-17

< ECU DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

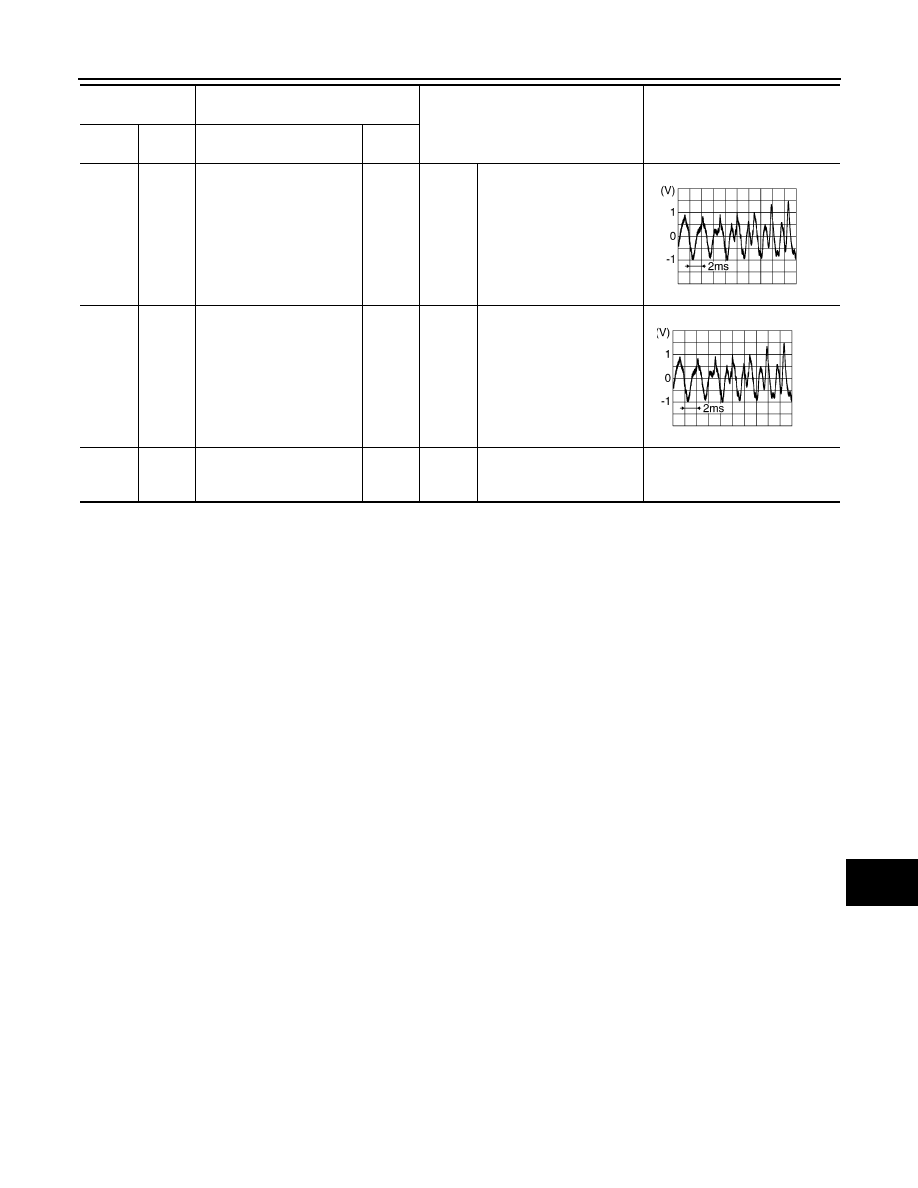

11

(LG)

12

(R)

Sound signal front door
speaker and front tweeter
RH

Output

Ignition

switch

ON

Voice output

13

(GR)

14

(O)

Sound signal rear door
speaker RH

Output

Ignition

switch

ON

Voice output

19

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

AV-18

< ECU DIAGNOSIS >

[BASE AUDIO]

AUDIO UNIT

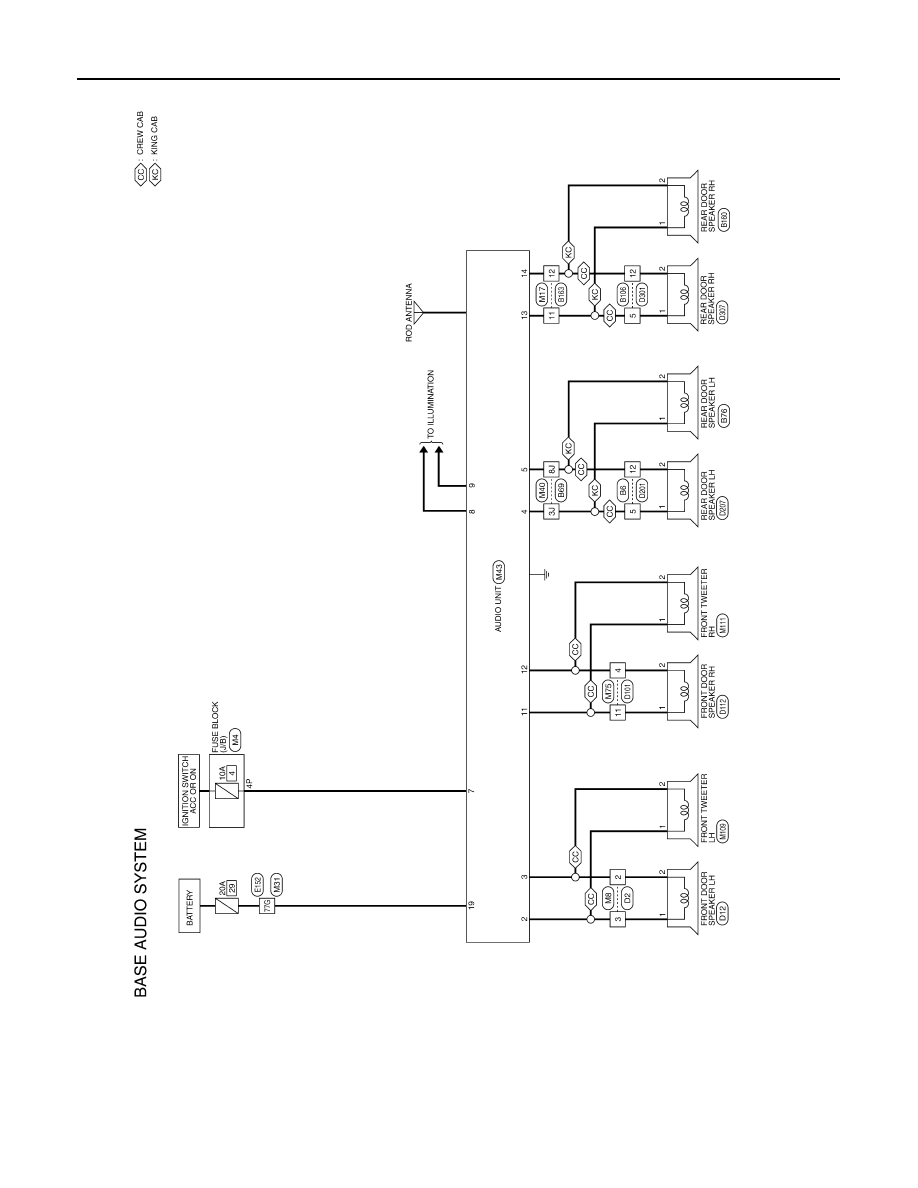

Wiring Diagram

INFOID:0000000005274869

ABNWA0553GB

AV

AUDIO UNIT

AV-19

< ECU DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA0511GB
