Nissan Frontier D40. Manual - part 5

AV-12

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

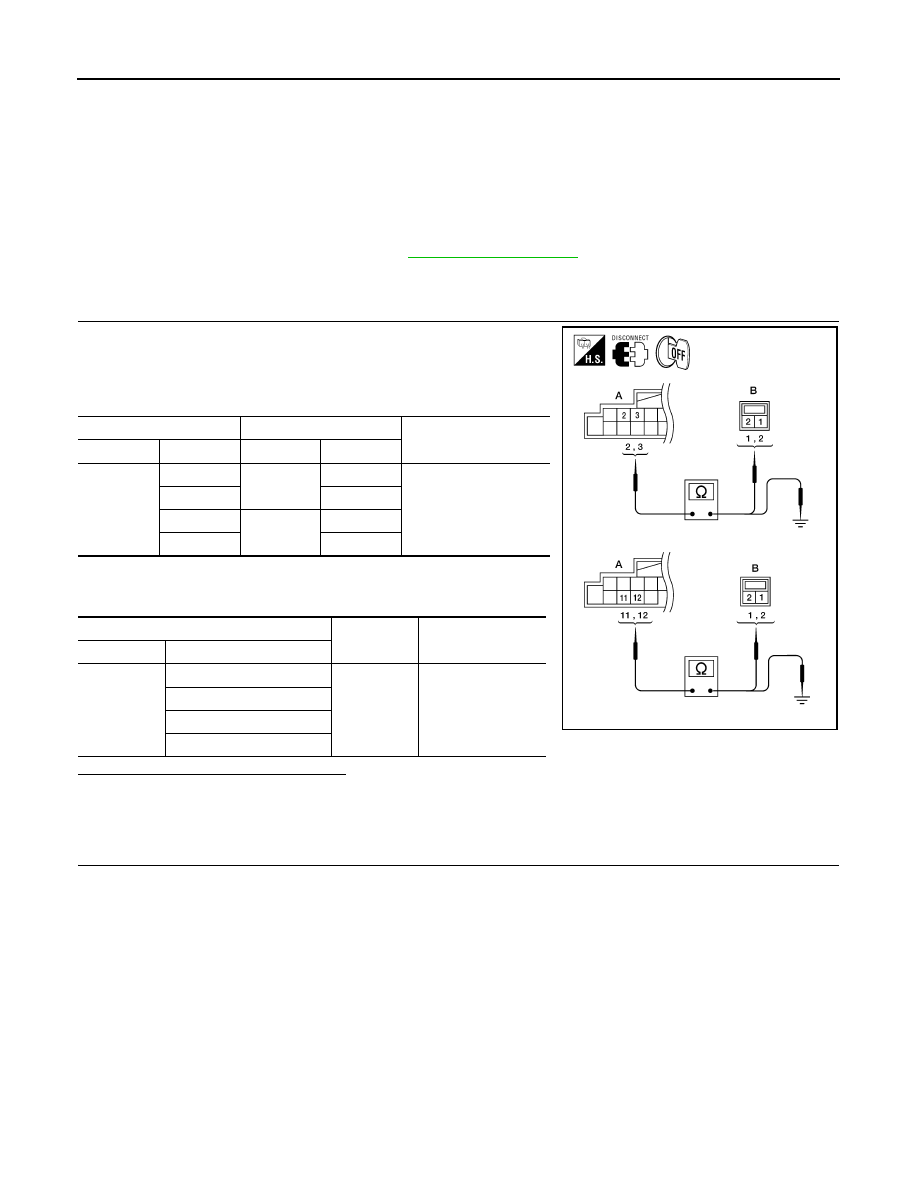

FRONT TWEETER

FRONT TWEETER

Description

INFOID:0000000005274864

The audio unit sends audio signals to the front tweeters using the front tweeter circuits.

Diagnosis Procedure

INFOID:0000000005274865

Regarding Wiring Diagram information, refer to

AV-18, "Wiring Diagram"

.

1.

HARNESS CHECK

1.

Disconnect audio unit connector M43 and suspect front tweeter
connector.

2.

Check continuity between audio unit harness connector M43 (A)
and suspect front tweeter harness connector (B).

3.

Check continuity between audio unit harness connector M43 (A)
and ground.

Are the continuity results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

FRONT TWEETER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

M43

2

M109

1

Yes

3

2

11

M111

1

12

2

A

—

Continuity

Connector

Terminal

M43

2

Ground

No

3

11

12

AWNIA0031ZZ

AV

FRONT TWEETER

AV-13

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

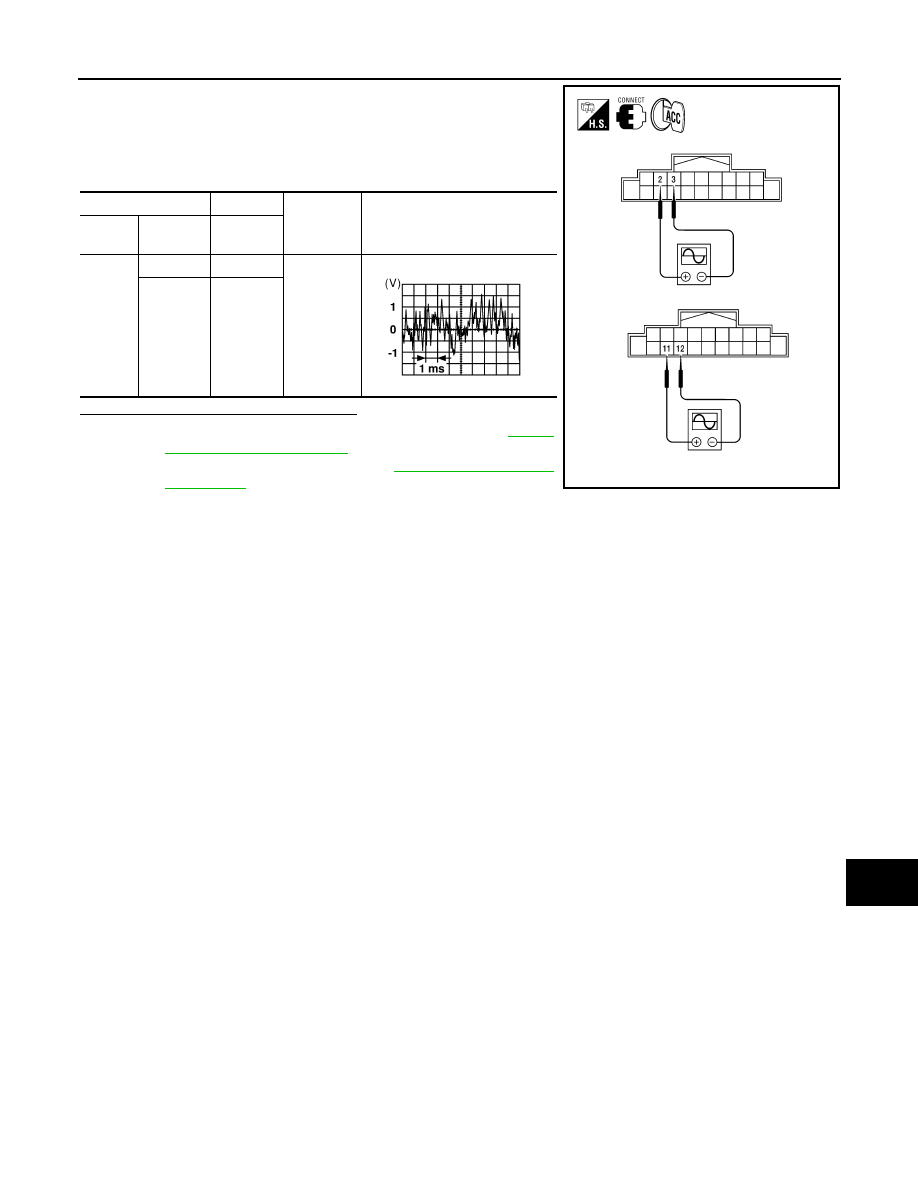

1.

Connect audio unit connector M43 and front tweeter connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between audio unit harness connector M43
terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace the suspect front tweeter. Refer to

AV-29,

"Removal and Installation"

.

NO

>> Replace audio unit. Refer to

AV-28, "Removal and

Installation"

.

(+)

(-)

Condition

Reference signal

Con-

nector

Terminal

Terminal

M43

2

3

Receive
audio sig-
nal

11

12

AWNIA0032ZZ

SKIA0177E

AV-14

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

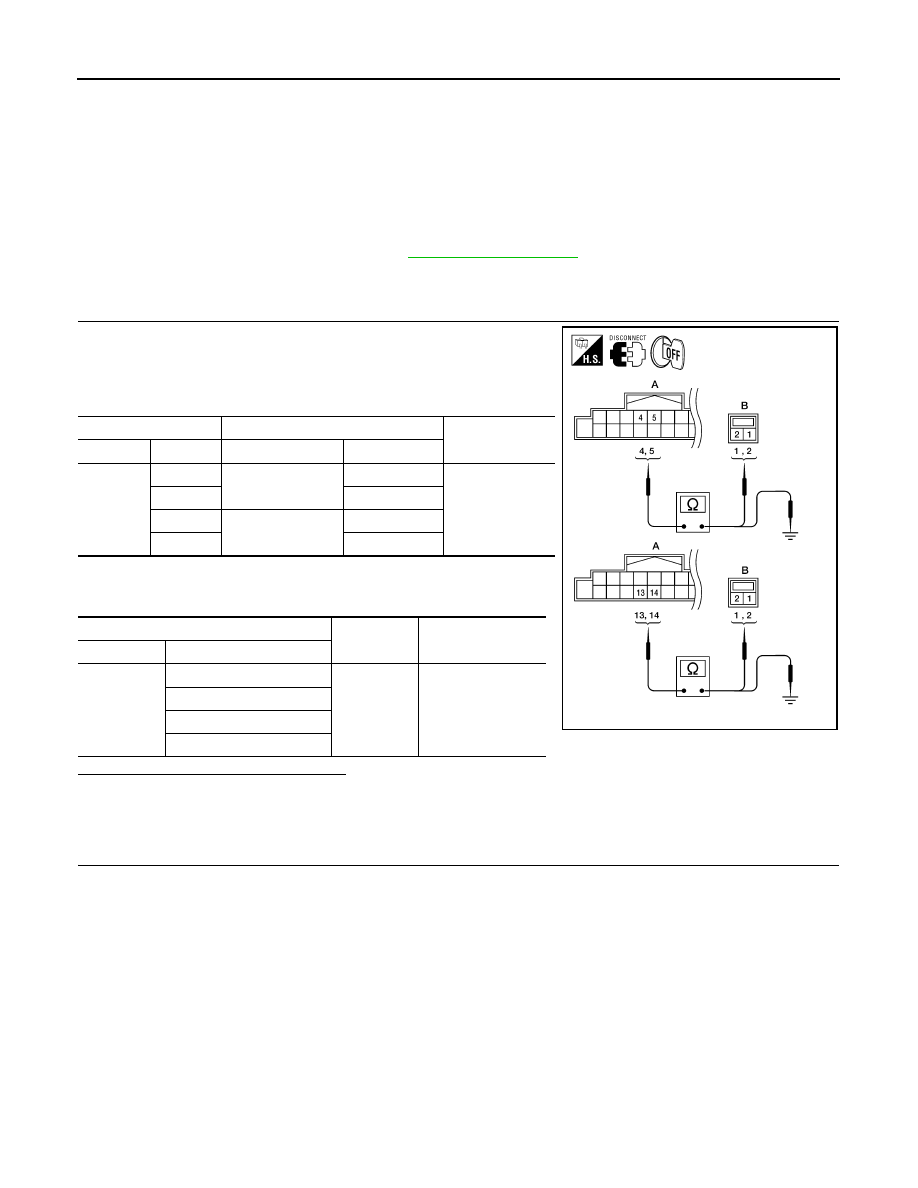

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Description

INFOID:0000000005274866

The audio unit sends audio signals to the rear door speakers using the rear door speaker circuits.

Diagnosis Procedure

INFOID:0000000005274867

Regarding Wiring Diagram information, refer to

AV-18, "Wiring Diagram"

.

1.

HARNESS CHECK

1.

Disconnect audio unit connector M43 and suspect rear door
speaker connector.

2.

Check continuity between audio unit harness connector M43 (A)
and suspect rear door speaker harness connector (B).

3.

Check continuity between audio unit harness connector M43 (A)
and ground.

Are the continuity results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

REAR DOOR SPEAKER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

M43

4

D207 (crew cab)

B76 (king cab)

1

Yes

5

2

13

D307 (crew cab)

B160 (king cab)

1

14

2

A

—

Continuity

Connector

Terminal

M43

4

Ground

No

5

13

14

AWNIA0033ZZ

AV

REAR DOOR SPEAKER

AV-15

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

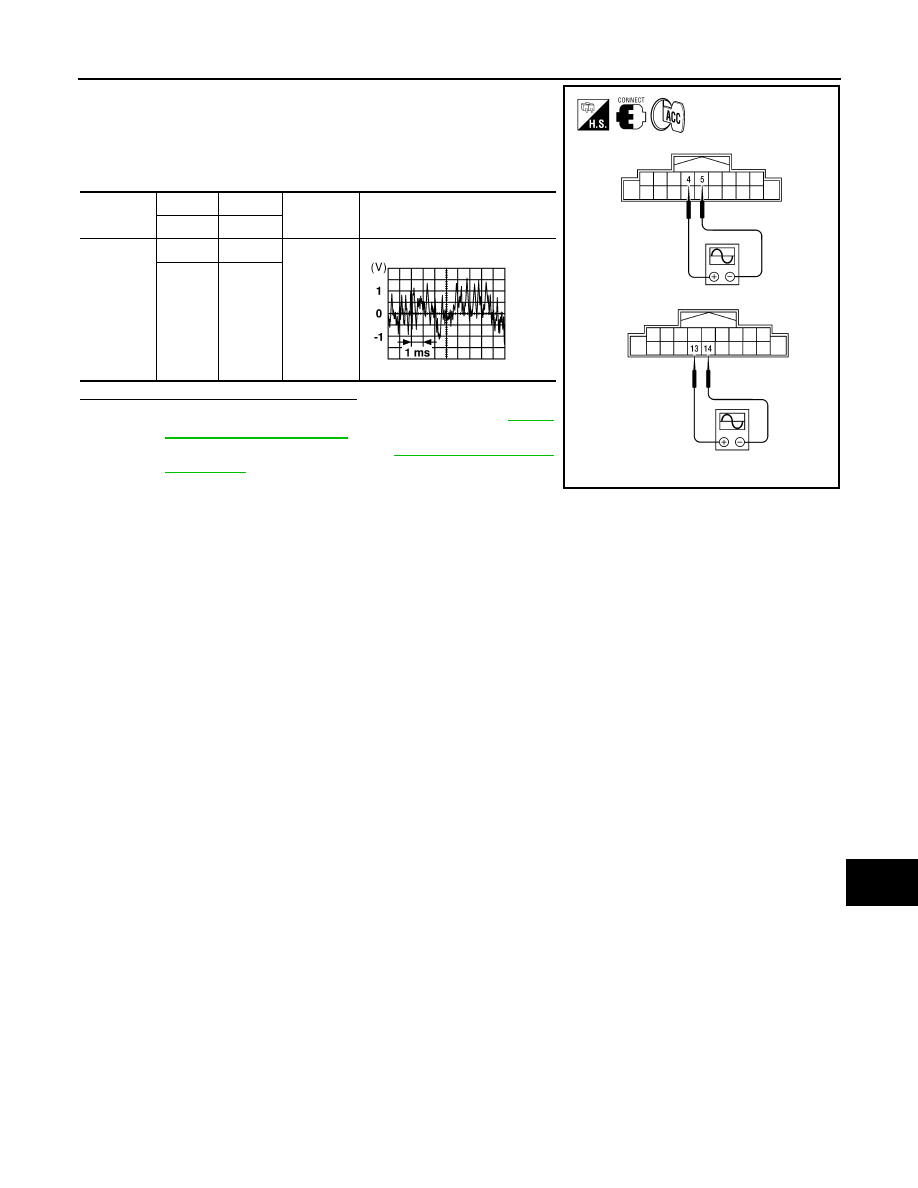

1.

Connect audio unit connector and rear door speaker connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between audio unit harness connector M43
terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace the suspect rear door speaker. Refer to

AV-31,

"Removal and Installation"

.

NO

>> Replace audio unit. Refer to

AV-28, "Removal and

Installation"

.

Connector

(+)

(-)

Condition

Reference signal

Terminal

Terminal

M43

4

5

Receive
audio sig-
nal

13

14

AWNIA0034ZZ

SKIA0177E
